487
8When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)8-1. Essential information
Emergency flashers .......... 488
If your vehicle has to be stopped in an
emergency ...................... 489 8-2. Steps to take in an
emergency
If your vehicle needs to be towed ......................... 491
If you think something is wrong .............................. 496
Fuel pump shut off system ............................ 497
If a warning light turns on or a warning buzzer
sounds ............................ 498
If a warning message or indicator is
displayed ......................... 510
If you have a flat tire.......... 520
If the engine will not start ................................. 532
If the shift lever cannot be shifted from P ............. 534
If the electronic key does not operate
properly ........................... 535
If the vehicle battery is discharged ...................... 538
If your vehicle overheats ........................ 543
If the vehicle becomes stuck ............................... 547

4968-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM12J84U)
lFluid leaks under the vehicle.
(Water dripping from the air co nditioning after use is normal.)
l Flat-looking tires or uneven tire wear
l Vehicles with a drive monitor display: High engine coolant tempera-
ture warning light comes on.
l Vehicles with a multi-information display: Engine coolant tempera-
ture gauge needle continually points higher than normal.
l Changes in exhaust sound
l Excessive tire squeal when cornering
l Strange noises related to the suspension system
l Pinging or other noises related to the engine
l Engine missing, stumbling or running roughly
l Appreciable loss of power
l Vehicle pulls heavily to one side when braking
l Vehicle pulls heavily to one side when driving on a level road
l Loss of brake effectiveness, spon gy feeling, pedal almost touches
the floor
If you think something is wrong
If you notice any of the follow ing symptoms, your vehicle proba-
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

5018-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
*1: Parking brake engaged warning buzzer: P. 510
*2: Open door warning buzzer:P. 510
*3: Vehicles with a drive monitor display
*4: Vehicles with a multi-information display
(U.S.A.)
Maintenance required reminder light*3
Indicates that maintenance is required according to the
driven distance on the maintenance schedule.
*7
Illuminates for about 3 seconds and then flashes for about
15 seconds approximately 4500 miles (7200 km) after the
reminder light has been reset.
 If necessary, perform maintenance.
Comes on and remains on if the distance driven exceeds
5000 miles (8000 km) after the reminder light has been
reset.
(The indicator will not work properly unless the reminder
light has been reset.)
 Perform the necessary maintenance.
Please reset the reminder light after the maintenance
is performed.
(P. 427)
Warning lightWarning light/Details/Actions

5038-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
After taking the specified steps to correct the suspected problem,
check that the warning light turns off.
Follow the correction procedures. (vehicles with a smart key
system and with a drive monitor display)
InteriorbuzzerExterior buzzerWarning lightWarning light/Details/Action
Continuous Continuous
(Flashes in yel- low)
Smart key system indi cator light (except
vehicles with a manual transmission)
The electronic key was carried outside the
vehicle and the driver’s door was opened and
closed while any shift position other than P
was selected without turning off the engine
switch.
 Change the shift position to P.
 Bring the electronic key back into the vehi-
cle.
Once3 times
(Flashes in yel-
low)
Smart key system indi cator light (except
vehicles with a manual transmission) The electronic key was carried outside the
vehicle and the driver’s door was opened and
closed while the shift position P was selected
without turning off the engine switch.
 Turn the engine switch off or bring the
electronic key back into the vehicle.
Smart key system indicator light
Indicates that a door other than the driver’s
door has been opened and closed with the
engine switch in any mode other than off and
the electronic key outside of the detection
area.
 Confirm the location of the electronic key.

5108-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM12J84U)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning message or indicator comes on again after the
following actions have been performed, contact your Toyota dealer.

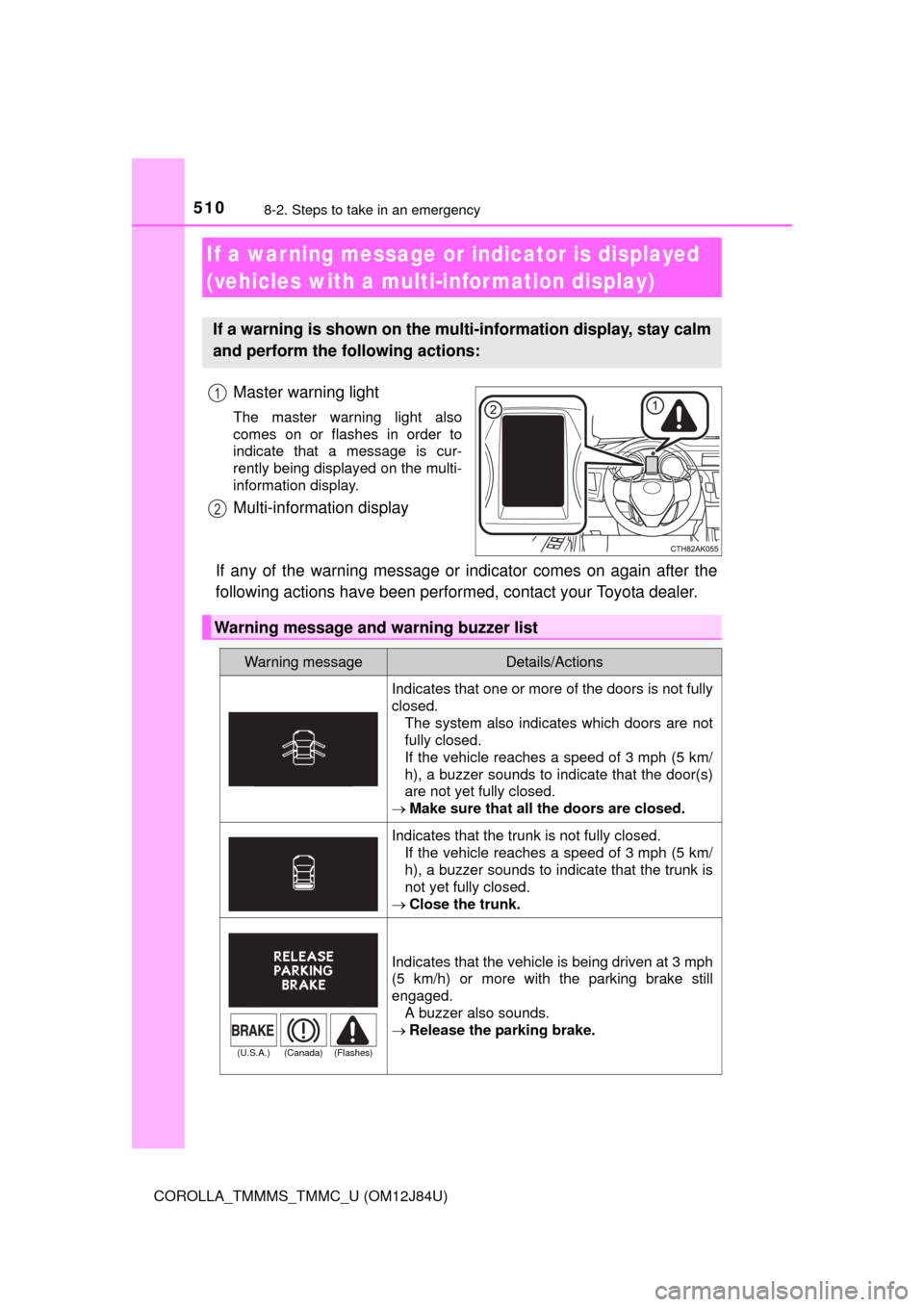

If a war ning message or indicator is displayed
(vehicles with a multi-infor mation display)
If a warning is shown on the multi-information display, stay calm
and perform the following actions:
1
2
Warning message and warning buzzer list
Warning messageDetails/Actions
Indicates that one or more of the doors is not fully
closed. The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 3 mph (5 km/
h), a buzzer sounds to indicate that the door(s)
are not yet fully closed.
 Make sure that all the doors are closed.
Indicates that the trunk is not fully closed.
If the vehicle reaches a speed of 3 mph (5 km/
h), a buzzer sounds to indicate that the trunk is
not yet fully closed.
 Close the trunk.
Indicates that the vehicle is being driven at 3 mph
(5 km/h) or more with the parking brake still
engaged.
A buzzer also sounds.
 Release the parking brake.
(U.S.A.) (Canada) (Flashes)

5138-2. Steps to take in an emergency
8
When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
After taking the specified steps to correct the suspected problem,
check that the warning message and light go off.
Have the malfunction repaired immediately. (vehicles with a
smart key system)
InteriorbuzzerExterior
buzzerWarning messageDetails/Actions
Con-
tinu-
ous 
(Vehicles with a continuously variable
transmission)
The driver’s door was opened
while any shift lever other than
P was selected without turning
off the engine switch.
Shift the shift lever to P.
Con-
tinu-
ousContin-
uous
(Vehicles with a continuously variable transmission)
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was not in P and the
engine switch was not turned
off.
Shift the shift lever to P.
 Bring the electronic key
back into the vehicle.
(Flashes)
(Displayed alternately)
(Flashes)

5148-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM12J84U)

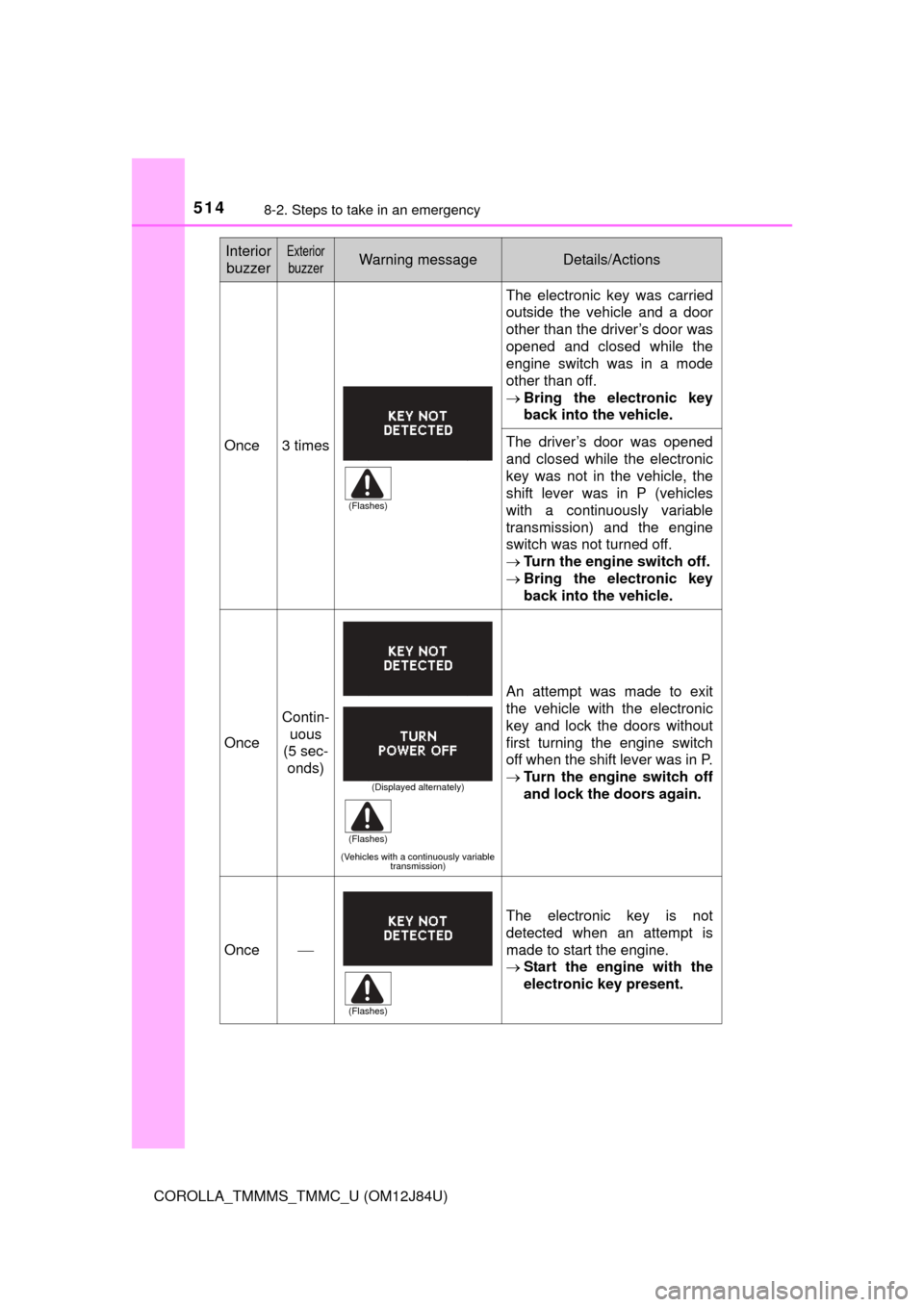

Once3 times
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
engine switch was in a mode
other than off.
Bring the electronic key
back into the vehicle.
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was in P (vehicles
with a continuously variable
transmission) and the engine
switch was not turned off.
Turn the engine switch off.
 Bring the electronic key
back into the vehicle.
Once
Contin-
uous
(5 sec-
onds)
(Vehicles with a continuously variable transmission)
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the engine switch
off when the shift lever was in P.
Turn the engine switch off
and lock the doors again.
Once  The electronic key is not
detected when an attempt is
made to start the engine.

Start the engine with the
electronic key present.
Interior
buzzerExterior
buzzerWarning messageDetails/Actions
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

5368-2. Steps to take in an emergency
COROLLA_TMMMS_TMMC_U (OM12J84U)
Continuously variable transmission: Ensure that the shift lever is in
P and depress the brake pedal.
Manual transmission: Shift the shift lever to N and depress the
clutch pedal.
Touch the Toyota emblem side
of the electronic key to the
engine switch.
When the electronic key is
detected, a buzzer sounds and the
engine switch will turn to IGNITION
ON mode.
When the smart key system is
deactivated in customization set-
ting, the engine switch will turn to
ACCESSORY mode.
Vehicles with a drive monitor display: Firmly depress the brake
pedal (continuously variable transm ission) or clutch pedal (manual
transmission) and check that the smart key system indicator light
(green) turns on.
Vehicles with a multi- information display: Firmly depress the brake
pedal (continuously variable transm ission) or clutch pedal (manual
transmission) and check that is shown on the multi-informa-
tion display.
Press the engine switch.
In the event that the engine still c annot be started, contact your Toyota
dealer.
Starting the engine
1
2
3
4
