When trouble arises
COROLLA_TMMMS_TMMC_U (OM12J84U)
lVehicles with a drive monitor disp lay: The high engine coolant tem-
perature warning light ( P. 498) comes on or a loss of power is
experienced.
Vehicles with a multi-information display: The engine coolant tem-
perature gauge ( P. 82) enters the red zone or a loss of power is
experienced.
l Steam comes out from under the hood.
Stop the vehicle in a safe place and turn off the air conditioning sys-
tem, and then stop the engine.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the engine has cooled
down sufficient ly, inspect the
hoses and radiator core (radia-
tor) for any leaks.
Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact your
Toyota dealer.

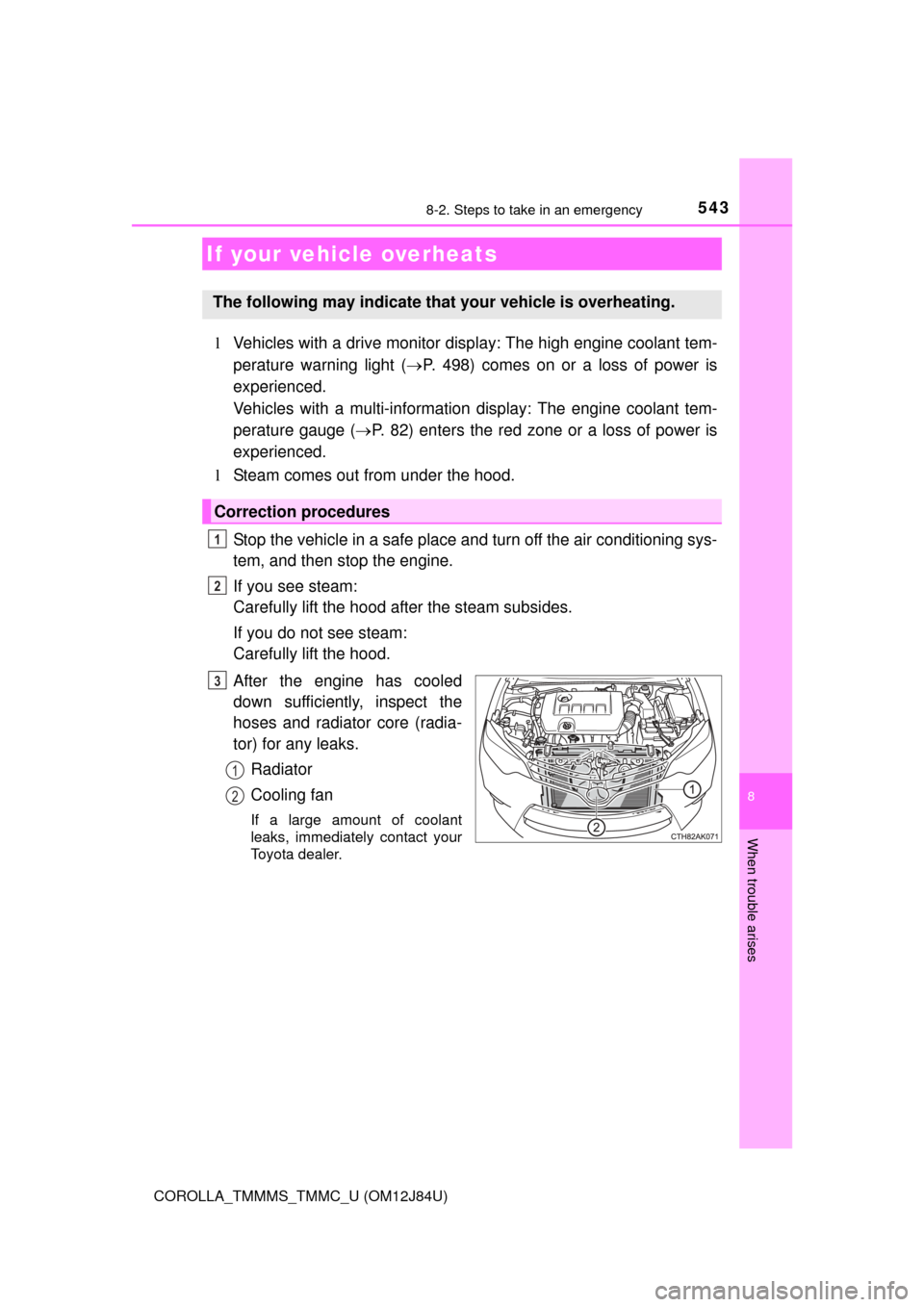

If your vehicle overheats
The following may indicate that your vehicle is overheating.
Correction procedures
1
2
3
1
2

583
9
Vehicle specifications
COROLLA_TMMMS_TMMC_U (OM12J84U)

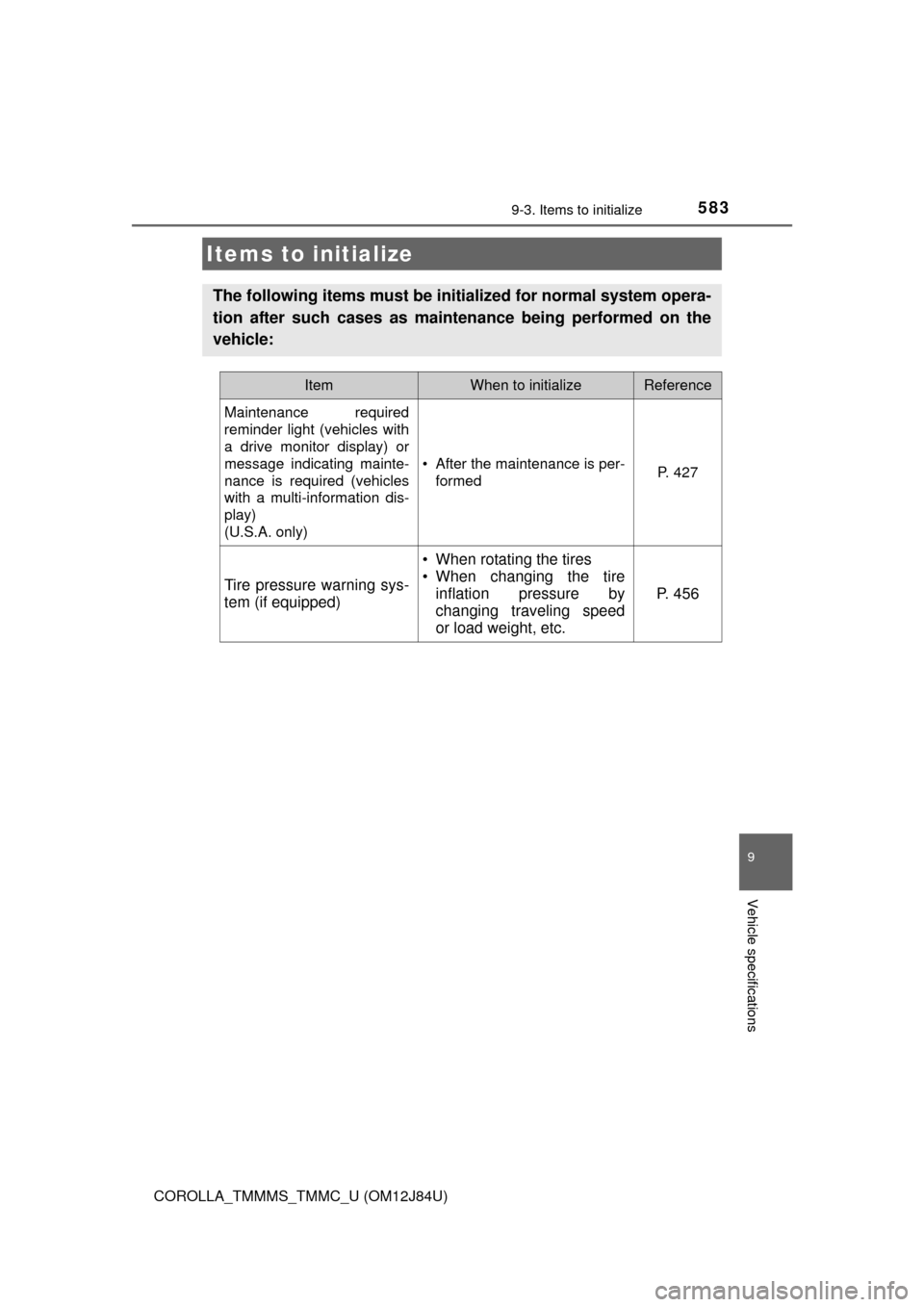

9-3. Items to initialize
Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as maintenance being performed on the
vehicle:
ItemWhen to initializeReference
Maintenance required
reminder light (vehicles with
a drive monitor display) or
message indicating mainte-
nance is required (vehicles
with a multi-information dis-
play)
(U.S.A. only)
• After the maintenance is per- formedP. 427
Tire pressure warning sys-
tem (if equipped)
• When rotating the tires
• When changing the tireinflation pressure by
changing traveling speed
or load weight, etc.
P. 4 5 6

604What to do if... (Troubleshooting)
COROLLA_TMMMS_TMMC_U (OM12J84U)
lThe auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not running) for a period of
time. (P. 172)
lThe seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? ( P. 500)
lThe brake system warning light is on
Is the parking brake released? (P. 187)
Depending on the situation, other types of warning buzzer may also sound.
(  P. 498, 510)
lIs the electronic key left inside the vehicle?
Vehicles with a multi-information display: Check the message on the multi-
information display. ( P. 510)

lDid anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 68)
Vehicles without a smart key system
To stop the alarm, turn the engine switch to the “ON” position or start the
engine.
Vehicles with a smart key system
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
lWhen a warning light turns on, refer to P. 498.
lWhen a warning light turns on or a warning message or indicator is dis-
played, refer to P. 498, 510.
The engine switch is turned off automatically
(vehicles with a smart key system)
A warning buzzer sounds during driving
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart key system)
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning light turns on
(vehicles with a drive monitor display)
A warning light turns on or a warning message or indicator
is displayed (vehicles with a multi-information display)
