The temperature display shows temperatures within the range of -40F
(-40 C) to 122 F (50C).
n The outside temperature is displayed when
Vehicles without a smart key system
The engine switch is in the “ON” position.
Vehicles with a smart key system
The engine switch is in IGNITION ON mode.
n Display
In the following situations, the correct outside temperature may not be dis-
played, or the display may take longer than normal to change.
lWhen the vehicle is stopped, or moving at low speeds (less than 9 mph [15
km/h]).
l When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)
n When “-- F” is displayed
The system may be malfunctioning. Take your vehicle to your Toyota dealer.

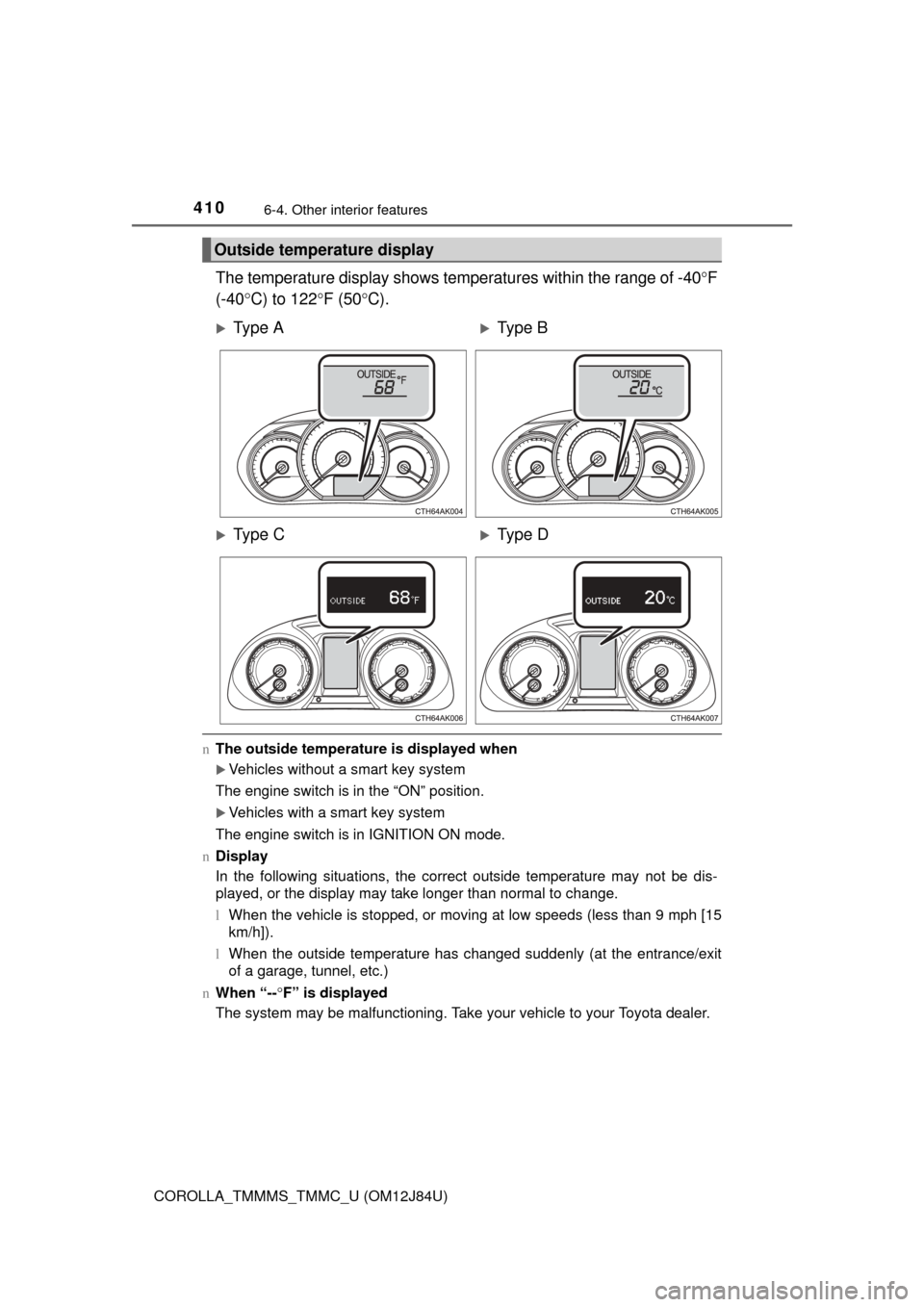

Outside temperature display
Ty p e AType B
Ty p e CType D

4136-4. Other interior features
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)

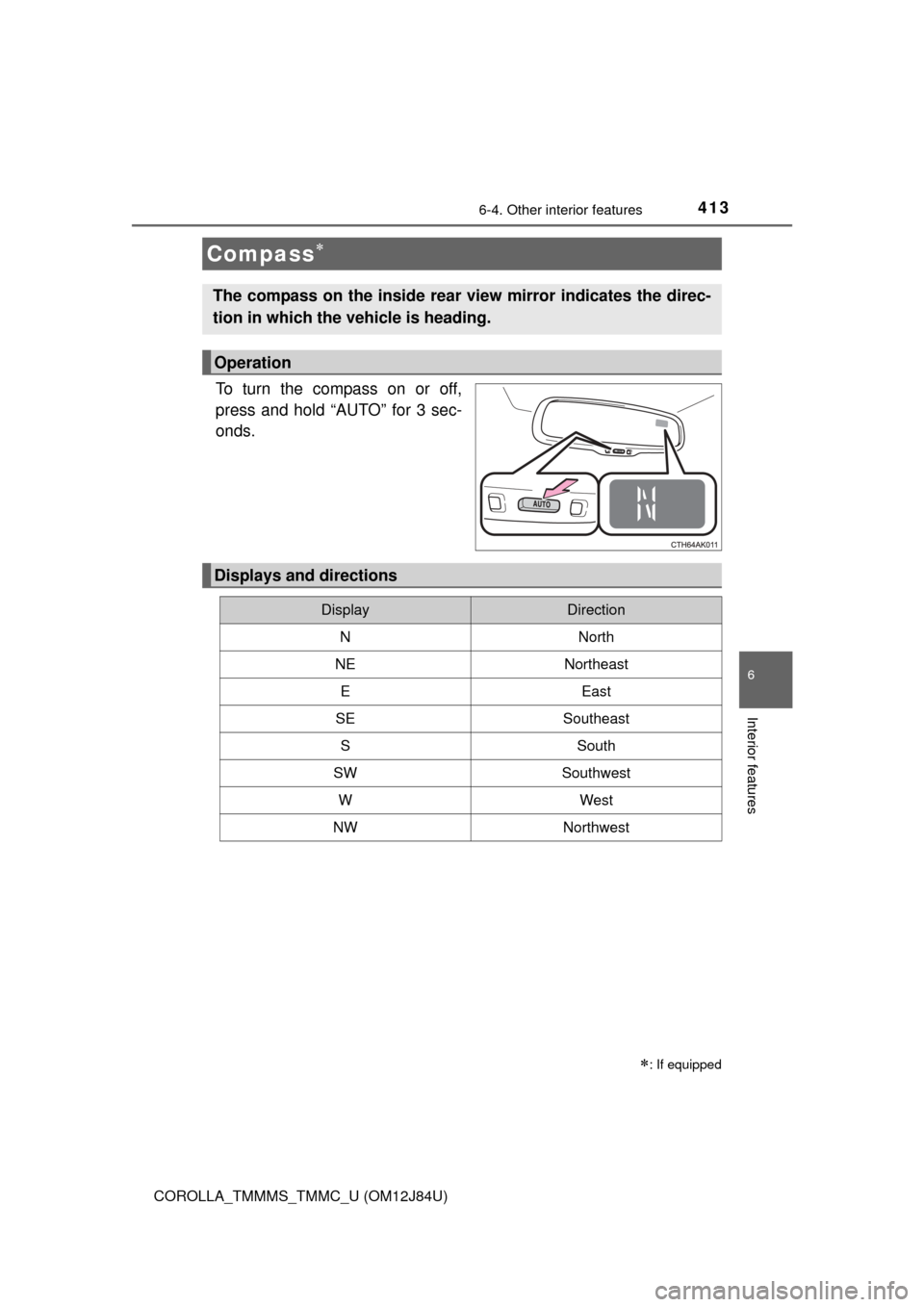

To turn the compass on or off,
press and hold “AUTO” for 3 sec-
onds.
Compass
: If equipped
The compass on the inside rear view mirror indicates the direc-
tion in which the vehicle is heading.
Operation
Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWest
NWNorthwest

4146-4. Other interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)
The direction display deviates from the true direction determined by
the earth’s magnetic field. The amoun t of deviation varies according to
the geographic position of the vehicle.
If you cross over a map boundary shown in illustration, the compass will
deviate.
To obtain higher precision or perfect calibration, refer to the following.
n
Deviation calibration
Stop the vehicle.
Press and hold “AUTO” for 6
seconds.
A number (1 to 15) appears on
the compass display.
Press the switch and referring to the map above, select the num-
ber of the zone where you are.
If the direction is displayed several seconds after adjustment, the cali-
bration is complete.

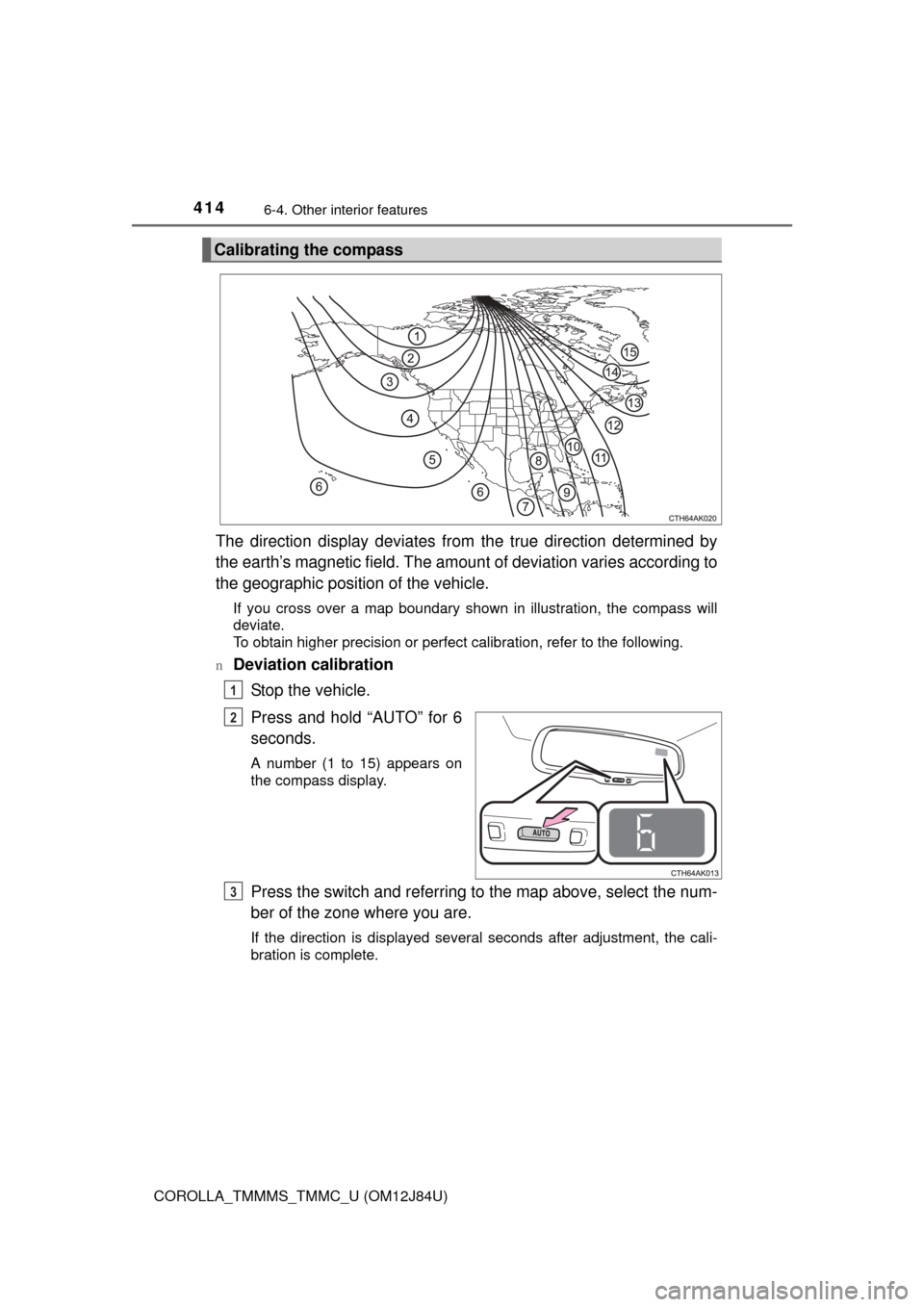

Calibrating the compass
1
2
3

4156-4. Other interior features
6
Interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)n

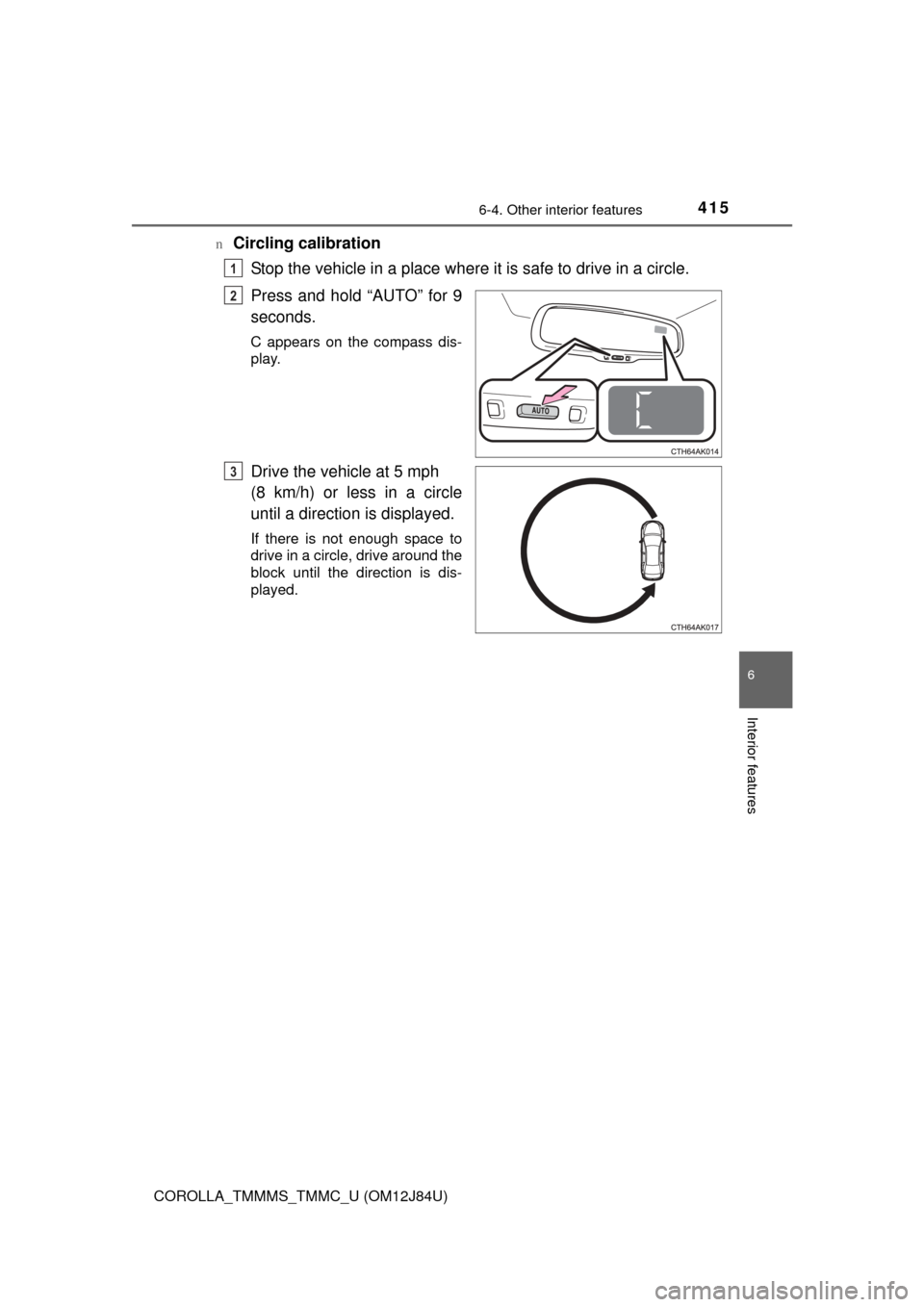

Circling calibration
Stop the vehicle in a place where it is safe to drive in a circle.
Press and hold “AUTO” for 9
seconds.
C appears on the compass dis-
play.
Drive the vehicle at 5 mph
(8 km/h) or less in a circle
until a direction is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
1
2
3

4166-4. Other interior features
COROLLA_TMMMS_TMMC_U (OM12J84U)
nConditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
lThe vehicle is stopped immediately after turning.
l The vehicle is on an inclined surface.
l The vehicle is in a place where the earth's magnetic field is subject to inter-
ference by artificial magnetic fiel ds (underground car park/parking lot, under
a steel tower, between buildings, roof car park/parking lot, near an intersec-
tion, near a large vehicle, etc.).
l The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
l The battery has been disconnected.
l A door is open.
CAUTION
n While driving the vehicle
Do not adjust the display. Adjust the display only when the vehicle is
stopped.
n When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling cali-
bration.
NOTICE
nTo avoid compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause the compass sensor to malfunction.
n To ensure normal operation of the compass
lDo not perform circling calibration of the compass in a place where the
earth's magnetic field is subject to inte rference by artificial magnetic fields.
l During calibration, do not operate electric systems (moon roof, power win-
dows, etc.) as they may interfere with the calibration.
