The installation of an RF-transmitter system in your vehicle could affect elec-
tronic systems such as:
● Multiport fuel injection system/sequential multiport fuel injection system
● Dynamic radar cruise control with full-speed range (if equipped)
● Dynamic radar cruise control system (if equipped)
● Cruise control system (if equipped)
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer for precautionary measures or special
instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna posi-
tions and installation provisions for the installation of RF-transmitters, is avail-
able on request at any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.

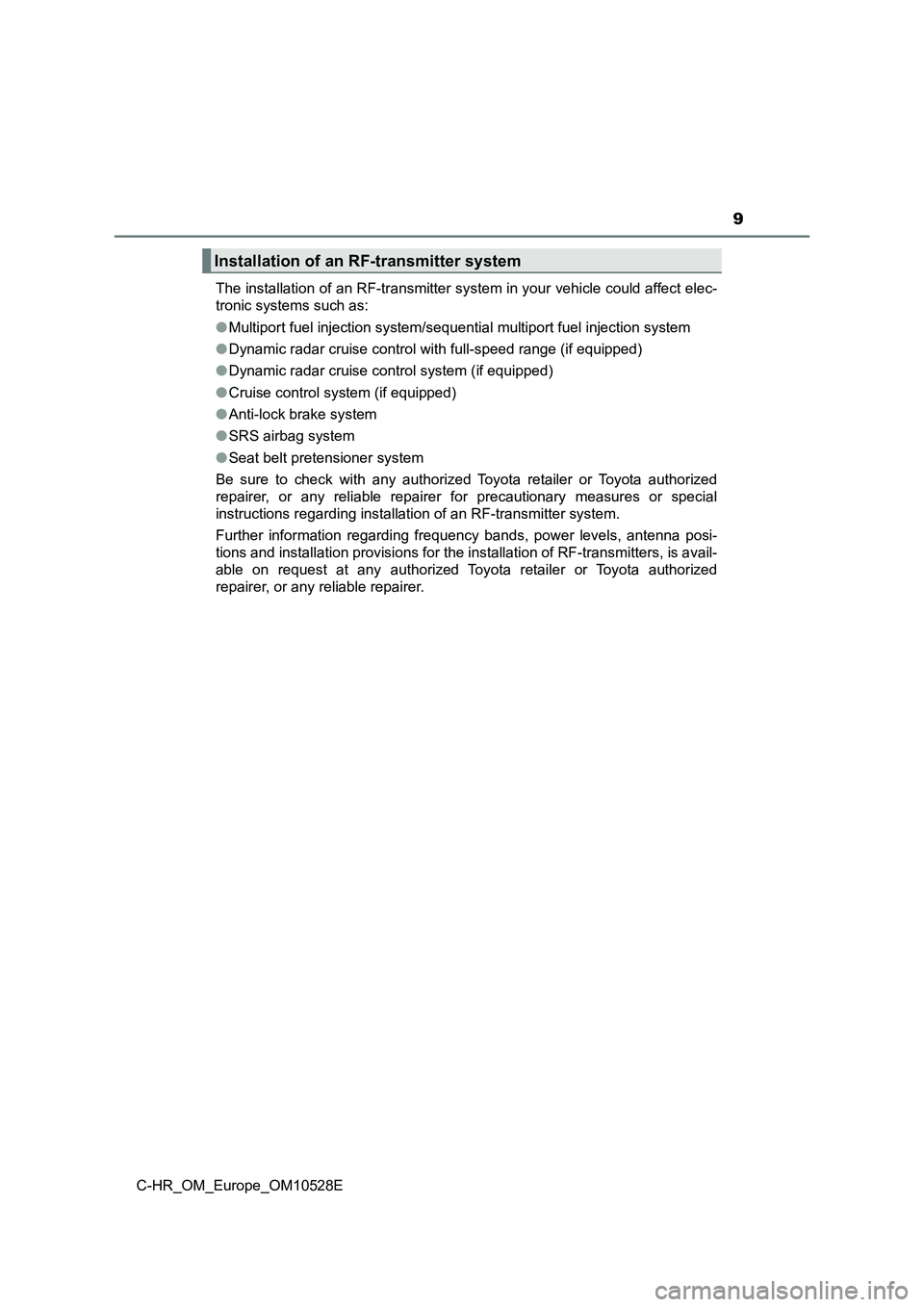

Installation of an RF-transmitter system

10
C-HR_OM_Europe_OM10528E
The SRS airbag and seat belt pretensioner devices in your Toyota contain
explosive chemicals. If the vehicle is scrapped with the airbags and seat belt
pretensioners left as they are, this may cause an accident such as fire. Be
sure to have the systems of the SRS airbag and seat belt pretensioner
removed and disposed of by a qualified service shop or by any authorized
Toyota retailer or Toyota authorized r epairer, or any reliable repairer, before
you scrap your vehicle.

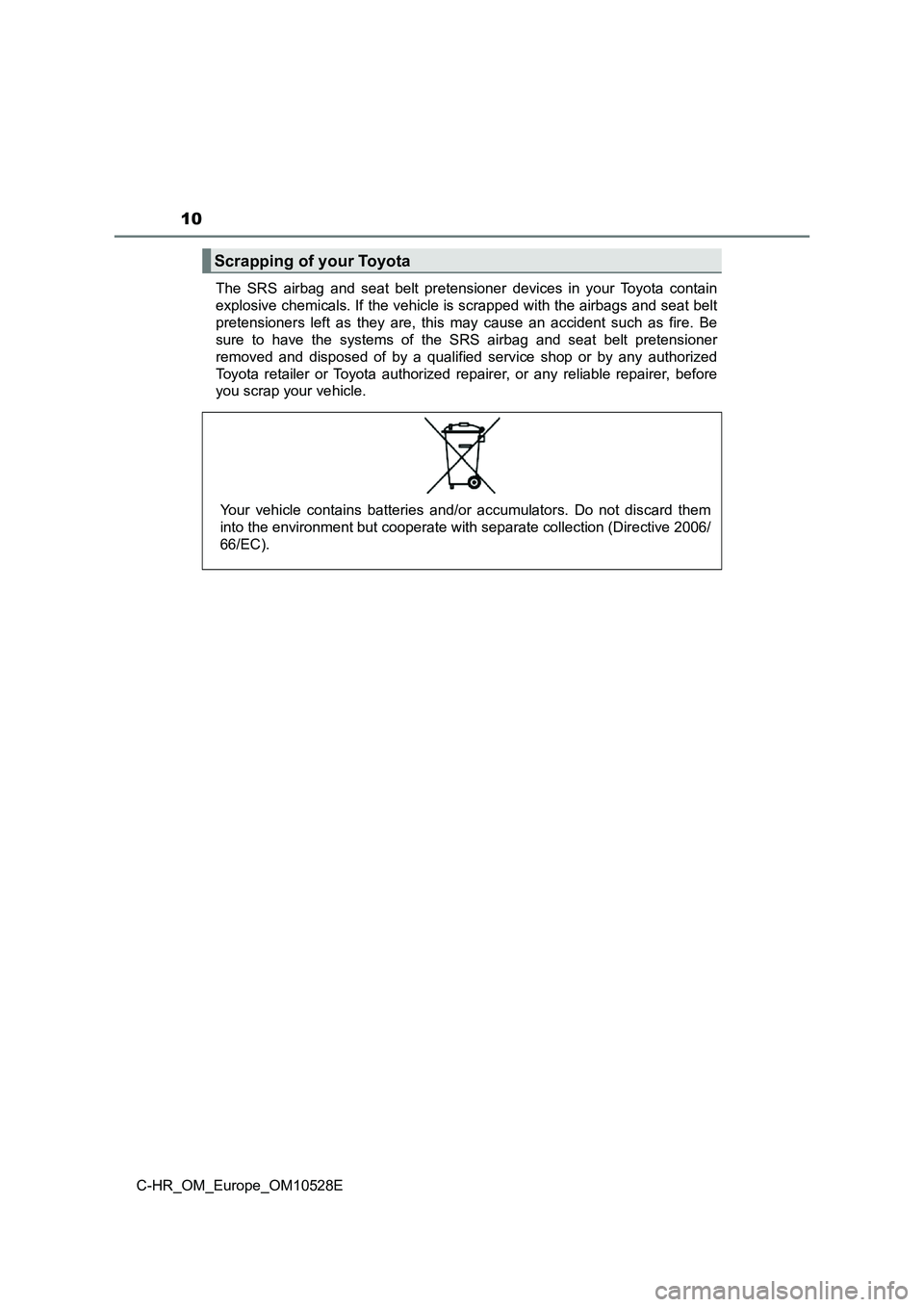

Scrapping of your Toyota
Your vehicle contains batteries and/or accumulators. Do not discard them
into the environment but cooperate with separate collection (Directive 2006/
66/EC).

11
C-HR_OM_Europe_OM10528E
WARNING
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influ-
ence of alcohol or drugs that have impair ed your ability to operate your vehi-
cle. Alcohol and certain drugs delay reaction time, impair judgment and
reduce coordination, which could lead to an accident that could result in
death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that
distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

12
C-HR_OM_Europe_OM10528E

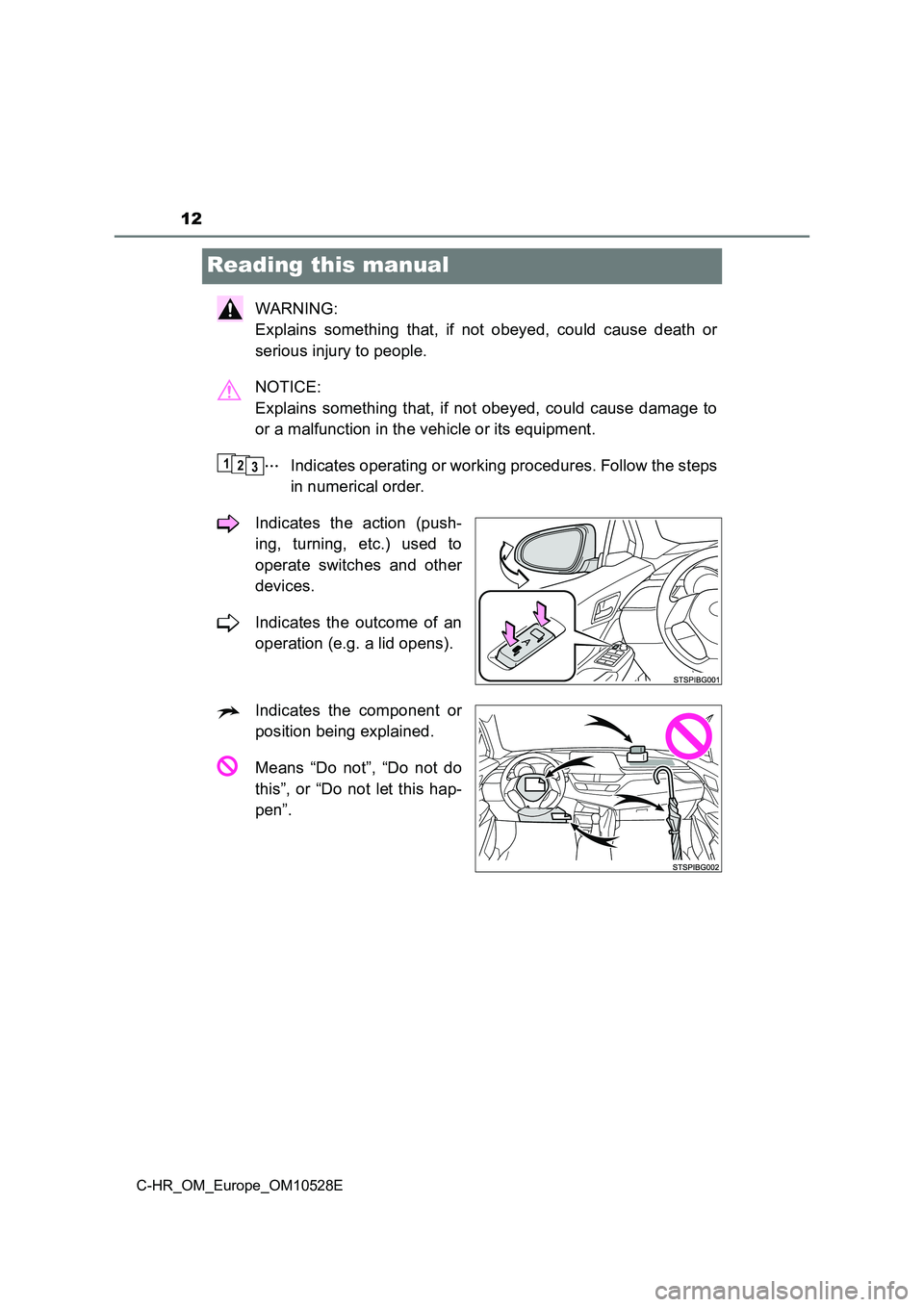

Reading this manual
WARNING:
Explains something that, if not obeyed, could cause death or
serious injury to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to
or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps
in numerical order.
Indicates the action (push-
ing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or
position being explained.
Means “Do not”, “Do not do
this”, or “Do not let this hap-
pen”.
123

13
C-HR_OM_Europe_OM10528E

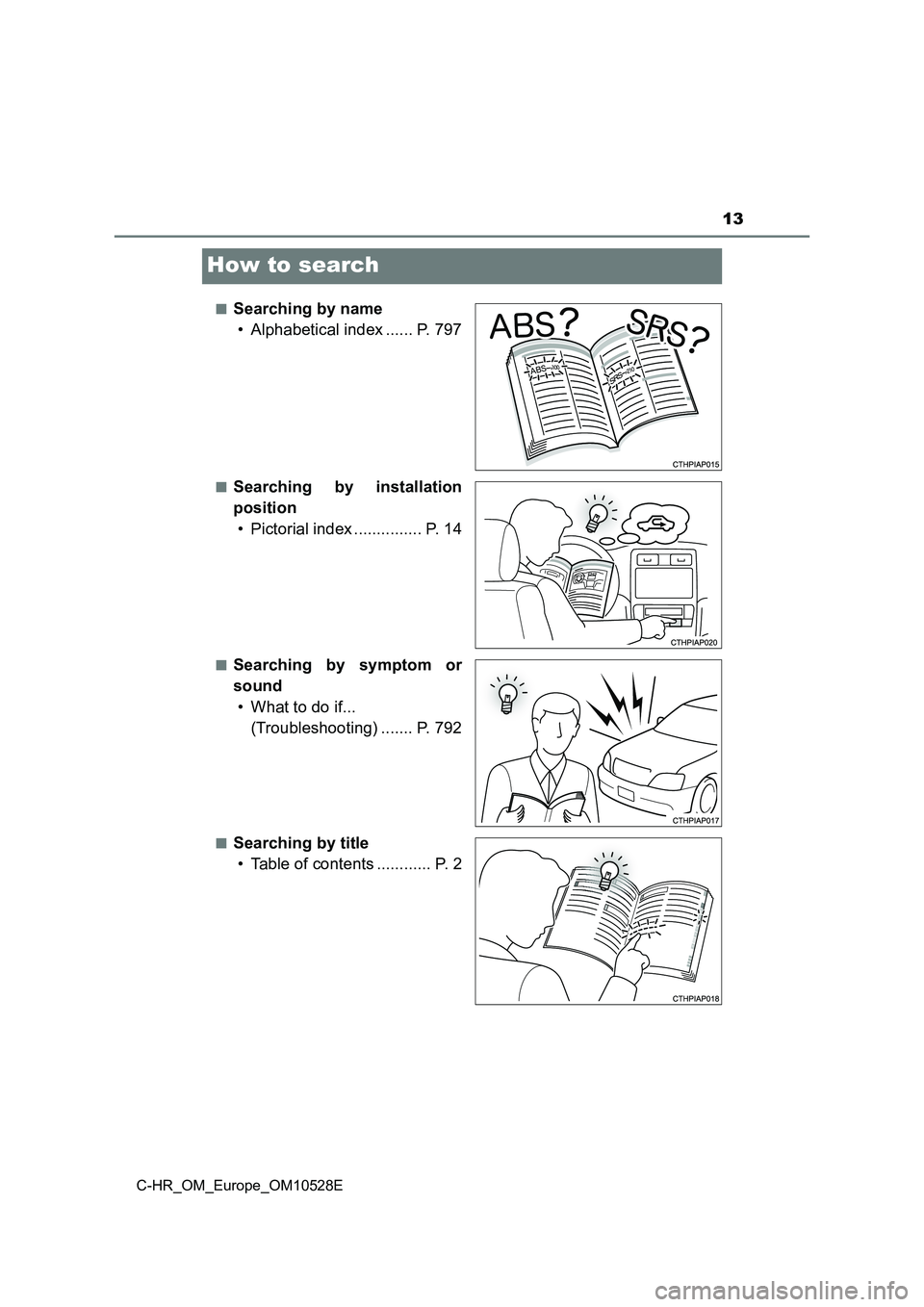

How to search
■Searching by name
• Alphabetical index ...... P. 797
■Searching by installation
position
• Pictorial index ............... P. 14
■Searching by symptom or
sound
• What to do if...
(Troubleshooting) ....... P. 792
■Searching by title
• Table of contents ............ P. 2

14Pictorial index
C-HR_OM_Europe_OM10528E
Pictorial index
■Exterior
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Opening/closing the side windows . . . . . . . . . . . . . . . . . . . . . P. 201
Locking/unlocking using the mechanical key*1. . . . . . . . . . . . P. 747
Warning lights*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 693, 704
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
Locking/unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
Warning lights*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 693, 704
Outside rear view mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
Adjusting the mirror angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 198
Folding the mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 199
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 562, 569
1
2
3

15Pictorial index
C-HR_OM_Europe_OM10528E
Windshield wipers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 278
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
To prevent freezing (windshield wiper de-icer*3) . . . . . . . . . . . P. 570
Precautions for using a car wash . . . . . . . . . . . . . . . . . . . . . . P. 602
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 285
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 764
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 631
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 772
Winter tires/tire chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 470
Checking/rotation/tire pressure warning system . . . . . . . . . . . P. 631
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 710, 730
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 615
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 615
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 765
Coping with overheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 756
Headlights/front position lights/daytime running lights/
turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 255, 265
Front fog lights*3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Side turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 255
Stop lights/tail lights/turn signal lights . . . . . . . . . . . . P. 255, 265
Tail lights (LED type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265
Back-up light
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 244, 250
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 265
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
4
5
6
7
Light bulbs of the exterior lights for driving
(Replacing method: P. 661, Watts: P. 773)
*1: Vehicles with a smart entry & start system
*2: Vehicles with monochrome display
*3: If equipped
8
9
10
11
12
13
14

16Pictorial index
C-HR_OM_Europe_OM10528E
■Instrument panel (left-hand drive vehicles)
Engine switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 233, 236
Starting the engine/changing the positions*1 . . . . . . . . . . . . . P. 233
Starting the engine/changing the modes*2. . . . . . . . . . . . . . . P. 236
Emergency stop of the engine . . . . . . . . . . . . . . . . . . . . . . . . . P. 681
When the engine will not start . . . . . . . . . . . . . . . . . . . . . . . . . P. 745
Warning messages*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 704
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 244, 250
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . P. 244, 250
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 683
When the shift lever does not move*4. . . . . . . . . . . . . . . . . . . P. 248
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 119
Reading the meters/adjusting the instrument cluster light . . . . P. 119
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 108
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . P. 693
1
2
3
