571-2. Child safety
1
For safety and security
C-HR_OM_Europe_OM10528E
Airbag manual on-off system
“PASSENGER AIR BAG” indi-
cator
Vehicles without a smart entry &
start system: The “PASSENGER
AIR BAG” and “ON” indicator light
turns on when the airbag system is
on, and about after 60 seconds
they go off (only when the engine
switch is in the “ON” position).
Vehicles with a smart entry & start
system: The “PASSENGER AIR
BAG” and “ON” indicator light turns
on when the airbag system is on,
and about after 60 seconds they go
off (only when the engine switch is
in IGNITION ON mode).
Airbag manual on-off switch
: If equipped
This system deactivates the front passenger airbag.
Only deactivate the airbag when using a child restraint system
on the front passenger seat.
1
2

581-2. Child safety
C-HR_OM_Europe_OM10528E
Vehicles without a smart entry &
start system: Insert the key into
the cylinder and turn it to the
“OFF” position.
The “OFF” indicator light turns on
(only when the engine switch is in
the “ON” position).
Vehicles with a smart entry & start
system: Insert the mechanical key
into the cylinder and turn it to the
“OFF” position.
The “OFF” indicator light turns on (only when the engine switch is in IGNI-
TION ON mode).
■ “PASSENGER AIR BAG” indicator information
If any of the following problems occur, it is possible that there is a malfunction
in the system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
● The “OFF” indicator does not illuminate when the airbag manual on-off
switch is set to “OFF”.
● The indicator light does not change when the airbag manual on-off switch is
switched to “ON” or “OFF”.
Deactivating the airbags for the front passenger

591-2. Child safety
1
For safety and security
C-HR_OM_Europe_OM10528E

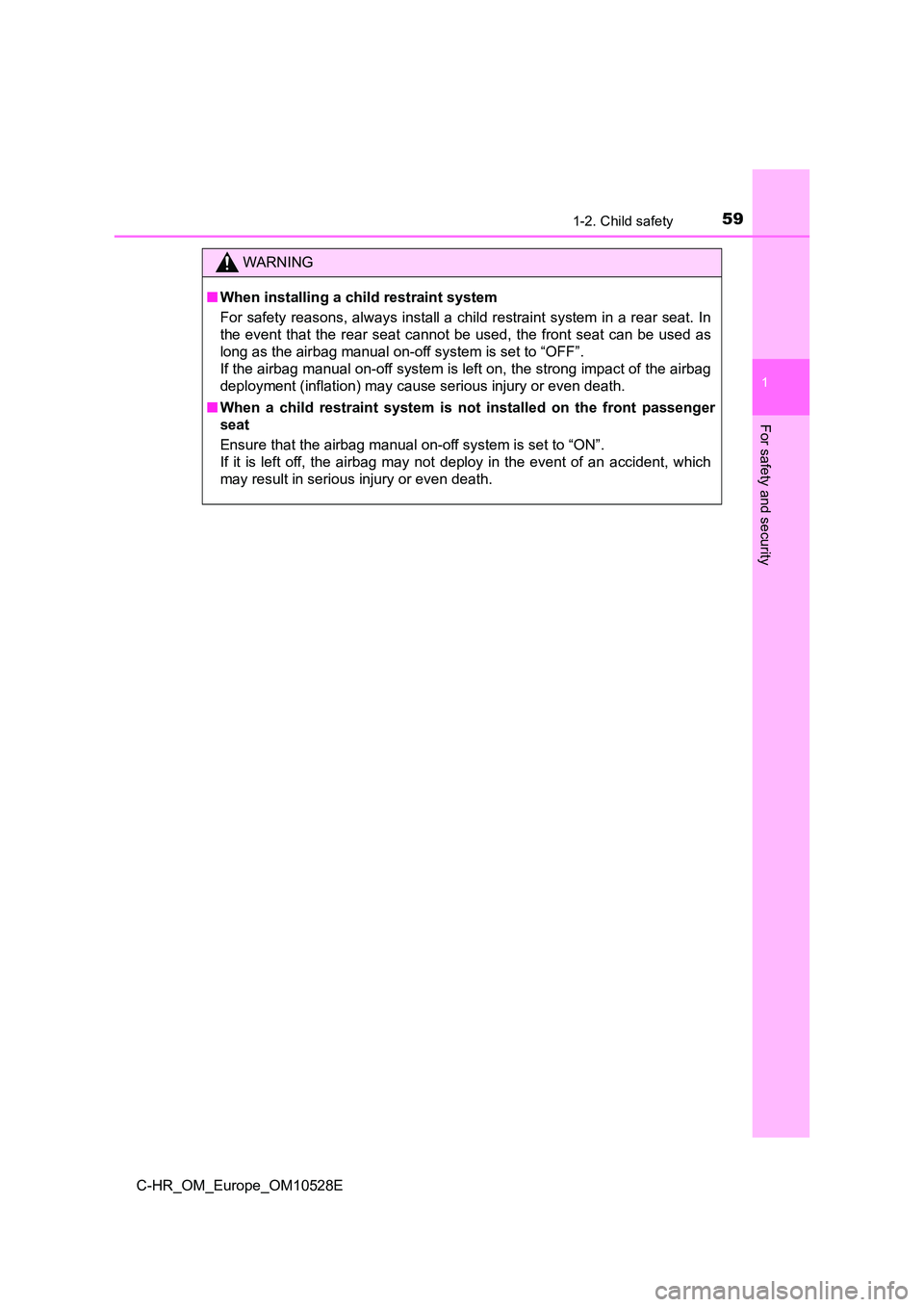

WARNING
■When installing a child restraint system
For safety reasons, always install a child restraint system in a rear seat. In
the event that the rear seat cannot be used, the front seat can be used as
long as the airbag manual on-off system is set to “OFF”.
If the airbag manual on-off system is left on, the strong impact of the airbag
deployment (inflation) may cause serious injury or even death.
■ When a child restraint system is not installed on the front passenger
seat
Ensure that the airbag manual on-off system is set to “ON”.
If it is left off, the airbag may not deploy in the event of an accident, which
may result in serious injury or even death.

601-2. Child safety
C-HR_OM_Europe_OM10528E
Riding with children
●It is recommended that children sit in the rear seats to avoid acci-
dental contact with the shift lever, wiper switch, etc.
● Use the rear door child-protector lock or the window lock switch to
avoid children opening the door while driving or operating the
power window accidentally. ( P. 161, 201)
● Do not let small children operate equipment which may catch or
pinch body parts, such as the power window, hood, back door,
seats, etc.
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the side windows or other features of the vehicle. In addition, heat build-up
or extremely cold temperatures inside the vehicle can be fatal to children.

611-2. Child safety
1
For safety and security
C-HR_OM_Europe_OM10528E

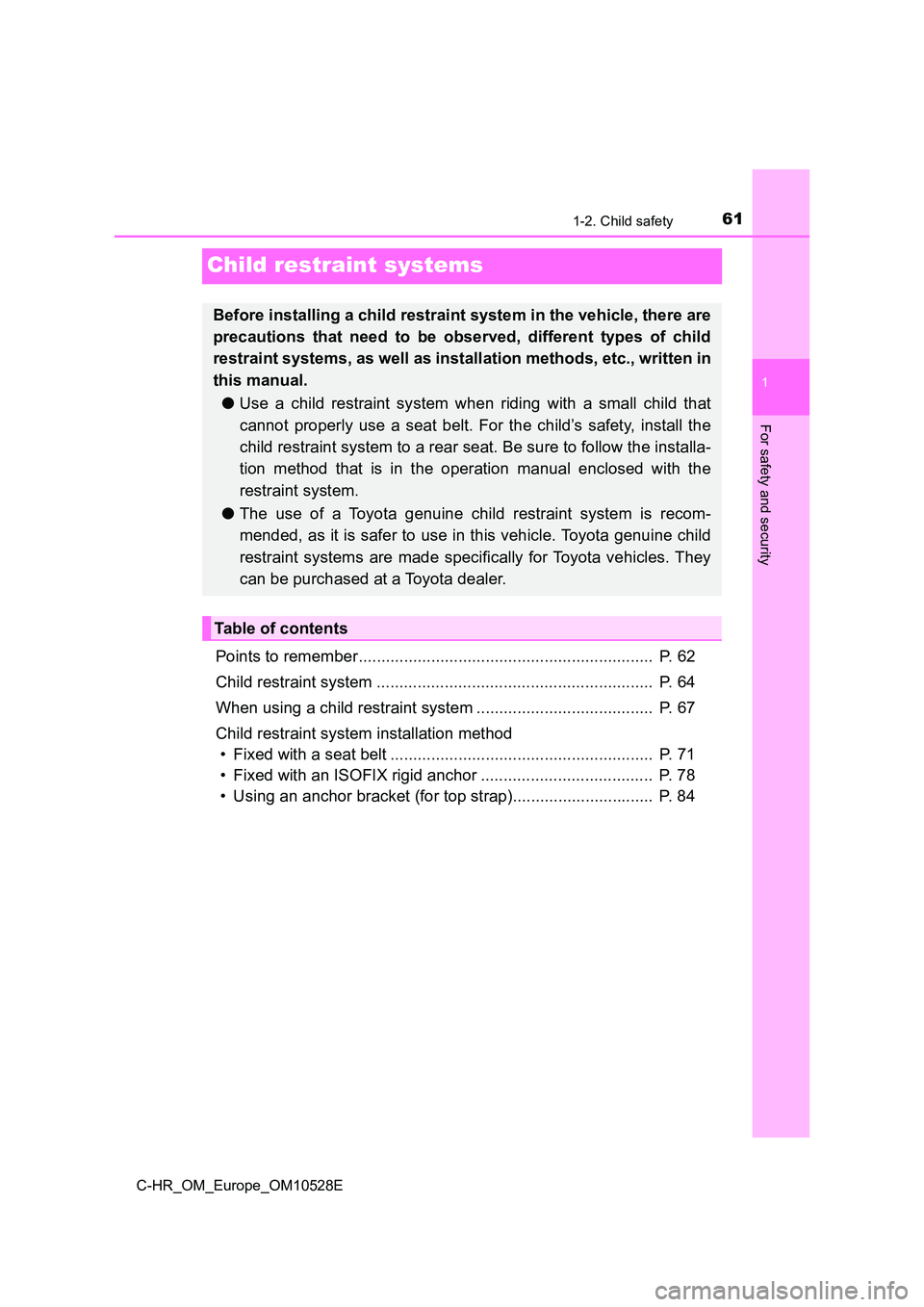

Child restraint systems
Points to remember................................................................. P. 62
Child restraint system ............................................................. P. 64
When using a child restraint system ....................................... P. 67
Child restraint system installation method
• Fixed with a seat belt .......................................................... P. 71
• Fixed with an ISOFIX rigid anchor ...................................... P. 78
• Using an anchor bracket (for top strap)............................... P. 84
Before installing a child restraint system in the vehicle, there are
precautions that need to be observed, different types of child
restraint systems, as well as installation methods, etc., written in
this manual.
● Use a child restraint system when riding with a small child that
cannot properly use a seat belt. For the child’s safety, install the
child restraint system to a rear seat. Be sure to follow the installa-
tion method that is in the operation manual enclosed with the
restraint system.
● The use of a Toyota genuine child restraint system is recom-
mended, as it is safer to use in this vehicle. Toyota genuine child
restraint systems are made specifically for Toyota vehicles. They
can be purchased at a Toyota dealer.
Table of contents

621-2. Child safety
C-HR_OM_Europe_OM10528E
●Prioritize and observe the warnings, as well as the laws and regula-
tions for child restraint systems.
● Use a child restraint system until the child becomes large enough to
properly wear the vehicle’s seat belt.
● Choose a child restraint system appropriate to the age and size of
the child.
● Note that not all child restraint systems can fit in all vehicles.
Before using or purchasing a child restraint system, check the com-
patibility of the child restraint system with seat positions.
( P. 71, 78)
Points to remember
WARNING
■When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
which is correctly installed. For inst allation details, refer to the operation
manual enclosed with the child restraint system. General installation
instruction is provided in this manual.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rear seat. Accord-
ing to accident statistics, the child is safer when properly restrained in the
rear seat than in the front seat.
● Holding a child in your or someone else’s arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the
windshield or between the holder and the interior of the vehicle.

631-2. Child safety
1
For safety and security
C-HR_OM_Europe_OM10528E

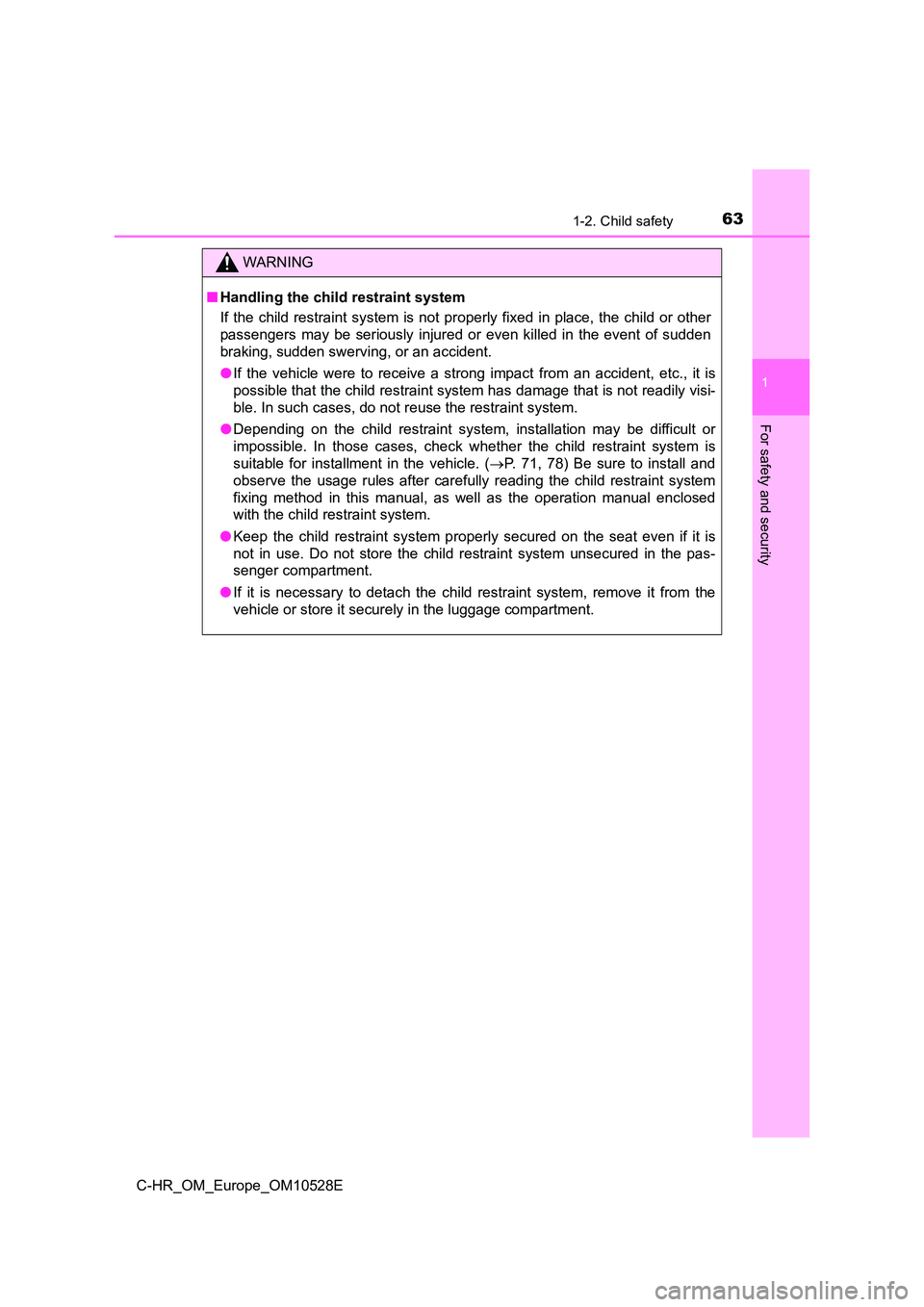

WARNING
■Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving, or an accident.
● If the vehicle were to receive a strong impact from an accident, etc., it is
possible that the child restraint system has damage that is not readily visi-
ble. In such cases, do not reuse the restraint system.
● Depending on the child restraint system, installation may be difficult or
impossible. In those cases, check whether the child restraint system is
suitable for installment in the vehicle. ( P. 71, 78) Be sure to install and
observe the usage rules after carefully reading the child restraint system
fixing method in this manual, as well as the operation manual enclosed
with the child restraint system.
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment.

641-2. Child safety
C-HR_OM_Europe_OM10528E
Install the available child restraint system in vehicle upon confirming
the following items.
■Standards for child restraint systems
Use a child restraint system that conforms to ECE R44*1 or ECE
R129*1, 2.
The following approval mark is displayed on child restraint systems
which are conformed.
Check for an approval mark attached to the child restraint system.
Example of the displayed regu-
lation number
ECE R44 approval mark*3
The weight range of the child
who is applicable for an ECE
R44 approval mark is indi-
cated.
ECE R129 approval mark*3
The height range of the child
who is applicable as well as
available weights for an ECE
R129 approval mark is indi-
cated.
*1: ECE R44 and ECE R129 are U.N. regulations for child restraint sys-
tems.
*2: The child restraint systems mentioned in the table may not be available
outside of the EU area.
*3: The displayed mark may differ depending on the product.
Child restraint system
