2016 TOYOTA AVALON HYBRID display

TABLE OF CONTENTS2
AVALON_HV_U (01999-07002)For your information....................... 8
Reading this manual .................... 14
How to search .............................. 15
Pictorial index .............................. 16
1-1. For safe use
Before driving ...................... 26
For safety drive ................... 28
Seat belts ............................ 30
SRS airbags ........................ 36
Front passenger occupant classification system ......... 48
Safety information for children ........................ 54
Child restraint systems ........ 55
Installing child restraints ...... 59
Exhaust gas precautions ..... 69
1-2. Hybrid system Hybrid system features ....... 70
Hybrid system precautions ....................... 74
1-3. Theft deterrent system Immobilizer system ............. 79
Alarm ................................... 81
Theft prevention labels ........ 83 2. Instrument cluster
Warning lights and indicators ........................... 86
Gauges and meters ............. 90
Multi-information display ...... 94
Energy monitor/ consumption screen ........ 100
3-1. Key information Keys................................... 106
3-2. Opening, closing and locking the doors and
trunk
Doors ................................. 110
Trunk ................................. 116
Smart key system .............. 121
3-3. Adjusting the seats Front seats......................... 131
Driving position memory .... 133
Head restraints .................. 138
3-4. Adjusting the steering wheel and mirrors
Steering wheel ................... 141
Inside rear view mirror ....... 143
Outside rear view mirrors ............................. 145
3-5. Opening, closing the windows and
moon roof
Power windows.................. 148
Moon roof .......................... 151
1For safety and security
2Instrument cluster
3Operation of
each component

TABLE OF CONTENTS4
AVALON_HV_U (01999-07002)5-1. Using the air
conditioning system
and defogger
Automatic air conditioning system ........ 272
Seat heaters/ seat ventilators ................ 281
5-2. Using the interior lights Interior lights list ................ 284
• Personal/interior light main switch ................... 285
• Personal/interior lights ............................. 285
• Ambient lights ............... 286
5-3. Using the storage features
List of storage features...... 287
• Glove box...................... 288
• Console box .................. 289
• Cup holders .................. 290
• Auxiliary boxes.............. 291
Trunk features ................... 295 5-4. Other interior features
Other interior features........ 297
• Sun visors ..................... 297
• Vanity mirrors ................ 297
• Clock ............................. 298
• Outside temperature display ........................... 299
• Power outlets ................ 300
• Armrest.......................... 302
• Rear sunshade .............. 302
• Coat hooks .................... 304
• Assist grips .................... 304
Garage door opener .......... 305
Safety Connect .................. 312
Compass ........................... 318
5Interior features

5
1
8 7
6
5
4
3
2
9
AVALON_HV_U (01999-07002)6-1. Maintenance and care
Cleaning and protecting the vehicle exterior .......... 324
Cleaning and protecting the vehicle interior ........... 327
6-2. Maintenance Maintenance requirements ................... 330
General maintenance ........ 332
Emission inspection and maintenance (I/M)
programs ......................... 336
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions ..................... 337
Hood.................................. 339
Positioning a floor jack ...... 340
Engine compartment ......... 341
12-volt battery ................... 350
Tires .................................. 354
Tire inflation pressure........ 364
Wheels .............................. 367
Air conditioning filter .......... 370
Electronic key battery ........ 372
Checking and replacing fuses ............................... 374
Light bulbs ......................... 377 7-1. Essential information
Emergency flashers ........... 390
If your vehicle has to be stopped in an
emergency....................... 391
7-2. Steps to take in an emergency
If your vehicle needs to be towed .......................... 392
If you think something is wrong............................... 395
If a warning light turns on or a warning buzzer
sounds ............................. 396
If a warning message is displayed ......................... 405
If you have a flat tire .......... 406
If the hybrid system will not start ........................... 418
If the shift lever cannot be shifted from P .................. 420
If the electronic key does not operate properly ........ 421
If the 12-volt battery is discharged ....................... 423
If your vehicle overheats......................... 428
If the vehicle becomes stuck ................................ 432
6Maintenance and care7When trouble arises

19Pictorial index
AVALON_HV_U (01999-07002)Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 94
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
When the warning messages are displayed . . . . . . . . . . . . . . P. 405
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 183
Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 185
Headlights/parking lights/tail lights/daytime running lights . . . . P. 185
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 192
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 192
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 349
Hood lock release lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 339
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 141
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 272
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 276
Audio/Navigation system
*
Glove box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 288
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 298
*: Refer to “NAVIGATION AND MULTIMEDIA SYSTEM OWNER’S MANUAL”.
4
5
6
7
8
9
10
11
12

24Pictorial index
AVALON_HV_U (01999-07002)Auxiliary box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 291
Moon roof switches
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 151
“SOS” button
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 312
Interior lights/personal lights
*2 . . . . . . . . . . . . . . . . . . . . . . P. 285
Interior light/ambient lights
*1 switches . . . . . . . . . . . . . . . . P. 285
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 297
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 297
Compass display
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Compass switch
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Garage door opener switches
*1. . . . . . . . . . . . . . . . . . . . . . P. 305
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 143
*1: If equipped
*2: The illustration shows the front, but they are also equipped in the rear.
1
2
3
4
5
6
7
8
9
10
11

591-1. For safe use
1
For safety and security
AVALON_HV_U (01999-07002)
Child restraint LATCH anchors
LATCH anchors are provided for
the outboard rear seats. (Buttons
displaying the location of the
anchors are attached to the seats.)
Seat belts equipped with a child
restraint locking mechanism
(ALR/ELR belts except driver’s
seat belt) (P. 32)
Anchor brackets (for top tether
strap)
An anchor bracket is provided for
each rear seat.

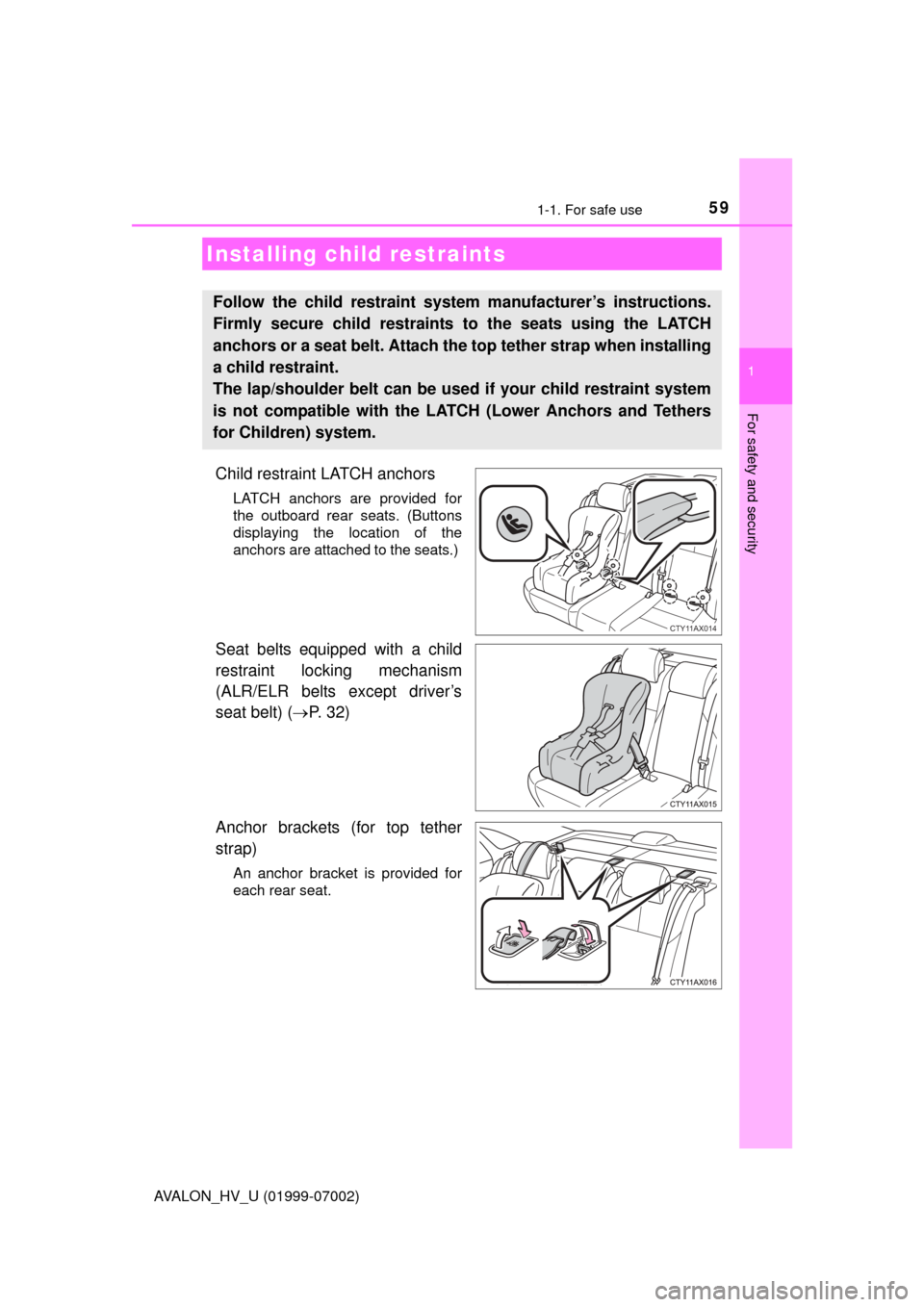

Installing child restraints
Follow the child restraint system manufacturer’s instructions.
Firmly secure child restraints to the seats using the LATCH
anchors or a seat belt. Attach the top tether strap when installing
a child restraint.
The lap/shoulder belt can be used if your child restraint system
is not compatible with the LATCH (Lower Anchors and Tethers
for Children) system.
CTY11AX014

751-2. Hybrid system
1
For safety and security
AVALON_HV_U (01999-07002)
There is an air intake vent on the
left side of the rear seatback for
the purpose of cooling the hybrid
battery (traction battery). If the
vent becomes blocked, the hybrid
battery may overheat, leading to a
reduction in hybrid battery output.
When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks the high voltage current and stops
the fuel pump to minimize the risk of electrocution and fuel leakage. If
the emergency shut off system activates, your vehicle will not restart.
To restart the hybrid system, contact your Toyota dealer.
A message is automatically displayed when a malfunction occurs in
the hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display, read
the message and follow the
instructions. ( P. 405)
Hybrid battery (traction battery) air intake vent
Emergency shut off system
Hybrid warning message

761-2. Hybrid system
AVALON_HV_U (01999-07002)
■If a warning light comes on, a warn ing message is displayed, or the 12-
volt battery is disconnected
The hybrid system may not start. In this case, try to start the system again. If
the “READY” indicator does not come on, contact your Toyota dealer.
■ Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started,
refuel the vehicle with at least enough gasoline to make the low fuel le\
vel
warning light ( P. 399) go off. If there is only a small amount of fuel, the
hybrid system may not be able to start. (The standard amount of fuel about
3.0 gal. [11.3 L, 2.5 Imp. gal.], when the vehicle is on a level surface. This
value may vary when the vehicle is on a slope. Add extra fuel when the vehi-
cle is inclined.)
■ Electromagnetic waves
●High voltage parts and cables on hybrid vehicles incorporate electromag-
netic shielding, and therefore emit approximately the same amount of elec-
tromagnetic waves as conventional gasoline powered vehicles or home
electronic appliances.
● Your vehicle may cause sound interference in some third party-produced
radio parts.
■ Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of
the hybrid battery (traction battery) can change in accordance with driving
style and driving conditions.
