2016 TOYOTA AVALON HYBRID display

4307-2. Steps to take in an emergency
AVALON_HV_U (01999-07002)■
If “Hybrid System Overheat/Stop the Vehicle in a Safe Place” is
shown on the multi-information display
Stop the vehicle in a safe place.
Stop the hybrid system and carefully lift the hood.
After the hybrid system has
cooled down, inspect the
hoses and radiator core
(radiator) for any leaks.Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact
your Toyota dealer
The coolant level is satisfac-
tory if it is between the
“FULL” and “LOW” lines on
the reservoir.Reservoir
“FULL” line
“LOW” line
Add coolant if necessary.
Water can be used in an emer-
gency if coolant is unavailable.
Start the hybrid system and chec k for the multi-information dis-
play.
If the message does not disappear:
Stop the hybrid system and contact your Toyota dealer.
If the message is not displayed:
Have the vehicle in spected at the nearest Toyota dealer.
1
2
3
1
2
4
1
2
3
5
6

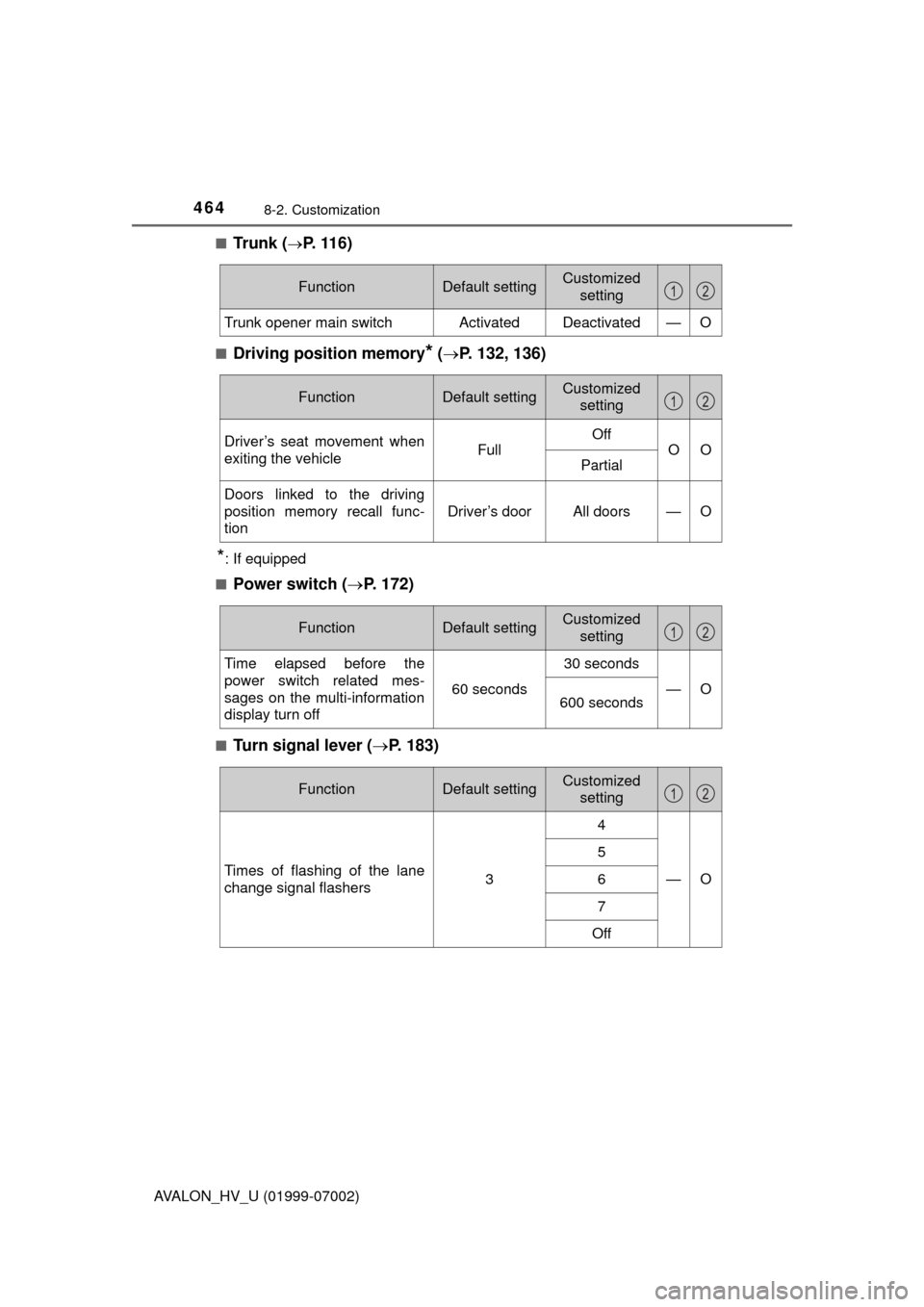

4648-2. Customization
AVALON_HV_U (01999-07002)■
Tr u n k (P. 1 1 6 )
■Driving position memory* (
 P. 132, 136)
*: If equipped
■
Power switch ( P. 172)
■Turn signal lever ( P. 183)
FunctionDefault settingCustomized
setting
Trunk opener main switch Activated Deactivated — O
12
FunctionDefault settingCustomizedsetting
Driver’s seat movement when
exiting the vehicleFullOff OO
Partial
Doors linked to the driving
position memory recall func-
tion
Driver’s doorAll doors — O
12
FunctionDefault settingCustomized
setting
Time elapsed before the
power switch related mes-
sages on the multi-information
display turn off
60 seconds
30 seconds
—O
600 seconds
12
FunctionDefault settingCustomizedsetting
Times of flashing of the lane
change signal flashers3
4
—O
5
6
7
Off
12

474What to do if... (Troubleshooting)
AVALON_HV_U (01999-07002)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts?
( P. 399)
●
The brake system warning light is on
Is the parking brake released? ( P. 184)
Depending on the situation, other types of warning buzzer may also
sound. ( P. 396, 405)

●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 81)
To stop the alarm, turn the power switch to ON mode or start the
hybrid system.
●
Is the message displayed on the multi-information display?
Check the message on the multi-information display.
●When a warning light turns on, refer to P. 396.
●When a warning message is displayed, perform the correction procedure
appropriate to the message.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
A warning buzzer sounds when leaving the vehicle
A warning light turns on or a warning message is displayed

479Alphabetical index
AVALON_HV_U (01999-07002)
Daytime running light system .................................... 186
Defogger Front windshield.................... 276
Outside rear view mirrors...... 276
Rear window ......................... 276
Dimensions .............................. 436
Dinghy towing .......................... 171
Display Cruise control........................ 245
Dynamic radar cruise control ...................... 232
LDA (Lane Departure Alert with steering control) .......... 221
Multi-information display ......... 94
Trip information ....................... 95
Warning message ................. 405
Do-it-yourself maintenance .......................... 337
Door courtesy lights
Wattage ................................ 444
Door lock Doors .................................... 110
Smart key system ................. 121
Wireless remote control ........ 110 Doors ........................................ 110
Automatic door locking
and unlocking system......... 113
Door glasses......................... 148
Door lock .............................. 112
Open door warning buzzer ... 122
Open door warning light ....... 399
Outside rear view mirrors ..... 145
Rear door child-protector ...... 113
Driver’s seat position memory .................................. 133
Driving ...................................... 156 Break-in tips.......................... 157
Correct driving posture ........... 28
Driving mode select switch ... 258
Hybrid vehicle driving tips ..... 265
Procedures ........................... 156
Winter drive tips .................... 268
Dynamic radar cruise control .................................... 232
D

480Alphabetical index
AVALON_HV_U (01999-07002)
Eco drive mode ........................ 258
EDR (Event data recorder) ........ 11
Electric motor (traction motor) ....................... 70
Electric Power
Steering (EPS) ....................... 261Function ................................ 261
Warning light ......................... 397
Electronic key .......................... 106 Battery-saving function ......... 125
If the electronic key does not operate properly ................. 421
Replacing the battery ............ 372
Emergency flashers ................ 390
Emergency, in case of
If the 12-volt battery is discharged .......................... 423
If the electronic key does not operate
properly .............................. 421
If the hybrid system will not start ........................ 418
If the shift lever
cannot be shifted from P .... 420
If the trunk opener is not actuated.............................. 119
If the warning
buzzer sounds .................... 396
If the warning light turns on .............................. 396
If the warning message is displayed......................... 405
If you have a flat tire ............. 406
If you think something
is wrong .............................. 395
If your vehicle becomes
stuck ................................... 432
If your vehicle has to be stopped in an emergency ... 391
If your vehicle needs to be towed ......................... 392
If your vehicle overheats ....... 428 Energy monitor ........................ 100
Engine
ACCESSORY mode ............. 173
Compartment ........................ 341
Engine switch ....................... 172
Hood ..................................... 339
How to start the hybrid system .... ................. 172
Identification number ............ 437
Ignition switch (power switch) .................... 172
Overheating .......................... 428
Power switch ........................ 172
Engine coolant......................... 345
Capacity................................ 441
Checking............................... 345
Preparing and checking before winter ...................... 268
Engine coolant temperature gauge ....................................... 90
Engine oil ................................. 342 Capacity................................ 439
Checking............................... 342
Preparing and checking before winter ...................... 268
Engine switch .......................... 172
EPS (Electronic Power Steering)..................... 261Function ................................ 261
Warning light......................... 397
EV drive mode ......................... 178
Event data recorder (EDR)........ 11
E

484Alphabetical index
AVALON_HV_U (01999-07002)
MaintenanceDo-it-yourself maintenance ... 337
General maintenance ........... 332
Maintenance requirements ... 330
Resetting the message
indicating maintenance
is required........................... 330
Malfunction indicator lamp ..... 396
Master warning light................ 399
Meter ........................................... 90 Indicators ................................ 88
Instrument panel
light control ........................... 91
Meters ..................................... 90
Multi-information display ......... 94
Warning lights ......................... 87
Mirrors
Inside rear view mirror .......... 143
Outside rear view mirror defoggers ........................... 276
Outside rear view mirrors...... 145
Vanity mirrors........................ 297
Moon roof ................................. 151
Jam protection function......... 152
Operation .............................. 151
Multi-information display .......... 94 Cruise control........................ 245
Dynamic radar cruise
control................................. 232
Energy monitor ..................... 100
Switching the display .............. 95
Tachometer........................... 181
Trip information ....................... 95
Warning message ................. 405 Navigation system*
Noise from under vehicle ........... 8
Odometer ................................... 90
Oil
Engine oil .............................. 439
Opener
Hood ..................................... 339
Trunk .................................... 116
Outer foot lights ...................... 284
Outside rear view mirrors ....... 145
Adjusting and folding ............ 145
Blind spot monitor ................. 249
Linked mirror function when reversing ................... 146
Mirror position memory ......... 133
Outside rear view
mirror defoggers ................. 276
Overheating ............................. 428
MN
O
