4337-2. Steps to take in an emergency
7
When trouble arises
AVALON_HV_U (01999-07002)
NOTICE
■To avoid damaging the transm ission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

4347-2. Steps to take in an emergency
AVALON_HV_U (01999-07002)

435
Vehicle specifications8
AVALON_HV_U (01999-07002)8-1. Specifications
Maintenance data (fuel, oil level, etc.) .......... 436
Fuel information ................ 445
Tire information ................. 448
8-2. Customization Customizable features ...... 461
8-3. Items to initialize Items to initialize ............... 468

436
AVALON_HV_U (01999-07002)
8-1. Specifications
*: Unladen vehicle
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
Overall length195.3 in. (4960 mm)
Overall width72.2 in. (1835 mm)
Overall height*57.5 in. (1460 mm)
Wheelbase111.0 in. (2820 mm)
Tread*Front62.6 in. (1590 mm)
Rear62.2 in. (1580 mm)
Vehicle capacity weight
(Occupants + luggage)930 lb. (420 kg)

4378-1. Specifications
8
Vehicle specifications
AVALON_HV_U (01999-07002)■
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar
y identification number for your
Toyota. It is used in registering the ownership of your vehicle.

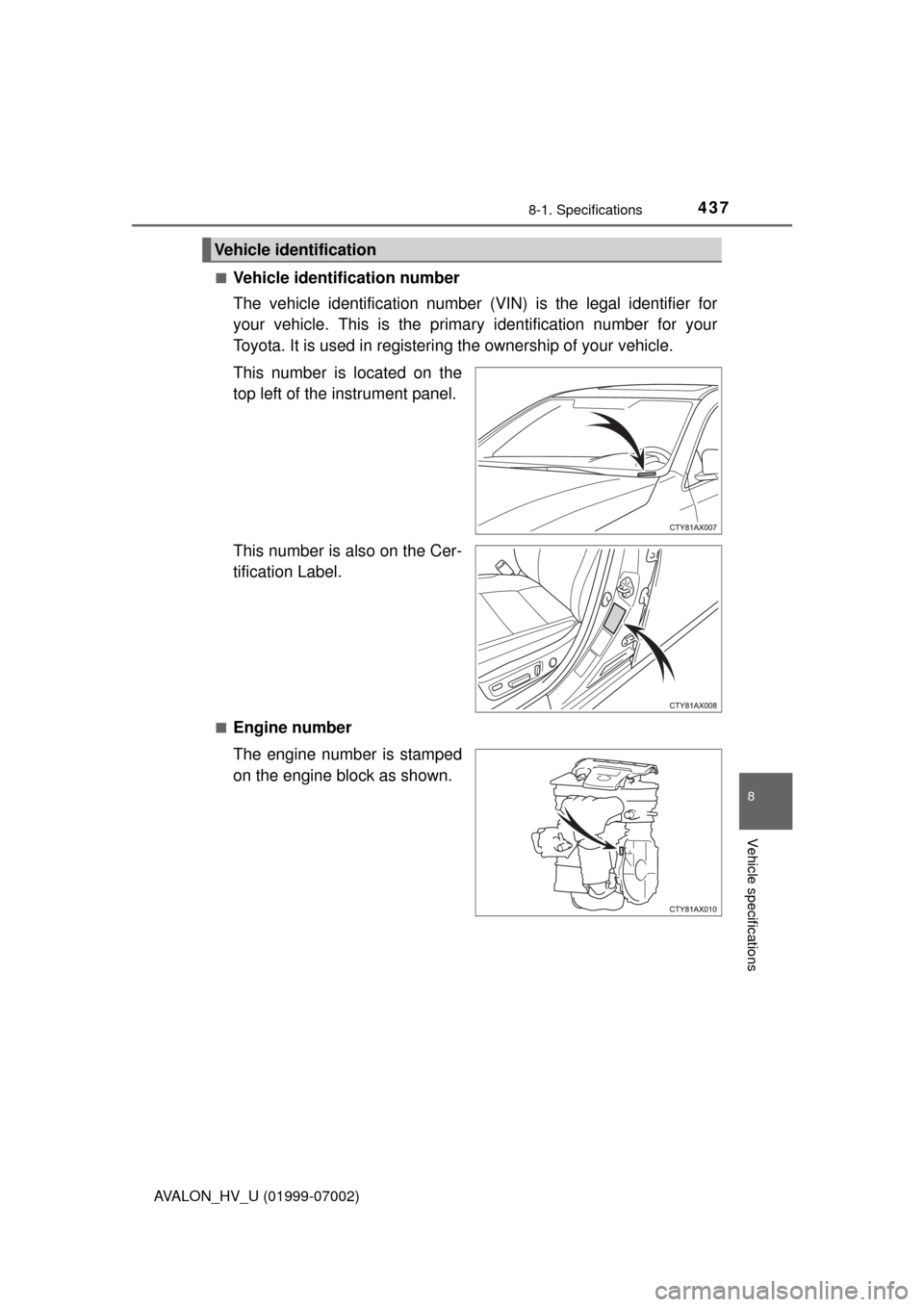

This number is located on the
top left of the instrument panel.
This number is also on the Cer-
tification Label.
■Engine number
The engine number is stamped
on the engine block as shown.
Vehicle identification

4388-1. Specifications
AVALON_HV_U (01999-07002)

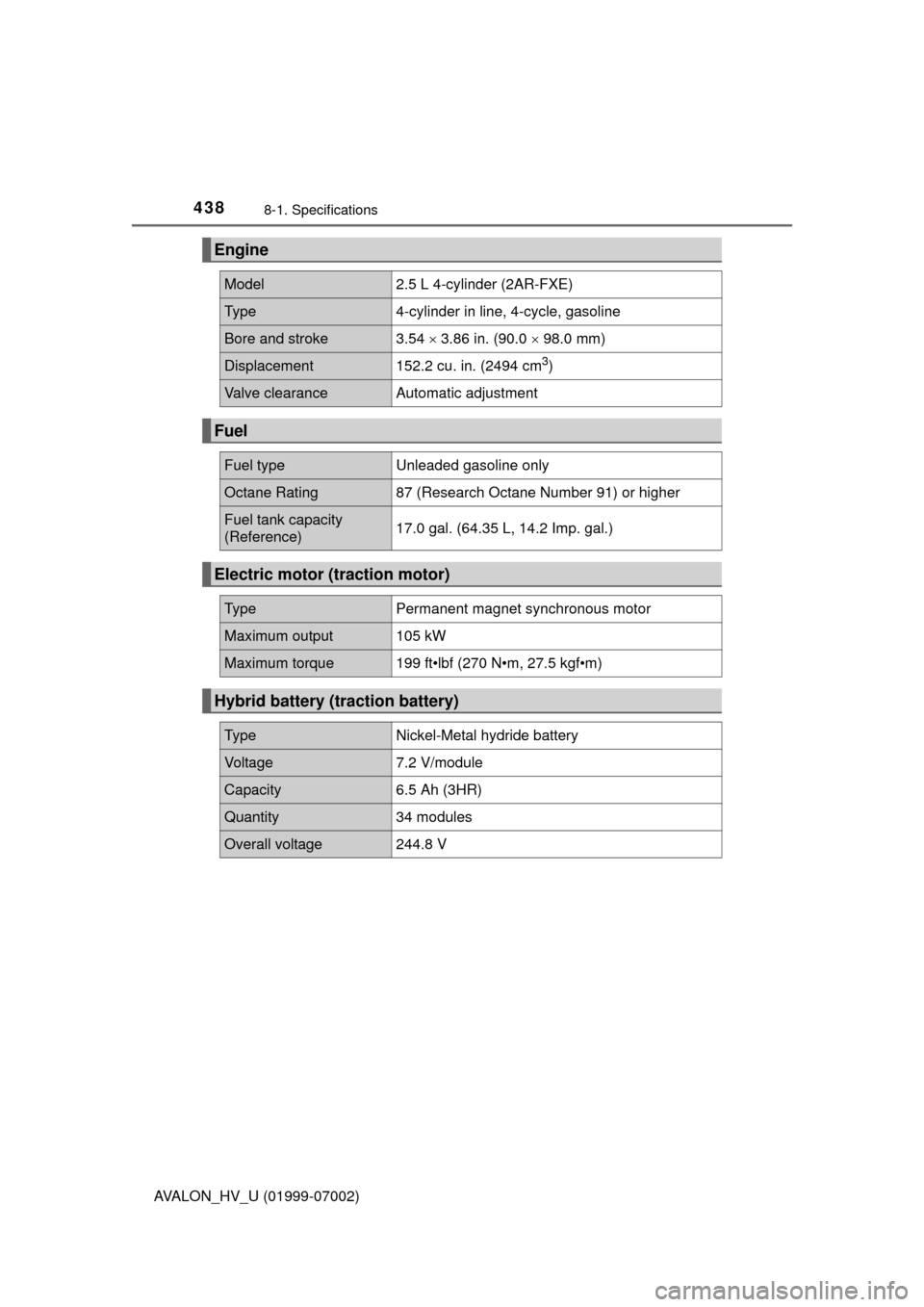

Engine
Model2.5 L 4-cylinder (2AR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.54  3.86 in. (90.0  98.0 mm)
Displacement152.2 cu. in. (2494 cm3)
Valve clearanceAutomatic adjustment
Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)17.0 gal. (64.35 L, 14.2 Imp. gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque199 ft•lbf (270 N•m, 27.5 kgf•m)
Hybrid battery (traction battery)
Ty p eNickel-Metal hydride battery
Voltage7.2 V/module
Capacity6.5 Ah (3HR)
Quantity34 modules
Overall voltage244.8 V

4398-1. Specifications
8
Vehicle specifications
AVALON_HV_U (01999-07002)
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Warm up the engine and turn off the hybrid system, wait
more than 5 minutes, and check the oil level on the dipstick.
Lubrication system
Oil capacity
Drain and refill (Reference
*)
With filter
Without filter
4.6 qt. (4.4 L, 3.9 Imp. qt.)
4.2 qt. (4.0 L, 3.5 Imp. qt.)

4408-1. Specifications
AVALON_HV_U (01999-07002)■
Engine oil selection
“Toyota Genuine Motor Oil” is used
in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.

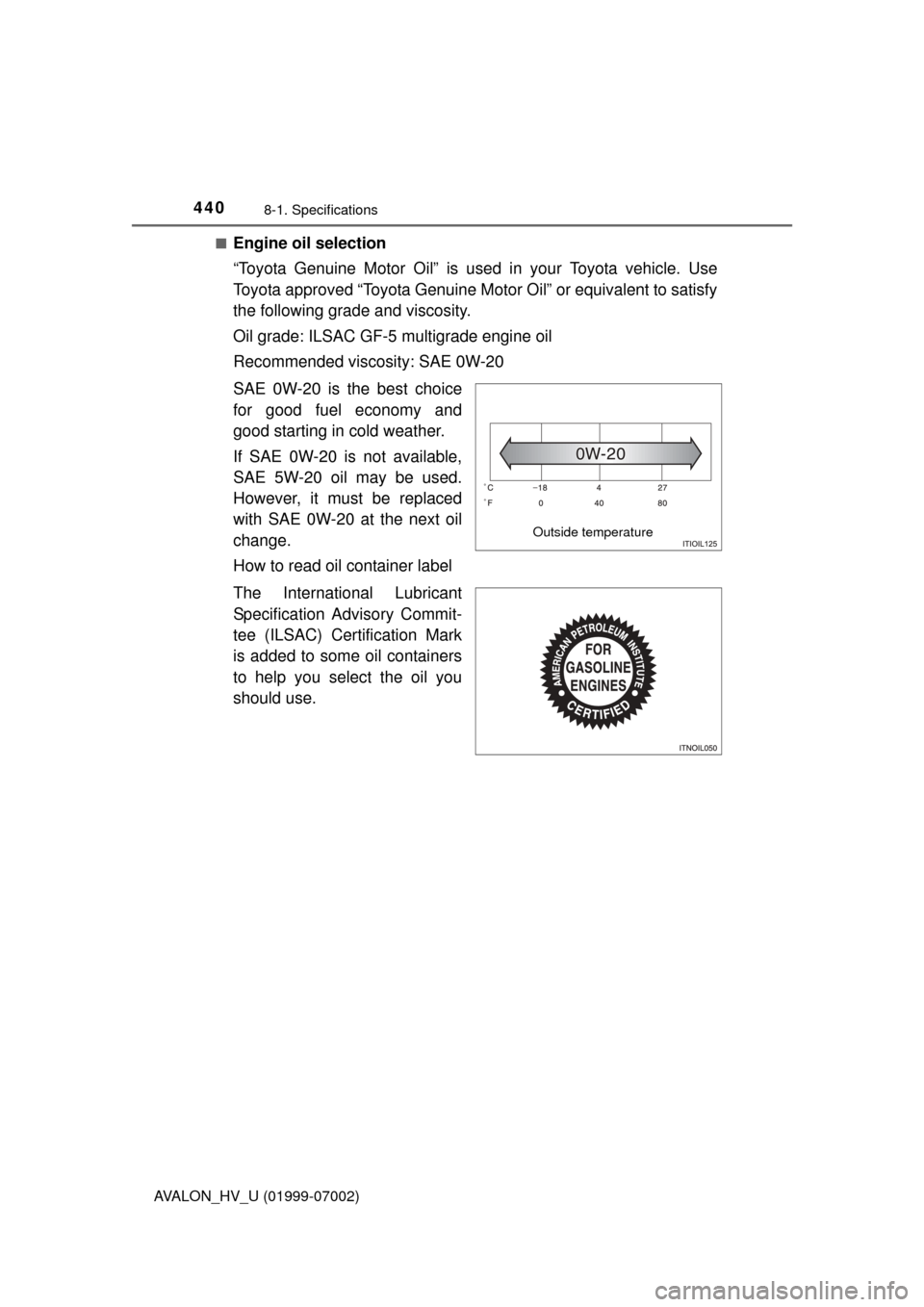

How to read oil container label
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.
Outside temperature
