3696-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (01999-07002)
NOTICE
■Replacing tire pressure warning valves and transmitters
●Because tire repair or replacement may affect the tire pressure warn-
ing valves and transmitters, make sure to have tires serviced by your
Toyota dealer or other qualified service shop. In addition, make sure to
purchase your tire pressure warning valves and transmitters at your
Toyota dealer.
●Ensure that only genuine Toyota wheels are used on your vehicle.
Tire pressure warning valves and transmitters may not work properly
with non-genuine wheels.

3706-3. Do-it-yourself maintenance
AVALON_HV_U (01999-07002)
Turn the power switch off.
Open the glove box. (P. 288)
Remove the glove box cover.
Press the tabs and remove the
filter cover.
Remove the air conditioning fil-
ter and replace it with a new
one.
The “ UP” marks shown on the fil-
ter should be pointing up.
Air conditioning filter

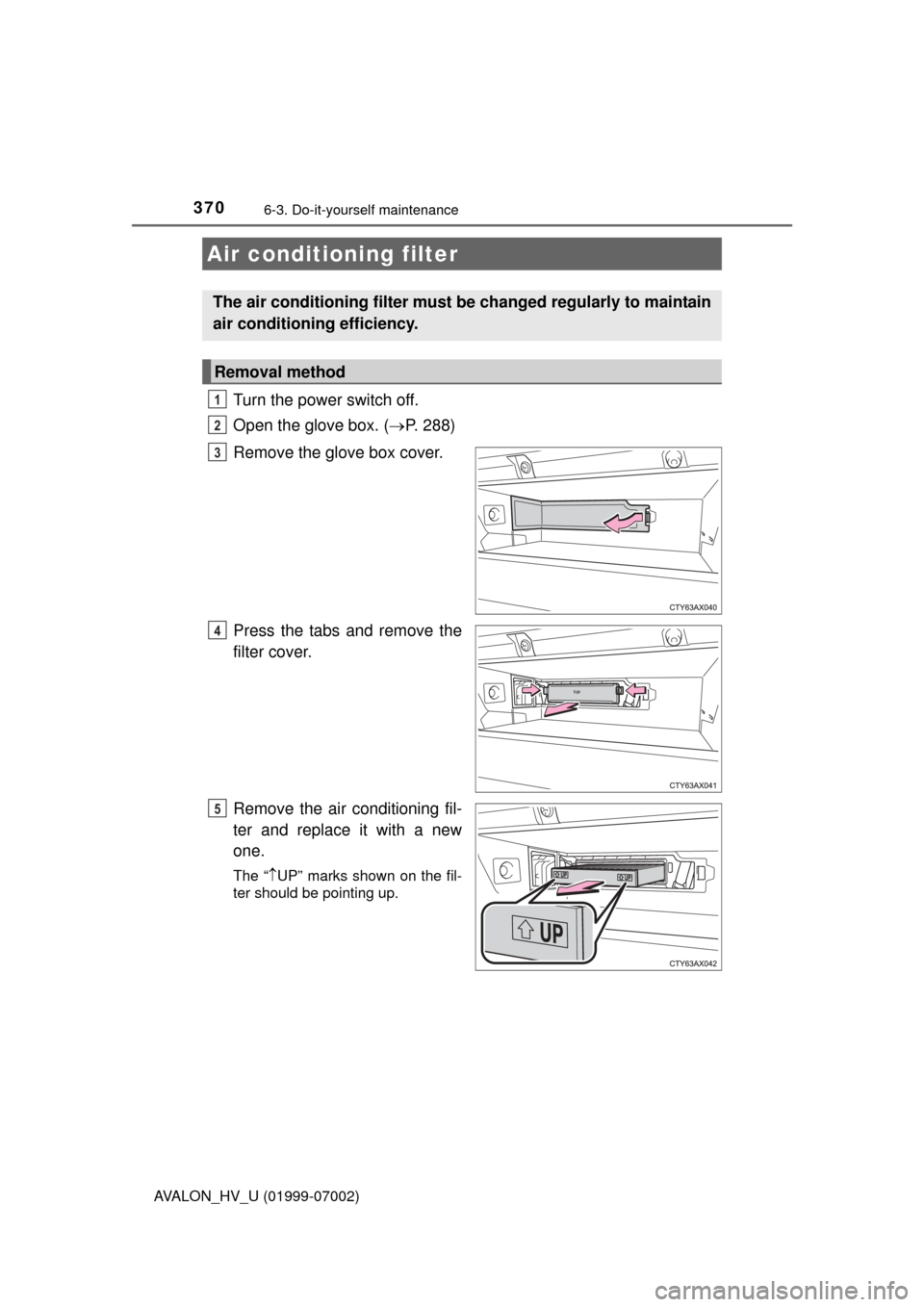

The air conditioning filter must be changed regularly to maintain
air conditioning efficiency.
Removal method
1
2
3
4
5

3716-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (01999-07002)
■Checking interval
Inspect and replace the air conditioning filter according to the maintenance
schedule. In dusty areas or areas with heavy traffic flow, early replacement
may be required. (For scheduled maintenance information, please refer to the
“Schedule maintenance guide” or “Owner’s Manual Supplement”.)
■ If air flow from the vents decreases dramatically
The filter may be clogged. Check the filter and replace if necessary.
■ Air conditioning filter deodorizing function
This vehicle is equipped with a deodorizing charcoal air filter to reduce odor
from the air conditioning system.
When items or products which emit fragrances or odors are placed in your
vehicle, the deodorizing effect may be significantly weakened in a short
period of time.
If frequent or strong odor comes from your air conditioning system, replace
the air conditioning filter.
NOTICE
■ When using the ai r conditioning system
Make sure that a filter is always installed.
Using the air conditioning system without a filter may cause damage to the
system.

3726-3. Do-it-yourself maintenance
AVALON_HV_U (01999-07002)
●Flathead screwdriver
● Small flathead screwdriver
● Lithium battery CR2032

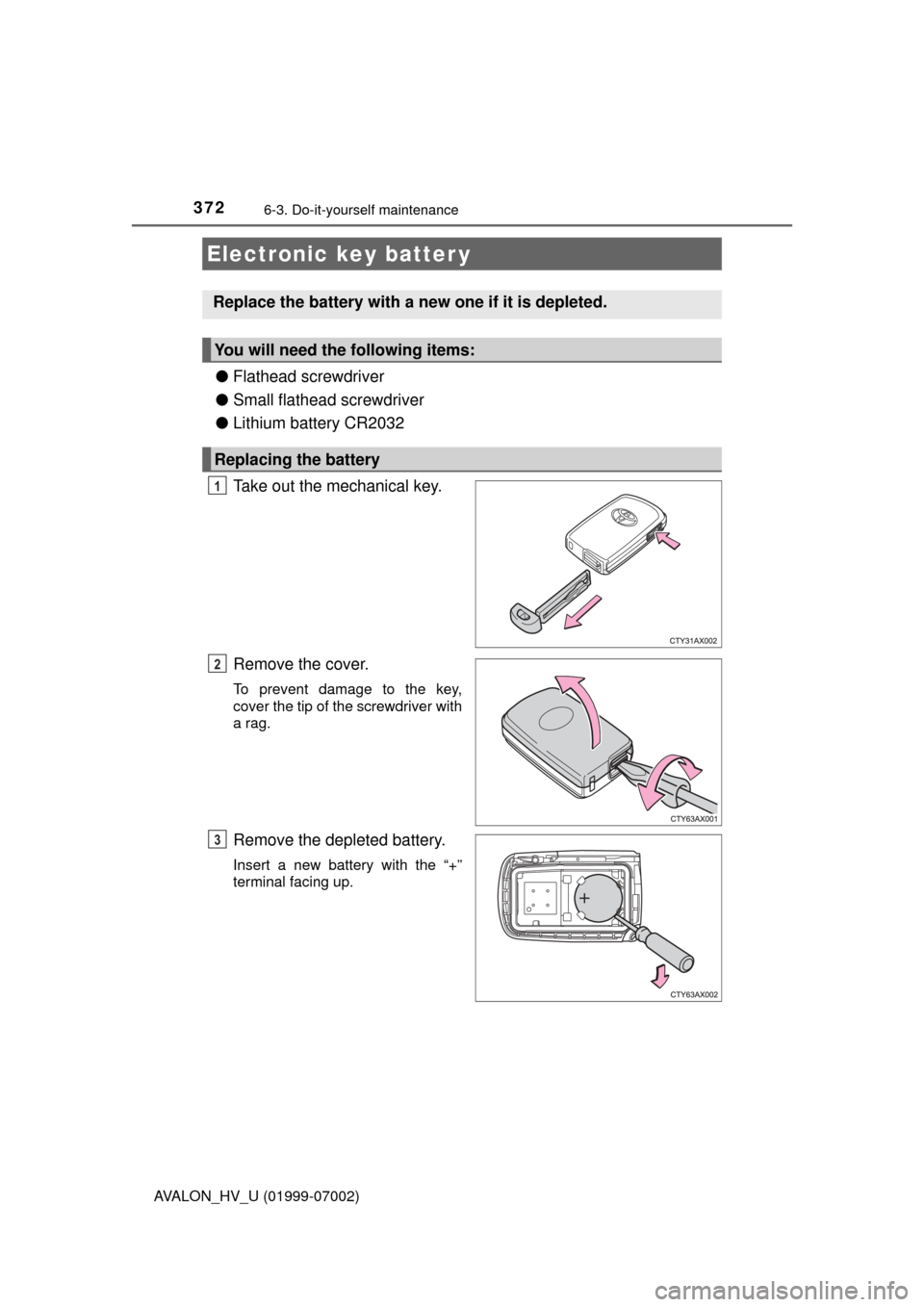

Take out the mechanical key.
Remove the cover.
To prevent damage to the key,
cover the tip of the screwdriver with
a rag.
Remove the depleted battery.
Insert a new battery with the “+”
terminal facing up.
Electronic key batter y
Replace the battery with a new one if it is depleted.
You will need the following items:
Replacing the battery
1
2
3

3736-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (01999-07002)
■Use a CR2032 lithium battery
●Batteries can be purchased at your Toyota dealer, local electrical appliance
shops or camera stores.
● Replace only with the same or equivalent type recommended by the manu-
facturer.
● Dispose of used batteries according to local laws.
■ If the electronic key battery is depleted
The following symptoms may occur:
●The smart key system and wireless remote control will not function properly.
● The operational range will be reduced.
WARNING
■ Removed battery and other parts
These parts are small and if swallowed by a child, they can cause choking.
Keep away from children. Failure to do so could result in death or serious
injury.
NOTICE
■For normal operation after replacing the battery
Observe the following precautions to prevent accidents:
●Always work with dry hands.
Moisture may cause the battery to rust.
● Do not touch or move any other component inside the remote control.
● Do not bend either of the battery terminals.

3746-3. Do-it-yourself maintenance
AVALON_HV_U (01999-07002)
Turn the power switch off.
Open the Fuse box cover.
Checking and replacing fuses
If any of the electrical components do not operate, a fuse may
have blown. If this happens, check and replace the fuses as nec-
essary.
1
2
Engine compartment (type A)Engine compartment (type B)
Push the tabs in and lift the lid off. Push the tabs in and lift the lid off.
Under the driver’s side instru-
ment panel
Remove the lid.

3756-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (01999-07002)
Remove the fuse with the pull-
out tool.
Only type A fuse can be removed
using the pullout tool.
Check if the fuse is blown.Normal fuse
Blown fuse
Type A and B:
Replace the blown fuse with a new fuse of an appropriate amperage rat-
ing. The amperage rating can be found on the fuse box lid.
Type C:
Contact your Toyota dealer.
3
4
Ty p e AType B
Ty p e C
1
2

3766-3. Do-it-yourself maintenance
AVALON_HV_U (01999-07002)
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 377)
● If the replaced fuse blows again, have the vehicle inspected by your Toyota
dealer.
■ If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
■ When replacing light bulbs
Toyota recommends that you use genuine Toyota products designed for this
vehicle. Because certain bulbs are connected to circuits designed to prevent
overload, non-genuine parts or parts not designed for this vehicle may be
unusable.
WARNING
■To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
●Never use a fuse of a higher amperage rating than that indicated, or use\
any other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify the fuses or fuse boxes.
NOTICE
■Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer as soon as possible.
