2016 TOYOTA AVALON HYBRID Owners Manual

972. Instrument cluster
2
Instrument cluster
AVALON_HV_U (01999-07002)

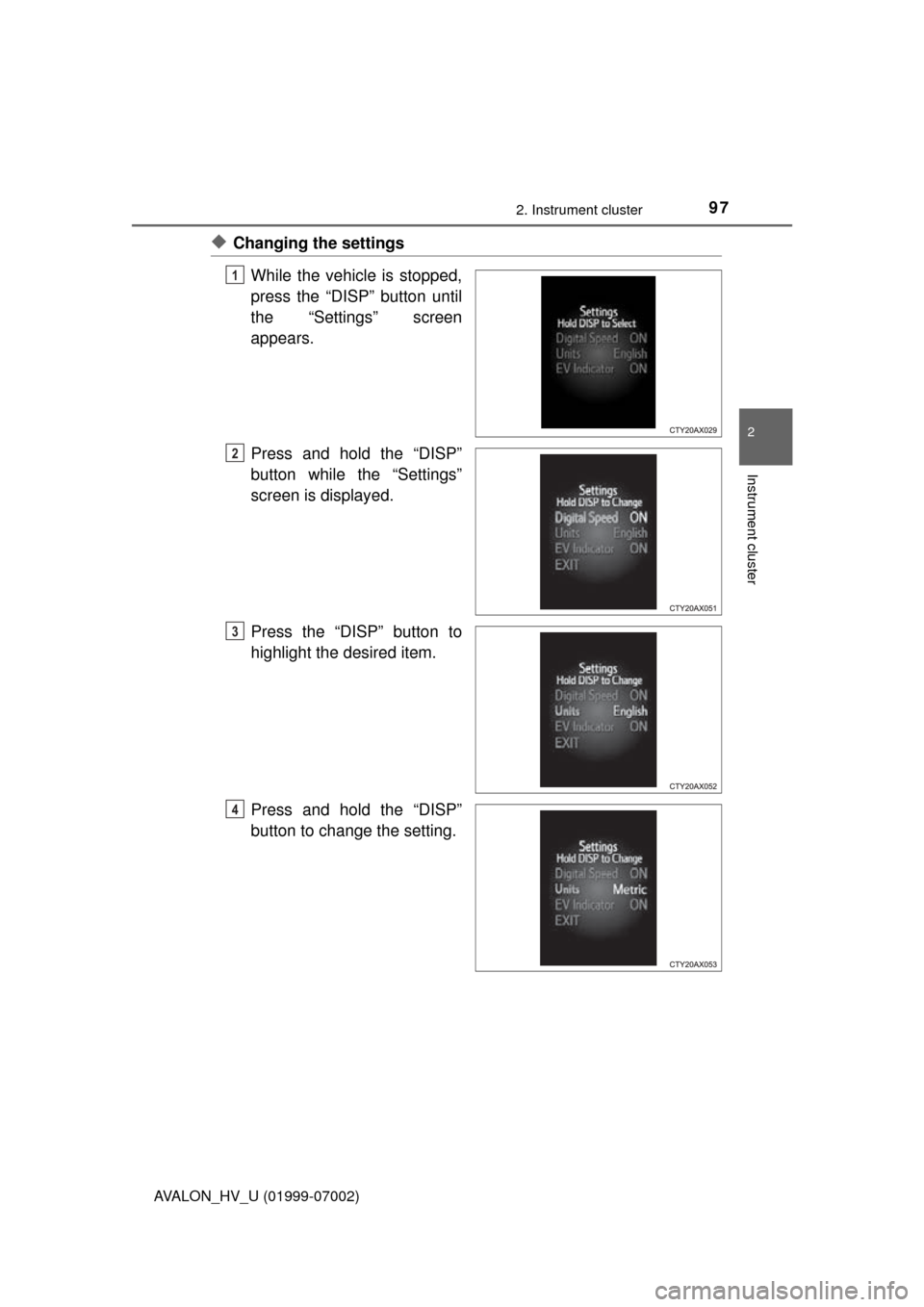

◆Changing the settingsWhile the vehicle is stopped,
press the “DISP” button until
the “Settings” screen
appears.
Press and hold the “DISP”
button while the “Settings”
screen is displayed.
Press the “DISP” button to
highlight the desired item.
Press and hold the “DISP”
button to change the setting.
1
2
3
4

982. Instrument cluster
AVALON_HV_U (01999-07002)

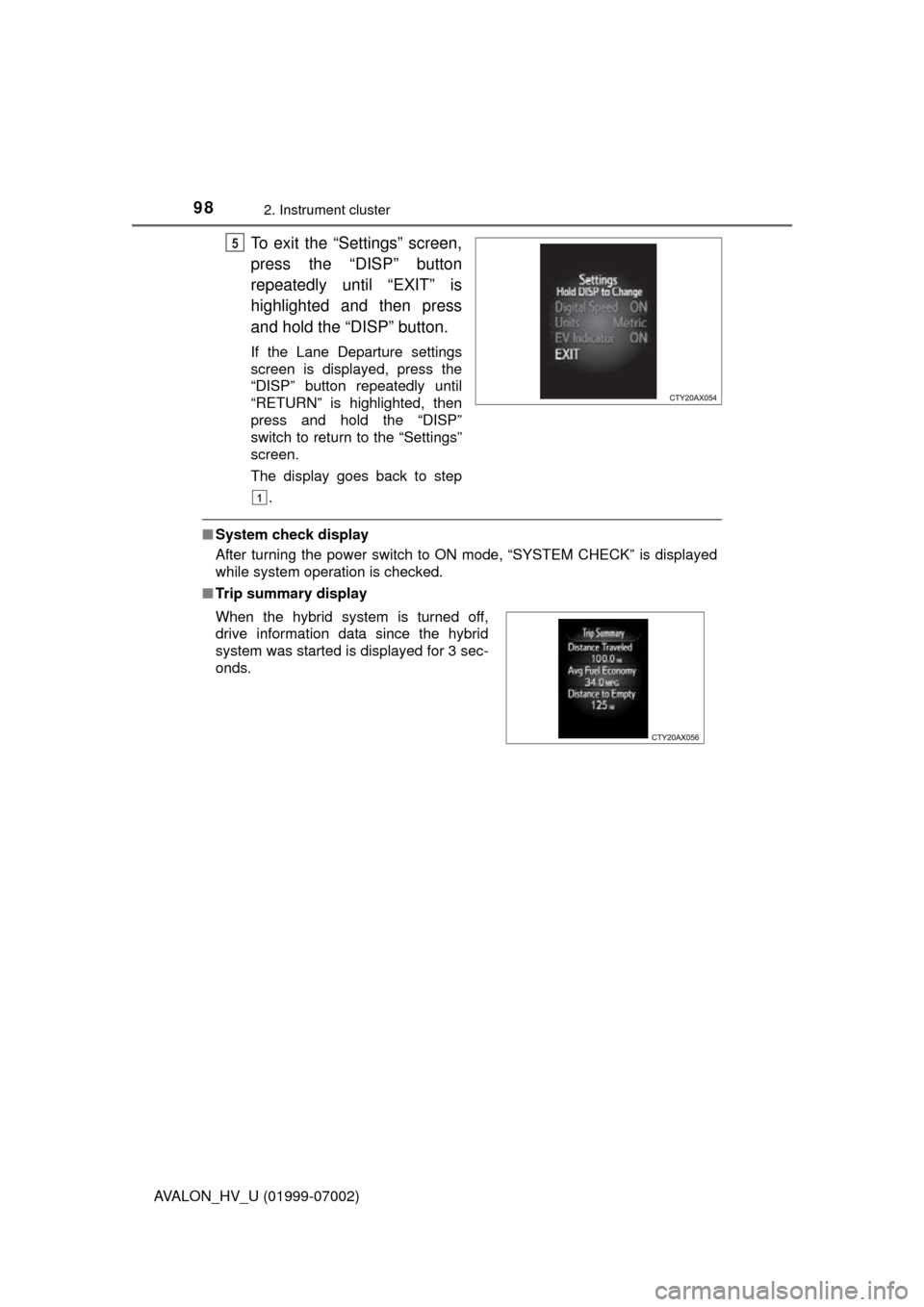

To exit the “Settings” screen,
press the “DISP” button
repeatedly until “EXIT” is
highlighted and then press
and hold the “DISP” button.
If the Lane Departure settings
screen is displayed, press the
“DISP” button repeatedly until
“RETURN” is highlighted, then
press and hold the “DISP”
switch to return to the “Settings”
screen.
The display goes back to step.
■System check display
After turning the power switch to ON mode, “SYSTEM CHECK” is displayed
while system operation is checked.
■ Trip summary display
5
1
When the hybrid system is turned off,
drive information data since the hybrid
system was started is displayed for 3 sec-
onds.

992. Instrument cluster
2
Instrument cluster
AVALON_HV_U (01999-07002)■
Setting display automatic cancelation
In the following situations, setting display in which the settings can b\
e
changed through the “DISP” button will automatically be turned off.
●When a warning message appears while the setting display is displayed
● When the vehicle begins to move while the setting display is displayed
■
Tire inflation pressure
●It may take a few minutes to display the tire inflation pressure after the
power switch is turned to ON mode. It may also take a few minutes to
display the tire inflation pressure after inflation pressure has been
adjusted
●“---” may be displayed if the tire information cannot be determined due to
unfavorable radio wave conditions.
●Tire inflation pressure changes wit h temperature. The displayed values
may also be different from the values measured using a tire pressure
gauge.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.
■ Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■During setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display features.

1002. Instrument cluster
AVALON_HV_U (01999-07002)

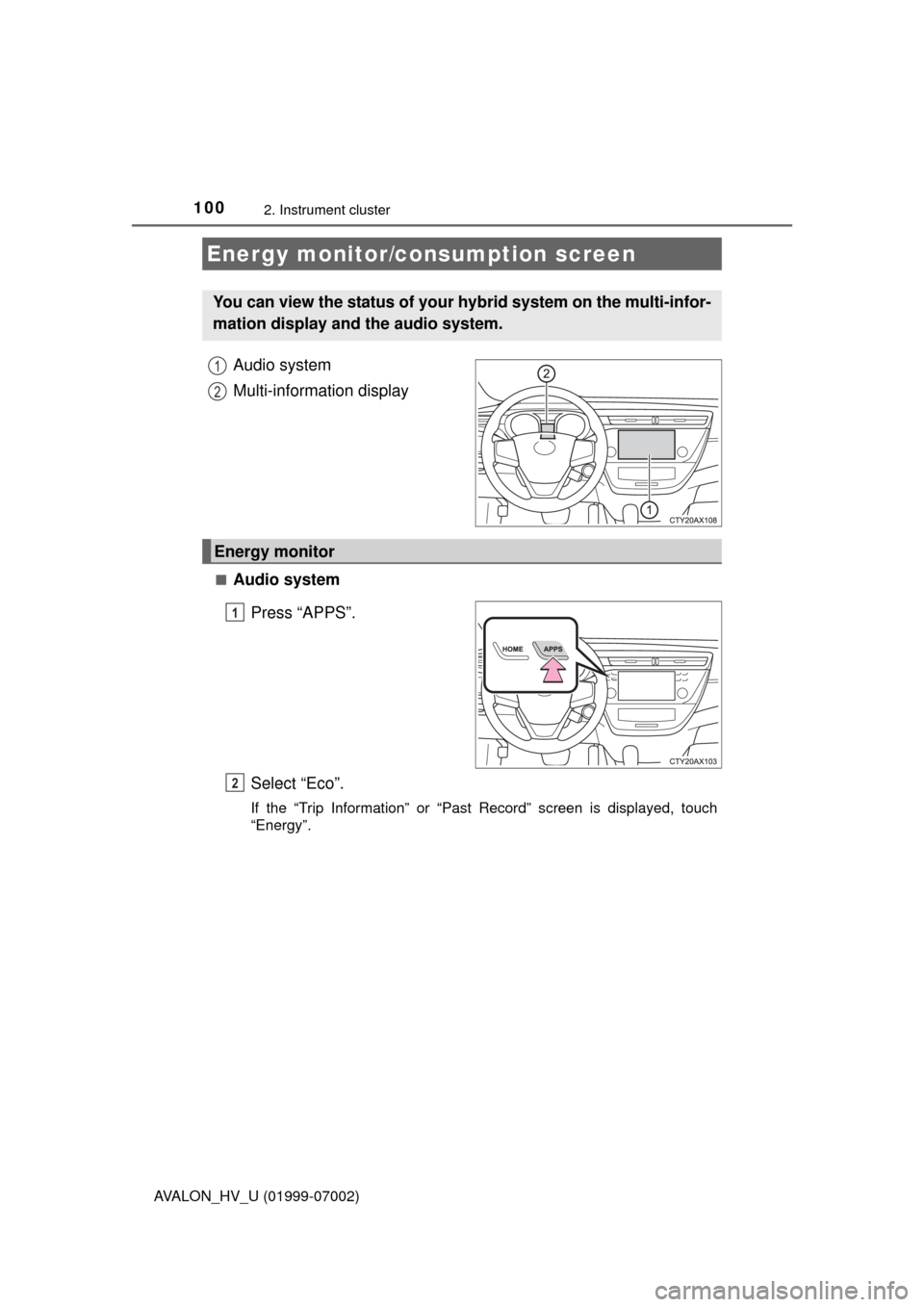

Audio system
Multi-information display
■Audio systemPress “APPS”.
Select “Eco”.
If the “Trip Information” or “Past Record” screen is displayed, touch
“Energy”.
Energy monitor/consumption screen
You can view the status of your hybrid system on the multi-infor-
mation display and the audio system.
1
2
Energy monitor
1
2

1012. Instrument cluster
2
Instrument cluster
AVALON_HV_U (01999-07002)■

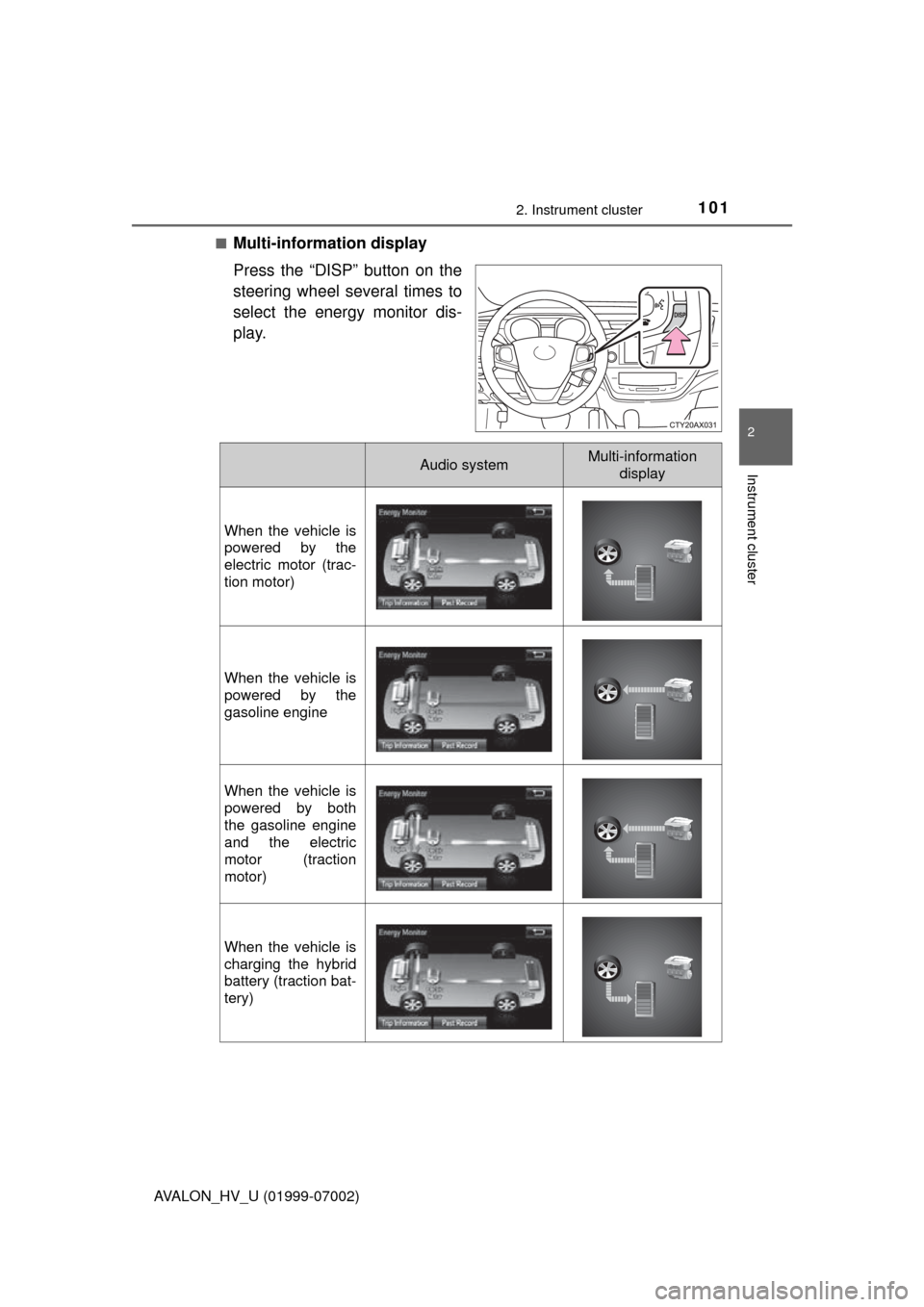

Multi-information display
Press the “DISP” button on the
steering wheel several times to
select the energy monitor dis-
play.
Audio systemMulti-information
display
When the vehicle is
powered by the
electric motor (trac-
tion motor)
When the vehicle is
powered by the
gasoline engine
When the vehicle is
powered by both
the gasoline engine
and the electric
motor (traction
motor)
When the vehicle is
charging the hybrid
battery (traction bat-
tery)

1022. Instrument cluster
AVALON_HV_U (01999-07002)

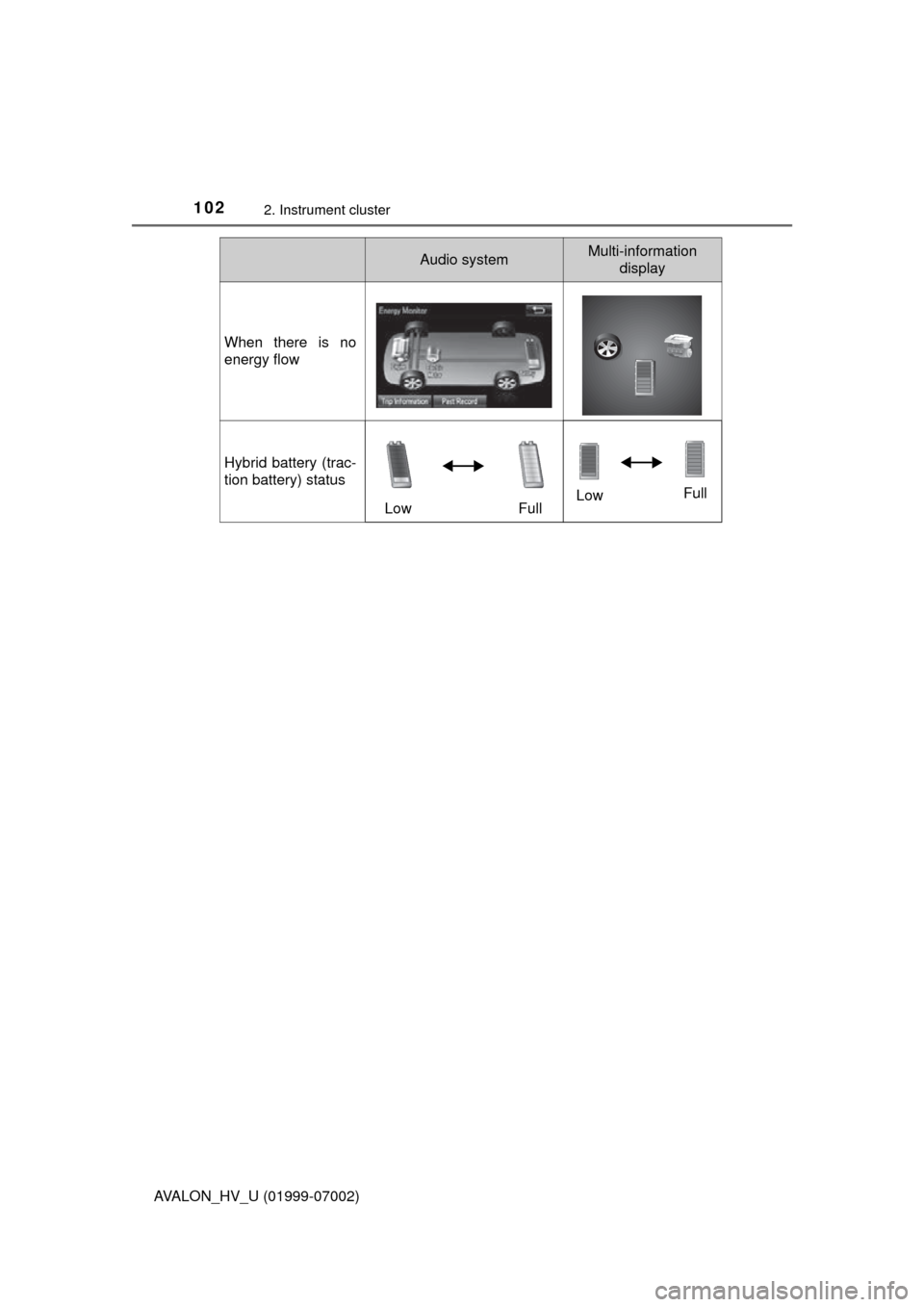

When there is no
energy flow
Hybrid battery (trac-
tion battery) statusLow Full Low
Full
Audio systemMulti-information
display

1032. Instrument cluster
2
Instrument cluster
AVALON_HV_U (01999-07002)■

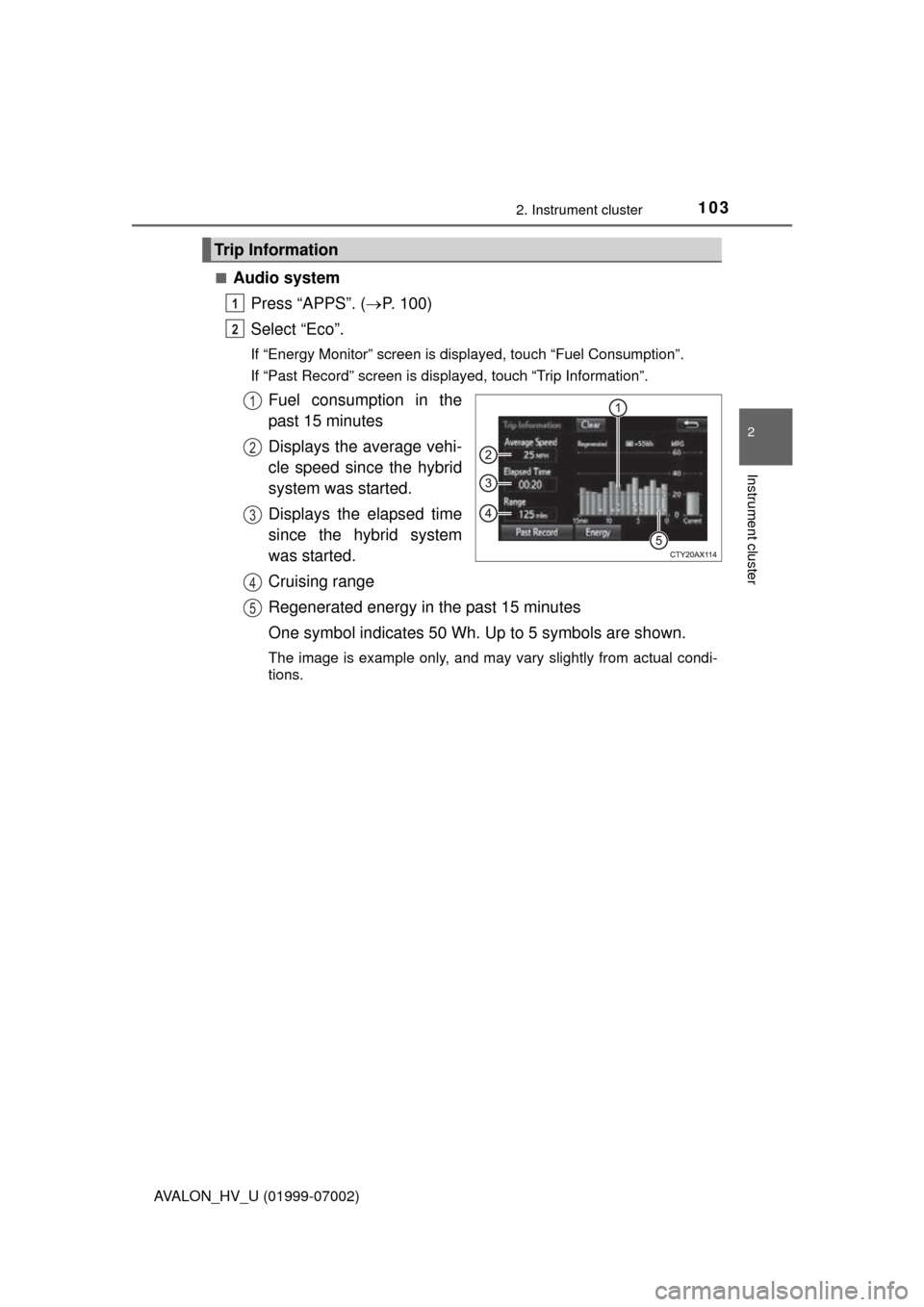

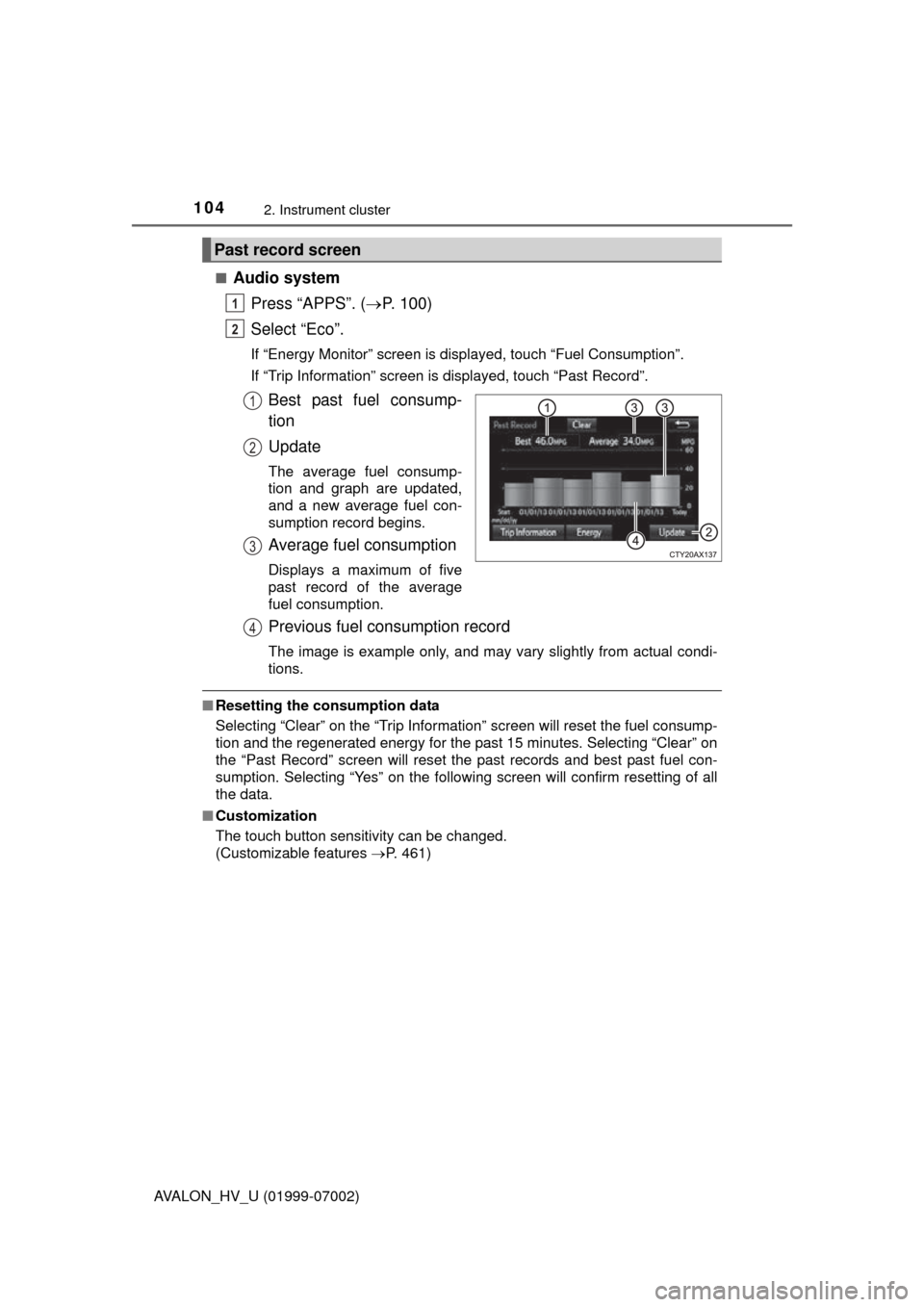

Audio system
Press “APPS”. ( P. 100)
Select “Eco”.
If “Energy Monitor” screen is displayed, touch “Fuel Consumptio\
n”.
If “Past Record” screen is displayed, touch “Trip Information”.
Fuel consumption in the
past 15 minutes
Displays the average vehi-
cle speed since the hybrid
system was started.
Displays the elapsed time
since the hybrid system
was started.
Cruising range
Regenerated energy in the past 15 minutes
One symbol indicates 50 Wh. Up to 5 symbols are shown.
The image is example only, and may vary slightly from actual condi-
tions.
Trip Information
1
2
1
2
3
4
5

1042. Instrument cluster
AVALON_HV_U (01999-07002)■
Audio system
Press “APPS”. ( P. 100)
Select “Eco”.
If “Energy Monitor” screen is displayed, touch “Fuel Consumptio\
n”.
If “Trip Information” screen is displayed, touch “Past Record”.
Best past fuel consump-
tion
Update
The average fuel consump-
tion and graph are updated,
and a new average fuel con-
sumption record begins.
Average fuel consumption
Displays a maximum of five
past record of the average
fuel consumption.
Previous fuel consumption record
The image is example only, and may vary slightly from actual condi-
tions.
■ Resetting the consumption data
Selecting “Clear” on the “Trip Information” screen will reset the fuel consump-
tion and the regenerated energy for the past 15 minutes. Selecting “Clear” on
the “Past Record” screen will reset the past records and best past fuel con-
sumption. Selecting “Yes” on the following screen will confirm resetting of all
the data.
■ Customization
The touch button sensitivity can be changed.
(Customizable features P. 461)
Past record screen
1
2
1
2
3
4
