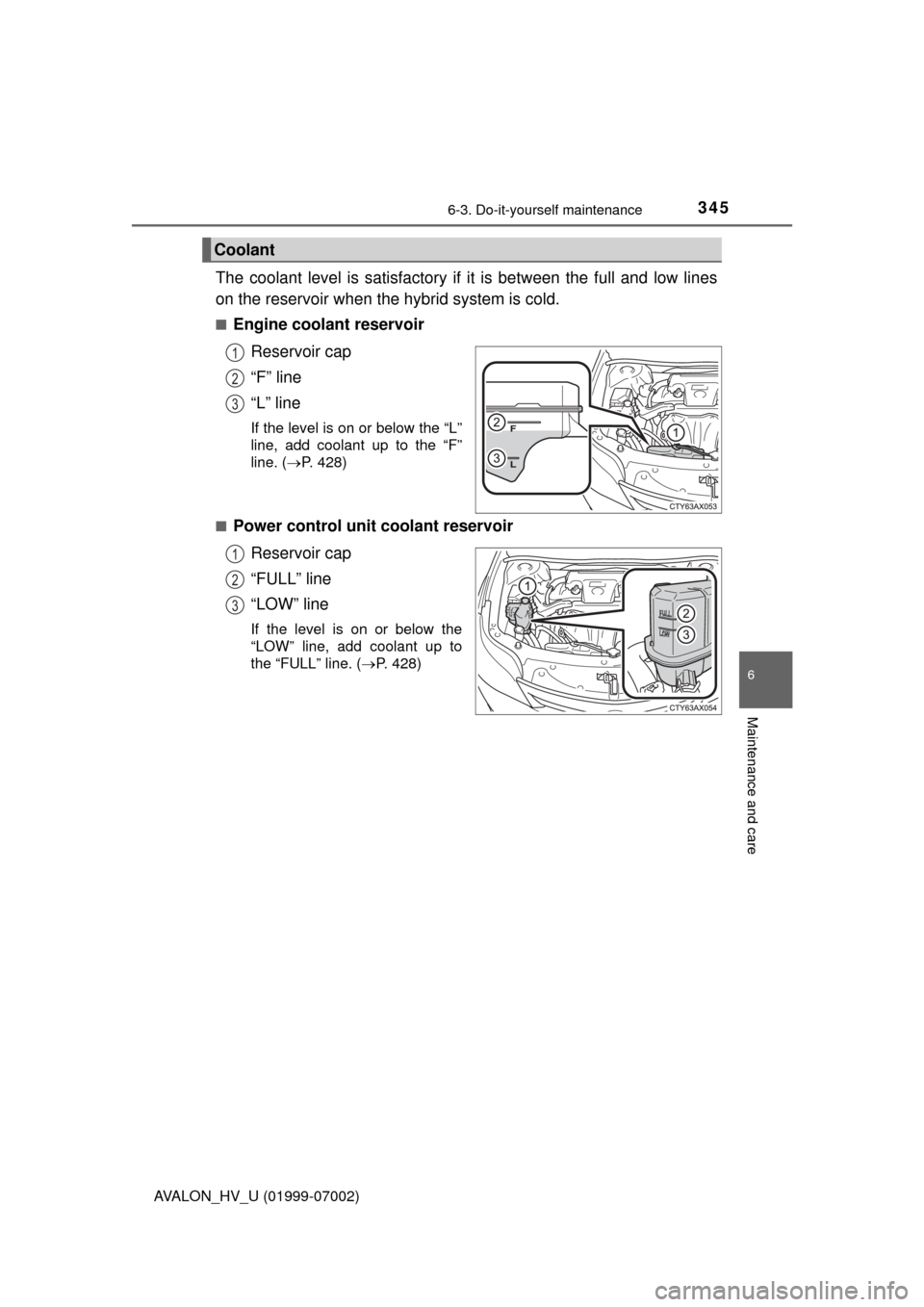

2016 TOYOTA AVALON HYBRID engine coolant

3456-3. Do-it-yourself maintenance
6
Maintenance and care
AVALON_HV_U (01999-07002)
The coolant level is satisfactory if it is between the full and low lines
on the reservoir when the hybrid system is cold.
■Engine coolant reservoir
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F”
line. ( P. 428)
■
Power control unit coolant reservoir Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to
the “FULL” line. ( P. 428)
Coolant
1
2
3
1
2
3

3466-3. Do-it-yourself maintenance
AVALON_HV_U (01999-07002)
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -31 F [-35 C])
For more details about coolant, contact your Toyota dealer.
■ If the coolant level drops within a short time of replenishing
Visually check the radiator, hoses, engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have your Toyota dealer test the cap and check for
leaks in the cooling system.
WARNING
■When the hybrid system is hot
Do not remove the engine/power control unit coolant reservoir caps or the
radiator cap.( P. 431)
The cooling system may be under pressure and may spray hot coolant if the
cap is removed, causing serious injuries, such as burns.
NOTICE
■ When adding coolant
Coolant is neither plain water nor straight antifreeze. The correct mixture of
water and antifreeze must be used to provide proper lubrication, corrosion
protection and cooling. Be sure to read the antifreeze or coolant label.
■ If you spill coolant
Be sure to wash it off with water to prevent it from damaging parts or paint.

3957-2. Steps to take in an emergency
7
When trouble arises
AVALON_HV_U (01999-07002)
●Fluid leaks under the vehicle.
(Water dripping from the air co nditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points higher
than normal.
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the hybrid system
● Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, spon gy feeling, pedal almost touches
the floor
If you think something is wrong
If you notice any of the follow ing symptoms, your vehicle proba-
bly needs adjustment or repair. Contact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms
Operational symptoms

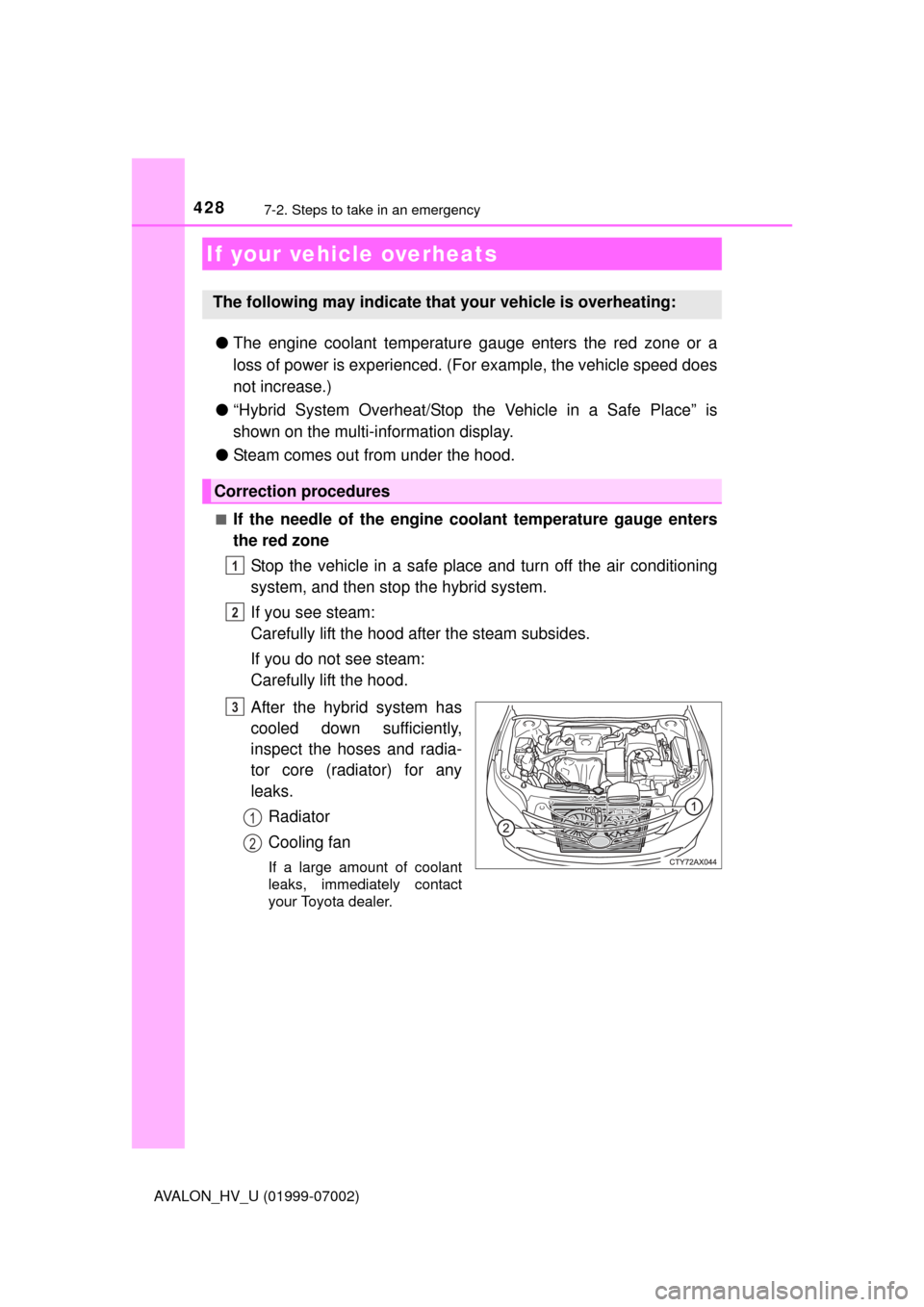

4287-2. Steps to take in an emergency
AVALON_HV_U (01999-07002)
●The engine coolant temperature gauge enters the red zone or a
loss of power is experienced. (For example, the vehicle speed does
not increase.)
● “Hybrid System Overhe at/Stop the Vehicle in a Safe Place” is
shown on the multi-information display.
● Steam comes out from under the hood.
■If the needle of the engine coolant temperature gauge enters
the red zone
Stop the vehicle in a safe place and turn off the air conditioning
system, and then stop the hybrid system.
If you see steam:
Carefully lift the hood after the steam subsides.
If you do not see steam:
Carefully lift the hood.
After the hybrid system has
cooled down sufficiently,
inspect the hoses and radia-
tor core (radiator) for any
leaks.Radiator
Cooling fan
If a large amount of coolant
leaks, immediately contact
your Toyota dealer.
If your vehicle overheats
The following may indicate that your vehicle is overheating:
Correction procedures
1
2
3
1
2

4317-2. Steps to take in an emergency
7
When trouble arises
AVALON_HV_U (01999-07002)
WARNING
■When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● After the hybrid system has been turned off, check that the indicator on the
“POWER” switch and the “READY” indicator are off.
When the hybrid system is operating, the gasoline engine may automati-
cally start, or the cooling fan may suddenly operate even if the gasoline
engine stops. Do not touch or approach rotating parts such as the fan,
which may lead to fingers or clothing (especially a tie, a scarf or a muffler)
getting caught, resulting in serious injury.
NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently.
Adding cool coolant to a hot hybrid system too quickly can cause damage to
the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.).
● Do not use any coolant additives.
●Do not loosen the radiator cap or the
coolant reservoir caps while the hybrid
system and radiator are hot.
Serious injury, such as burns, may
result from hot coolant and steam
released under pressure.

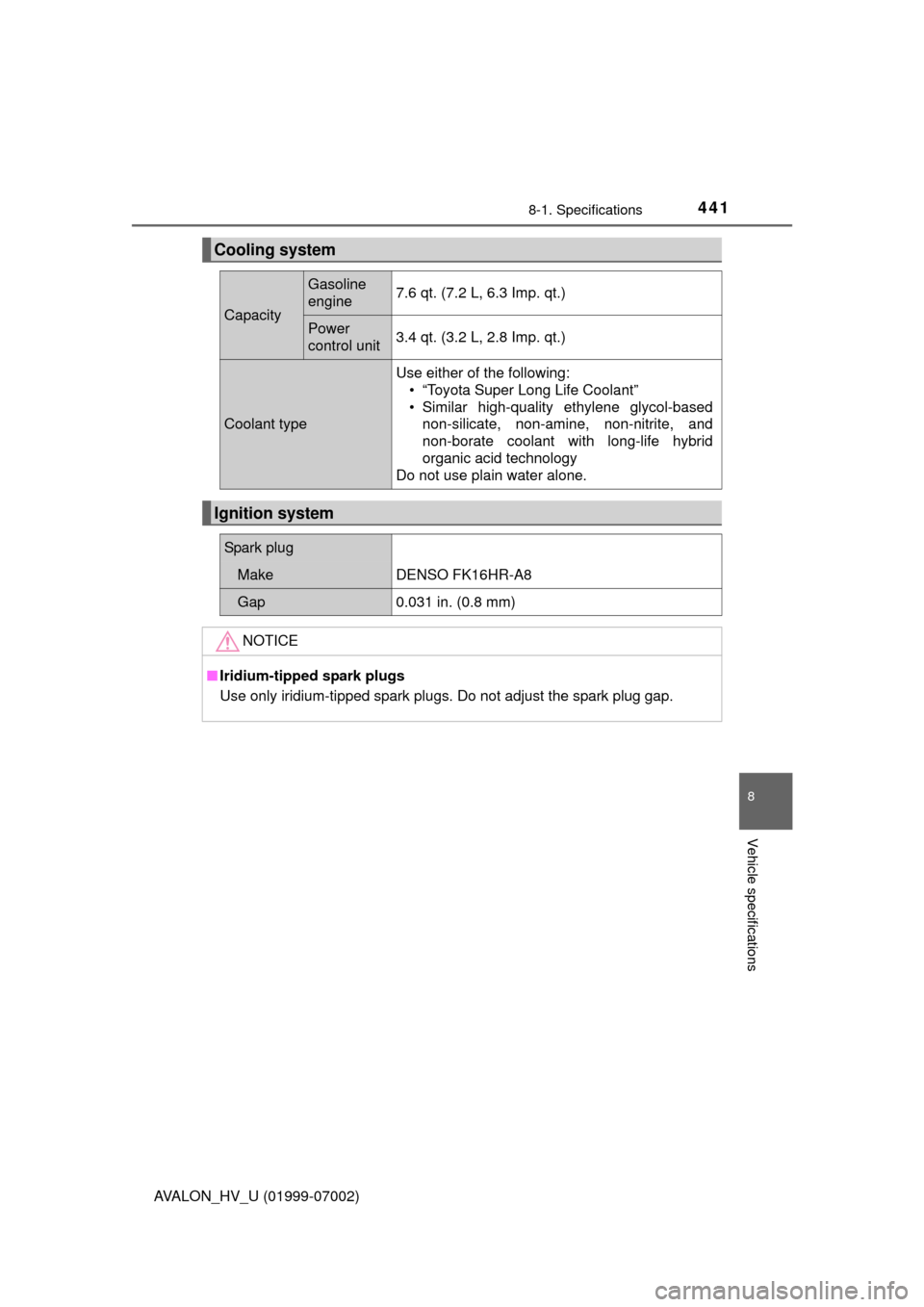

4418-1. Specifications
8
Vehicle specifications
AVALON_HV_U (01999-07002)
Cooling system
Capacity
Gasoline
engine7.6 qt. (7.2 L, 6.3 Imp. qt.)
Power
control unit3.4 qt. (3.2 L, 2.8 Imp. qt.)
Coolant type
Use either of the following:• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-basednon-silicate, non-amine, non-nitrite, and
non-borate coolant with long-life hybrid
organic acid technology
Do not use plain water alone.
Ignition system
Spark plug
MakeDENSO FK16HR-A8
Gap0.031 in. (0.8 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

4558-1. Specifications
8
Vehicle specifications
AVALON_HV_U (01999-07002)
Glossary of tire terminology
Tire related termMeaning
Cold tire inflation pres-
sure
Tire pressure when the vehicle has been
parked for three hours or more, or has not
been driven more than 1 mile or 1.5 km under
that condition
Maximum inflation
pressureThe maximum cold inflated pressure to which
a tire may be inflated, shown on the sidewall
of the tire
Recommended infla-
tion pressureCold tire inflation pressure recommended by a
manufacturer
Accessory weight
The combined weight (in excess of those stan-
dard items which may be replaced) of hybrid
transmission, power steering, power brakes,
power windows, power seats, radio and
heater, to the extent t hat these items are avail-
able as factory-installed equipment (whether
installed or not)
Curb weight
The weight of a motor vehicle with standard
equipment, including the maximum capacity of
fuel, oil and coolant, and if so equipped, air
conditioning and additional weight optional
engine
Maximum loaded vehi-
cle weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant
weight150 lb. (68 kg) times the number of occupants
specified in the second column of Table 1
*
that follows
Occupant distributionDistribution of occupants in a vehicle as speci-
fied in the third column of Table 1
* below

478Alphabetical index
AVALON_HV_U (01999-07002)
Child safety ................................ 5412-volt battery
precautions ................. 352, 427
Airbag precautions .................. 39
Child restraint system ............. 55
How your child should wear the seat belt .......................... 32
Installing child restraints ......... 59
Moon roof precautions .......... 154
Power window lock switch .... 148
Power window precautions ... 150
Rear door child-protectors .... 113
Removed electronic key battery precautions ...... 373
Seat belt extender precautions ........................... 35
Seat belt precautions .............. 58
Seat heater precautions........ 281
Trunk precautions ................. 119
Child-protectors....................... 113
Cleaning ........................... 324, 327
Aluminum wheels.................. 325
Exterior ................................. 324
Interior................................... 327
Seat belts .............................. 328
Clock ......................................... 298
Coat hooks ............................... 304
Compass .................................. 318
Condenser ................................ 347 Console box ............................. 289
Consumption screen............... 100
Coolant ..................................... 345
Capacity................................ 441
Checking............................... 345
Preparing and checking before winter ...................... 268
Cooling system........................ 345
Engine overheating............... 428
Hybrid system overheating ... 428
Cruise control
Cruise control ....................... 245
Dynamic radar cruise control ................................ 232
Cup holders ............................. 290
Curtain shield airbags............... 37
Customizable features ............ 461
