2016 TOYOTA AURIS TOURING SPORTS CD player

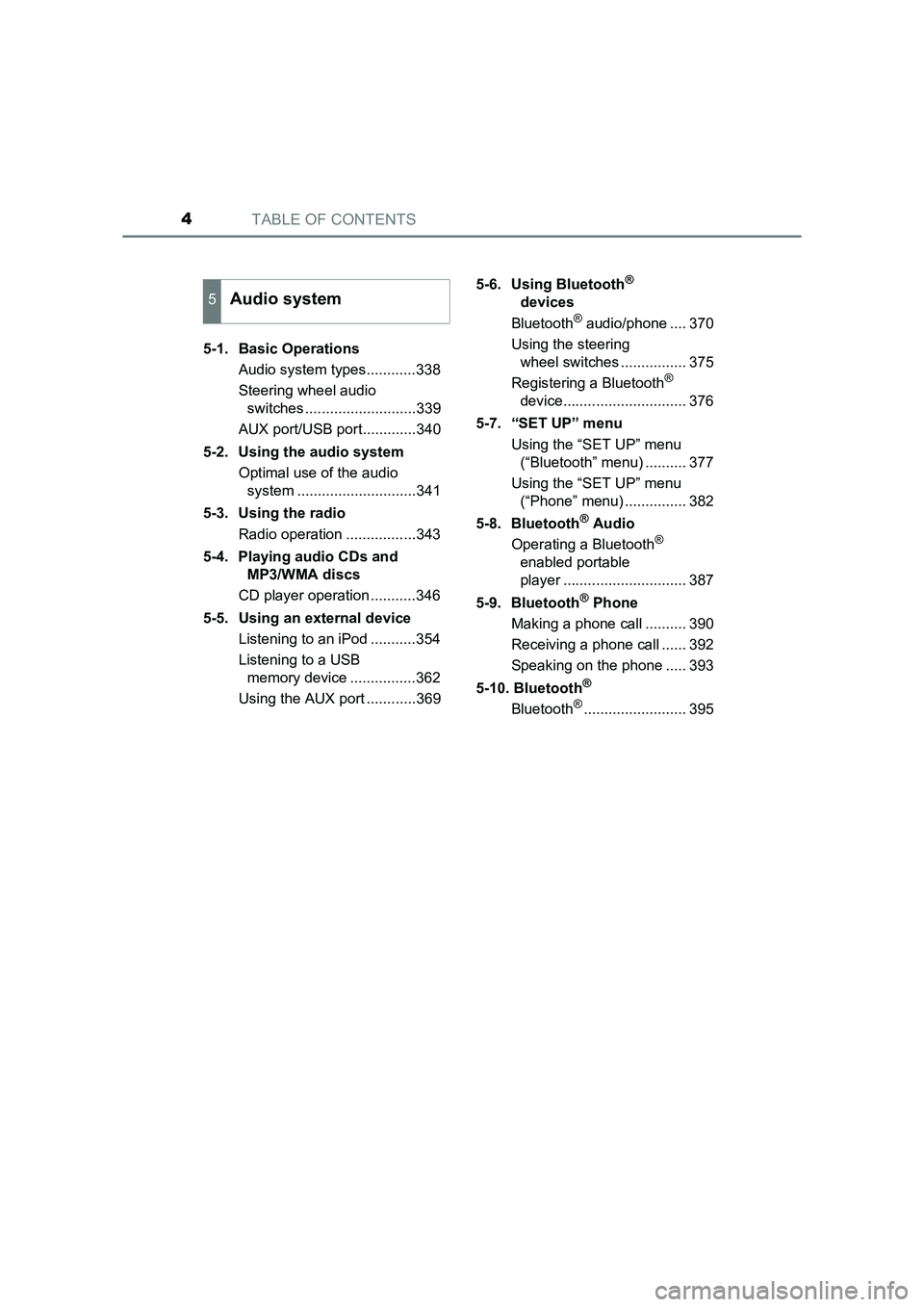

TABLE OF CONTENTS4
AURIS Touring Sports_EE (12K53E)5-1. Basic Operations
Audio system types............338
Steering wheel audio switches ...........................339
AUX port/USB port.............340
5-2. Using the audio system Optimal use of the audio system .............................341
5-3. Using the radio Radio operation .................343
5-4. Playing audio CDs and MP3/WMA discs
CD player operation ...........346
5-5. Using an external device Listening to an iPod ...........354
Listening to a USB memory device ................362
Using the AUX port ............369 5-6. Using Bluetooth
®
devices
Bluetooth
® audio/phone .... 370
Using the steering wheel switches ................ 375
Registering a Bluetooth
®
device.............................. 376
5-7. “SET UP” menu Using the “SET UP” menu (“Bluetooth” menu) .......... 377
Using the “SET UP” menu (“Phone” menu) ............... 382
5-8. Bluetooth
® Audio
Operating a Bluetooth®
enabled portable
player .............................. 387
5-9. Bluetooth
® Phone
Making a phone call .......... 390
Receiving a phone call ...... 392
Speaking on the phone ..... 393
5-10. Bluetooth
®
Bluetooth®......................... 395
5Audio system

471-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12K53E)
WARNING
■ SRS airbag precautions
●Do not use seat accessories which cover the parts where the SRS side
airbags inflate as they may interfere with inflation of the airbags. Such
accessories may prevent the side airbags from activating correctly, disable
the system or cause the side airbags to inflate accidentally, resulting in
death or serious injury.
● Do not strike or apply significant levels of force to the area of the SRS air-
bag components.
Doing so can cause the SRS airbags to malfunction.
● Do not touch any of the component parts immediately after the SRS air-
bags have deployed (inflated) as they may be hot.
● If breathing becomes difficult after the SRS airbags have deployed, open a
door or window to allow fresh air in, or leave the vehicle if it is safe to do
so. Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags ar e stored, such as the steering wheel
pad and front and rear pillar garni shes are damaged or cracked, have
them replaced by any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional. The SRS airbags may malfunction or
deploy (inflate) accidentally, causing death or serious injury.
●Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel,
instrument panel, dashboard, seats or seat upholstery, front, side and rear
pillars or roof side rails
● Repairs or modifications of the front fender, front bumper, or side of the
occupant compartment
● Installation of a grille guard (bull bar s, kangaroo bar, etc.), snow plows or
winches
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radios (RF-trans-
mitter) and CD players
● Modifications to your vehicle for a person with a physical disability

1483-2. Opening, closing and locking the doors
AURIS Touring Sports_EE (12K53E)■
Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and engine immobilizer system from operating properly.
(Ways of coping: →P. 591)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices

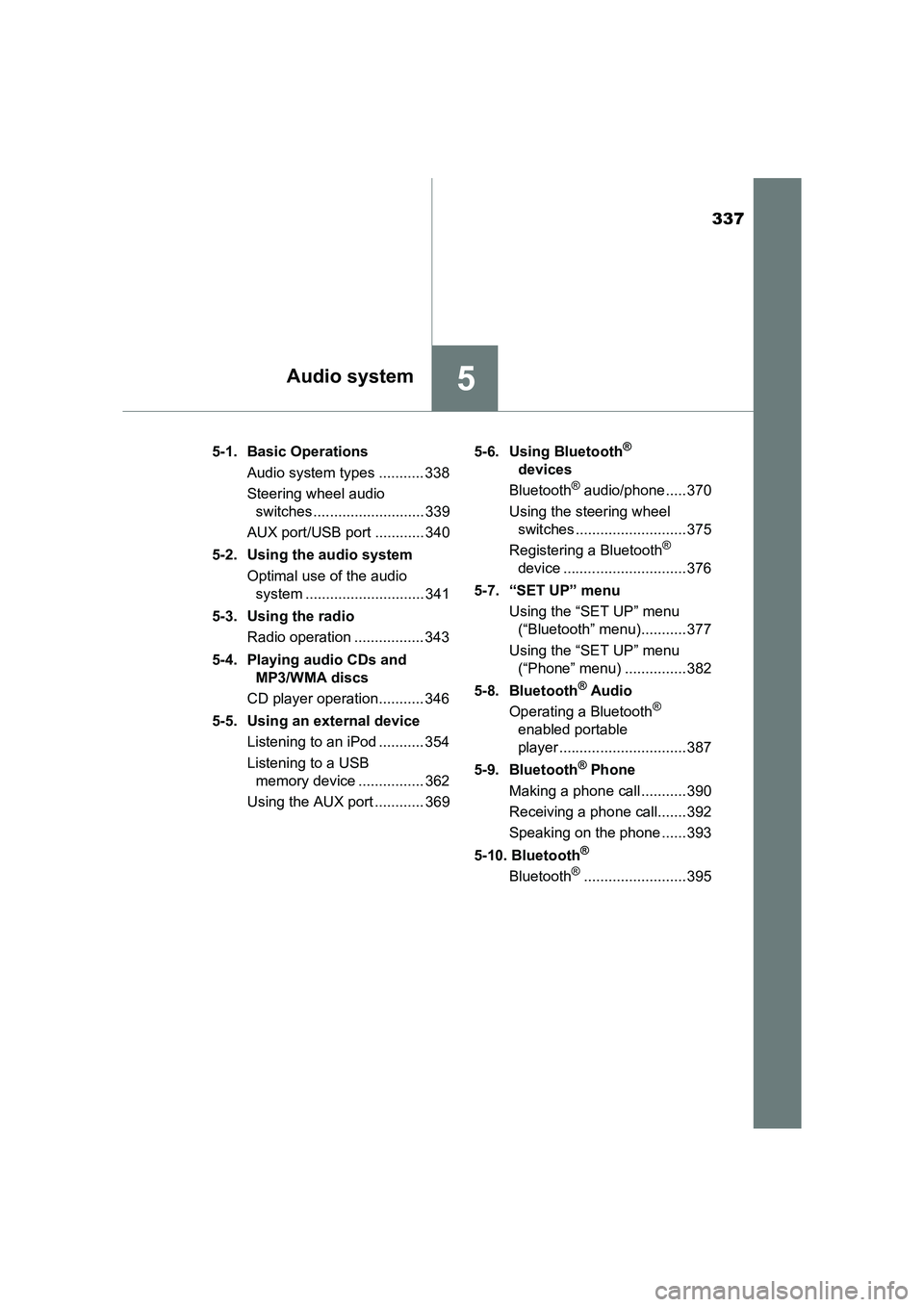

337
5Audio system
AURIS Touring Sports_EE (12K53E)5-1. Basic Operations
Audio system types ........... 338
Steering wheel audio switches ........................... 339
AUX port/USB port ............ 340
5-2. Using the audio system Optimal use of the audio system ............................. 341
5-3. Using the radio Radio operation ................. 343
5-4. Playing audio CDs and MP3/WMA discs
CD player operation........... 346
5-5. Using an external device Listening to an iPod ........... 354
Listening to a USB memory device ................ 362
Using the AUX port ............ 369 5-6. Using Bluetooth
®
devices
Bluetooth
® audio/phone..... 370
Using the steering wheel switches ........................... 375
Registering a Bluetooth
®
device .............................. 376
5-7. “SET UP” menu Using the “SET UP” menu (“Bluetooth” menu)........... 377
Using the “SET UP” menu (“Phone” menu) ............... 382
5-8. Bluetooth
® Audio
Operating a Bluetooth®
enabled portable
player ............................... 387
5-9. Bluetooth
® Phone
Making a phone call ...........390
Receiving a phone call.......392
Speaking on the phone ......393
5-10. Bluetooth
®
Bluetooth®......................... 395

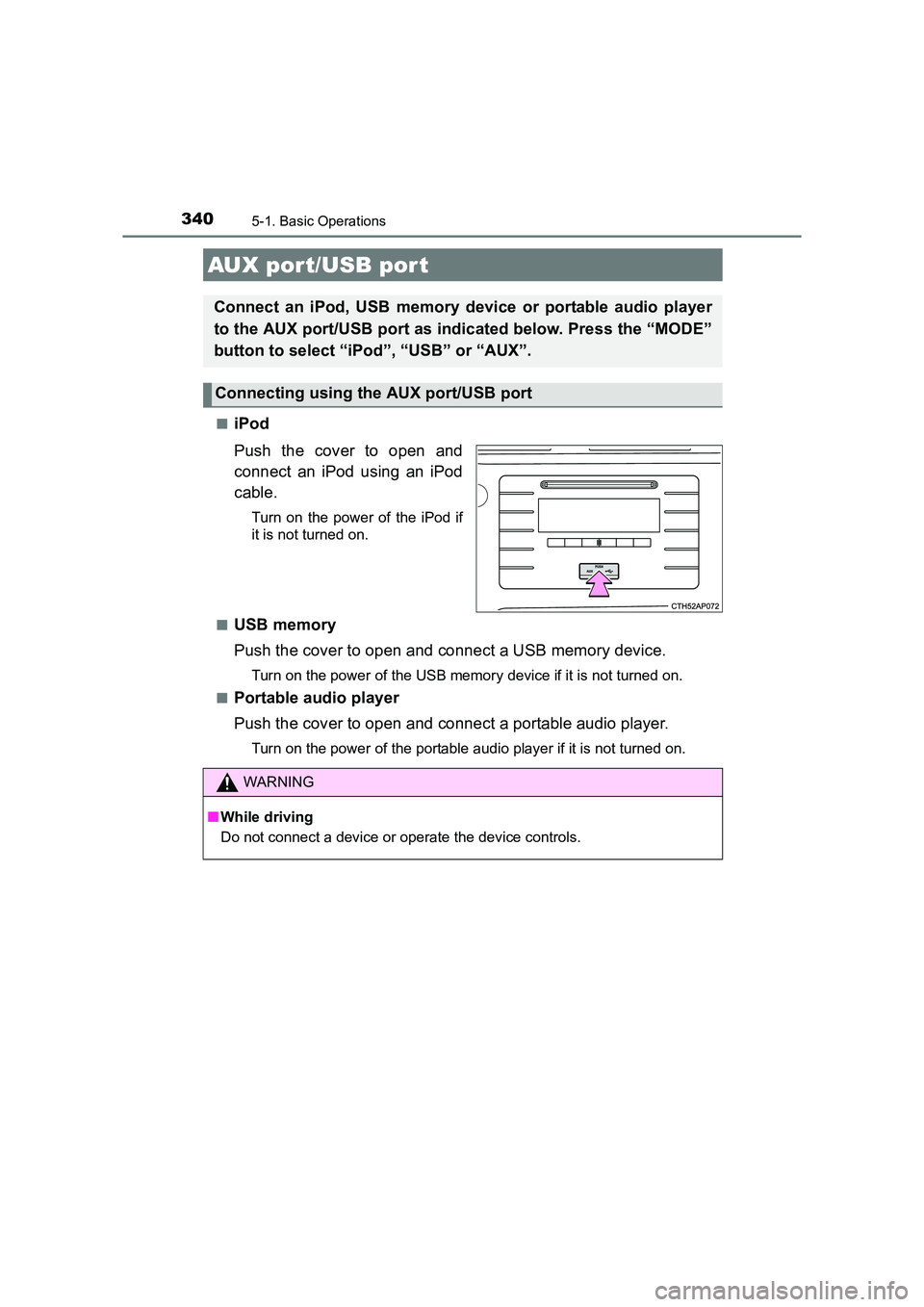

3405-1. Basic Operations
AURIS Touring Sports_EE (12K53E)■
iPod
Push the cover to open and
connect an iPod using an iPod
cable.
Turn on the power of the iPod if
it is not turned on.
■
USB memory
Push the cover to open and connect a USB memory device.
Turn on the power of the USB memory device if it is not turned on.
■
Portable audio player
Push the cover to open and connect a portable audio player.
Turn on the power of the portable audio player if it is not turned on.
AUX port/USB por t
Connect an iPod, USB memory device or portable audio player
to the AUX port/USB port as indicated below. Press the “MODE”
button to select “iPod”, “USB” or “AUX”.
Connecting using the AUX port/USB port
WARNING
■ While driving
Do not connect a device or operate the device controls.

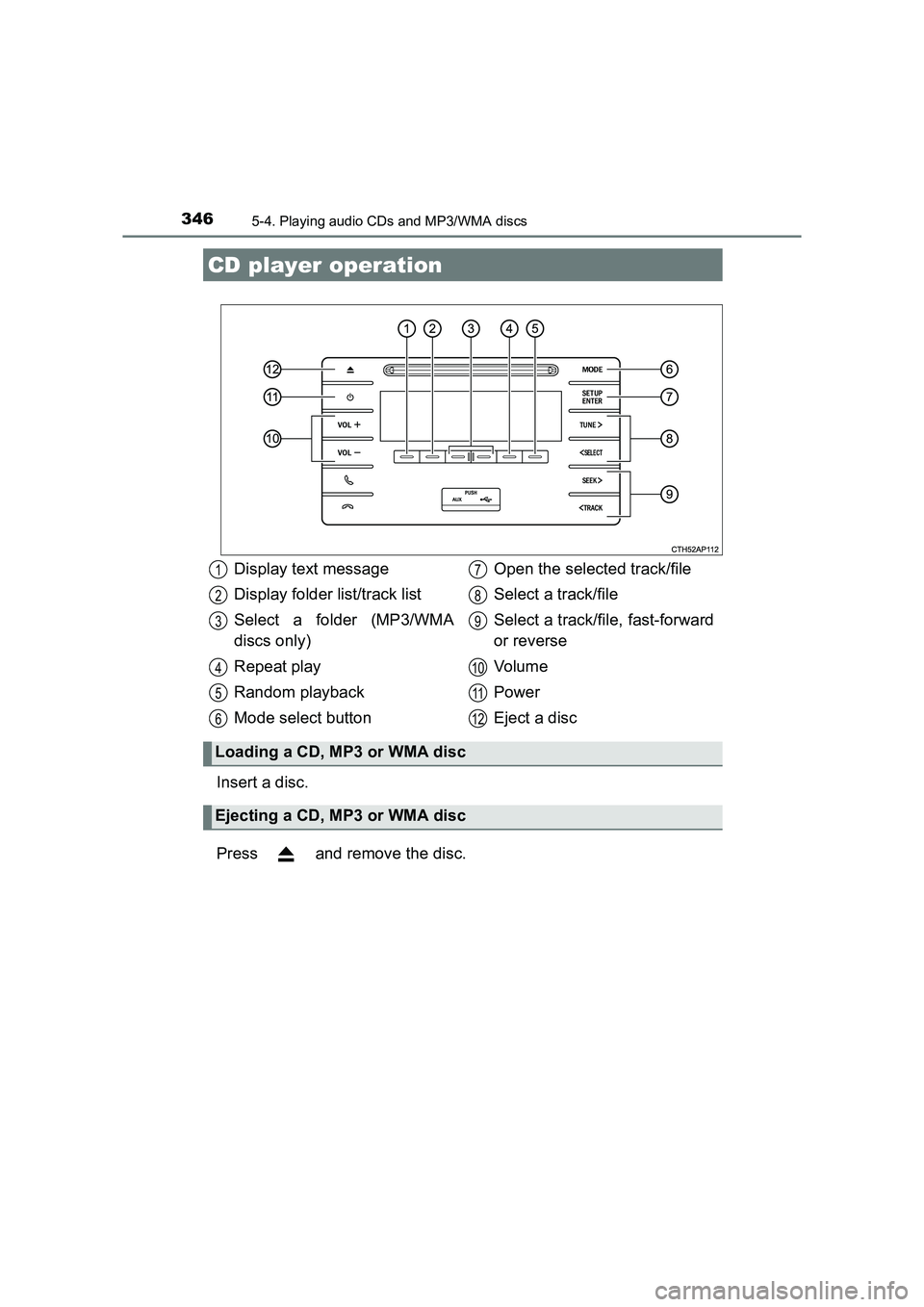

346
AURIS Touring Sports_EE (12K53E)
5-4. Playing audio CDs and MP3/WMA discs
Insert a disc.
Press and remove the disc.
CD player operation
Display text message
Display folder list/track list
Select a folder (MP3/WMA
discs only)
Repeat play
Random playback
Mode select buttonOpen the selected track/file
Select a track/file
Select a track/file, fast-forward
or reverse
Vol um e
Power
Eject a disc
Loading a CD, MP3 or WMA disc
Ejecting a CD, MP3 or WMA disc
1
2
3
4
5
6
7
8
9
10
11
12

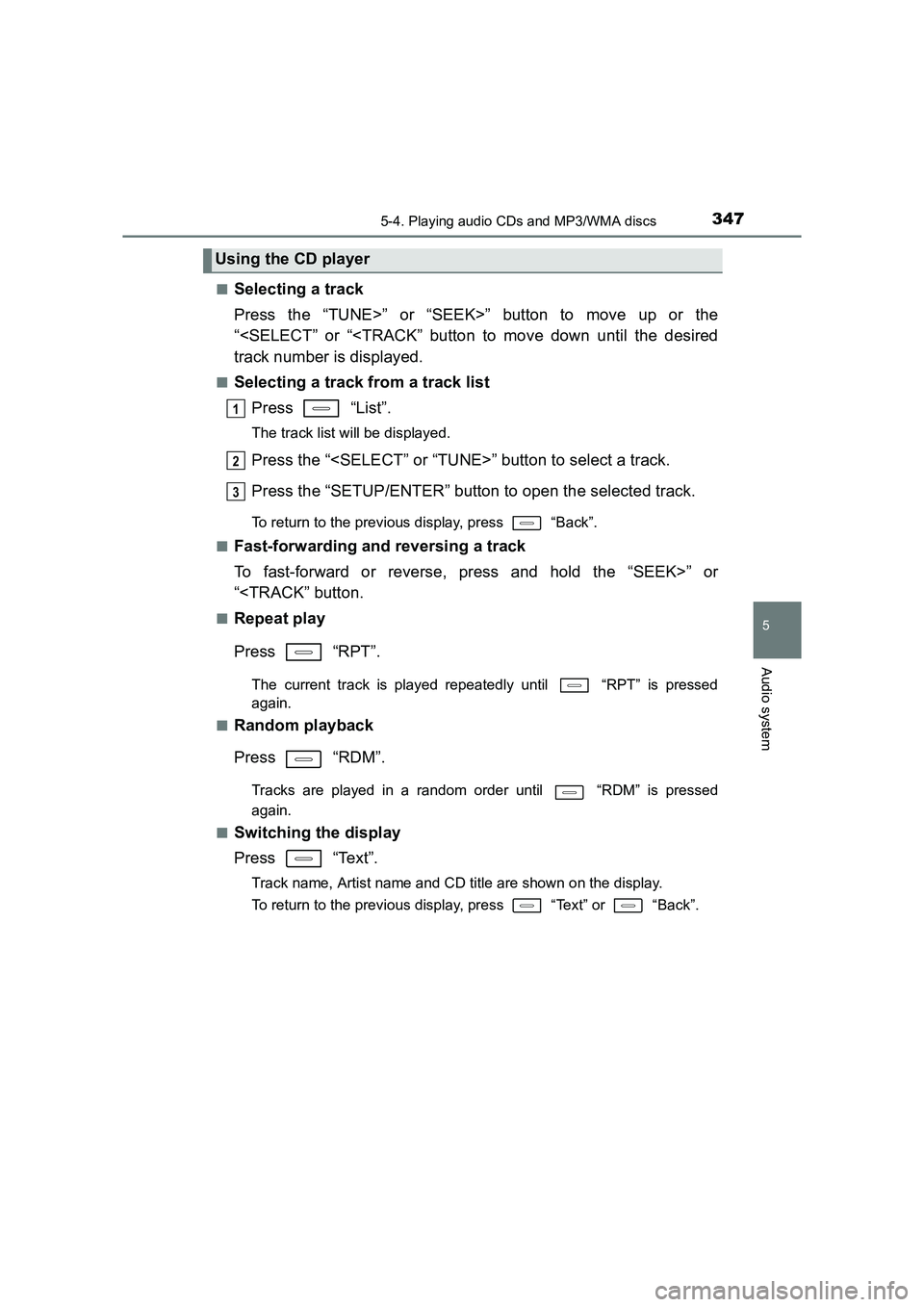

3475-4. Playing audio CDs and MP3/WMA discs
AURIS Touring Sports_EE (12K53E)
5
Audio system
■Selecting a track
Press the “TUNE>” or “SEEK>” button to move up or the
“ track number is displayed.
■Selecting a track from a track listPress “List”.
The track list will be displayed.
Press the “” button to select a track.
Press the “SETUP/ENTER” button to open the selected track.
To return to the previous display, press “Back”.
■
Fast-forwarding and reversing a track
To fast-forward or reverse, press and hold the “SEEK>” or
“ ■Repeat play
Press “RPT”.
The current track is played repeat edly until “RPT” is pressed
again.
■
Random playback
Press “RDM”.
Tracks are played in a random order until “RDM” is pressed
again.
■
Switching the display
Press “Text”.
Track name, Artist name and CD title are shown on the display.
To return to the previous display, press “Text” or “Back”.
Using the CD player
1
2
3

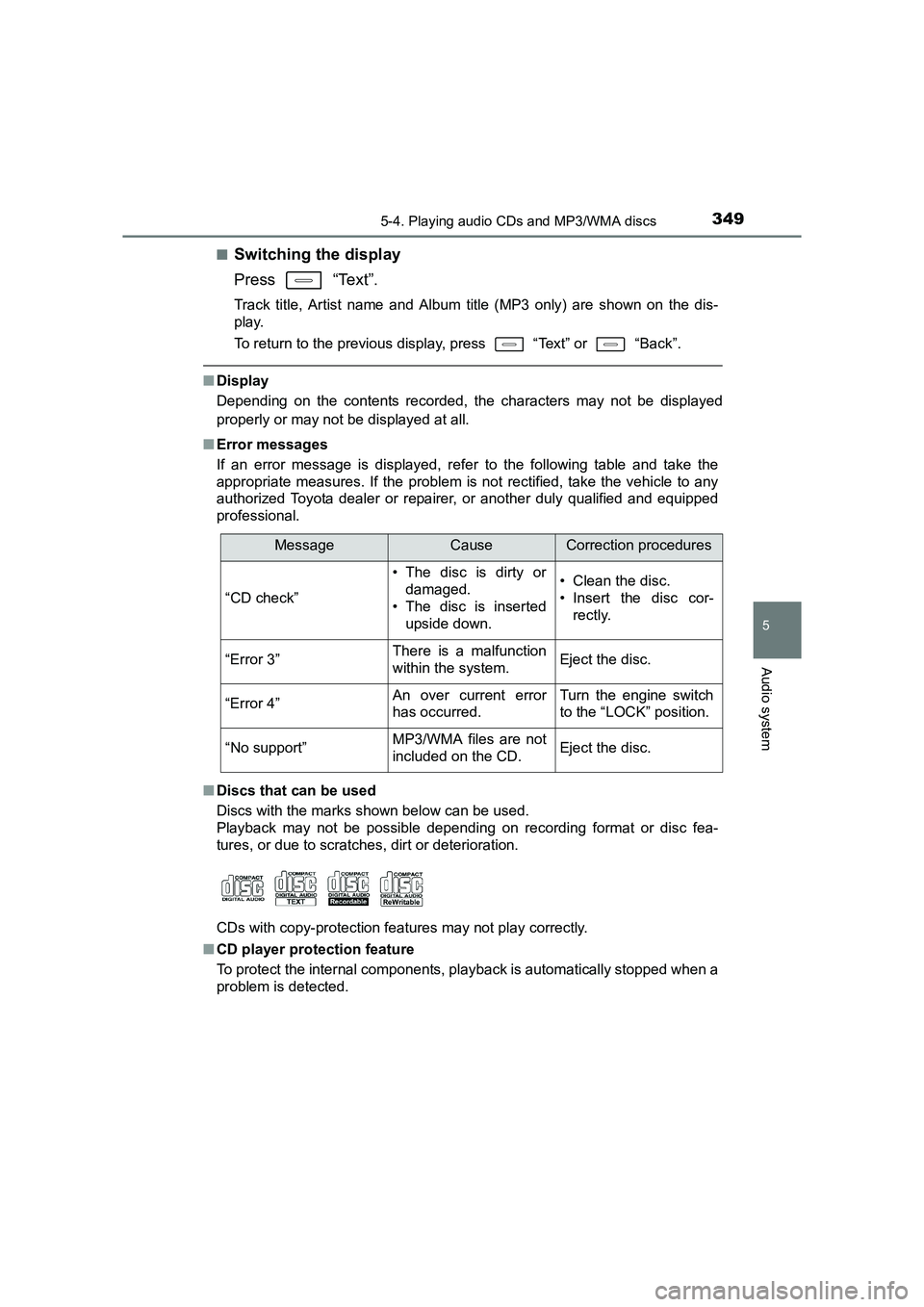

3495-4. Playing audio CDs and MP3/WMA discs
AURIS Touring Sports_EE (12K53E)
5
Audio system
■Switching the display
Press “Text”.
Track title, Artist name and Album title (MP3 only) are shown on the dis-
play.
To return to the previous display, press “Text” or “Back”.
■Display
Depending on the contents recorded, the characters may not be displayed
properly or may not be displayed at all.
■ Error messages
If an error message is displayed, refer to the following table and take the
appropriate measures. If the problem is not rectified, take the vehicle to any
authorized Toyota dealer or repair er, or another duly qualified and equipped
professional.
■ Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protection features may not play correctly.
■ CD player protection feature
To protect the internal components, playback is automatically stopped when a
problem is detected.
MessageCauseCorrection procedures
“CD check”
• The disc is dirty or
damaged.
• The disc is inserted
upside down.• Clean the disc.
• Insert the disc cor- rectly.
“Error 3”There is a malfunction
within the system.Eject the disc.
“Error 4”An over current error
has occurred.Turn the engine switch
to the “LOCK” position.
“No support”MP3/WMA files are not
included on the CD.Eject the disc.
