2016 TOYOTA AURIS TOURING SPORTS CD player

377
AURIS Touring Sports_EE (12K53E)
5
Audio system
5-7. “SET UP” menu
*: Bluetooth is a registered trademark of Bluetooth SIG, Inc.
Select “Pairing” using the “” and “SETUP/
ENTER” buttons (→P. 373), and perform the procedure for registering
a portable player. ( →P. 376)
Select “List phone” using the “” and “SETUP/
ENTER” buttons. ( →P. 373) The list of registered cellular phones will
be displayed.
● Connecting the registered cellular phone to the audio system
Select the name of the cellular phone to be connected using the
“” and “SETUP/ENTER” buttons.
Select “Select” using the “” and “SETUP/
ENTER” buttons.
● Deleting a registered cellular phone
Select the name of the cellular phone to be deleted using the
“” and “SETUP/ENTER” buttons.
Select “Delete” using the “” and “SETUP/
ENTER” buttons.
Press “Yes”.

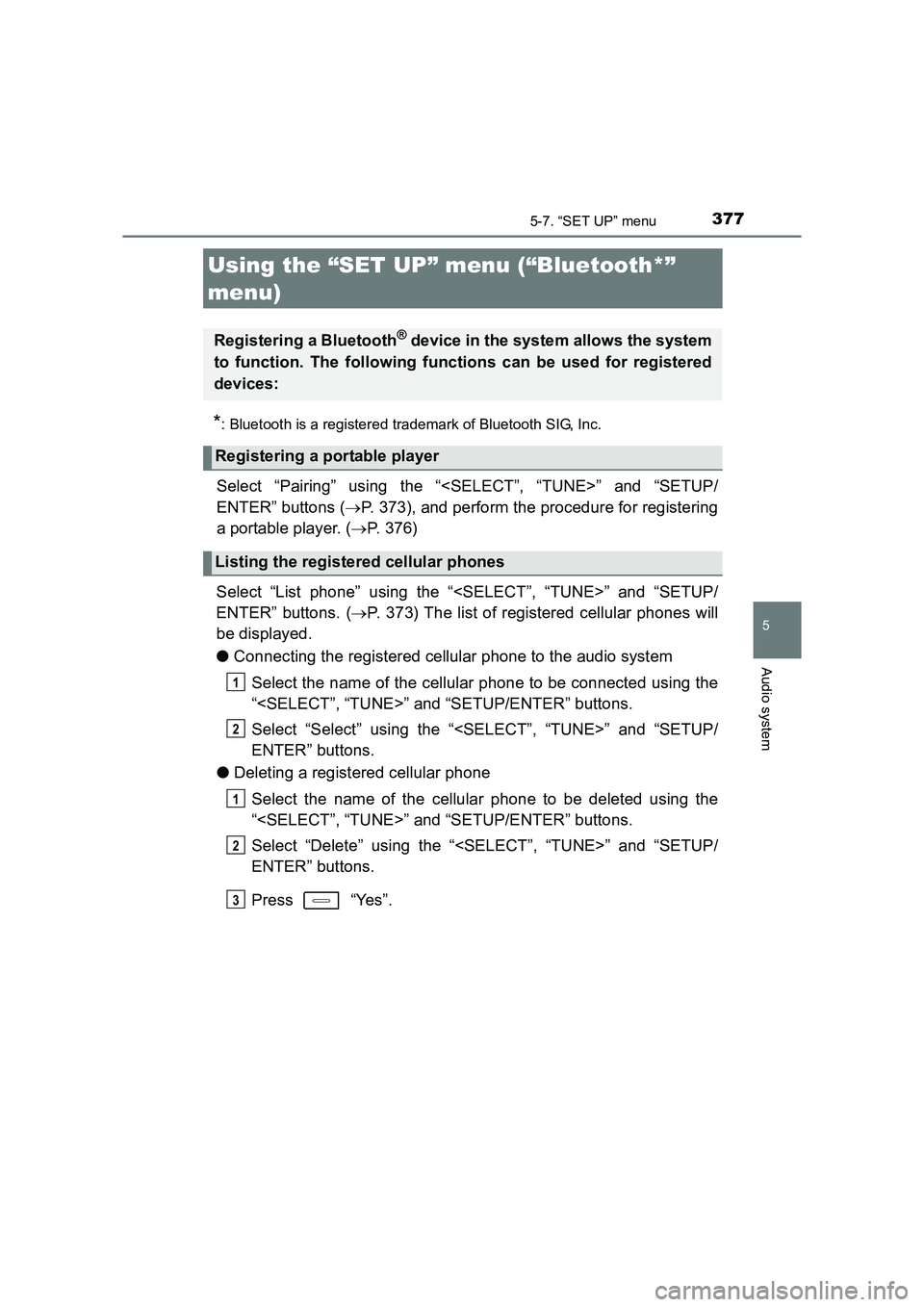

Using the “SET UP” menu (“Bluetooth*”
menu)
Registering a Bluetooth® device in the system allows the system
to function. The following functions can be used for registered
devices:
Registering a portable player
Listing the registered cellular phones
1
2
1
2
3

3785-7. “SET UP” menu
AURIS Touring Sports_EE (12K53E)

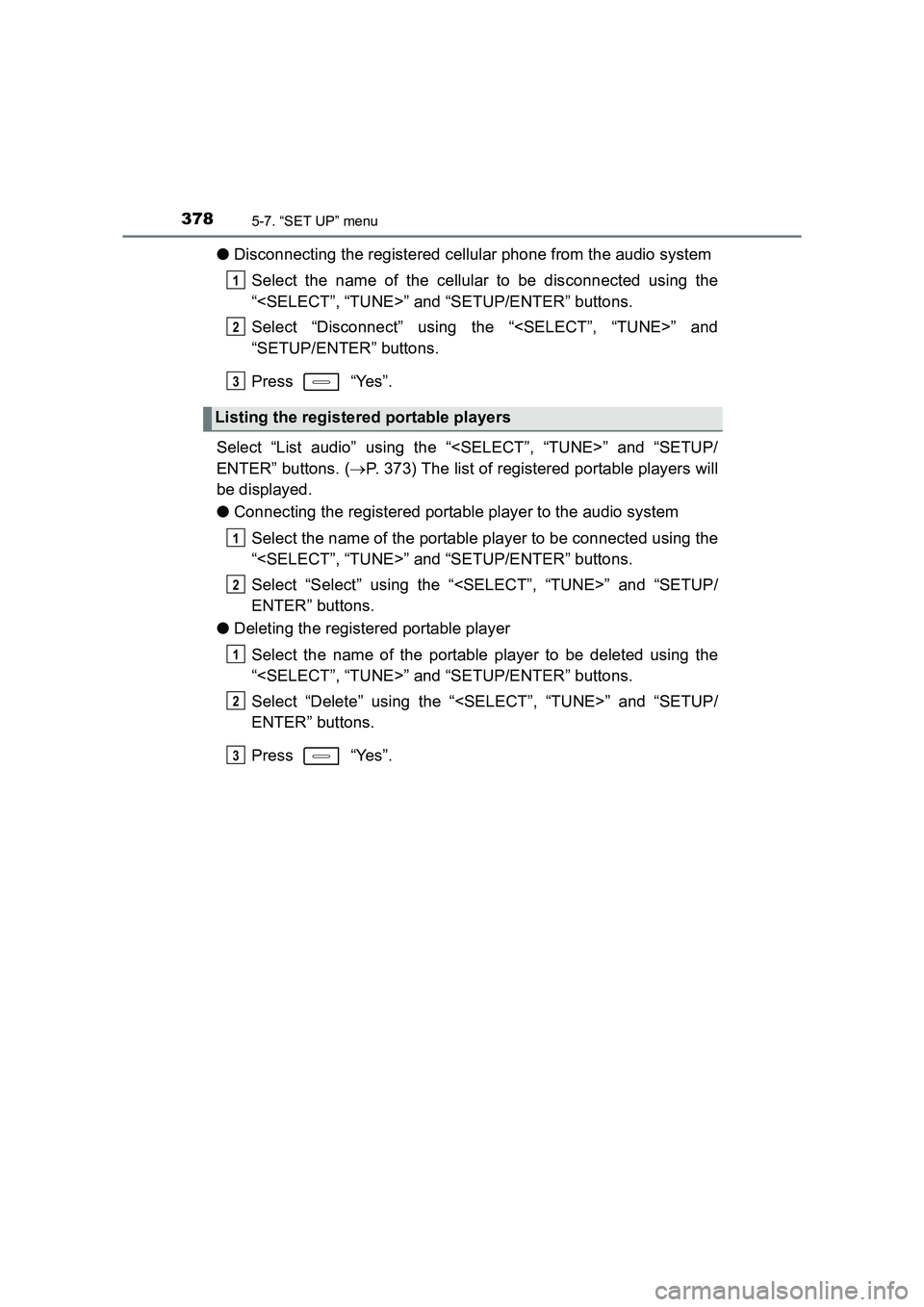

●Disconnecting the registered cellular phone from the audio system
Select the name of the cellular to be disconnected using the
“” and “SETUP/ENTER” buttons.
Select “Disconnect” using the “” and
“SETUP/ENTER” buttons.
Press “Yes”.
Select “List audio” using the “” and “SETUP/
ENTER” buttons. ( →P. 373) The list of registered portable players will
be displayed.
● Connecting the registered portable player to the audio system
Select the name of the portable player to be connected using the
“” and “SETUP/ENTER” buttons.
Select “Select” using the “” and “SETUP/
ENTER” buttons.
● Deleting the registered portable player
Select the name of the portable player to be deleted using the
“” and “SETUP/ENTER” buttons.
Select “Delete” using the “” and “SETUP/
ENTER” buttons.
Press “Yes”.
Listing the registered portable players
1
2
3
1
2
1
2
3

3795-7. “SET UP” menu
AURIS Touring Sports_EE (12K53E)
5
Audio system
●Disconnecting the registered portable player from the audio system
Select the name of the portable player to be disconnected using
the “” and “SETUP/ENTER” buttons.
Select “Disconnect” using the “” and
“SETUP/ENTER” buttons.
Press “Yes”.
● Selecting the connection method
Select the name of the desired portable player using the
“” and “SETUP/ENTER” buttons.
Select “Connection method” using the “” and
“SETUP/ENTER” buttons.
Select “From vehicle” or “From audio” using the “ “TUNE>” and “SETUP/ENTER” buttons.
Select “Passkey” using the “” and “SETUP/
ENTER” buttons. ( →P. 373)
Input a 4 to 8-digit passkey using the “” and
“SETUP/ENTER” buttons.
Input the number 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press “Enter”.
If the passkey to be registered has 8 digits, pressing “Enter” is not
necessary.
Changing the passkey
1
2
3
1
2
3
1
2
3

3815-7. “SET UP” menu
AURIS Touring Sports_EE (12K53E)
5
Audio system

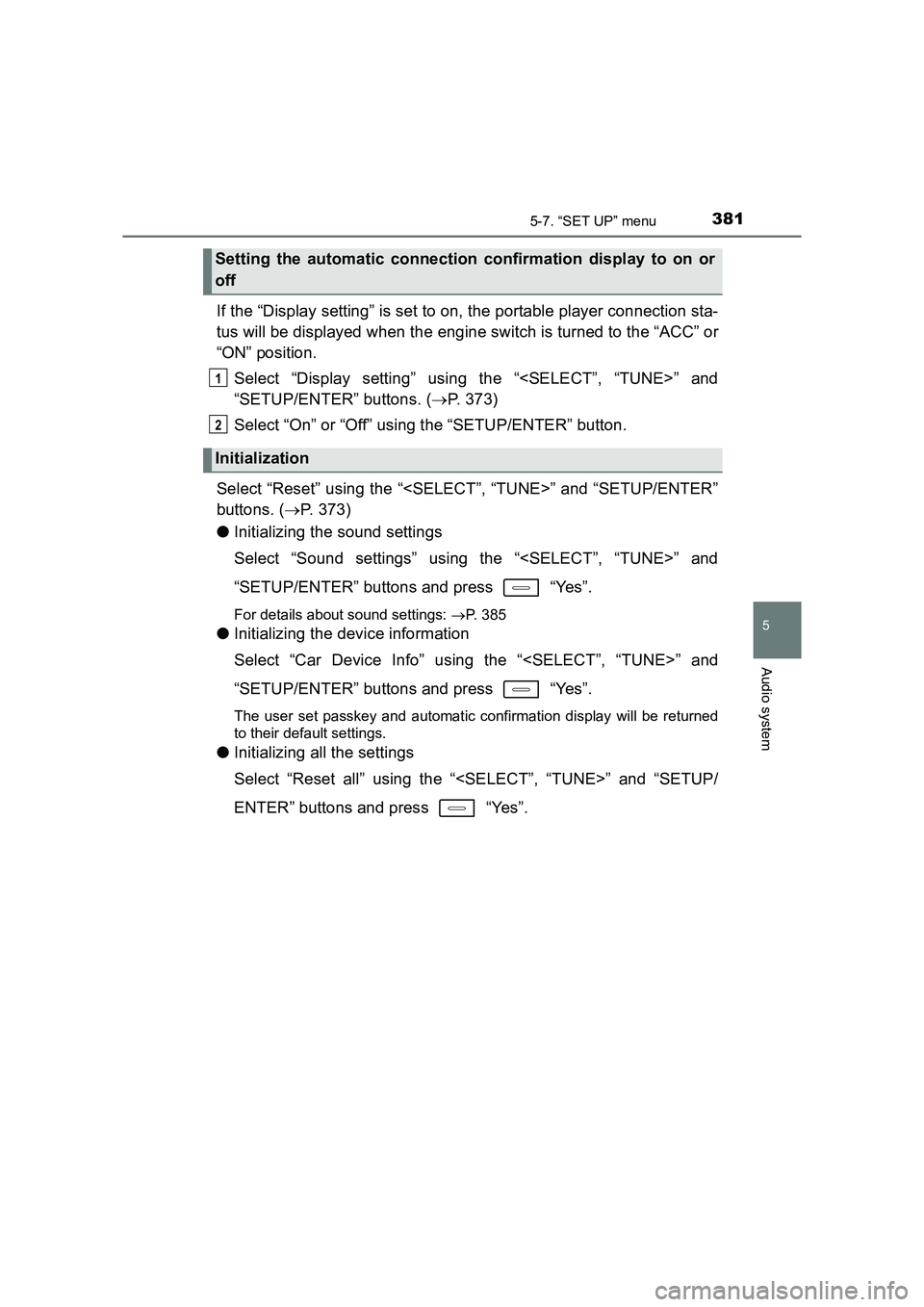

If the “Display setting” is set to on, the portable player connection sta-
tus will be displayed when the engine switch is turned to the “ACC” or
“ON” position.Select “Display setting” using the “” and
“SETUP/ENTER” buttons. ( →P. 373)
Select “On” or “Off” using the “SETUP/ENTER” button.
Select “Reset” using the “” and “SETUP/ENTER”
buttons. ( →P. 373)
● Initializing the sound settings
Select “Sound settings” using the “” and
“SETUP/ENTER” buttons and press “Yes”.
For details about sound settings: →P. 385
● Initializing the device information
Select “Car Device Info” using the “” and
“SETUP/ENTER” buttons and press “Yes”.
The user set passkey and automatic confirmation display will be returned
to their default settings.
●Initializing all the settings
Select “Reset all” using the “” and “SETUP/
ENTER” buttons and press “Yes”.
Setting the automatic connection confirmation display to on or
off
Initialization
1
2

387
AURIS Touring Sports_EE (12K53E)
5
Audio system

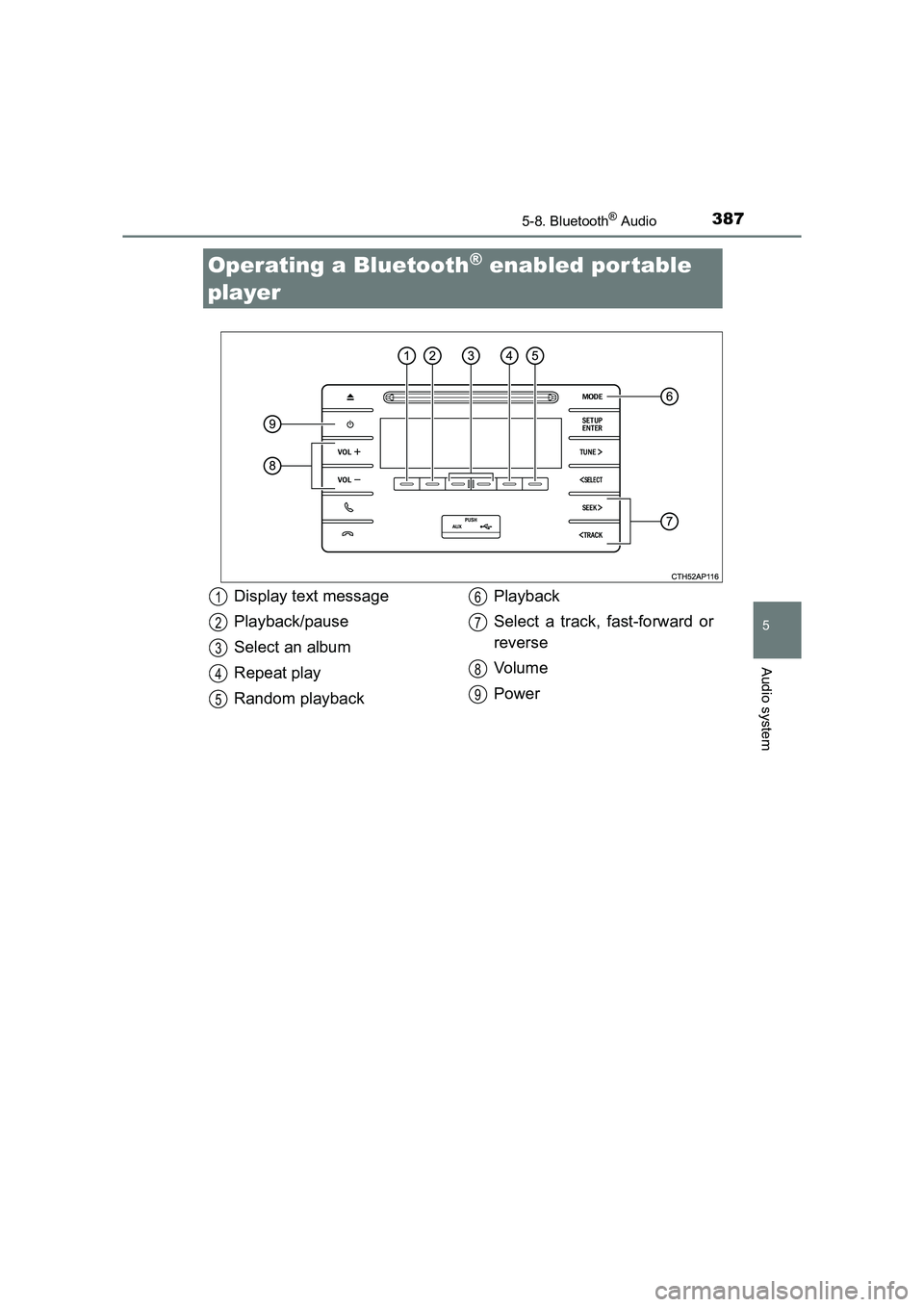

5-8. Bluetooth® Audio
Operating a Bluetooth® enabled por table
player
Display text message
Playback/pause
Select an album
Repeat play
Random playback Playback
Select a track, fast-forward or
reverse
Vol um e
Power1
2
3
4
5
6
7
8
9

3895-8. Bluetooth® Audio
AURIS Touring Sports_EE (12K53E)
5
Audio system

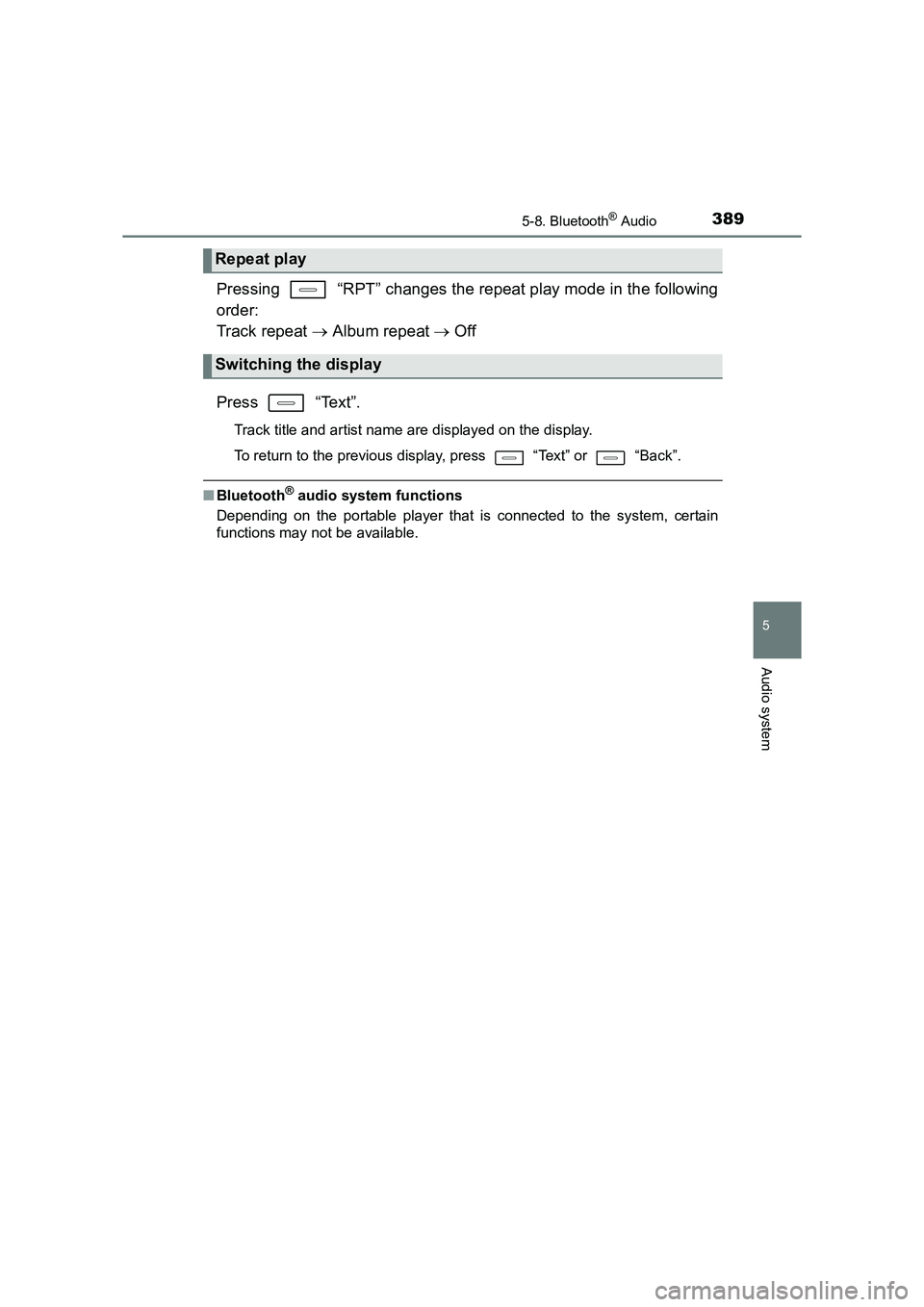

Pressing “RPT” changes the repeat play mode in the following
order:
Track repeat → Album repeat → Off
Press “Text”.
Track title and artist name are displayed on the display.
To return to the previous display, press “Text” or “Back”.
■ Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain
functions may not be available.
Repeat play
Switching the display

395
AURIS Touring Sports_EE (12K53E)
5
Audio system
5-10. Bluetooth®
■When using the Bluetooth® audio/Phone
● In the following situations, the system may not function.
• The portable player does not support Bluetooth
®
• The cellular phone is located outside the service area
• The Bluetooth® device is switched off
• The Bluetooth® device has a low battery
• The Bluetooth® device is not connected to the system
• The Bluetooth® device is behind the seat or in the glove box or console
box, or is touching or covered by metal objects
● There may be a delay if a cellul ar phone connection is made during
Bluetooth
® audio playback.
● Depending on the type of portable audio player that is connected to the sys-
tem, operation may differ slightly and certain functions may not be available.
■ When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improp-
erly accessed. ( →P. 381)
■ About Bluetooth
®
■Compatible models
●Bluetooth® specifications:
Ver. 1.1, or higher (recommended: Ver. 2.1 + EDR or higher)
● Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0, or higher (recom-
mended: Ver. 1.2 or higher)
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (recom- mended: Ver. 1.3 or higher)
Portable players must correspond to the above specifications in order to be
connected to the Bluetooth
® audio system. However, please note that some
functions may be limited depending on the type of portable player.
● Cellular phone
• HFP (Hands Free Profile) Ver. 1.0 or higher (recommended: Ver. 1.5)
• OPP (Object Push Profile) Ver. 1.1
• PBAP (Phone Book Access Profile) Ver. 1.0
Bluetooth®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.

3985-10. Bluetooth®
AURIS Touring Sports_EE (12K53E)

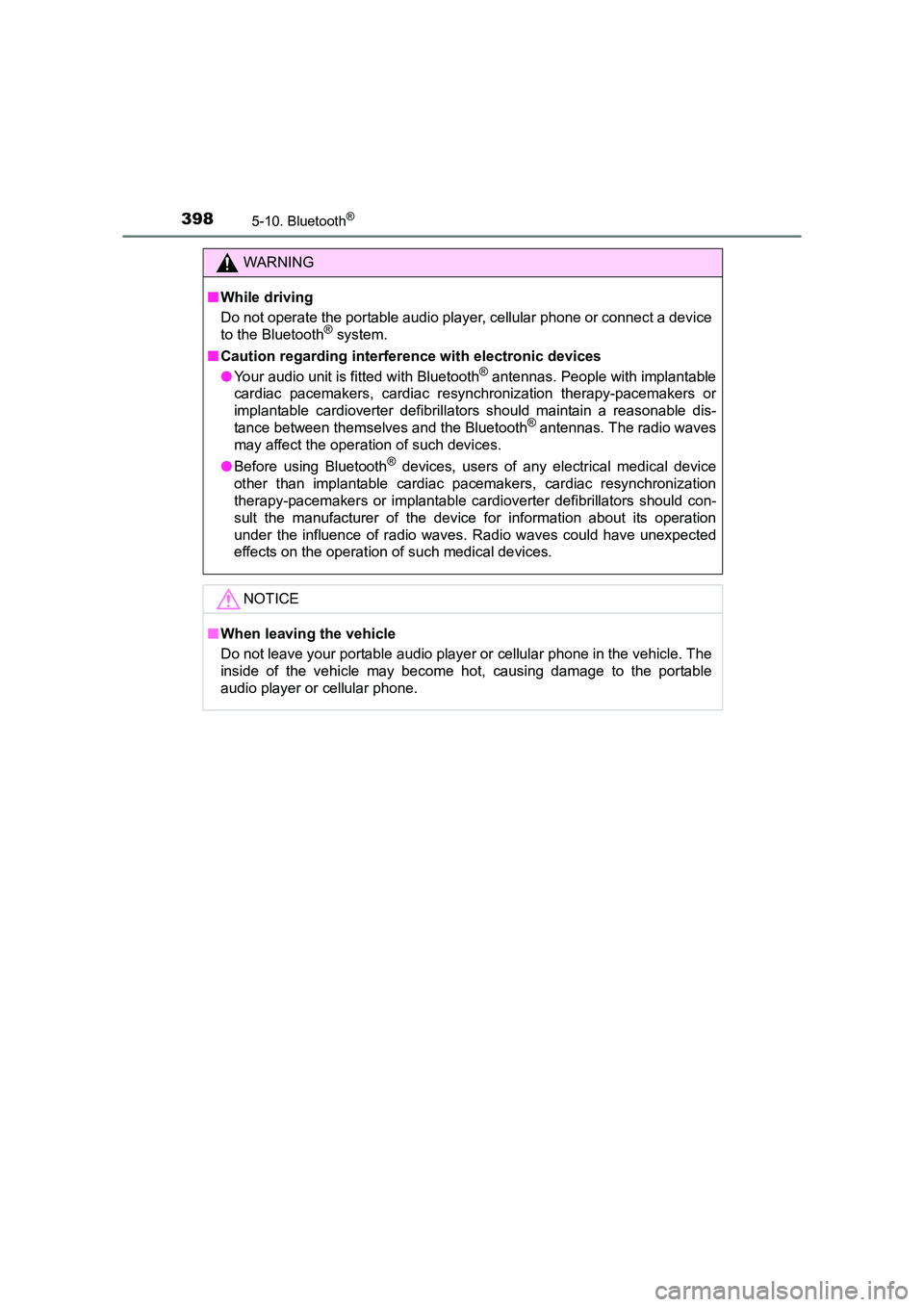

WARNING
■ While driving
Do not operate the portable audio player, cellular phone or connect a device
to the Bluetooth
® system.
■ Caution regarding interferen ce with electronic devices
● Your audio unit is fitted with Bluetooth
® antennas. People with implantable
cardiac pacemakers, cardiac resynchronization therapy-pacemakers or
implantable cardioverter defibrillators should maintain a reasonable dis-
tance between themselves and the Bluetooth
® antennas. The radio waves
may affect the operation of such devices.
● Before using Bluetooth
® devices, users of any electrical medical device
other than implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should con-
sult the manufacturer of the device for information about its operation
under the influence of radio waves. Radio waves could have unexpected
effects on the operation of such medical devices.
NOTICE
■ When leaving the vehicle
Do not leave your portable audio player or cellular phone in the vehicle. The
inside of the vehicle may become hot, causing damage to the portable
audio player or cellular phone.
