6139-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
X8NR-FTS engine
X1ND-TV and 1WW engines
Model8NR-FTS
Ty p e4-cylinder in line, 4-cycle, gasoline (with turbo-
charger)
Bore and stroke71.5 × 74.5 mm (2.82 × 2.93 in.)
Displacement1197 cm3 (73.0 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tensionAutomatic adjustment
Model 1ND-TV, 1WW
Ty p e 4-cylinder in line, 4-cycle, diesel (with turbo-
charger)
Bore and stroke
X1ND-TV engine
73.0 × 81.5 mm (2.87 × 3.21 in.)
X1WW engine
78.0 × 83.6 mm (3.07 × 3.29 in.)
Displacement
X1ND-TV engine
1364 cm
3 (83.2 cu. in.)
X1WW engine
1598 cm
3 (97.52 cu. in.)
Valve clearance
(engine cold)
X1ND-TV engine
Intake: 0.11  0.17 mm (0.004  0.007 in.)
Exhaust: 0.14  0.20 mm (0.006  0.008 in.)
X1WW engine
Automatic adjustment
Drive belt tension Automatic adjustment

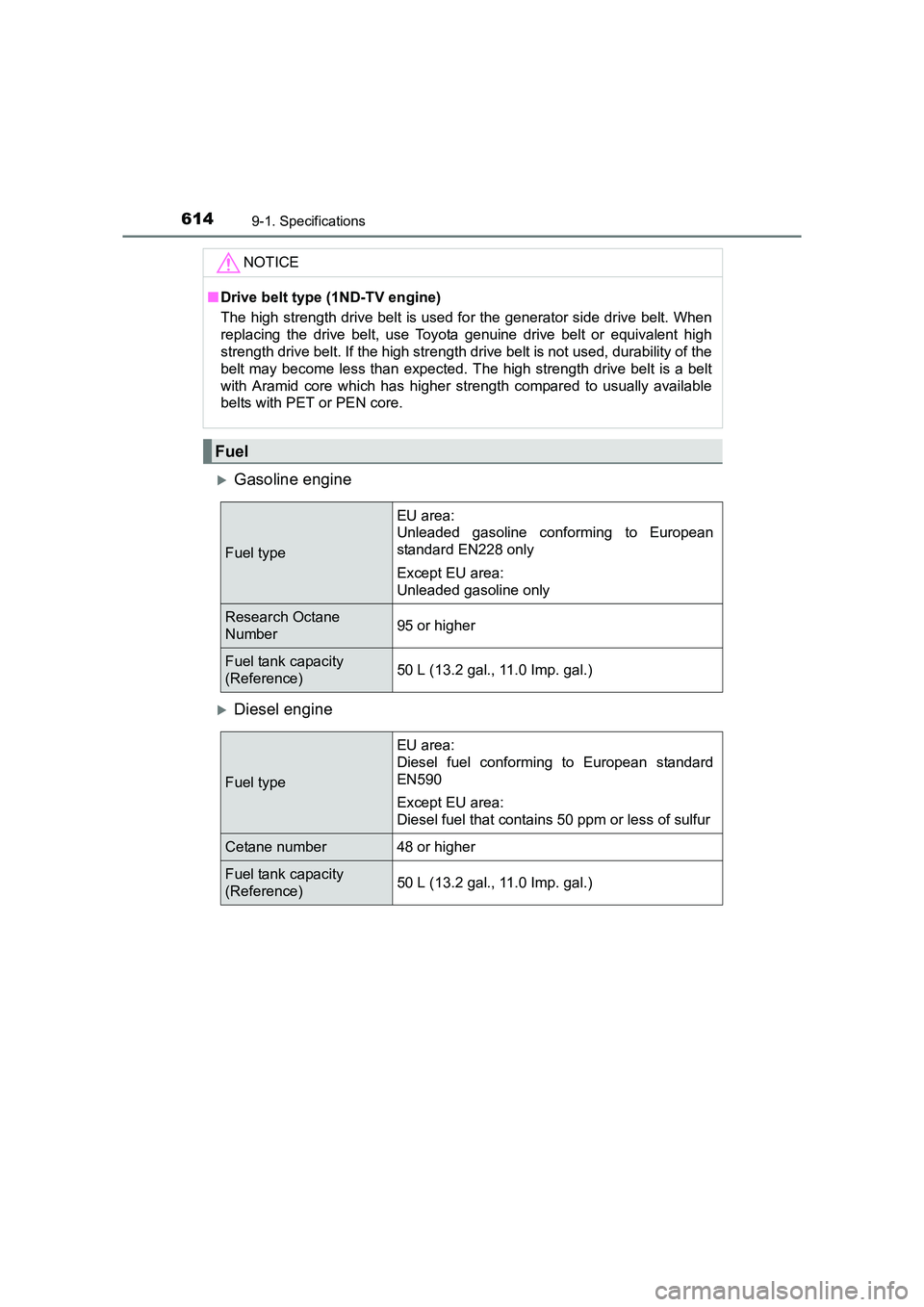

6149-1. Specifications
AURIS Touring Sports_EE (12K53E)
XGasoline engine
XDiesel engine
NOTICE
■Drive belt type (1ND-TV engine)
The high strength drive belt is used fo r the generator side drive belt. When
replacing the drive belt, use Toyota genuine drive belt or equivalent high
strength drive belt. If the high strength dr ive belt is not used, durability of the
belt may become less than expected. The high strength drive belt is a belt
with Aramid core which has higher strength compared to usually available
belts with PET or PEN core.
Fuel
Fuel type
EU area:
Unleaded gasoline conforming to European
standard EN228 only
Except EU area:
Unleaded gasoline only
Research Octane
Number95 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)
Fuel type
EU area:
Diesel fuel conforming to European standard
EN590
Except EU area:
Diesel fuel that contains 50 ppm or less of sulfur
Cetane number48 or higher
Fuel tank capacity
(Reference)50 L (13.2 gal., 11.0 Imp. gal.)

643What to do if... (Troubleshooting)
AURIS Touring Sports_EE (12K53E)
●The seat belt reminder light is flashing
Are the driver and the front passenger wearing the seat belts? (→P. 545)
●The brake system warning light is on
Is the parking brake released? ( →P. 232)
Depending on the situation, other types of warning buzzer may also sound.
( → P. 541, 553)
●Did anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( →P. 87)
XVehicles without a smart entry & start system
To stop the alarm, turn the engine switch to the “ON” position or start the
engine.
XVehicles with a smart entry & start system
To stop the alarm, turn the engine switch to IGNITION ON mode or start the
engine.
●Is the electronic key left inside the vehicle?
Vehicles with a 2-ring meter: Check the message on the multi-information
display. ( →P. 553)
●When a warning light turns on, refer to P. 541.
●When a warning light turns on or a warning message is displayed, refer to
P. 541, 553.
A warning buzzer sounds during driving
An alarm is activated and the horn sounds
(vehicles with an alarm)
A warning buzzer sounds when leaving the vehicle
(vehicles with a smart entry & start system)
A warning light turns on
(vehicles with a 3-ring meter)
A warning light turns on or a warning message is displayed
(vehicles with a 2-ring meter)
