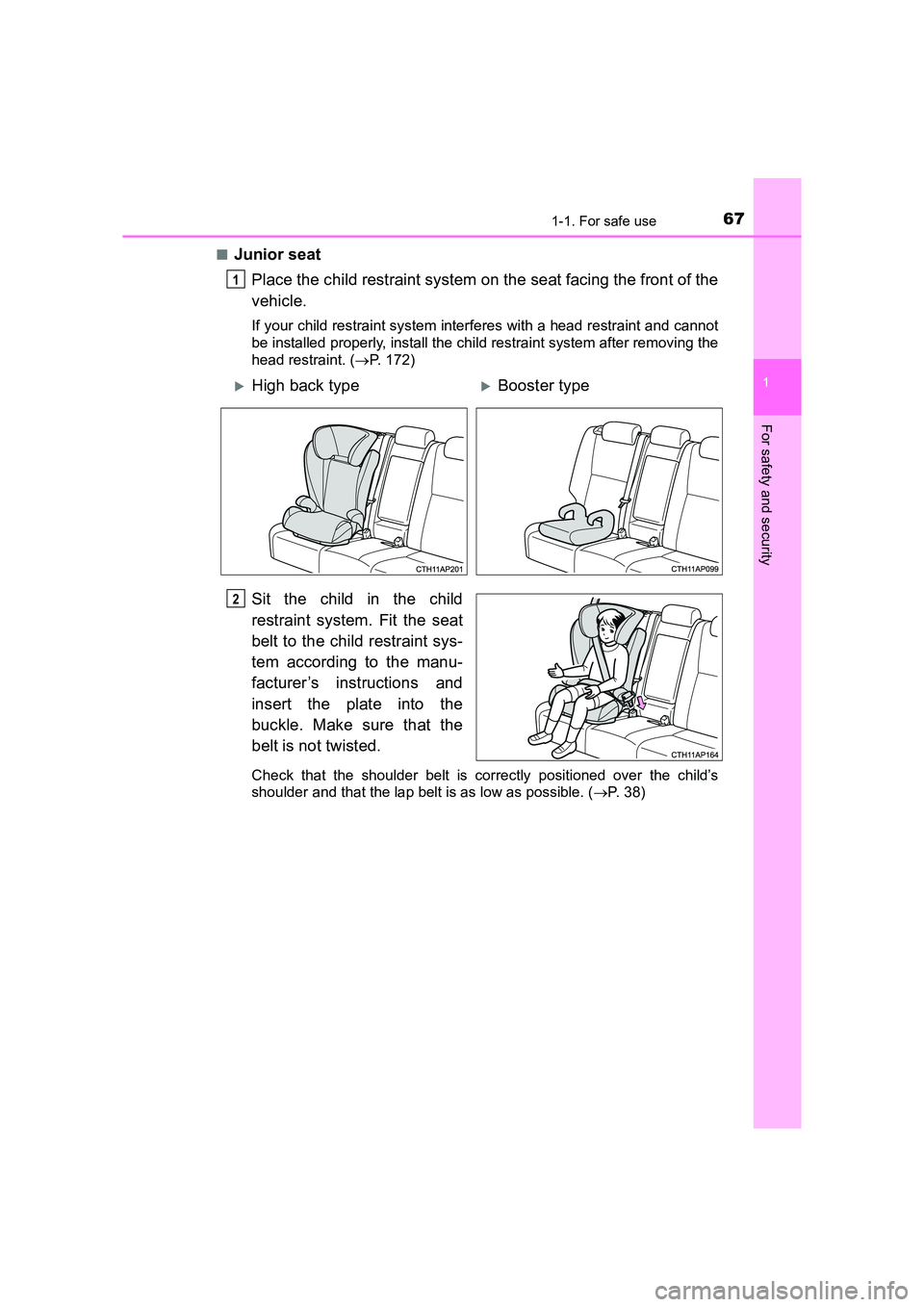

671-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12K53E)■
Junior seat
Place the child restraint system on the seat facing the front of the
vehicle.
If your child restraint system interferes with a head restraint and cannot
be installed properly, install the child restraint system after removing the
head restraint. ( →P. 172)
Sit the child in the child
restraint system. Fit the seat
belt to the child restraint sys-
tem according to the manu-
facturer’s instructions and
insert the plate into the
buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is correctly positioned over the child’s
shoulder and that the lap belt is as low as possible. ( →P. 38)
1
XHigh back typeXBooster type
2

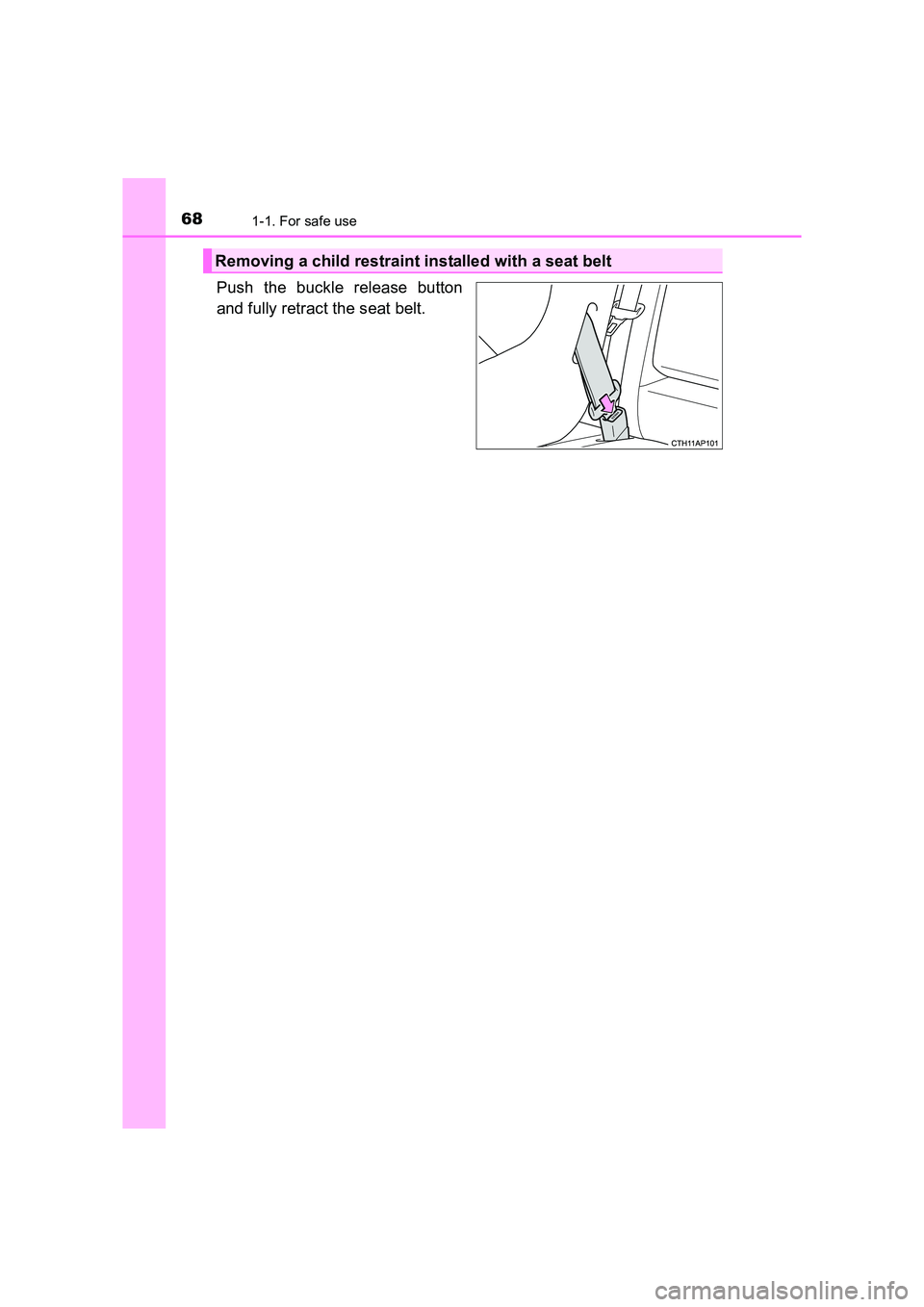

681-1. For safe use
AURIS Touring Sports_EE (12K53E)
Push the buckle release button
and fully retract the seat belt.
Removing a child restraint installed with a seat belt

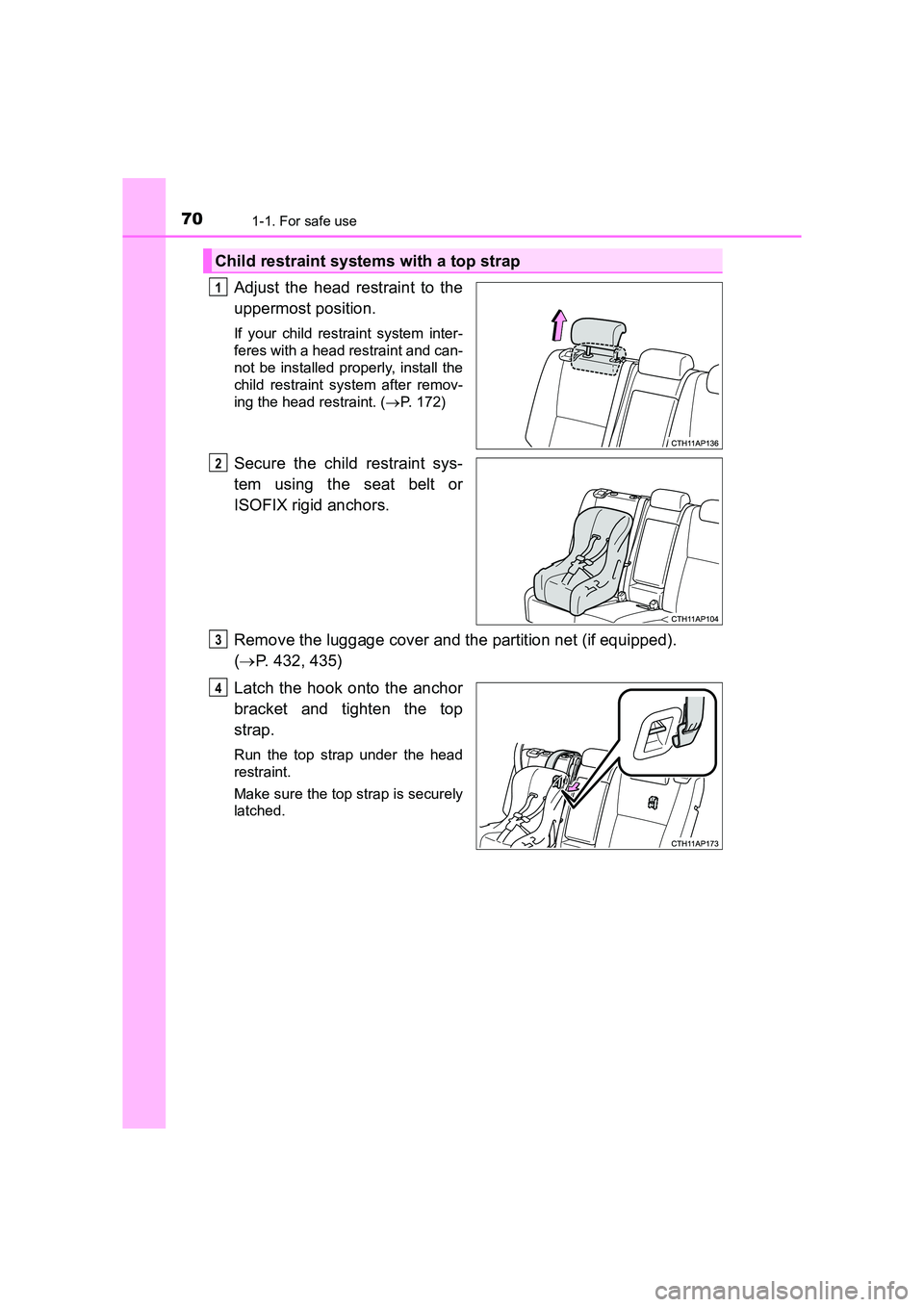

701-1. For safe use
AURIS Touring Sports_EE (12K53E)
Adjust the head restraint to the
uppermost position.
If your child restraint system inter-
feres with a head restraint and can-
not be installed properly, install the
child restraint system after remov-
ing the head restraint. (→P. 172)
Secure the child restraint sys-
tem using the seat belt or
ISOFIX rigid anchors.
Remove the luggage cover and the partition net (if equipped).
(→ P. 432, 435)
Latch the hook onto the anchor
bracket and tighten the top
strap.
Run the top strap under the head
restraint.
Make sure the top strap is securely
latched.
Child restraint systems with a top strap
1
2
3
4

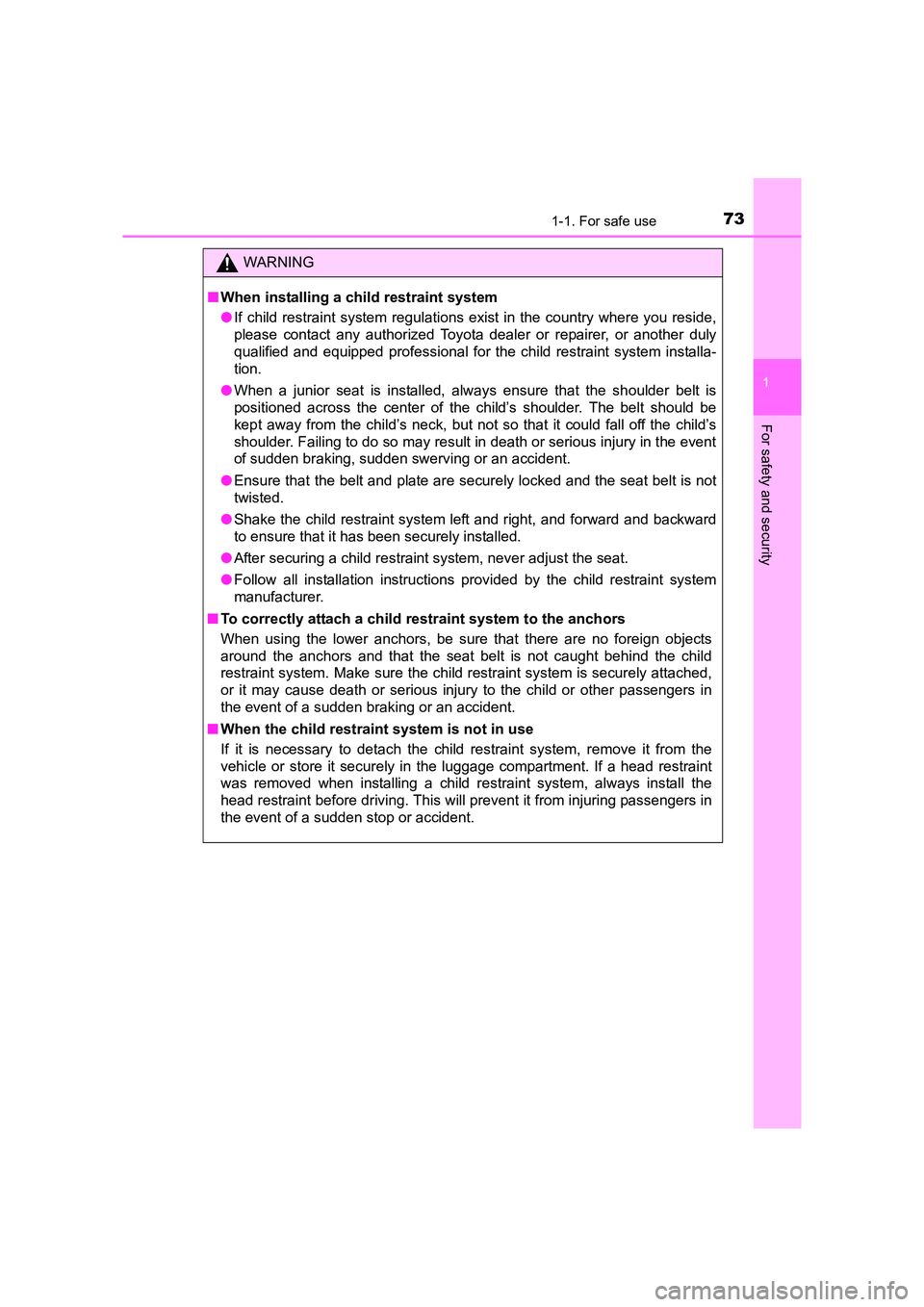

731-1. For safe use
1
For safety and security
AURIS Touring Sports_EE (12K53E)
WARNING
■ When installing a child restraint system
●If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
● When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.
● Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
● Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system
manufacturer.
■ To correctly attach a child restraint system to the anchors
When using the lower anchors, be sure that there are no foreign objects
around the anchors and that the seat belt is not caught behind the child
restraint system. Make sure the child restraint system is securely attached,
or it may cause death or serious inju ry to the child or other passengers in
the event of a sudden braking or an accident.
■ When the child restraint system is not in use
If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. If a head restraint
was removed when installing a child restraint system, always install the
head restraint before driving. This will prevent it from injuring passengers in
the event of a sudden stop or accident.

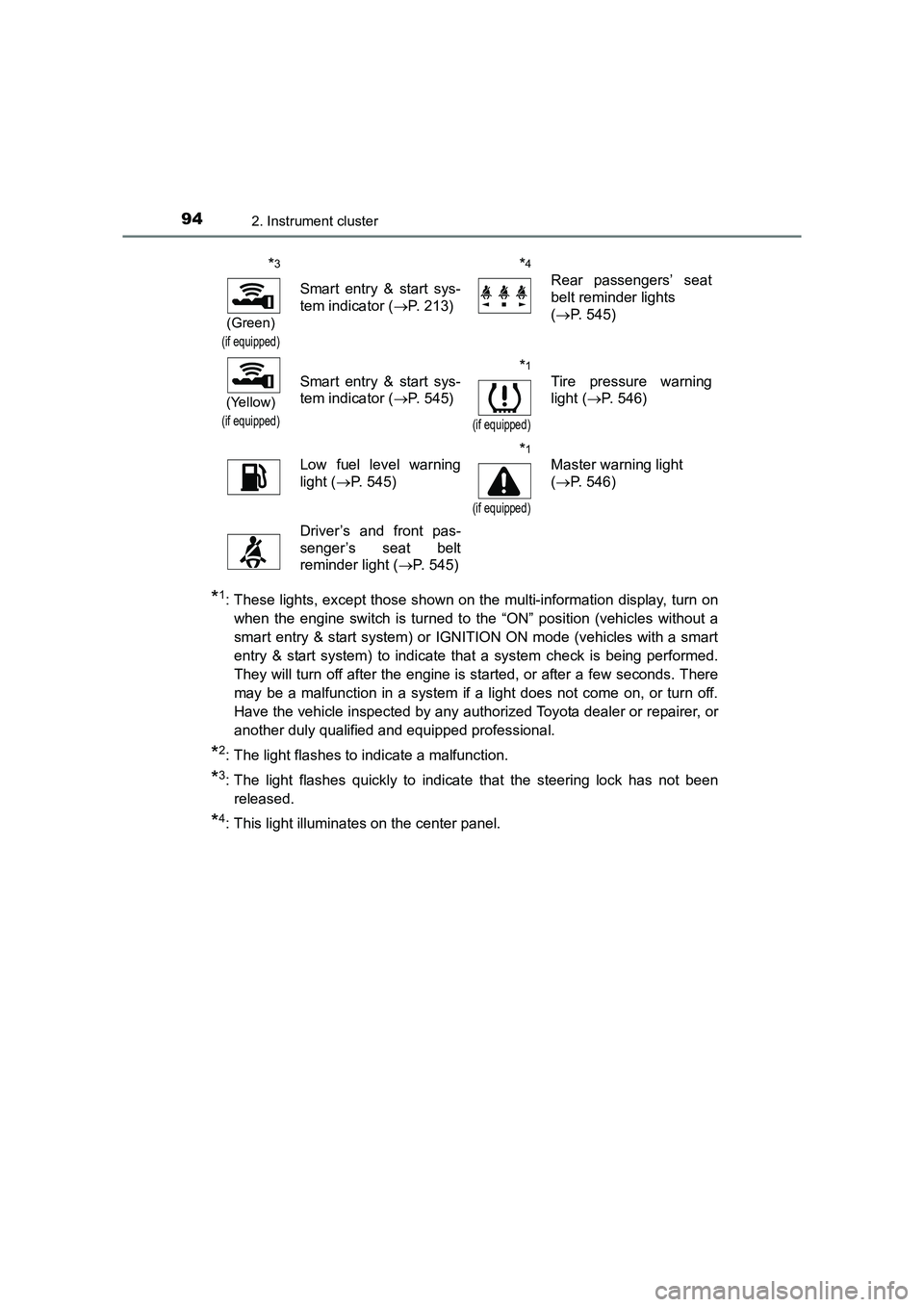

942. Instrument cluster
AURIS Touring Sports_EE (12K53E)
*1: These lights, except those shown on the multi-information display, turn onwhen the engine switch is turned to the “ON” position (vehicles without a
smart entry & start system) or IGNITION ON mode (vehicles with a smart
entry & start system) to indicate that a system check is being performed.
They will turn off after the engine is started, or after a few seconds. There
may be a malfunction in a system if a light does not come on, or turn off.
Have the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
*3: The light flashes quickly to indicate that the steering lock has not beenreleased.
*4: This light illuminates on the center panel.
*3
(Green)
(if equipped)
Smart entry & start sys-
tem indicator ( →P. 213)
*4
Rear passengers’ seat
belt reminder lights
(→ P. 545)
(Yellow)
(if equipped)
Smart entry & start sys-
tem indicator ( →P. 545)*1
(if equipped)
Tire pressure warning
light ( →P. 546)
Low fuel level warning
light ( →P. 545)*1
(if equipped)
Master warning light
(→ P. 546)
Driver’s and front pas-
senger’s seat belt
reminder light ( →P. 545)

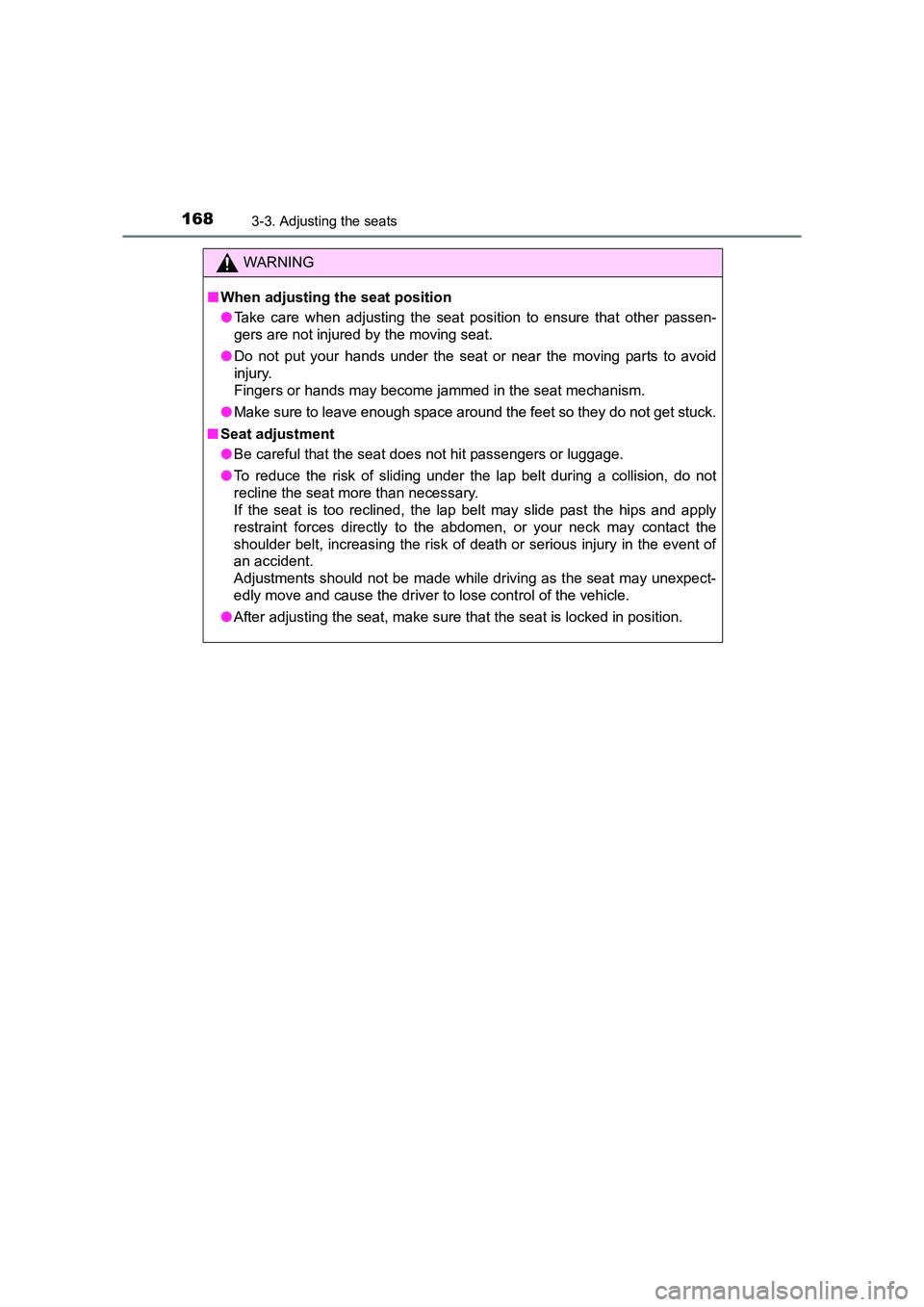

1683-3. Adjusting the seats
AURIS Touring Sports_EE (12K53E)
WARNING
■ When adjusting the seat position
●Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
● Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
● Make sure to leave enough space around the feet so they do not get stuck.
■ Seat adjustment
●Be careful that the seat does not hit passengers or luggage.
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.

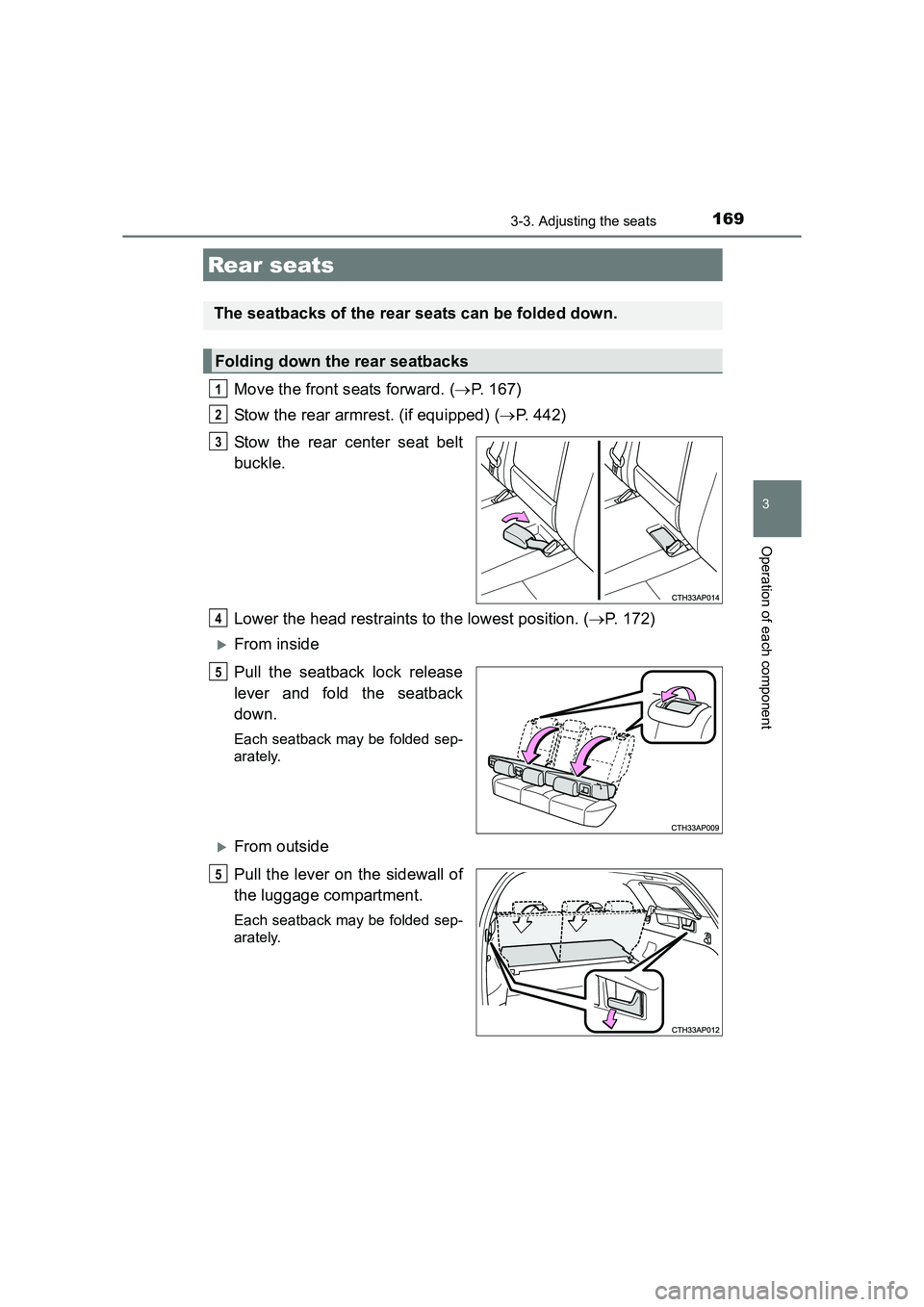

1693-3. Adjusting the seats
AURIS Touring Sports_EE (12K53E)
3
Operation of each component
Move the front seats forward. (→P. 167)
Stow the rear armrest. (if equipped) ( →P. 442)
Stow the rear center seat belt
buckle.
Lower the head restraints to the lowest position. ( →P. 172)
XFrom inside
Pull the seatback lock release
lever and fold the seatback
down.
Each seatback may be folded sep-
arately.
XFrom outside
Pull the lever on the sidewall of
the luggage compartment.
Each seatback may be folded sep-
arately.
Rear seats
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
1
2
3
4
5
5

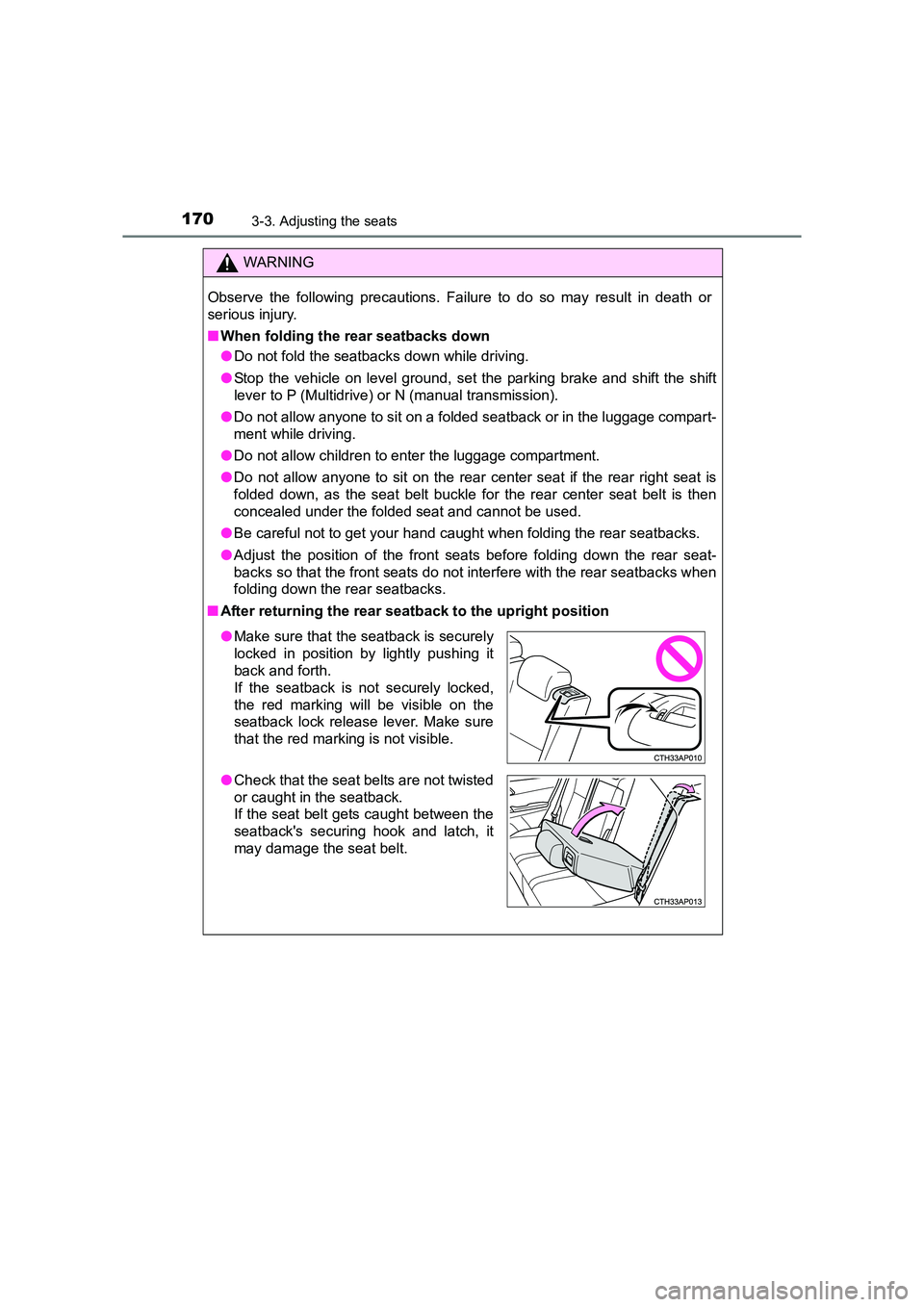

1703-3. Adjusting the seats
AURIS Touring Sports_EE (12K53E)
WARNING
Observe the following precautions. Failure to do so may result in death or
serious injury.
■ When folding the rear seatbacks down
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P (Multidrive) or N (manual transmission).
● Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
● Do not allow children to enter the luggage compartment.
● Do not allow anyone to sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.
● Be careful not to get your hand caught when folding the rear seatbacks.
● Adjust the position of the front seats before folding down the rear seat-
backs so that the front seats do not interfere with the rear seatbacks when
folding down the rear seatbacks.
■ After returning the rear seatback to the upright position
●Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release lever. Make sure
that the red marking is not visible.
● Check that the seat belts are not twisted
or caught in the seatback.
If the seat belt gets caught between the
seatback's securing hook and latch, it
may damage the seat belt.
