2016 TOYOTA AURIS TOURING SPORTS immobilizer

5888-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
One of the following may be the cause of the problem:
●There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine again following correct starting procedures.
(→ P. 209, 213)
● There may be a malfunction in the engine immobilizer system.
(→ P. 7 5 )
One of the following may be the cause of the problem:
● The battery may be discharged. ( →P. 594)
● The battery terminal connections may be loose or corroded.
The engine starting system may be malfunctioning due to an electrical
problem such as electronic key battery depletion or a blown fuse.
However, an interim measure is available to start the engine.
( → P. 589)

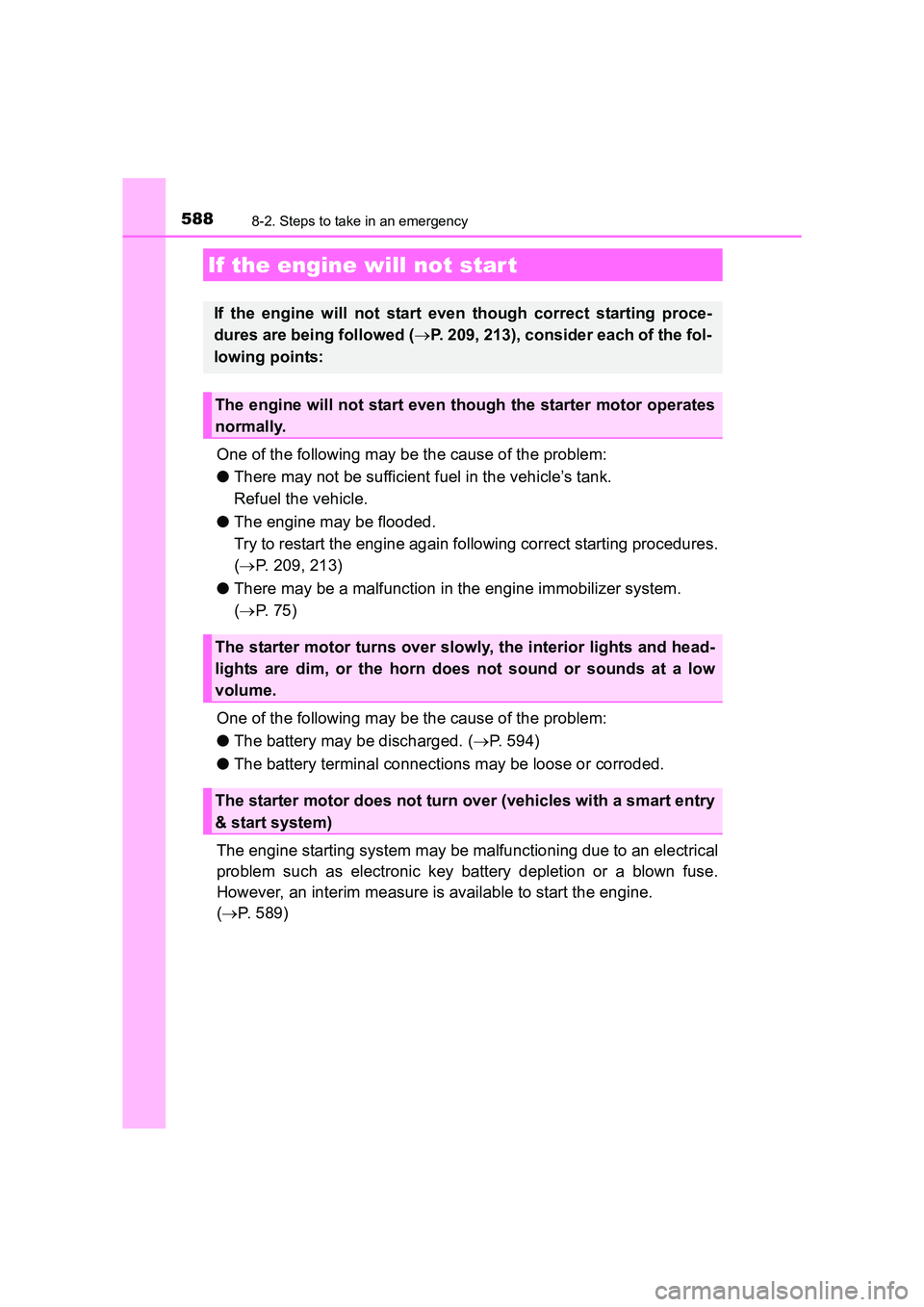

If the engine will not star t
If the engine will not start even though correct starting proce-
dures are being followed ( →P. 209, 213), consider each of the fol-
lowing points:
The engine will not start even though the starter motor operates
normally.
The starter motor turns over slowly, the interior lights and head-
lights are dim, or the horn does not sound or sounds at a low
volume.
The starter motor does not turn over (vehicles with a smart entry
& start system)

648Alphabetical index
AURIS Touring Sports_EE (12K53E)
Eco Driving Indicator....... 105, 115
Electric Power Steering (EPS) ....................................... 328Warning light ......................... 542
Electronic key .......................... 122 Battery-saving function ......... 147
If the electronic key does not operate properly ................. 591
Replacing the battery ............ 507
Emergency, in case of If a warning buzzer sounds ................................ 541
If a warning light turns on ...... 541
If a warning message is displayed ............................ 553
If the battery is discharged .... 594
If the electronic key does not operate properly ........... 591
If the engine will not start ...... 588
If the shift lever cannot be shifted from P ..................... 590
If you have a flat tire...... 559, 572
If you run out of fuel and the engine stalls.................. 604
If you think something is wrong.................................. 539
If your vehicle becomes
stuck ................................... 605
If your vehicle has to be stopped in an emergency ... 531
If your vehicle needs to be towed .................................. 533
If your vehicle overheats ....... 600
Emergency brake signal ......... 328
Emergency flashers................. 530 Emergency tire puncture
repair kit ................................. 572
Engine....................................... 612 ACCESSORY mode ............. 216
Compartment ........................ 464
Engine switch................ 209, 213
Hood ..................................... 461
How to start the engine......................... 209, 213
Identification number ............ 611
If the engine will not start ...... 588
Ignition switch (engine switch) ........... 209, 213
Overheating .......................... 600
Engine coolant ......................... 477 Capacity ................................ 621
Checking ............................... 477
Preparing and checking before winter....................... 334
Warning light ......................... 541
Engine coolant temperature gauge........................................ 98
Engine immobilizer system ...... 75
Engine oil ................................. 469 Capacity ................................ 615
Checking ............................... 469
Oil level warning light ............ 544
Oil pressure warning light ..... 541
Preparing and checking before winter....................... 334
Engine oil maintenance data ......................................... 474
Engine switch .................. 209, 213
EPS (Electric Power Steering)................................. 328Warning light ......................... 542
E

650Alphabetical index
AURIS Touring Sports_EE (12K53E)
Hands-free system (for cellular phone)
*.............. 390
Headlight cleaners ................... 241
Head restraints......................... 172
Headlights ................................ 233 Automatic High Beam system ................................ 273
Follow me home system ....... 235
Light switch ........................... 233
Replacing light bulbs ............. 515
Wattage................................. 628
Heater system .......................... 400
Heaters Heater system ....................... 400
Outside rear view mirrors ........................ 402, 409
Seat heaters.......................... 415
Hill-start assist control ............ 328
Hood.......................................... 461 Open ..................................... 461
Hooks
Cargo hooks.......................... 427
Coat hooks............................ 443
Grocery bag hooks................ 427
Retaining hooks (floor mat) ..... 34
Horn .......................................... 174 Identification ............................ 610
Engine................................... 611
Vehicle .................................. 610
Ignition switch (engine switch) .............. 209, 213
Illuminated entry system ........ 420
Immobilizer system ................... 75
Indicators ................................... 95
Initialization Engine oil maintenance data .................................... 474
Meter display settings ........... 113
Power windows ..................... 183
Tire pressure warning system .................. 487
Inside rear view mirror ............ 176
Intercooler ................................ 479
Intercooler coolant .................. 478 Capacity ................................ 621
Checking ............................... 478
Preparing and checking before winter....................... 334
Interior lights............................ 417
ISOFIX rigid anchors ................. 64
HI

657Alphabetical index
AURIS Touring Sports_EE (12K53E)
Tachometer ................................ 98
Tail lights .................................. 233Light switch ........................... 233
Replacing light bulbs ............. 515
Talk switch
*............................. 375
Telephone switches
*.............. 375
Theft deterrent system Alarm....................................... 87
Double locking system ............ 90
Engine immobilizer system ..... 75
Tire inflation pressure ............. 500 Maintenance data ................. 626
Tire pressure warning system .................................... 487Initializing .............................. 487
Installing tire pressure warning
valves and transmitters....... 487
Registering ID codes............. 489
Tire pressure warning reset switch.................................. 488
Warning light ......................... 546
Tires .......................................... 486 Chains................................... 335
Checking ............................... 486
Emergency tire puncture repair kit .............................. 572
If you have a flat tire...... 559, 572
Inflation pressure .................. 626
Replacing .............................. 559
Rotating tires......................... 486
Size ....................................... 626
Snow tires ............................. 336
Spare tire .............................. 559
Tire pressure warning
system ................................ 487
Warning light ......................... 546 Tools ................................. 560, 573
Top strap .................................... 70
Towing
Emergency towing ................ 533
Towing capacity .................... 608
Towing eyelet........................ 535
Trailer towing ........................ 200
Toyota parking assist-sensor ......................... 305
Toyota Safety Sense ............... 250 Automatic High Beam ........... 273
LDA (Lane Departure Alert) ................................... 268
PCS (Pre-Crash Safety system) ............................... 255
RSA (Road Sign Assist)........ 277
Traction Control (TRC) ............ 328
Trailer towing .......................... 200
Transmission ................... 223, 228 Gear Shift Indicator ............... 229
If the shift lever cannot be shifted from P ..................... 590
M mode................................. 226
Manual transmission ............. 228
Multidrive .............................. 223
Paddle shift switches .... 225, 226
TRC (Traction Control) ............ 328
Trip meters ....................... 102, 109
Turn signal lights..................... 231 Replacing light bulbs............. 515
Turn signal lever ................... 231
Wattage ................................ 628
T
*: For vehicles with navigation/multimedia system, refer to “Navigation and multimedia system Owner’s manual”.
