2016 TOYOTA AURIS TOURING SPORTS immobilizer

TABLE OF CONTENTS2
AURIS Touring Sports_EE (12K53E)For your information .......................8
Reading this manual.....................12
How to search ..............................13
Pictorial index ...............................14
1-1. For safe use
Before driving.......................34
For safety drive ....................36
Seat belts .............................38
SRS airbags.........................42
Airbag manual on-off system ...............................52
Safety information for children .........................54
Child restraint systems ........55
Installing child restraints ......64
Exhaust gas precautions .....74
1-2. Theft deterrent system Engine immobilizer system ...............................75
Alarm ...................................87
Double locking system .........90 2. Instrument cluster
Warning lights and indicators........................... 92
Gauges and meters............. 98
Multi-information display (3-ring meter) .................. 101
Multi-information display (2-ring meter) .................. 107
Fuel consumption information ...................... 118
3-1. Key information Keys .................................. 122
3-2. Opening, closing and locking the doors
Side doors ......................... 134
Back door .......................... 140
Smart entry & start system............................. 145
3-3. Adjusting the seats Front seats ........................ 167
Rear seats ......................... 169
Head restraints .................. 172
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 174
Inside rear view mirror....... 176
Outside rear view mirrors ............................. 178
3-5. Opening and closing the windows
Power windows ................. 181
1For safety and security
2Instrument cluster
3Operation of each
component

33
1For safety and security
AURIS Touring Sports_EE (12K53E)1-1. For safe use
Before driving....................... 34
For safety drive .................... 36
Seat belts ............................. 38
SRS airbags.........................42
Airbag manual on-off system ............................... 52
Safety information for children ......................... 54
Child restraint systems ........ 55
Installing child restraints ...... 64
Exhaust gas precautions .....74
1-2. Theft deterrent system Engine immobilizer system ............................... 75
Alarm ................................... 87
Double locking system .........90

75
1
For safety and security
AURIS Touring Sports_EE (12K53E)

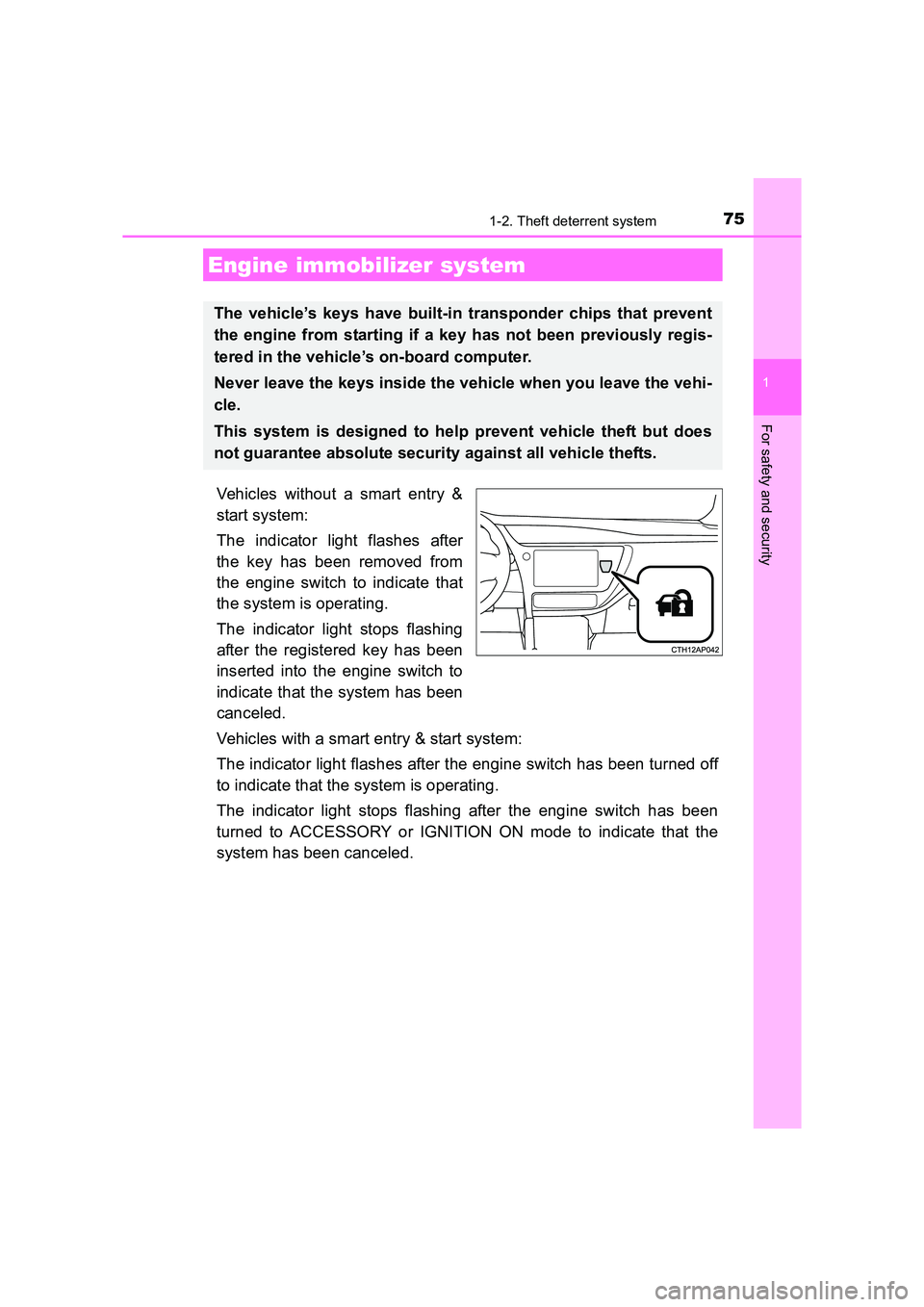

1-2. Theft deterrent system
Vehicles without a smart entry &
start system:
The indicator light flashes after
the key has been removed from
the engine switch to indicate that
the system is operating.
The indicator light stops flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.
Vehicles with a smart entry & start system:
The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The indicator light stops flashing after the engine switch has been
turned to ACCESSORY or IGNITION ON mode to indicate that the
system has been canceled.
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

761-2. Theft deterrent system
AURIS Touring Sports_EE (12K53E)

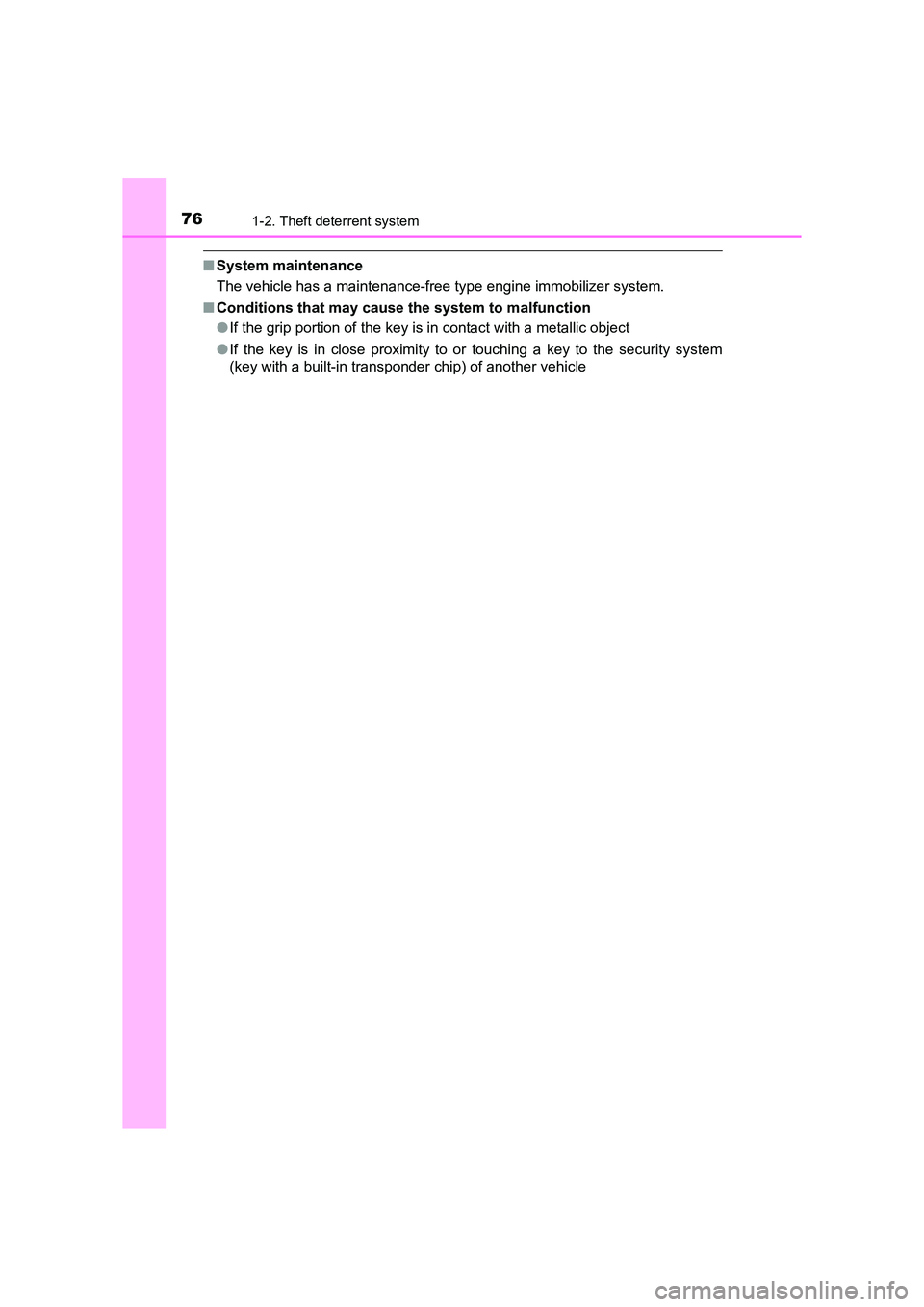

■System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

771-2. Theft deterrent system
1
For safety and security
AURIS Touring Sports_EE (12K53E)■

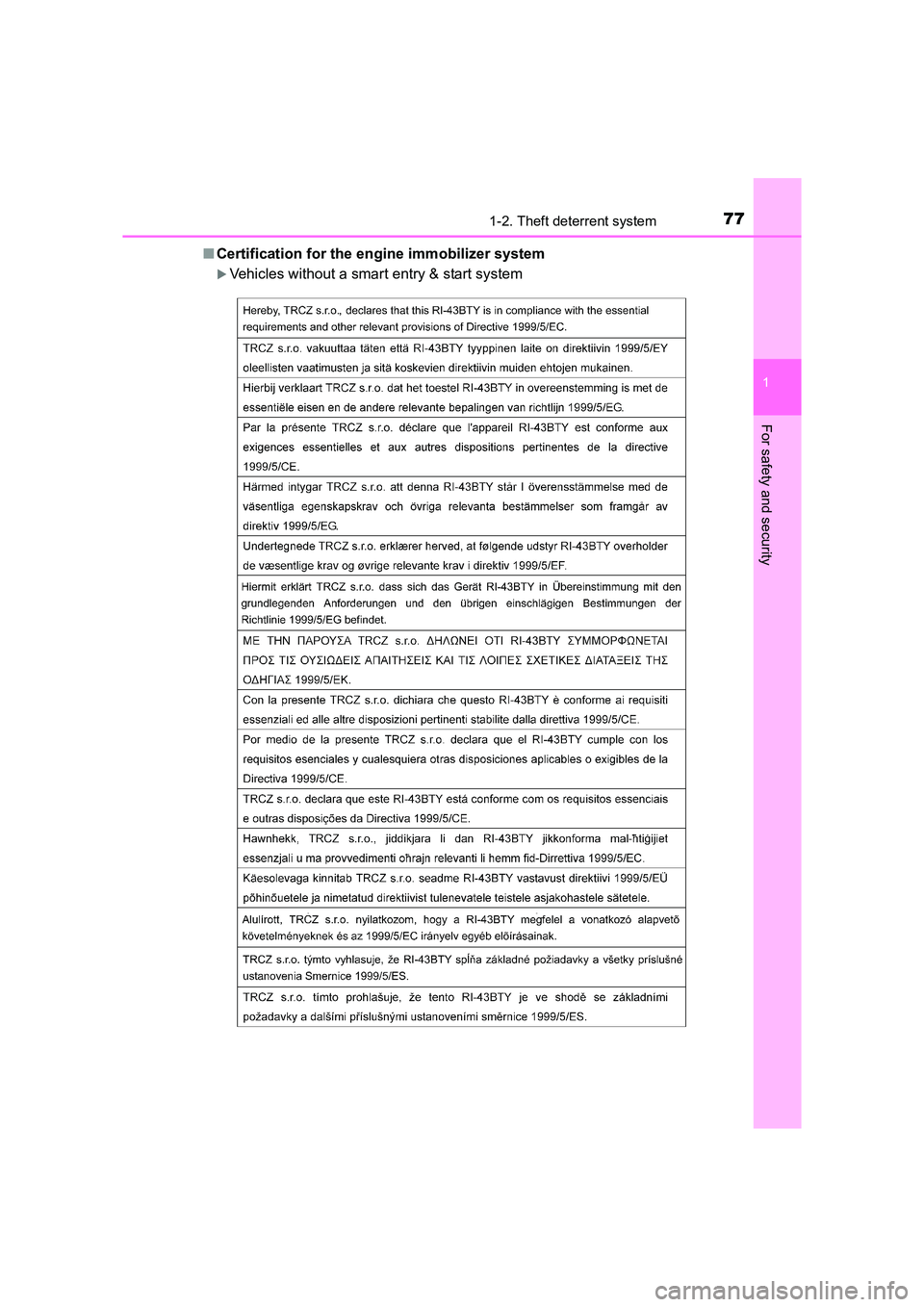

Certification for the engine immobilizer system
XVehicles without a smart entry & start system

1483-2. Opening, closing and locking the doors
AURIS Touring Sports_EE (12K53E)■
Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and engine immobilizer system from operating properly.
(Ways of coping: →P. 591)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When carrying a portable radio, cellular phone, cordless phone or other
wireless communication device
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
● If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices

2114-2. Driving procedures
AURIS Touring Sports_EE (12K53E)
4
Driving

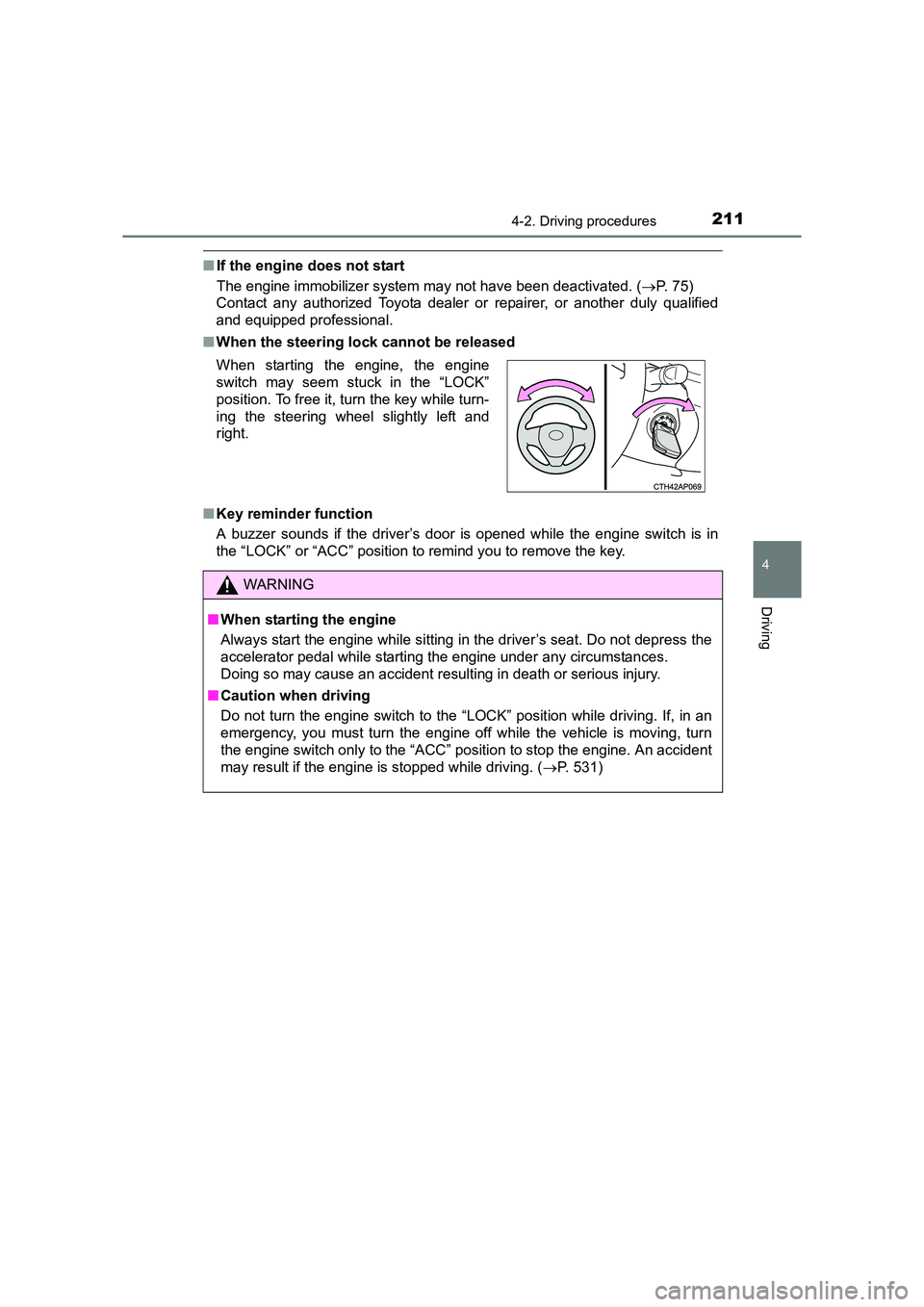

■If the engine does not start
The engine immobilizer system may not have been deactivated. ( →P. 75)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
■ When the steering lock cannot be released
■ Key reminder function
A buzzer sounds if the driver’s door is opened while the engine switch is in
the “LOCK” or “ACC” position to remind you to remove the key. When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly left and
right.
WARNING
■ When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
■ Caution when driving
Do not turn the engine switch to the “LOCK” position while driving. If, in an
emergency, you must turn the engine off while the vehicle is moving, turn
the engine switch only to the “ACC” position to stop the engine. An accident
may result if the engine is stopped while driving. ( →P. 531)

2194-2. Driving procedures
AURIS Touring Sports_EE (12K53E)
4
Driving

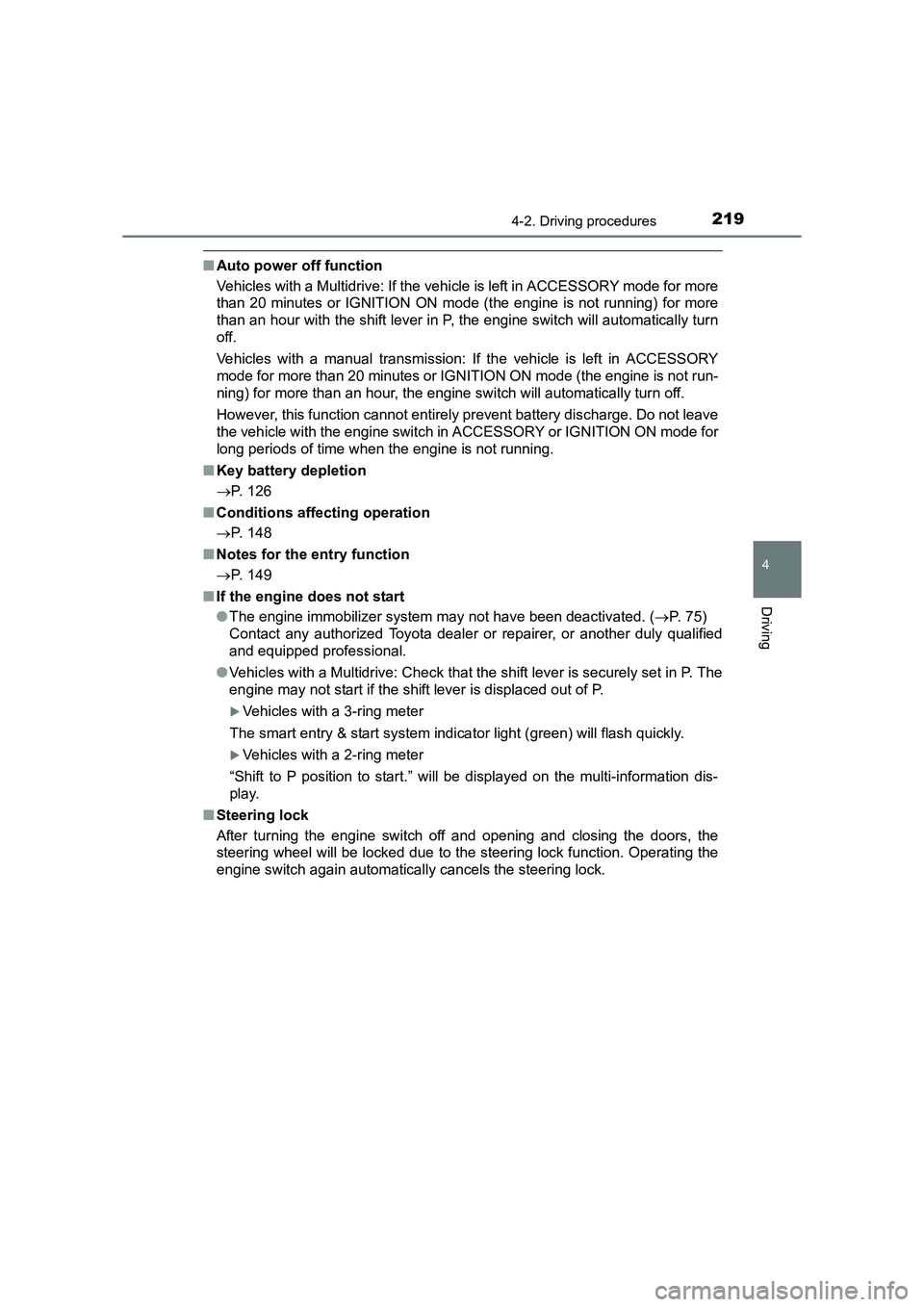

■Auto power off function
Vehicles with a Multidrive: If the vehicle is left in ACCESSORY mode for more
than 20 minutes or IGNITION ON mode (the engine is not running) for more
than an hour with the shift lever in P, the engine switch will automatically turn
off.
Vehicles with a manual transmission: If the vehicle is left in ACCESSORY
mode for more than 20 minutes or IGNITION ON mode (the engine is not run-
ning) for more than an hour, the engine switch will automatically turn off.
However, this function cannot entirely prevent battery discharge. Do not leave
the vehicle with the engine switch in ACCESSORY or IGNITION ON mode for
long periods of time when the engine is not running.
■ Key battery depletion
→ P. 126
■ Conditions affecting operation
→ P. 148
■ Notes for the entry function
→ P. 149
■ If the engine does not start
●The engine immobilizer system may not have been deactivated. ( →P. 75)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
● Vehicles with a Multidrive: Check that the shift lever is securely set in P. The
engine may not start if the shift lever is displaced out of P.
XVehicles with a 3-ring meter
The smart entry & start system indica tor light (green) will flash quickly.
XVehicles with a 2-ring meter
“Shift to P position to start.” will be displayed on the multi-information dis-
play.
■ Steering lock
After turning the engine switch off and opening and closing the doors, the
steering wheel will be locked due to the steering lock function. Operating the
engine switch again automatically cancels the steering lock.
