4567-2. Maintenance
AURIS Touring Sports_EE (12K53E)
■Where to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Toyota recom-
mends that maintenance service operations as well as other inspections and
repairs be carried out by authorized Toyota dealers or repairers or other duly
qualified and equipped professionals. For repairs and services covered by
your warranty, please visit an authorized Toyota dealer or repairer, who will
use genuine Toyota parts in repairing any difficulties you may encounter.
There can also be advantages in utilizing authorized Toyota dealers or repair-
ers for non-warranty repairs and services, as members of the Toyota network
will be able to expertly assist you with any difficulties you may encounter.
Your Toyota dealer or repairer, or another duly qualified and equipped profes-
sional will perform all of the scheduled maintenance on your vehicle reliably
and economically due to their experience with Toyota vehicles.
■ Does your vehicle need repair?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
●Engine missing, stumbling, or pinging
● Appreciable loss of power
● Strange engine noises
● A fluid leak under the vehicle (However, water dripping from the air condi-
tioning after use is normal.)
● Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system checked
immediately.)
● Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
● Vehicle pulls to one side when driving straight on a level road
● Strange noises related to suspension movement
● Loss of brake effectiveness, spongy feeling brake pedal or clutch pedal
(vehicles with a manual transmission), pedal almost touches the floor, vehi-
cle pulls to one side when braking
● Engine coolant temperature c ontinually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, as
soon as possible. Your vehicle may need adjustment or repair.

458
AURIS Touring Sports_EE (12K53E)
7-3. Do-it-yourself maintenance
Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
(→ P. 480)•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
Engine coolant
level ( →P. 477)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
(→ P. 469)• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses ( →P. 510)• Fuse with same amperage rating as original
Light bulbs
(→ P. 515)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator, con-
denser and inter-
cooler ( →P. 479)

Tire inflation pres-
sure ( →P. 500)• Tire pressure gauge
• Compressed air source
Washer fluid
(→ P. 483)• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

4597-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care

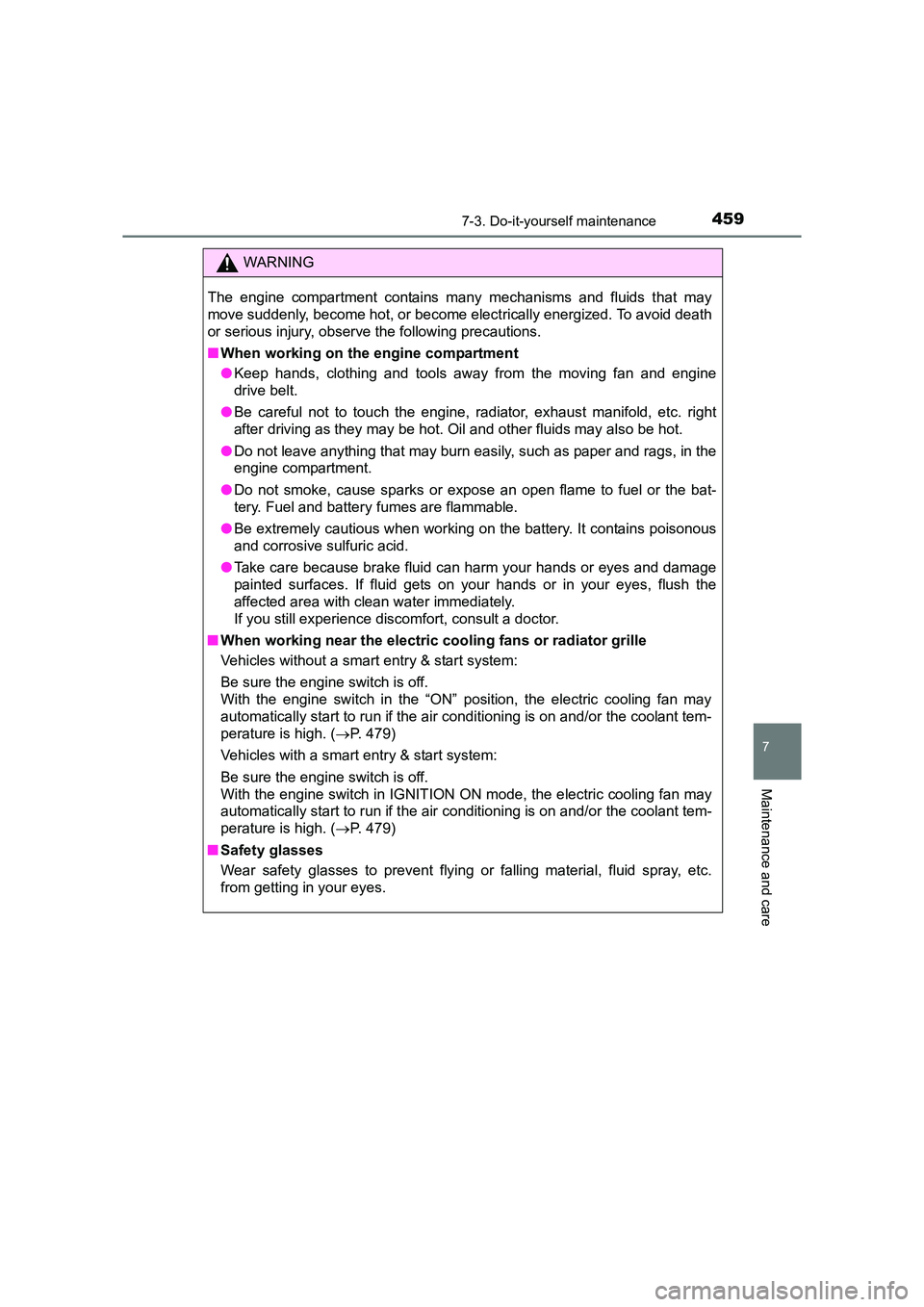

WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
■ When working on the engine compartment
●Keep hands, clothing and tools away from the moving fan and engine
drive belt.
● Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
● Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
● Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
● Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
● Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.
■ When working near the electric cooling fans or radiator grille
Vehicles without a smart entry & start system:
Be sure the engine switch is off.
With the engine switch in the “ON” position, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. ( →P. 479)
Vehicles with a smart entry & start system:
Be sure the engine switch is off.
With the engine switch in IGNITION ON mode, the electric cooling fan may
automatically start to run if the air conditioning is on and/or the coolant tem-
perature is high. ( →P. 479)
■ Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in your eyes.

4647-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■

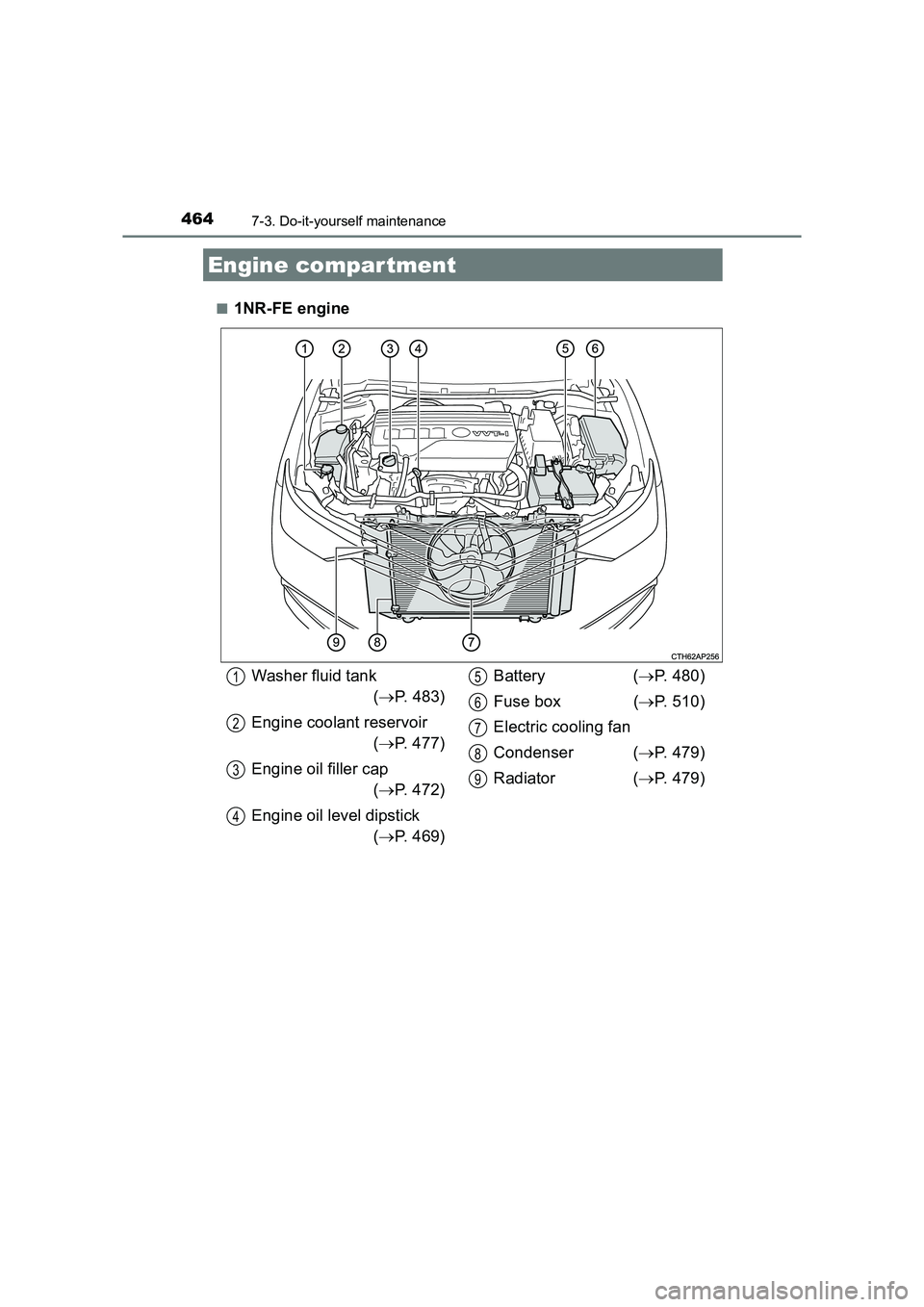

1NR-FE engine
Engine compar tment
Washer fluid tank
(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Electric cooling fan
Condenser ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9

4657-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care

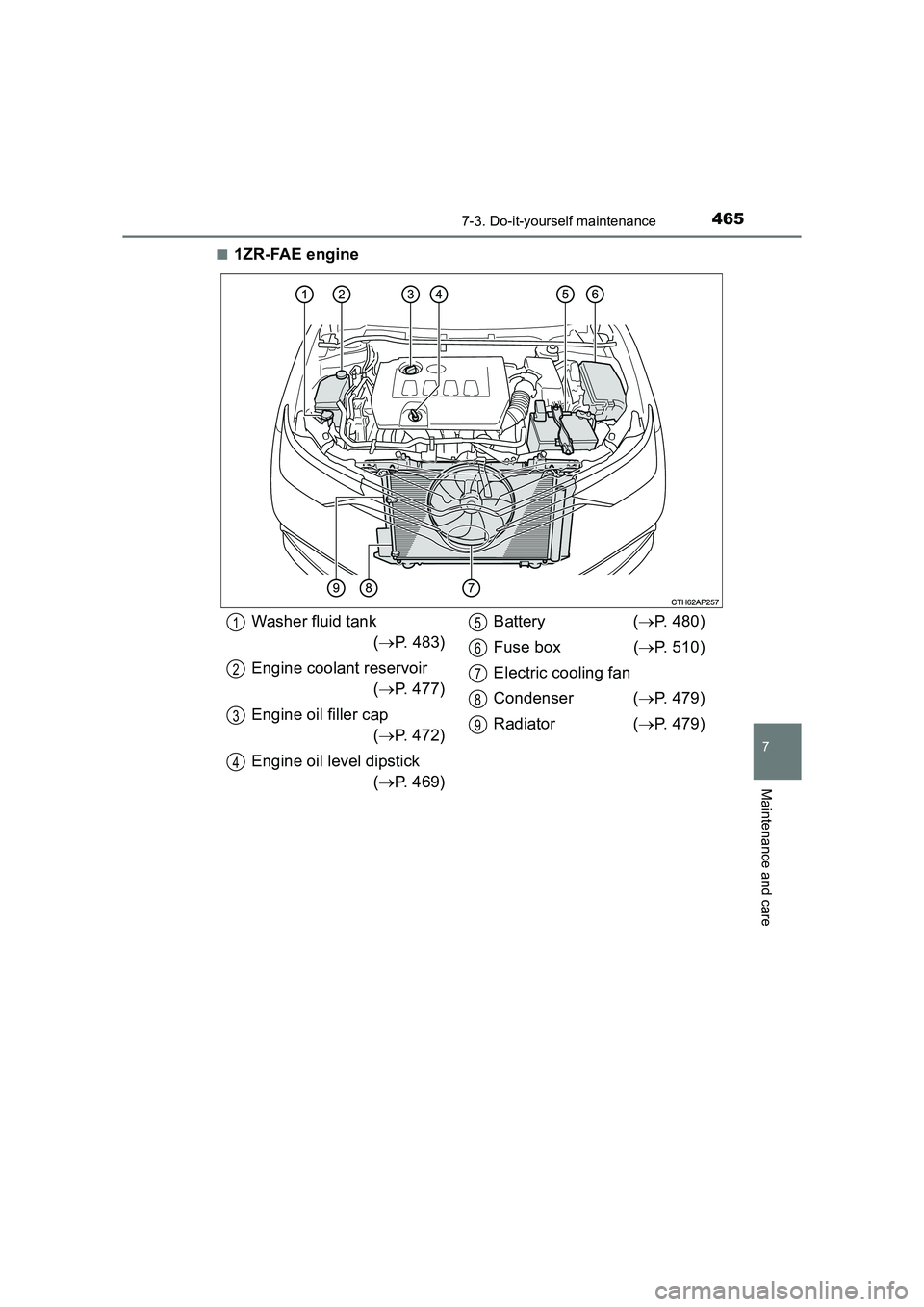

■1ZR-FAE engine
Washer fluid tank(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Electric cooling fan
Condenser ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9

4667-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■

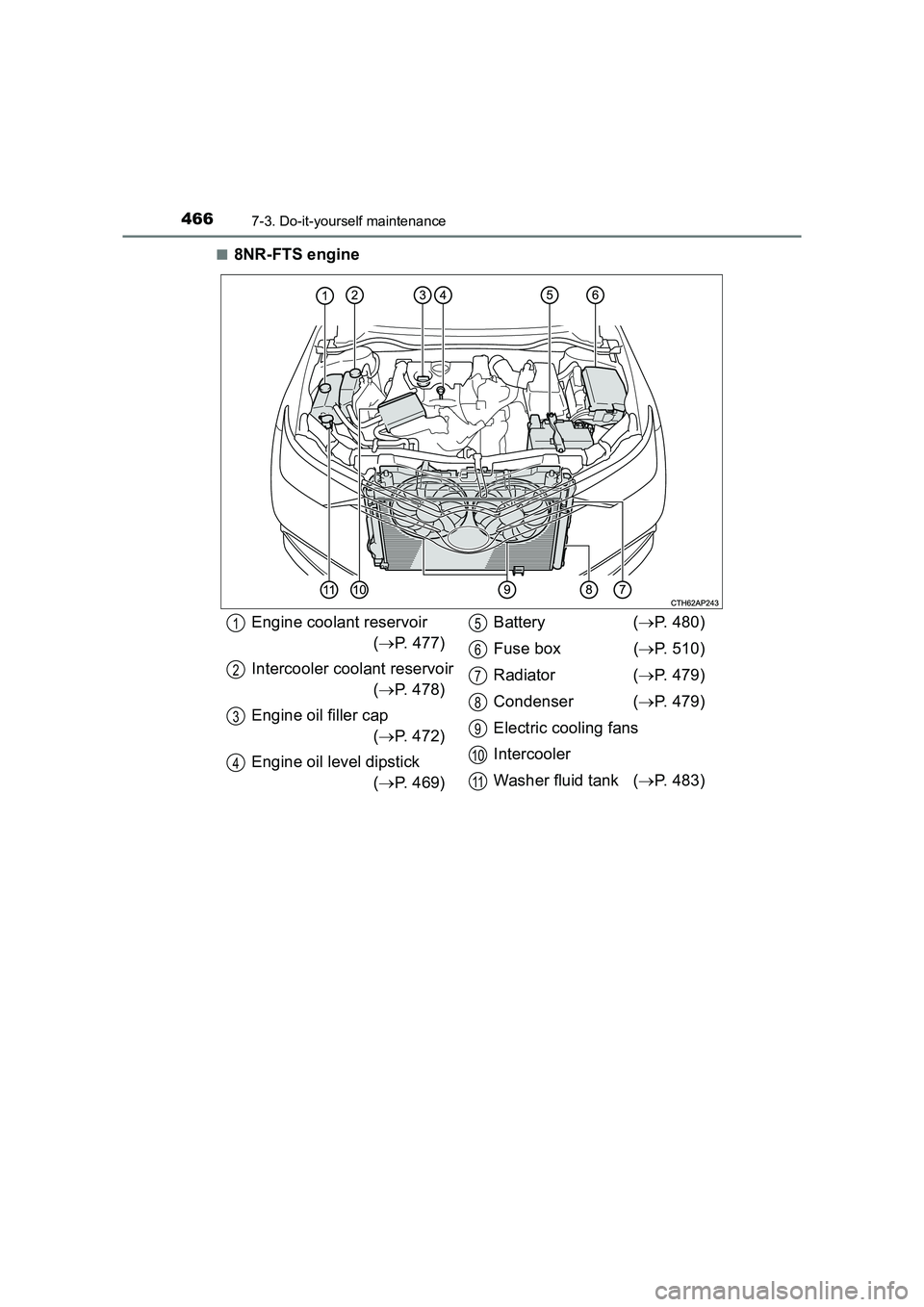

8NR-FTS engine
Engine coolant reservoir
(→ P. 477)
Intercooler coolant reservoir (→ P. 478)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Battery (
→P. 480)
Fuse box ( →P. 510)
Radiator ( →P. 479)
Condenser ( →P. 479)
Electric cooling fans
Intercooler
Washer fluid tank ( →P. 483)1
2
3
4
5
6
7
8
9
10
11

4677-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)
7
Maintenance and care

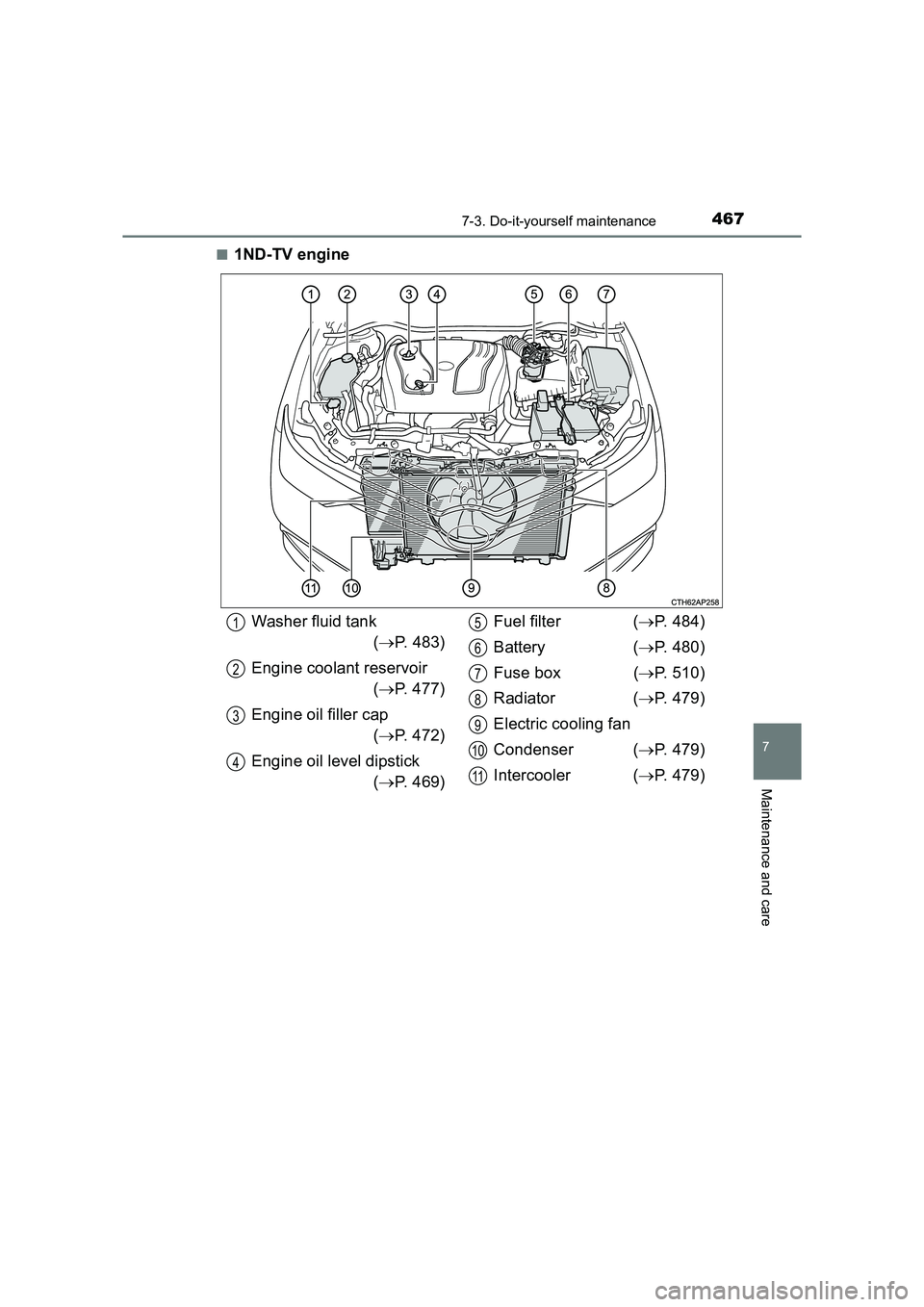

■1ND-TV engine
Washer fluid tank(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Fuel filter (
→P. 484)
Battery ( →P. 480)
Fuse box ( →P. 510)
Radiator ( →P. 479)
Electric cooling fan
Condenser ( →P. 479)
Intercooler ( →P. 479)1
2
3
4
5
6
7
8
9
10
11

4687-3. Do-it-yourself maintenance
AURIS Touring Sports_EE (12K53E)■

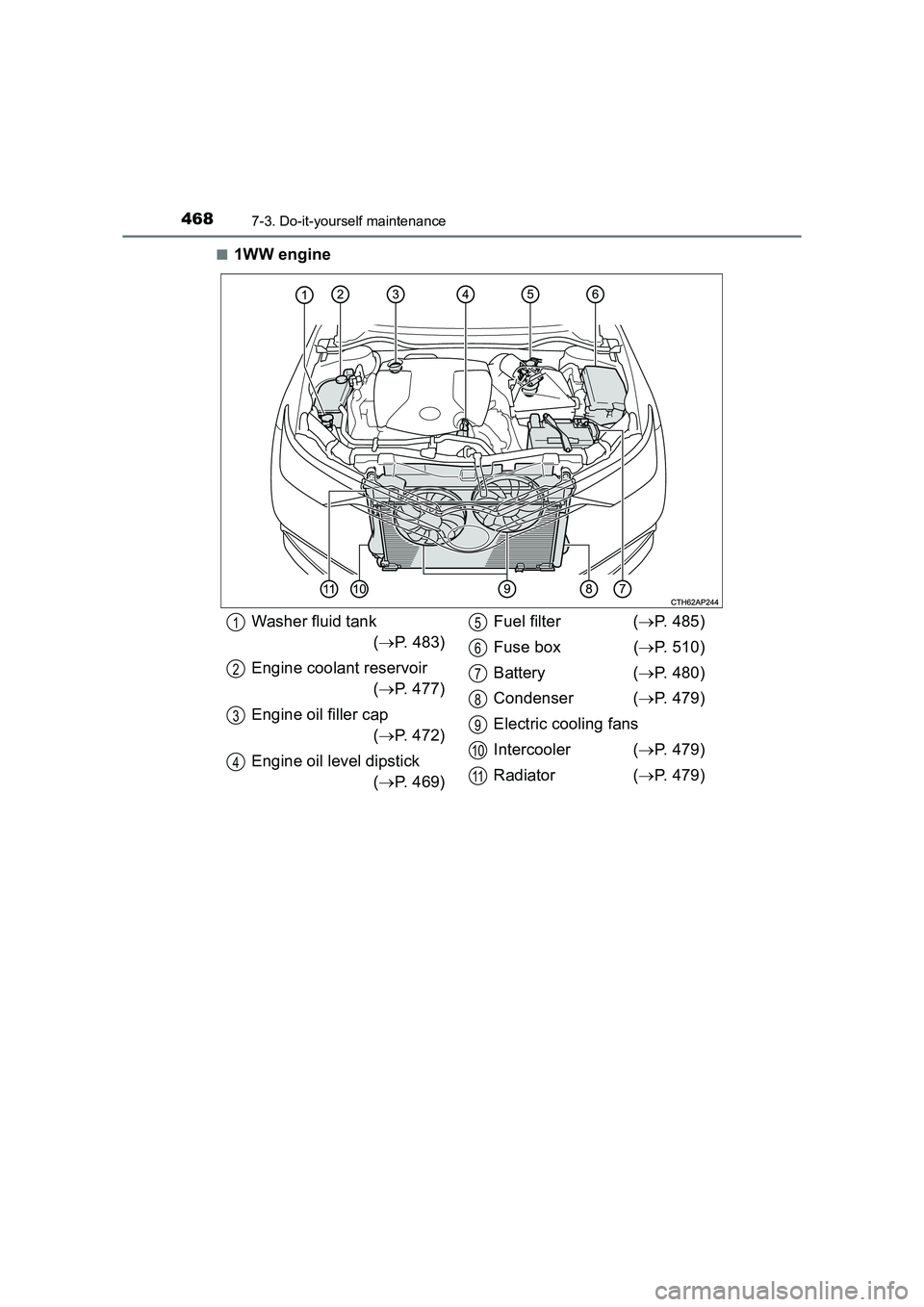

1WW engine
Washer fluid tank
(→ P. 483)
Engine coolant reservoir (→ P. 477)
Engine oil filler cap (→ P. 472)
Engine oil level dipstick (→ P. 469) Fuel filter (
→P. 485)
Fuse box ( →P. 510)
Battery ( →P. 480)
Condenser ( →P. 479)
Electric cooling fans
Intercooler ( →P. 479)
Radiator ( →P. 479)1
2
3
4
5
6
7
8
9
10
11
