6038-2. Steps to take in an emergency
AURIS Touring Sports_EE (12K53E)
8
When trouble arises

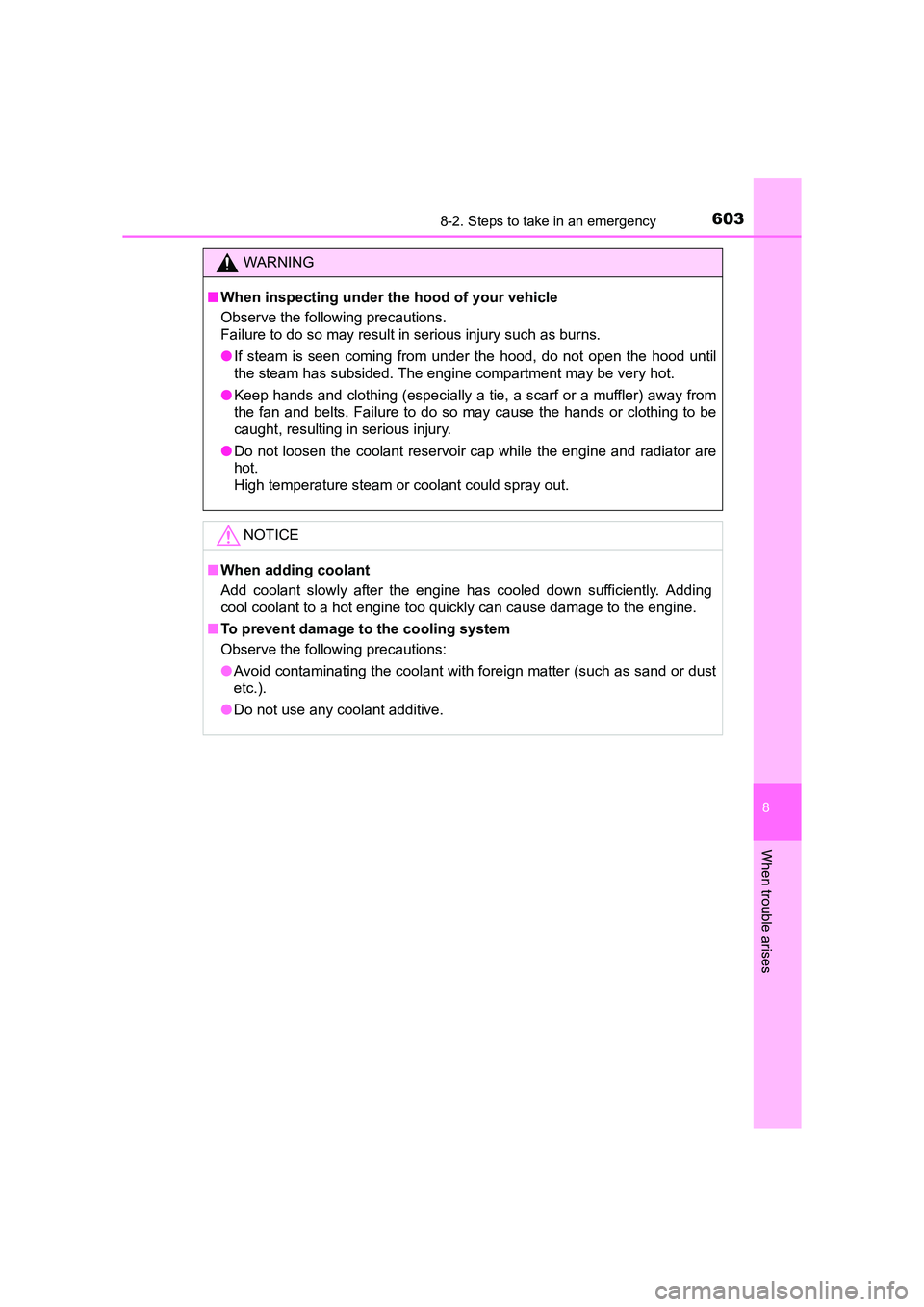

WARNING
■ When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
●If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
● Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fan and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
● Do not loosen the coolant reservoir cap while the engine and radiator are
hot.
High temperature steam or coolant could spray out.
NOTICE
■ When adding coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
■ To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.

6219-1. Specifications
AURIS Touring Sports_EE (12K53E)
9
Vehicle specifications
X1NR-FE, 1ZR-FAE and 1ND-TV engines
X8NR-FTS engine

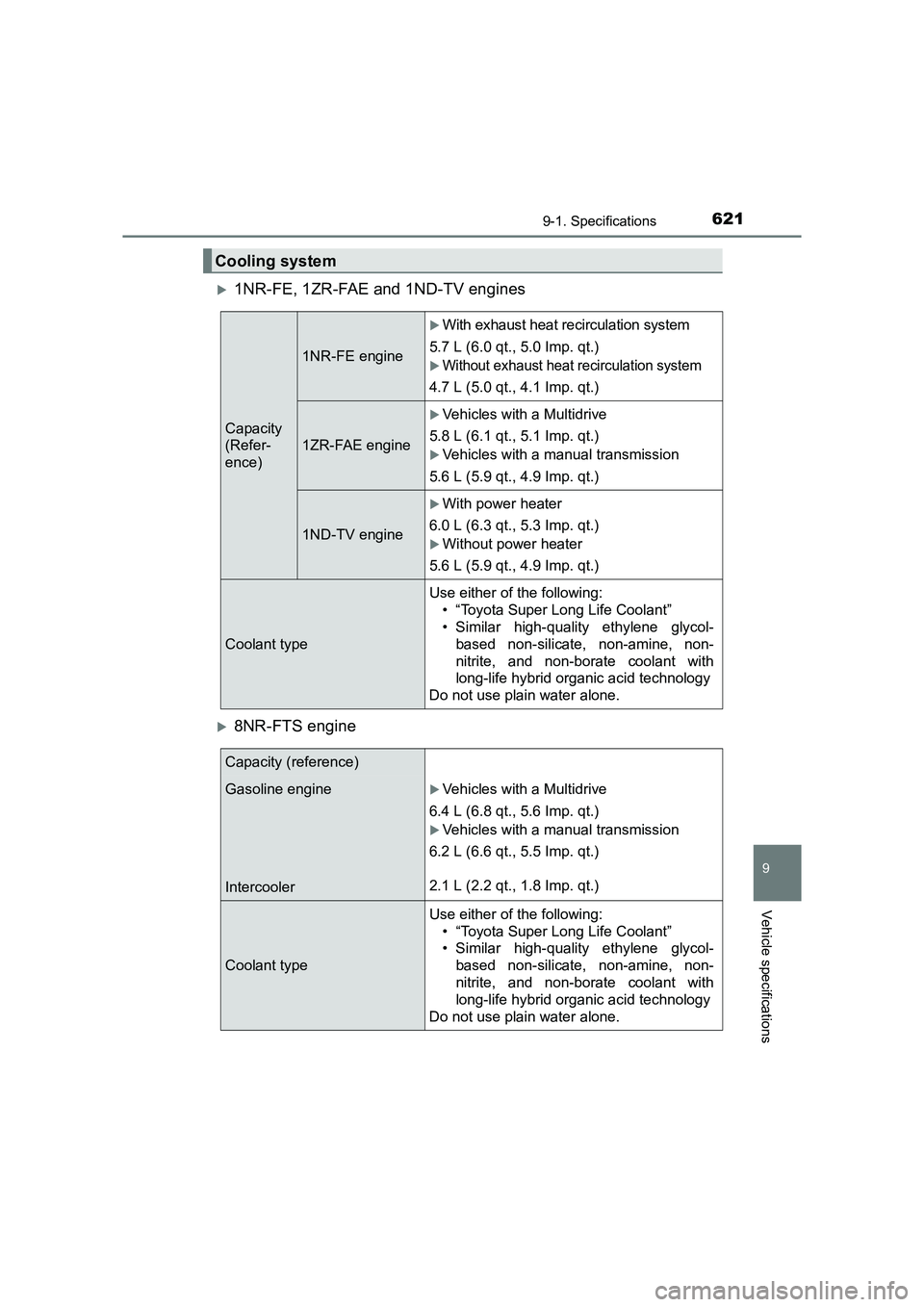

Cooling system
Capacity
(Refer-
ence)
1NR-FE engine
XWith exhaust heat recirculation system
5.7 L (6.0 qt., 5.0 Imp. qt.)
XWithout exhaust heat recirculation system
4.7 L (5.0 qt., 4.1 Imp. qt.)
1ZR-FAE engine
XVehicles with a Multidrive
5.8 L (6.1 qt., 5.1 Imp. qt.)
XVehicles with a manual transmission
5.6 L (5.9 qt., 4.9 Imp. qt.)
1ND-TV engine
XWith power heater
6.0 L (6.3 qt., 5.3 Imp. qt.)
XWithout power heater
5.6 L (5.9 qt., 4.9 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Capacity (reference)
Gasoline engine
IntercoolerXVehicles with a Multidrive
6.4 L (6.8 qt., 5.6 Imp. qt.)
XVehicles with a manual transmission
6.2 L (6.6 qt., 5.5 Imp. qt.)
2.1 L (2.2 qt., 1.8 Imp. qt.)
Coolant type Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.

6229-1. Specifications
AURIS Touring Sports_EE (12K53E)

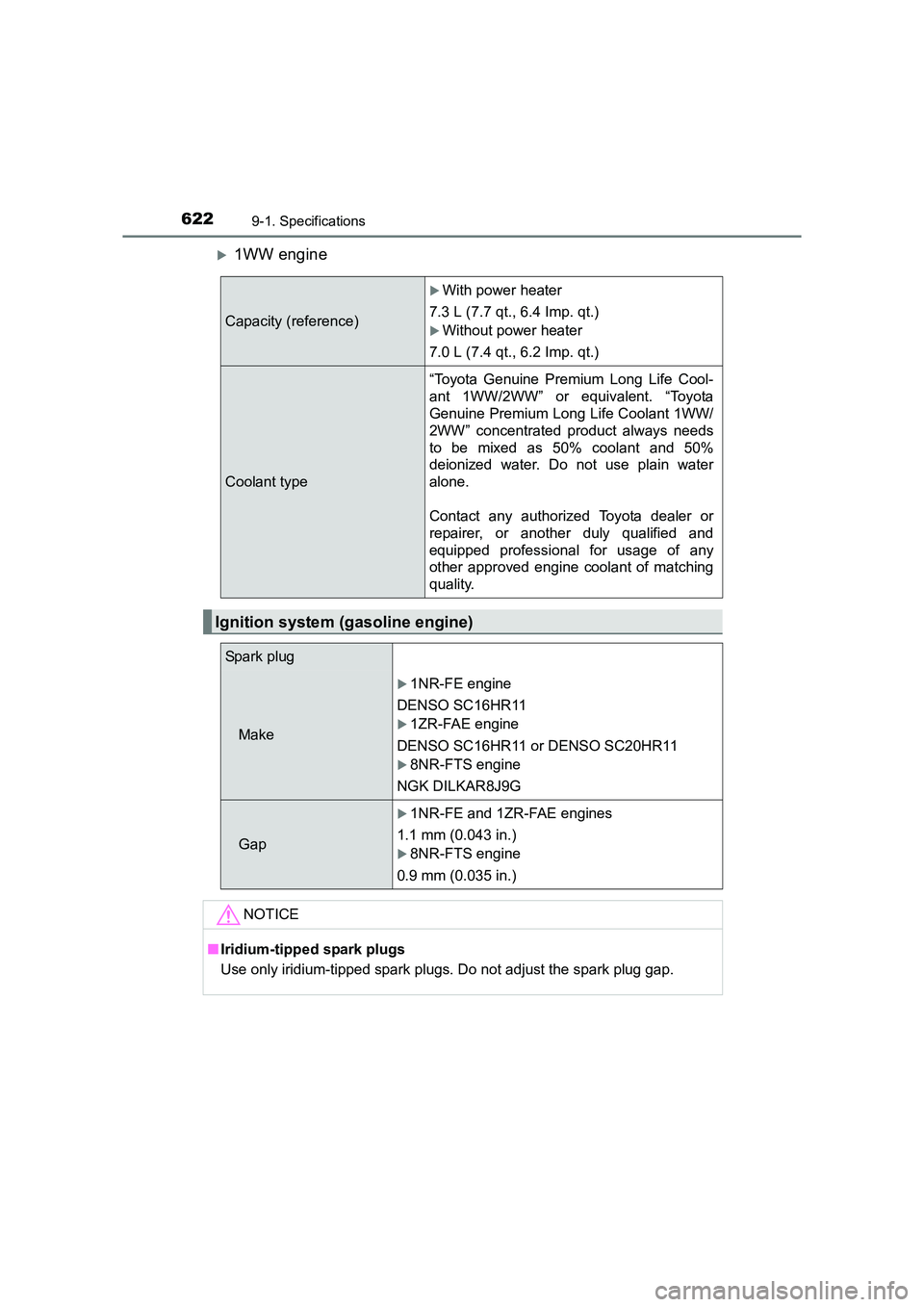

X1WW engine
Capacity (reference)
XWith power heater
7.3 L (7.7 qt., 6.4 Imp. qt.)
XWithout power heater
7.0 L (7.4 qt., 6.2 Imp. qt.)
Coolant type “Toyota Genuine Premium Long Life Cool-
ant 1WW/2WW” or equivalent. “Toyota
Genuine Premium Long Life Coolant 1WW/
2WW” concentrated product always needs
to be mixed as 50% coolant and 50%
deionized water. Do not use plain water
alone.
Contact any authorized Toyota dealer or
repairer, or another duly qualified and
equipped professional for usage of any
other approved engine coolant of matching
quality.
Ignition system (gasoline engine)
Spark plug
Make
X1NR-FE engine
DENSO SC16HR11
X1ZR-FAE engine
DENSO SC16HR11 or DENSO SC20HR11
X8NR-FTS engine
NGK DILKAR8J9G
Gap
X1NR-FE and 1ZR-FAE engines
1.1 mm (0.043 in.)
X8NR-FTS engine
0.9 mm (0.035 in.)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
