2016 TOYOTA AURIS HYBRID instrument cluster

UK AURIS_HV_HB_EE (OM12K47E)
Pictorial indexSearch by illustration
1For safety
and securityMake sure to read through them
2Instrument
clusterHow to read the gauges and meters, the variety of
warning lights and indicators, etc.
3Operation of
each componentOpening and closing the doors and windows,
adjustment before driving, etc.
4DrivingOperations and advice which are necessary for driving
5Audio systemOperating the audio system
6Interior featuresUsage of the interior features, etc.
7Maintenance
and careCaring for your vehicle and maintenance procedures
8When trouble
arisesWhat to do in case of malfunction or emergency
9Vehicle
specificationsVehicle specifications, customizable features, etc.
IndexSearch by symptom
Search alphabetically

TABLE OF CONTENTS2
UK AURIS_HV_HB_EE (OM12K47E)For your information .......................8
Reading this manual.....................12
How to search ..............................13
Pictorial index ...............................14
1-1. For safe use
Before driving.......................30
For safety drive ....................32
Seat belts .............................34
SRS airbags.........................38
Airbag manual on-off system ...............................48
Safety information for children .........................50
Child restraint systems ........51
Installing child restraints ......60
Exhaust gas precautions .....70
1-2. Hybrid system Hybrid system features ........71
Hybrid system precautions ........................75
1-3. Theft deterrent system Immobilizer system ..............82
Alarm ...................................89
Double locking system .........95 2. Instrument cluster
Warning lights and indicators........................... 98
Gauges and meters........... 103
Multi-information display ............................. 106
Energy monitor/ consumption screen ........ 115
3-1. Key information Keys .................................. 120
3-2. Opening, closing and locking the doors
Side doors ......................... 124
Back door .......................... 129
Smart entry & start system............................. 134
Push button start ............... 155
3-3. Adjusting the seats Front seats ........................ 173
Rear seats ......................... 175
Head restraints .................. 177
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 179
Inside rear view mirror....... 181
Outside rear view mirrors ............................. 183
3-5. Opening and closing the windows
Power windows ................. 186
1For safety and security
2Instrument cluster
3Operation of each
component

97
2Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)2. Instrument cluster
Warning lights and indicators ........................... 98
Gauges and meters ........... 103
Multi-information display ............................. 106
Energy monitor/ consumption screen ........115

98
UK AURIS_HV_HB_EE (OM12K47E)
2. Instrument cluster
The units used on the speedometer and some indicators may differ
depending on the target region.

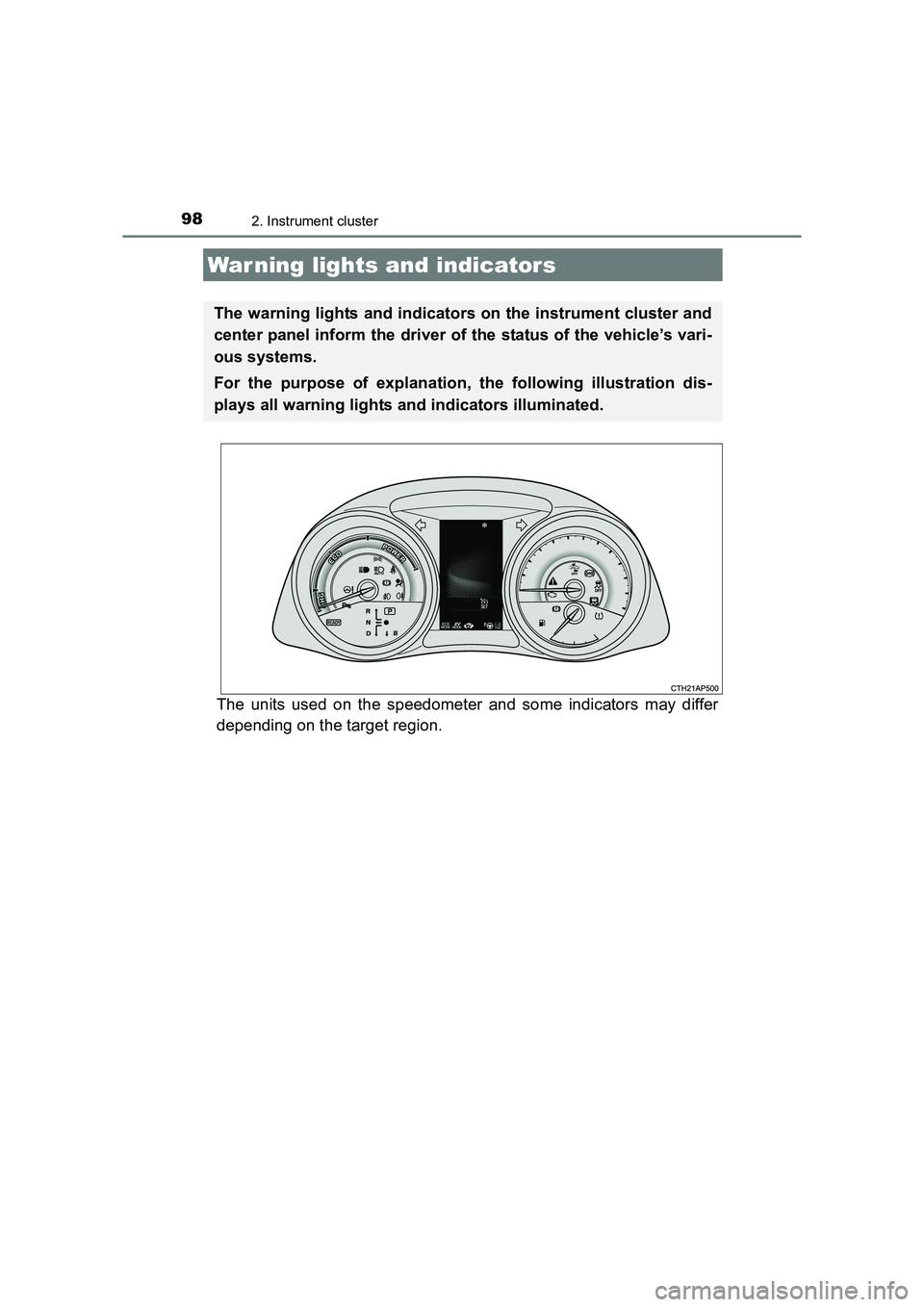

War ning lights and indicators
The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For the purpose of explanation, the following illustration dis-
plays all warning lights and indicators illuminated.

992. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)
2
Instrument cluster
Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(Red)
Brake system warning
light (→P. 491)*1
Slip indicator ( →P. 492)
*1
(Yellow)
Brake system warning
light ( →P. 491)*1, 2
(if equipped)
PCS warning light
(→ P. 493)
High engine coolant
temperature warning
light ( →P. 491)
Low fuel level warning
light ( →P. 493)
*1Malfunction indicator
lamp ( →P. 492)Driver’s and front pas-
senger’s seat belt
reminder light ( →P. 493)
*1SRS warning light
(→ P. 492)*3Rear passengers’ seat
belt reminder lights
(→ P. 494)
*1
ABS warning light
(→ P. 492)*1
(if equipped)
Tire pressure warning
light ( →P. 494)
*1Electric power steering
system warning light
(→ P. 492)*1Master warning light
(→ P. 494)

1002. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate a malfunction.
*3: This light illuminates on the center panel.

1012. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)
2
Instrument cluster
The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
(→ P. 227)
(if equipped)
Simple-IPA indicator
(→ P. 291)
Tail light indicator
( → P. 229)
*1, 2Slip indicator
(→ P. 306)
Headlight high beam
indicator ( →P. 229)
*1VSC OFF indicator
(→ P. 306)
*1
(if equipped)
Automatic High Beam
indicator ( →P. 269)*1
(if equipped)
PCS warning light
(→ P. 254)
(if equipped)
Front fog light indicator
(→ P. 235) EV indicator (
→P. 217)
Rear fog light indicator
( → P. 235)
*3Security indicator
(→ P. 82, 89)
(if equipped)
Cruise control indicator
(→ P. 279) Power mode indicator
(
→ P. 222)
(if equipped)
Cruise control “SET”
indicator ( →P. 279) “ECO MODE” indicator
(
→ P. 222)
(if equipped)
LDA (Lane Departure
Alert) indicator
(→ P. 264) EV drive mode indicator
(
→ P. 217)
(if equipped)
Toyota parking
assist-sensor indicator
(→ P. 284) “READY” indicator
(
→ P. 211)

1022. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by any authorized Toyota dealer or repairer, or
another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: This light illuminates on the center panel.
*4: When the outside temperature is approxim ately 3°C (37°F) or lower, the
indicator will flash for approximately 10 seconds, then stay on.
*4Low outside tempera-
ture indicator ( →P. 108) Shift position indicators
(
→ P. 219)
*1, 3“PASSENGER AIR
BAG” indicator ( →P. 48)
WARNING
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could result
in death or serious injury. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional immediately if this occurs.
