2016 TOYOTA AURIS HYBRID reset

17Pictorial index
UK AURIS_HV_HB_EE (OM12K47E)Multi-information display . . . . . . . . .
. . . . . . . . . . . . . . . . . . P. 106
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 115
If a warning message or indicator is displayed . . . . . . . . . . . . P. 498
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Front fog lights
*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 237
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
Headlight cleaners
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 424
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 179
Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
Audio system
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Navigation/multimedia system
*1, 2
Energy monitor/trip information/past record . . . . . . . . . . . . . . P. 115
Tire pressure warning reset switch
*1 . . . . . . . . . . . . . . . . . P. 441
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12
13

23Pictorial index
UK AURIS_HV_HB_EE (OM12K47E)Multi-information display . . . . . . . . .
. . . . . . . . . . . . . . . . . . P. 106
Energy monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 115
If a warning message or indicator is displayed . . . . . . . . . . . . P. 498
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Precautions for winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 315
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 228
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 227
Headlight switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Headlights/front position lights/tail lights/
daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 229
Front fog lights
*1/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . P. 235
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . P. 237
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 237
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 432
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . P. 482
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 424
Tilt and telescopic steering lock release lever . . . . . . . . . . P. 179
Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 179
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 380
Rear window defogger. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 384
Audio system
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 318
Navigation/multimedia system
*1, 2
Energy monitor/trip information/past record . . . . . . . . . . . . . . P. 115
Tire pressure warning reset switch . . . . . . . . . . . . . . . . . . . P. 441
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual”.
4
5
6
7
8
9
10
11
12
13

1082. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)
◆Changing the display
To change the displayed item,
press the “TRIP” switch.
Each time the switch is pressed,
the displayed item will be
changed.
◆Display items
■Odometer
Displays the total distance the vehicle has been driven.
■Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.
To reset, display the desired trip meter and press and hold the “TRIP”
switch.
Trip information

1092. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)
2
Instrument cluster
◆Operating the meter control switches
The multi-information display is operated using the meter control
switches.: Display the menuicons/select menu
icons
: Change displayed item, scroll up/down
the screen and
move the cursor up/
down
Press: Enter/Set
Press and hold: Reset
Return to the previous screen
Menu icons
1
2
3

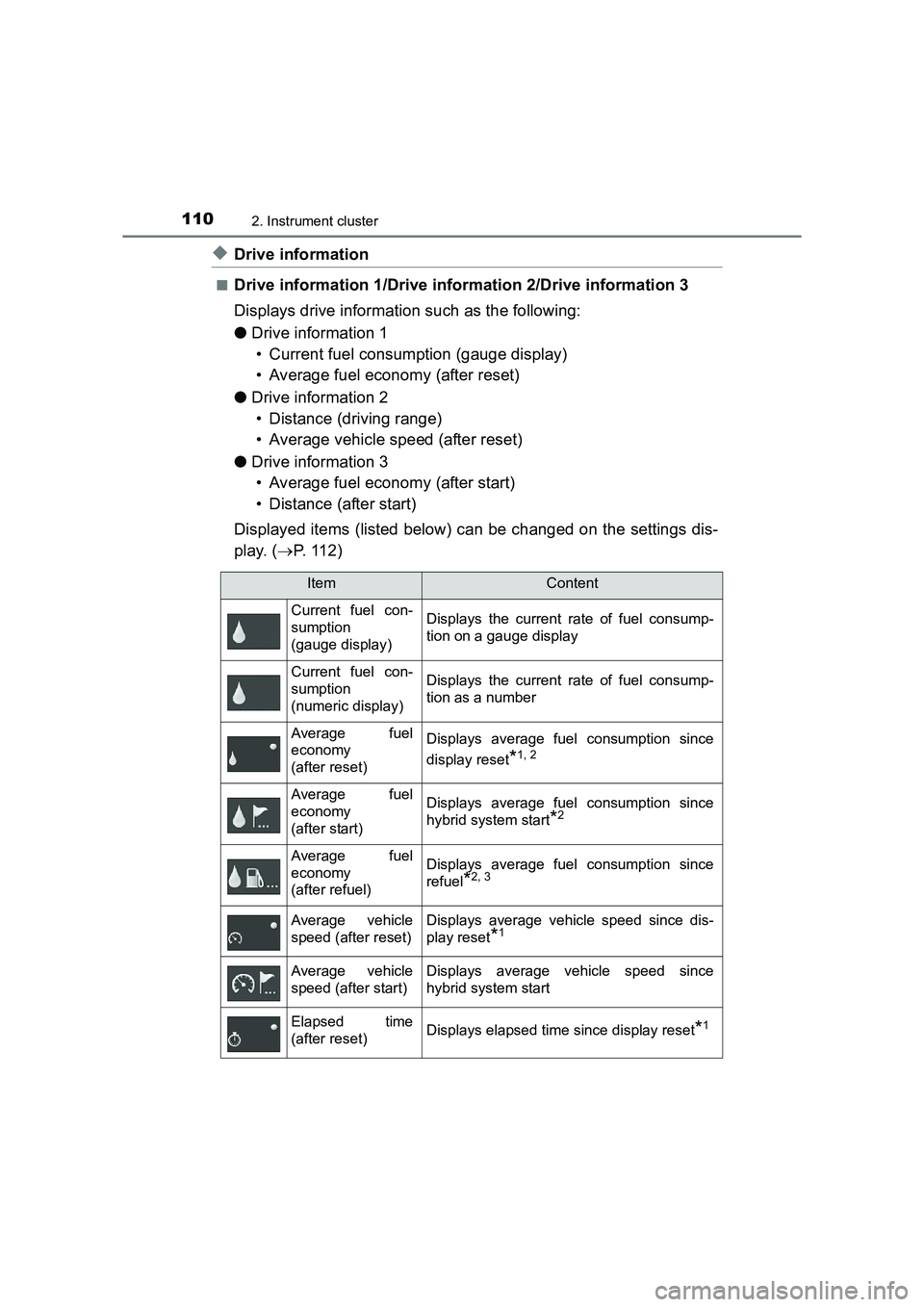

1102. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)
◆Drive information
■Drive information 1/Drive information 2/Drive information 3
Displays drive information such as the following:
●Drive information 1
• Current fuel consumption (gauge display)
• Average fuel economy (after reset)
● Drive information 2
• Distance (driving range)
• Average vehicle speed (after reset)
● Drive information 3
• Average fuel economy (after start)
• Distance (after start)
Displayed items (listed below) can be changed on the settings dis-
play. ( →P. 112)
ItemContent
Current fuel con-
sumption
(gauge display) Displays the current rate of fuel consump-
tion on a gauge display
Current fuel con-
sumption
(numeric display)Displays the current rate of fuel consump-
tion as a number
Average fuel
economy
(after reset)Displays average fuel consumption since
display reset
*1, 2
Average fuel
economy
(after start)Displays average fuel consumption since
hybrid system start
*2
Average fuel
economy
(after refuel)Displays average fuel consumption since
refuel
*2, 3
Average vehicle
speed (after reset)Displays average vehicle speed since dis-
play reset
*1
Average vehicle
speed (after start)Displays average vehicle speed since
hybrid system start
Elapsed time
(after reset)Displays elapsed time since display reset*1

1112. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)
2
Instrument cluster*1: Values that can be reset will be displayed with a circle () in the upper
right corner.
To reset, display the desired item and press and hold switch. If both
displayed items are resettable, a reset selection screen will appear.
*2: Use the displayed fuel consumption as a reference.
*3: When only a small amount of fuel is added to the tank, the display may not
be updated.
When refueling, turn the power switch off. If the vehicle is refueled without
turning the power switch off, the display may not be updated.
*4: This distance is computed based on your average fuel consumption. As aresult, the actual distance that can be driven may differ from that dis-
played.
■
Energy monitor
→ P. 1 1 5
■Digital speedometer
Displays vehicle speed as a number.
Elapsed time
(after start)Displays elapsed time since hybrid system
start
Distance
(driving range)Displays driving range with remaining
fuel
*3, 4
Distance
(after start)Displays drive distance since vehicle start
BlankNo item
ItemContent

1132. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)
2
Instrument cluster
●Drive information 1/Drive information 2/Drive information 3
Select to select up to 2 items that will be displayed on the Drive
information 1 screen, Drive information 2 screen and Drive infor-
mation 3 screen respectively. ( →P. 1 1 0 )
● Pop-up display
Select to set the following pop-up displays on/off.
• Incoming call display of the hands-free phone system (if equipped)
• Route guidance display of the navigation system-linked sys- tem (if equipped)
● Initialization
Select to reset the meter display settings. ( →P. 567)
■ Language
Select to change the language on the display.
■ Brightness of the meters (day mode and night mode)
●The brightness of the meters is changed between day mode and night
mode.
XVehicles without automatic light control system
• Day mode: When the tail lights are off
• Night mode: When the tail lights are on
XVehicles with automatic light control system
• Day mode: When the tail lights are off or when the tail lights are on but the surrounding area is bright
• Night mode: When the tail lights are on and the surrounding area is dark
● When in night mode, the brightness will be reduced slightly unless the
meters are set to the maximum brightness level.
■ Suspension of the settings display
●While driving, the multi-information display cannot be changed to setting
mode. Before changing the settings, stop the vehicle in a safe place.
● In the following situations, operation of some of the settings display may be
temporarily suspended.
• When a warning message appears on the multi-information display
• When the vehicle begins to move

1142. Instrument cluster
UK AURIS_HV_HB_EE (OM12K47E)■
When disconnecting and reconnect ing 12-volt battery terminals
The drive information data will be reset.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Ending display
When the power switch is turned off, the following information about the cur-
rent trip will be temporarily displa yed on the multi-information display.
● Elapsed time (after start)
● Distance (after start)
● Average fuel economy (after start)
WARNING
■ Caution for use while driving
●When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.
● Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.
■ Cautions during setting up the display
As the hybrid system needs to be operating during setting up the display,
ensure that the vehicle is parked in a place with adequate ventilation. In a
closed area such as a garage, exhaust gases including harmful carbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
■The multi-information disp lay at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
■ While setting up the display
To prevent 12-volt battery discharge, ens ure that the hybrid system is oper-
ating while setting up the display features.
