■Emergency tire puncture repair kit components
Nozzle
Hose
Compressor switchAir pressure gauge
Pressure release button
Power plug
Stickers1
2
3
4
5
6
7

5228-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12K47E)
Check the degree of the tire dam-
age.
Do not remove the nail or screw
from the tire. Removing the object
may widen the opening and pre-
vent emergency repair with the
repair kit.Remove the deck mat. ( →P. 401)
Take out the emergency tire puncture repair kit. ( →P. 520)
Before performing emergency repair
Taking out the emergency tire puncture repair kit
1
2

5238-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12K47E)
8
When trouble arises
Take out the repair kit.
When taking out the bottle from the original bag, do not tear or discard the
bag.
Attach the 2 stickers as shown.
Remove any dirt and moisture from
the wheel before attaching the
label. If it is impossible to attach
the label, make sure to tell any
authorized Toyota dealer or
repairer, or other duly qualified and
equipped professional when you
have them repair and replace the
tire that sealant is injected.
Remove the valve cap from the
valve of the punctured tire.
Remove the cap from the noz-
zle.
Emergency repair method
1
2
3
4

5248-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12K47E)
Connect the nozzle to the
valve.
Screw the end of the nozzle clock-
wise as far as possible.
The bottle should hang vertically
without contacting the ground. If
the bottle does not hang vertically,
move the vehicle so that the tire
valve is located properly.
Remove the cap from the bot-
tle.
Pull the hose out from the com-
pressor.
Connect the bottle to the com-
pressor.
Screw the end of the nozzle clock-
wise as far as possible.
5
6
7
8

5258-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12K47E)
8
When trouble arises

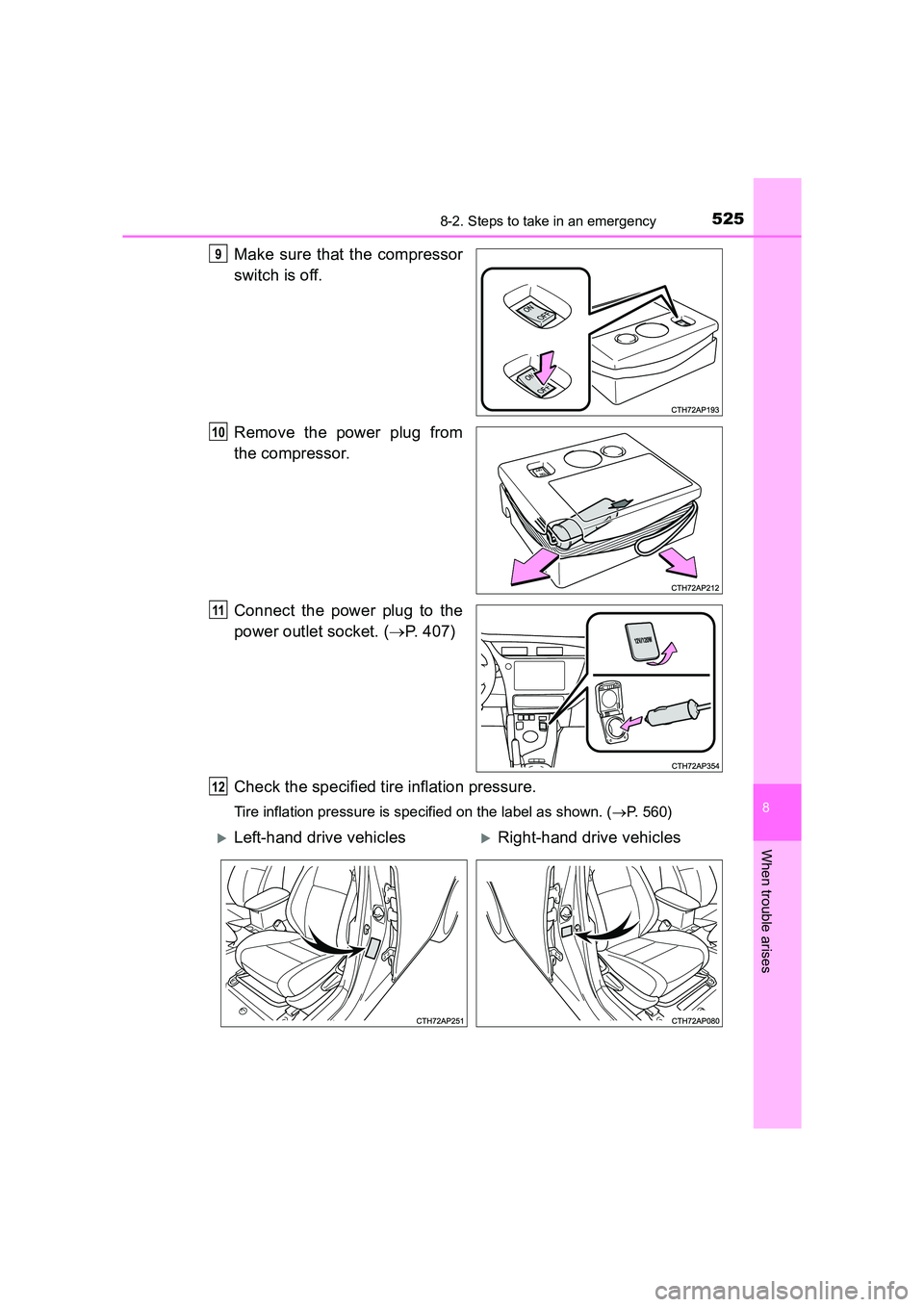

Make sure that the compressor
switch is off.
Remove the power plug from
the compressor.
Connect the power plug to the
power outlet socket. (→P. 407)
Check the specified tire inflation pressure.
Tire inflation pressure is specified on the label as shown. ( →P. 560)
9
10
11
12
XLeft-hand drive vehiclesXRight-hand drive vehicles

5268-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12K47E)
Start the hybrid system.
To inject the sealant and inflate
the tire, turn the compressor
switch on.
Inflate the tire until the specified
air pressure is reached.The sealant will be injected
and the pressure will surge
and then gradually decrease.
The air pressure gauge will
display the actual tire infla-
tion pressure about 1 minute
(5 minutes at low tempera-
ture) after the switch is
turned on.
Inflate the tire until the speci-
fied air pressure.
• If the tire inflation pressure isstill lower than the specified
point after inflation for 35 min-
utes with the switch on, the tire
is too damaged to be repaired.
Turn the compressor switch off
and contact any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
• If the tire inflation pressure exceeds the specified air pressure, let out some air to adjust the tire inflation pressure. ( →P. 529, 560)
13
14
15
1
2
3

5278-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12K47E)
8
When trouble arises
Turn the compressor off.
Disconnect the nozzle from the valve on the tire and then pull out
the power plug from the power outlet socket.
Some sealant may leak when the hose is removed.
Press the button to release
pressure from the bottle.
Attach the cap to the nozzle.
Install the valve cap onto the valve of the repaired tire.
Disconnect the hose from the
bottle and attach the cap to the
bottle.
Place the bottle in the original bag
and zip it.
16
17
18
19
20
21

5288-2. Steps to take in an emergency
UK AURIS_HV_HB_EE (OM12K47E)
Temporarily store the bottle and compressor in the luggage com-
partment.
To spread the liquid sealant evenly within the tire, immediately drive
safely for about 5 km (3 miles) below 80 km/h (50 mph).
After driving for about 5 km (3
miles), stop your vehicle in a
safe place on a hard, flat sur-
face and connect the compres-
sor.
Check the tire inflation pres-
sure.If the tire inflation pressure is
under 130 kPa (1.3 kgf/cm
2
or bar, 19 psi): The puncture
cannot be repaired. Contact
any authorized Toyota dealer
or repairer, or another duly
qualified and equipped pro-
fessional.
If the tire inflation pressure is 130 kPa (1.3 kgf/cm
2 or bar, 19 psi)
or higher, but less than the specified air pressure: Proceed to .
If the tire inflation pressure is the specified air pressure ( →P.
560): Proceed to .
Turn the compressor switch on to inflate the tire until the specified
air pressure is reached. Drive for about 5 km (3 miles) and then
perform .
Store the compressor in the luggage compartment.
Taking precautions to avoid sudden braking, sudden acceleration
and sharp turns, drive carefully at under 80 km/h (50 mph) to the
nearest authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional for tire repair or replacement.
