Specifications/Specifications
&Engine oil
For the checking, adding and replacing procedure or other details, refer to “Engine oil ”F 11-8.
NOTEThe procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommended
that you have this service performed by your SUBARU dealer.
! Approved engine oil
Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer.
If the approved engine oil is unavailable, use the alternative engine oil described on the next page.
12-4

!Alternative engine oil
If the SUBARU approved oil is unavailable, the following alternative oil can be used.
NOTEEach quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the
temperature and other factors.

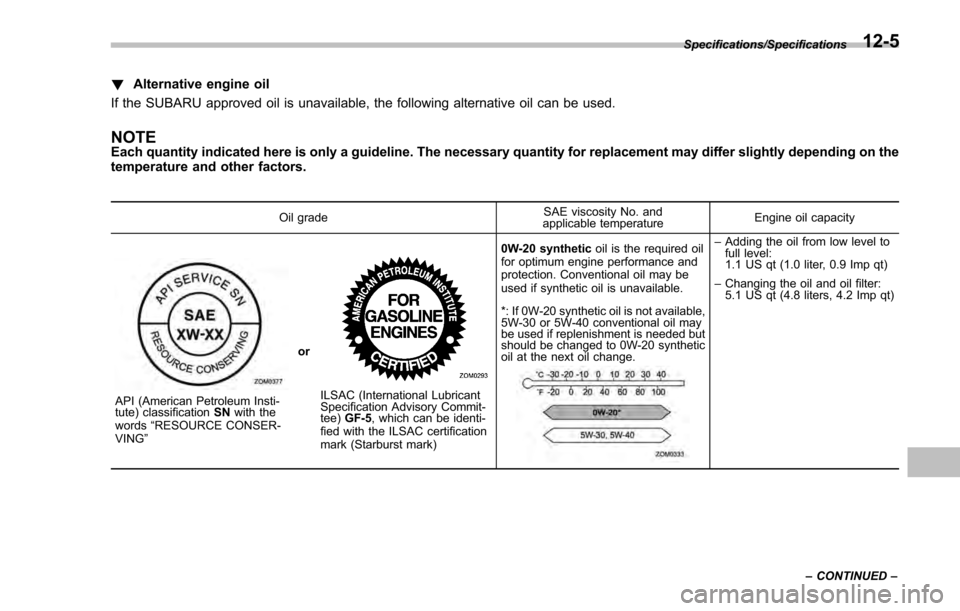

Oil grade SAE viscosity No. and
applicable temperature Engine oil capacity
API (American Petroleum Insti-
tute) classification
SNwith the
words “RESOURCE CONSER-
VING ” orILSAC (International Lubricant
Specification Advisory Commit-
tee)
GF-5 , which can be identi-
fied with the ILSAC certification
mark (Starburst mark) 0W-20 synthetic
oil is the required oil
for optimum engine performance and
protection. Conventional oil may be
used if synthetic oil is unavailable.
*: If 0W-20 synthetic oil is not available,
5W-30 or 5W-40 conventional oil may
be used if replenishment is needed but
should be changed to 0W-20 synthetic
oil at the next oil change.
– Adding the oil from low level to
full level:
1.1 US qt (1.0 liter, 0.9 Imp qt)
– Changing the oil and oil filter:
5.1 US qt (4.8 liters, 4.2 Imp qt)
Specifications/Specifications
–CONTINUED –
12-5

Specifications/Specifications
&Manual transmission, front differential and rear differential gear oil
Oil Manual transmission oil Front differential gear oil (CVT
models) Rear differential gear oil
Oil grade .
SUBARU Extra MT*
3
.API classification GL-5
(75W-90)*4
. SUBARU Extra MT*3
.API classification GL-5
(75W-90) API classification GL-5
SAE viscosity No.
and applicable tem-
perature — .
75W-90*
. 90
*: Recommended
Oil capacity*13.7 US qt (3.5 liters, 3.1 Imp qt) 1.3 US qt (1.2 liters, 1.1 Imp qt) 0.8 US qt (0.8 liters, 0.7 Imp qt)
Remarks*
2“ Manual transmission oil ”F 11 -
14 “
Front differential gear oil (CVT
models) ”F 11-15 “
Rear differential gear oil ”F 11-15
*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. After refilling the gearbox with oil, the oil level should be checked.
*2: For more details about maintenance and service, refer to the indicated section.
*3: The vehicle is filled at the factory with this type of oil.
*4: You may use this type of manual transmission oil. However, using this type of oil will detract from driveability and fuel efficiency.
12-6

&Fluids
Fluid
Fluid type*1Fluid capacity*2Remarks*3
Continuously variable transmission
fluid (CVT models) Consult your SUBARU dealer. 12.6 US qt (11.9 liters, 10.5 Imp qt) “
Continuously variable trans-
mission fluid ”F 11-15
Brake fluid FMVSS No. 116, fresh DOT 3 or DOT 4
brake fluid
–“
Brake fluid”F 11-16
Clutch fluid (MT models) FMVSS No. 116, fresh DOT 3 or DOT 4
brake fluid
–
“
Clutch fluid (MT models) ”F 11 -
17
*1: Use one of the indicated types of fluid.
*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors.
*3: For more details about maintenance and service, refer to the indicated section.
& Engine coolant
Vehicle model Coolant capacity Coolant type

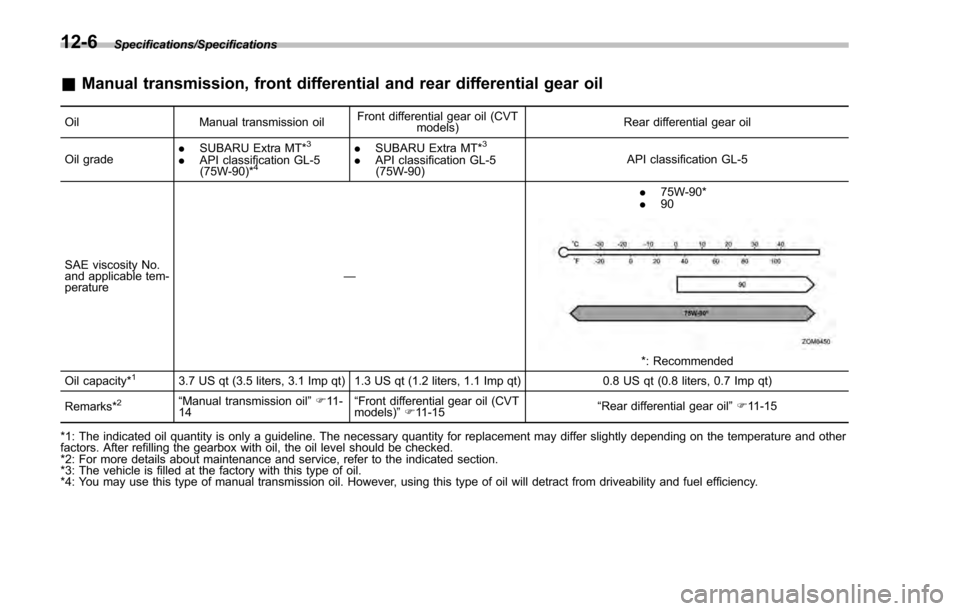

MT models 8.5 US qt (8.0 liters, 7.0 Imp qt)
SUBARU Super Coolant
CVT models 8.9 US qt (8.4 liters, 7.4 Imp qt)
The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other
factors. For more details about maintenance and service, refer to “Cooling system ”F 11-10.
& Electrical system
Battery type 55D23L
Alternator 12V-130A
Spark plugs SILZKAR7B11 (NGK)Specifications/Specifications
–CONTINUED –
12-7

Specifications/Specifications
&Tires
! U.S.-spec. models and Canada-spec. models
Tire size P195/65R15 89H P205/55R16 89V P205/50R17 88V P225/55R17 95H
Wheel size 1566J 1666
1/2J 17
67 JJ*1
17 67J*217 67J
Pressure Front 35 psi (240 kPa, 2.4 kgf/cm
2) 32 psi (220 kPa, 2.2 kgf/cm2)CVT models 33 psi (230 kPa, 2.3 kgf/cm2)
MT models 32 psi (220 kPa, 2.2 kgf/cm2)
Rear 33 psi (230 kPa, 2.3 kgf/cm
2) 30 psi (210 kPa, 2.1 kgf/cm2)CVT models 32 psi (220 kPa, 2.2 kgf/cm2)
MT models 30 psi (210 kPa, 2.1 kgf/cm2)
Temporary
spare tire Size T135/80 D16 T145/90 D16
Pressure
60 psi (420 kPa, 4.2 kgf/cm
2)
Wheel nut tightening
torque 89 lbf·ft (120 N·m, 12 kgf·m)*
3
*1:
“SPORT ”and “SPORT-Ltd ”models
*2: Other vehicle models
*3: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel
nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening
procedure, refer to “Changing a flat tire ”F 9-6.
12-8

!Other models
Tire size P205/55R16 89VP205/50R17 88V225/55R17 97V
Wheel size 1666 1/2 J 1767J 1767J
Pressure Front 35 psi (240 kPa, 2.4 kgf/cm
2) 32 psi (220 kPa, 2.2 kgf/cm2) 32 psi (220 kPa, 2.2 kgf/cm2)
Rear 33 psi (230 kPa, 2.3 kgf/cm2) 30 psi (210 kPa, 2.1 kgf/cm2) 30 psi (210 kPa, 2.1 kgf/cm2)
Temporary spare
tire Size
P205/55R16 P205/50R17185/65R17
Pressure 35 psi (240 kPa, 2.4 kgf/cm
2) 32 psi (220 kPa, 2.2 kgf/cm2) 42 psi (290 kPa, 3.0 kgf/cm2)
Wheel nut tightening torque 73.8 lbf·ft (100 N·m, 10.2 kgf·m)
&
Brake disc
If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult
your SUBARU dealer.
Specifications/Specifications12-9

Specifications/Fuses and circuits
Fuses and circuits

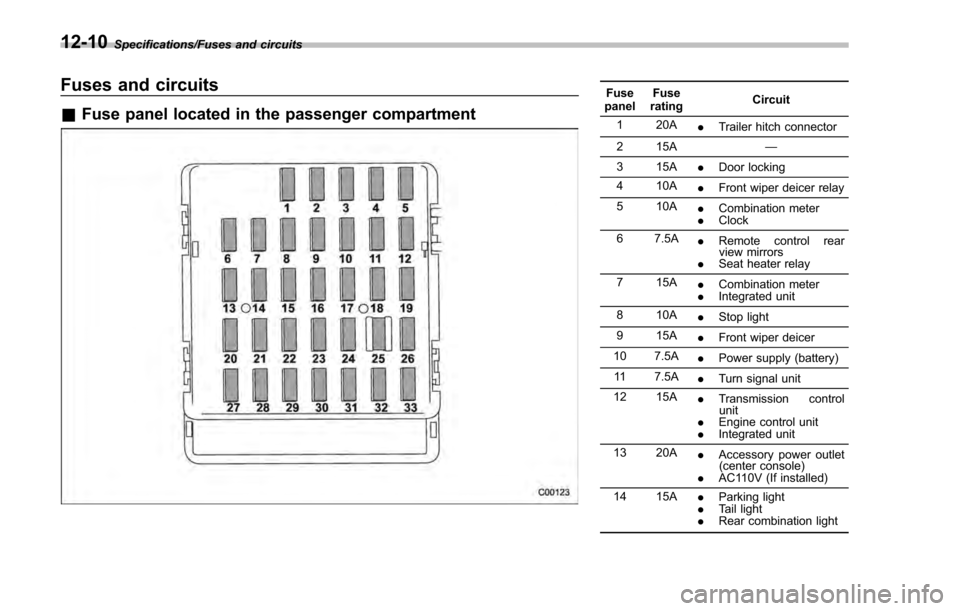

&Fuse panel located in the passenger compartment
Fuse
panel Fuse
rating Circuit
1 20A .Trailer hitch connector
2 15A —
3 15A .Door locking
4 10A .Front wiper deicer relay
5 10A .Combination meter
. Clock
6 7.5A .Remote control rear
view mirrors
. Seat heater relay
7 15A .Combination meter
. Integrated unit
8 10A .Stop light
9 15A .Front wiper deicer
10 7.5A .Power supply (battery)
11 7.5A .Turn signal unit
12 15A .Transmission control
unit
. Engine control unit
. Integrated unit
13 20A .Accessory power outlet
(center console)
. AC110V (If installed)
14 15A .Parking light
. Tail light
. Rear combination light
12-10

Fuse
panel Fuse
rating Circuit
15 10A .Luggage light
. Clock
16 7.5A .Illumination
17 15A .Seat heaters
18 10A .Backup light
19 7.5A .Power window relay
. Radiator main fan relay
20 10A .Accessory power outlet
(instrument panel)
21 10A .Starter relay
22 7.5A .Air conditioner
. Rear window defogger
relay coil
23 Empty
24 10A .Audio unit
. Clock
25 15A .SRS airbag system
26 Empty
27 15A .Blower fan
28 15A .Blower fan
29 15A .Fog light
30 Empty
31 7.5A .Auto air conditioner unit
. Integrated unit Fuse
panel Fuse
rating Circuit
32 7.5A .Clutch switch
. Steering lock control
unit
33 7.5A .Vehicle Dynamics Con-
trol unit Specifications/Fuses and circuits
–CONTINUED –
