2016 SUBARU BRZ Owners Manual

56
1-3. Adjustable components (seats, mirrors, steering wheel)
Head restraints
■Removing the head restraints
■Installing the head restraints Head restraints are provided for front seats.
Up
Pull the head restraints up.
Down
Push the head restraint down
while pushing the lock release
button.
Lock release button
Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.

57 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
■Adjusting the height of the head restraints
WARNING
■Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct position at all times.
●After adjusting the head restraints, push down on them and make sure
they are locked in position.
●Do not drive with the head restraints removed.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

58
1-3. Adjustable components (seats, mirrors, steering wheel)

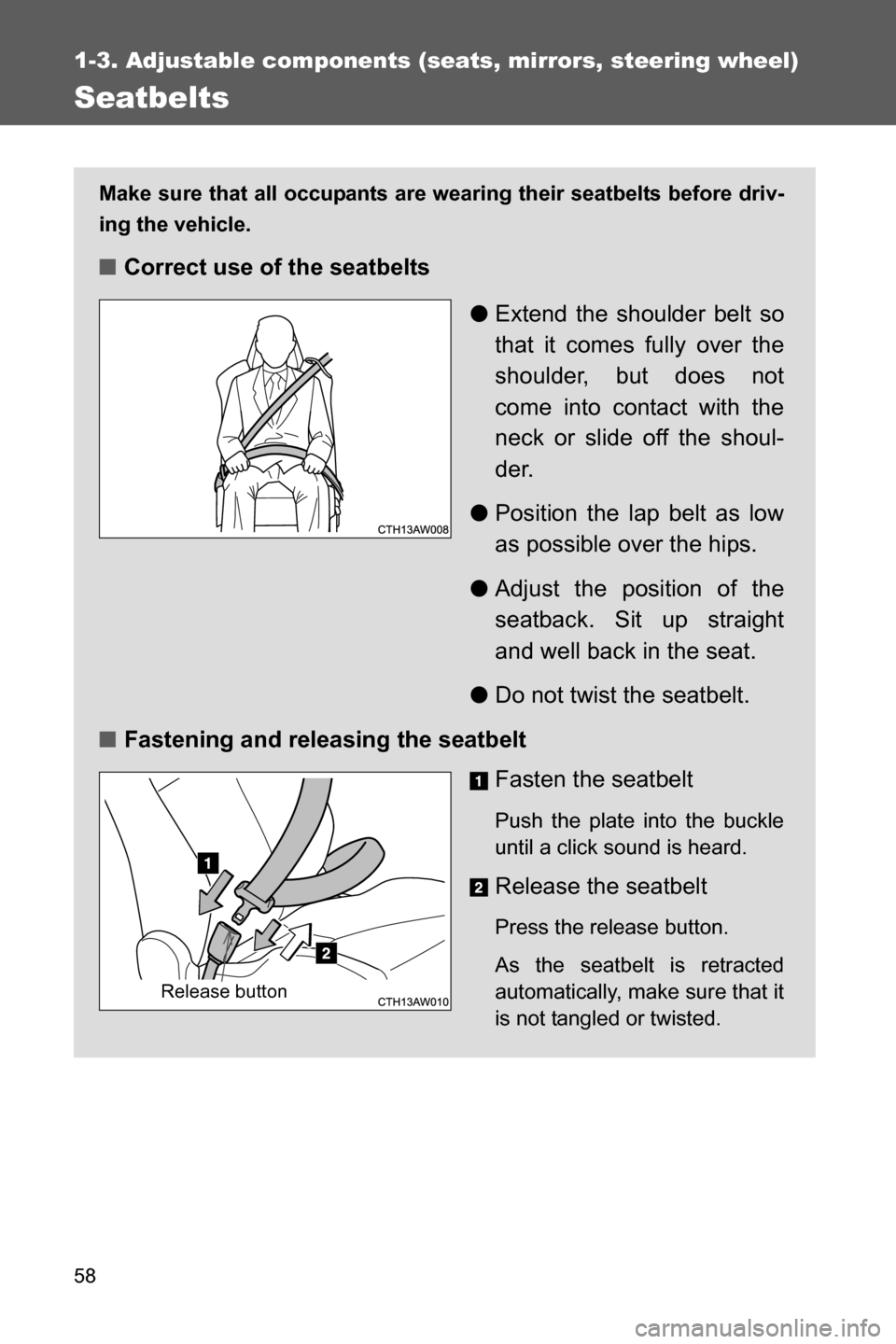

Seatbelts
Make sure that all occupants are wearing their seatbelts before driv-
ing the vehicle.
■Correct use of the seatbelts
●Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
●Position the lap belt as low
as possible over the hips.
●Adjust the position of the
seatback. Sit up straight
and well back in the seat.
●Do not twist the seatbelt.
■Fastening and releasing the seatbelt
Fasten the seatbelt
Push the plate into the buckle
until a click sound is heard.
Release the seatbelt
Press the release button.
As the seatbelt is retracted
automatically, make sure that it
is not tangled or twisted.
Release button

59 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Front seatbelt guide
To enable the seatbelt to be eas-
ily extended, pass the seatbelt
through the guide.
When getting in or out of the rear
seats, release the seatbelt from
the guide.
Seatbelt pretensioners (front seats)
The pretensioner helps the seat-
belt to quickly restrain the occu-
pant by retracting the seatbelt
when the vehicle is subjected to
certain types of severe frontal
collision and/or side collision.
The pretensioner may not acti-
vate in the event of a minor frontal
impact, a side impact or a rear
impact.

60 1-3. Adjustable components (seats, mirrors, steering wheel)
■Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also
lock if you lean forward too quickly. A slow, easy motion will allow the belt to
extend so that you can move around fully.
■Automatic locking retractor (ALR)
When a passenger's shoulder belt is completely extended and then
retracted even slightly, the belt is locked in that position and cannot be
extended. This feature is used to hold the child restraint system (CRS) firmly.
To free the belt again, fully retract the belt and then pull the belt out once
more. (oP. 138)
■Child seatbelt usage
The seatbelts of your vehicle are principally designed for persons of adult
size.
●Use a child restraint system appropriate for the child, until the child
becomes large enough to properly wear the vehicle's seatbelt.
(oP. 134)
●When the child becomes large enough to properly wear the vehicle's
seatbelt, follow the instructions on P. 58 regarding seatbelt usage.
■Seatbelt pretensioners
●Seatbelt pretensioners are not designed to activate in minor frontal or
side impact, in rear impacts or in roll-over accidents.
●The following four components operate simultaneously when the vehicle
is subjected to a severe frontal collision.
• Seatbelt pretensioner for driver
• Seatbelt pretensioner for front passenger
• SRS front airbag for driver
• SRS front airbag for front passenger*
*: This does not operate while the occupant detection system determines to
deactivate the airbag operation. For details, refer to “Front passenger’s
SRS frontal airbag” (oP. 9 7 )
●The following two components operate simultaneously when the vehicle
is subjected to a severe collision on the driver’s seat side of the vehicle.
• Seatbelt pretensioner for driver
• Side airbag for driver

61 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
●The following two components operate simultaneously when the vehicle
is subjected to a severe collision on the front passenger’s seat side of the
vehicle.
• Seatbelt pretensioner for front passenger
• Side airbag for front passenger
●Pretensioners are designed to function on a one-time-only basis. In the
event that a pretensioner is activated, both the driver’s and front passen-
ger’s seatbelt retractor assemblies must be replaced only by SUBARU
dealer. When replacing seat belt retractor assemblies for the front seat-
ing positions, use only genuine SUBARU parts equipped with a load lim-
iter.
●If either front seatbelt does not retract or cannot be pulled out due to a
malfunction or activation of the pretensioner, contact your SUBARU
dealer as soon as possible.
●If the front seatbelt retractor assembly or surrounding area has been
damaged, contact your SUBARU dealer as soon as possible.
●When you sell your vehicle, we urge you to explain to the buyer that it
has seatbelt pretensioners by alerting the buyer to the contents of this
section.
■Replacing the belt after the pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate
for the first collision, but will not activate for the second or subsequent colli-
sions.

62 1-3. Adjustable components (seats, mirrors, steering wheel)
WARNING
Observe the following precautions to reduce the risk of injury in the event of
sudden braking, sudden swerving or an accident.
Failure to do so may cause death or serious injury.
■Wearing a seatbelt
●Ensure that all passengers wear a seatbelt.
●Always wear a seatbelt properly.
●Each seatbelt should be used by one person only. Do not use a seatbelt
for more than one person at once, including children.
●SUBARU recommends that children be seated in the rear seat and always
use a seatbelt and/or an appropriate child restraint system.
●To achieve a proper seating position, do not recline the seat more than
necessary. The seatbelt is most effective when the occupants are sitting
up straight and well back in the seats.
●Do not wear the shoulder belt under your arm.
●Always wear your seatbelt low and snug across your hips.
■Pregnant women
Obtain medical advice and wear the seat-
belt in the proper way. (oP. 58)
Women who are pregnant should position
the lap belt as low as possible over the
hips in the same manner as other occu-
pants. Extend the shoulder belt com-
pletely over the shoulder and position the
belt across the chest. Avoid belt contact
over the rounding of the abdominal area.
If the seatbelt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a colli-
sion.

63 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
WARNING
■People with a medical condition
Obtain medical advice and wear the seatbelt in the proper way.
■When children are in the vehicle
Do not allow children to play with the seatbelt. If the seatbelt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
■Seatbelt pretensioners
If the pretensioner has activated, the SRS airbag system warning light will
come on. In that case, the seatbelt cannot be used again and must be
replaced at your SUBARU dealer.
