2016 RENAULT TALISMAN Owners Manual

5.21

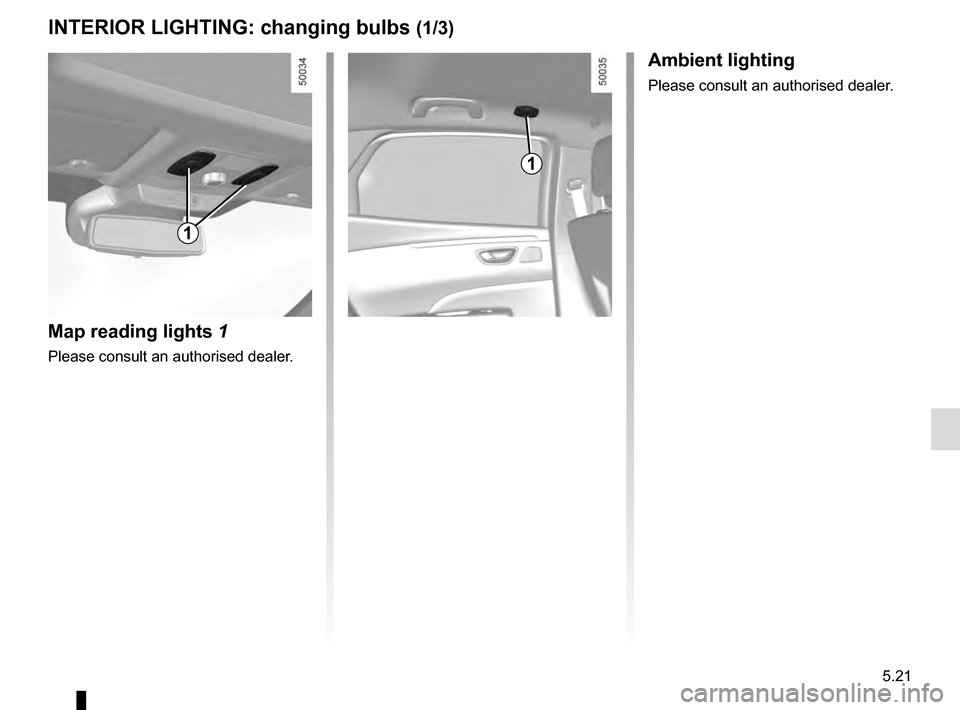

INTERIOR LIGHTING: changing bulbs (1/3)
Map reading lights 1
Please consult an authorised dealer.
1
Ambient lighting
Please consult an authorised dealer.
1

5.22
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

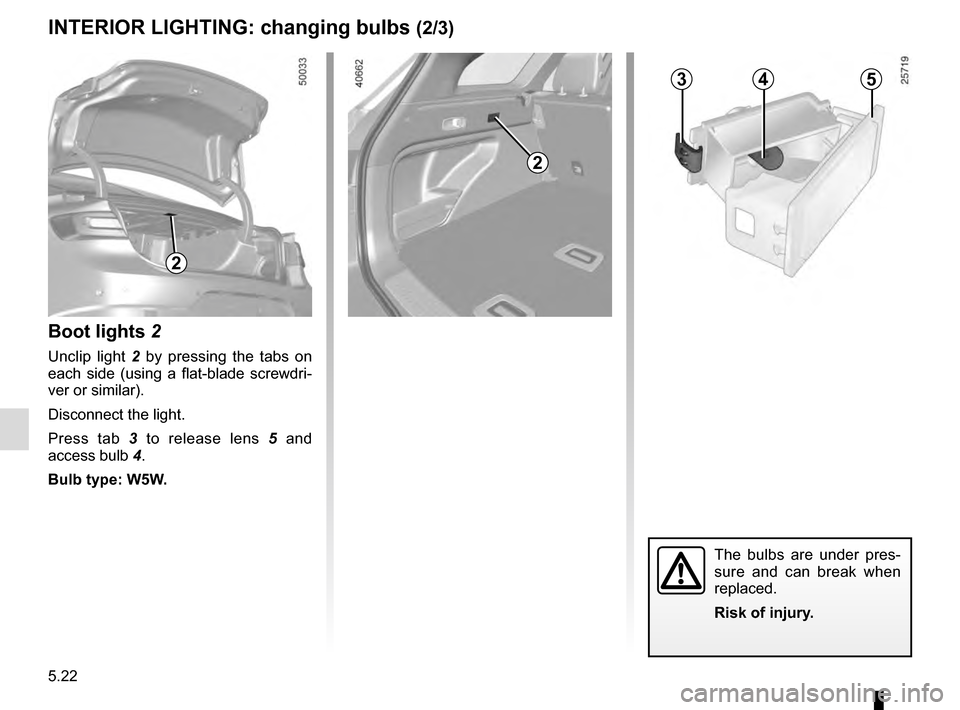

INTERIOR LIGHTING: changing bulbs (2/3)
345
2
Boot lights 2
Unclip light 2 by pressing the tabs on
each side (using a flat-blade screwdri-
ver or similar).
Disconnect the light.
Press tab 3 to release lens 5 and
access bulb 4.
Bulb type: W5W.
2

5.23
Glove box light 6
Unclip light 6 by pressing the tabs on
each side (using a flat-blade screwdri-
ver or similar).
Disconnect the light.
Press tab 3 to release lens 5 and
access bulb 4.
Bulb type: W5W.
6
345
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
INTERIOR LIGHTING: changing bulbs (3/3)

5.24
FUSES (1/2)
Fuse box
If any electrical component does not
work, check the condition of the fuses.
Unclip the access flap A.
Tweezers 1
Remove the fuse using tweezers 1, lo-
cated underneath the fuses.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
Check the fuse in question
and replace it, if neces-
sary, by a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.
In accordance with local legislation
or as a precautionary measure:
obtain an emergency kit containing
a set of spare bulbs and fuses from
an approved Dealer.
A
1
Use the fuse allocation label in storage
compartment A to identify the fuses.
Certain fuses should only be replaced
by a qualified professional. These fuses
are not listed on the label.
Only change the fuses represented on
the label.

5.25
FUSES (2/2)
Allocation of fuses
(the presence of certain fuses depends on the vehicle equipment level)\
Symbol Allocation SymbolAllocation
HWindscreen washerNot used
ëThird row accessories socket, boot accessories
socketÝTowbar socket
ÆFront cigarette lighter, front and rear accessories
socketDiagnostic socket, audio alarm
Not usedÌHorn
Heated door mirrorsInstrument panel, dashboard control lighting
×Brake lights, passenger compartment central unitPiloted dampened suspension
\bParking brakefFront windscreen wiper
Additional servoDDirection indicator lights, hazard warning lights
îRadio, multifunction screen, multimedia acces-
sories sockets, parking brake controlRear USB sockets on console
Passenger compartment centre unit, rear wiper,
rear fog light\fNot used
OLocking opening elements, trunk lid opening and
closing control

5.26
BATTERY: troubleshooting (1/2)
To avoid all risk of sparks:
– Ensure that any consumers (cour-tesy lights, etc.) are switched off
before disconnecting or reconnect-
ing the battery;
– when charging, stop the charger before connecting or disconnecting
the battery;
– to avoid creating a short circuit between the terminals, do not place
metal objects on the battery;
– always wait at least one minute after the engine has been switched off
before disconnecting a battery;
– make sure that you reconnect the battery terminals after refitting.
Connecting a battery charger
The battery charger must be compa-
tible with a battery with nominal vol-
tage of 12 volts.
Do not disconnect the battery when the
engine is running. Follow the instruc-
tions given by the manufacturer of
the battery charger you are using.
Special procedures may be
required to charge some
batteries. Contact your au-
thorised dealer.
Avoid all risk of sparks which may
cause an immediate explosion, and
charge the battery in a well-venti-
lated area. Risk of serious injury.
Handle the battery with care
as it contains sulphuric acid,
which must not come into
contact with eyes or skin. If
it does, wash the affected area with
plenty of cold water. If necessary,
consult a doctor.
Ensure that naked flames, red hot
objects and sparks do not come into
contact with the battery as there is a
risk of explosion. There is a risk of
explosion.
The engine may be hot when
carrying out operations in close
proximity. In addition, the engine
cooling fan can come on at any
moment.
Risk of injury.
Before performing any
action in the engine com-
partment, the ignition must
be switched off (please see
the information on “Starting, stop-
ping the engine” in Section 2).

5.27
Starting the vehicle using the
battery from another vehicle
If you have to use the battery from ano-
ther vehicle to start, obtain suitable
jump leads (with a large cross sec-
tion) from an approved dealer or, if you
already have jump leads, ensure that
they are in perfect condition.
The two batteries must have an iden-
tical nominal voltage of 12 volts. The
battery supplying the current should
have a capacity (amp-hours, Ah) which
is at least the same as that of the dis-
charged battery.
Ensure that there is no risk of contact
between the two vehicles (risk of short
circuiting when the positive terminals
are connected) and that the discharged
battery is properly connected. Switch
off your vehicle ignition.
Start the engine of the vehicle sup-
plying the current and run it at a mode-
rate speed.
BATTERY: troubleshooting (2/2)
1B
A
3
Lift the box cover 3 located behind the
battery, then lift the battery half-cover 4.
Connect the positive cable A to sup-
port 1 (+) located under the box
cover 3, then to terminal 5 (+) of the
battery supplying the current.
Connect the negative cable B to ter-
minal 6 (–) of the battery supplying the
current then to the metal cable 2 (–) of
the discharged battery.
Start the engine, and as soon as it starts
running, disconnect cables A and B in
reverse order ( 2 - 6 - 5 - 1).
5
2
6
Check that there is no
contact between leads A
and B and that the positive
lead A is not touching any
metal parts on the vehicle supplying
the current.
Risk of injury and/or damage to the
vehicle.
4
12

5.28
REMOTE CONTROL KEY: battery
Replacing the battery
Open the case at slot 1 using a flat-
blade screwdriver or similar, and re-
place the battery 2 , observing the po-
larity shown on the back of the cover. Note:
It is not advisable to touch the
electronic circuit in the key cover when
replacing the battery.
Do not throw away your
used batteries; give them to
an organisation responsible
for collecting and recycling
batteries.
The batteries are available from ap-
proved Dealers, and their service
life approximately two years.
Check that there is no dye on the
battery: risk of an incorrect electri-
cal contact.
2
1
