2016 RENAULT TALISMAN Owners Manual

3.27
Ski hatch 19
If you want to transport long objects
(skis etc.) in the luggage compartment,
lower armrest 16, press flap 19 and fold
it backwards.
PASSENGER COMPARTMENT STORAGE, FITTINGS (3/3)
Ensure that no hard, heavy
or pointed objects are
placed in the “open” sto-
rage compartments in such
a way that they may fall onto pas-
sengers during sudden turning or
braking.
Rear door storage
compartment 13
Front seat storage
compartments 14
13
14
Central rear armrest 16
Cup holders 15
Lower the central rear armrest 16.
Rear armrest storage 17
Lower the central rear armrest and
raise the cover 18.
17
16
18
19
15
Do not place any objects,
especially heavy or hard
objects, on the parcel shelf.
These may pose a risk to
the vehicle occupants if the driver
has to brake suddenly or if the vehi-
cle is involved in an accident.

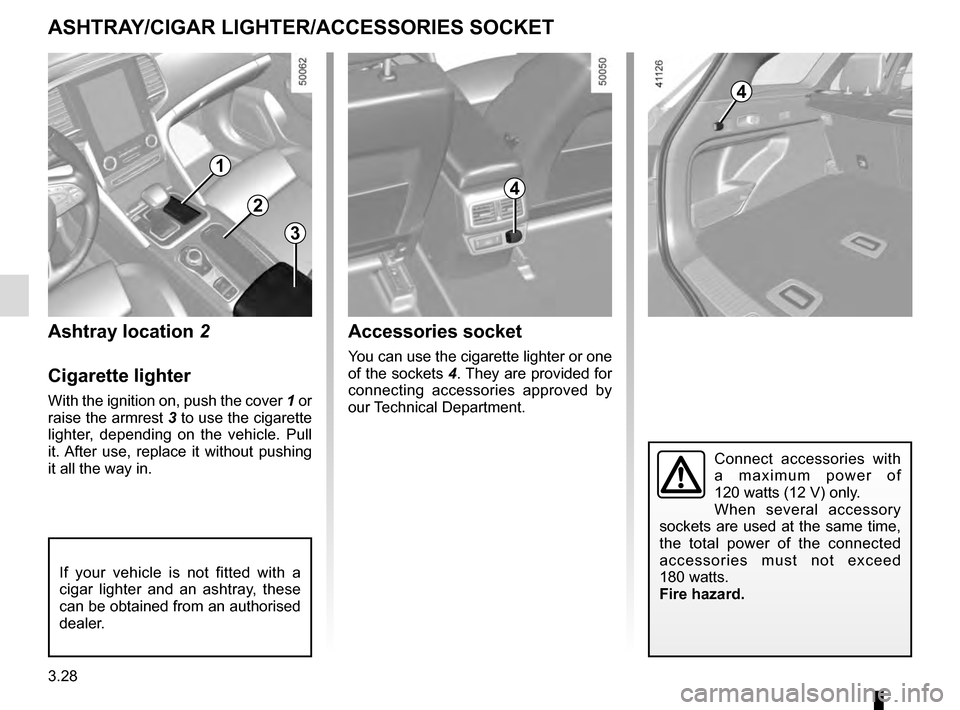

3.28
ASHTRAY/CIGAR LIGHTER/ACCESSORIES SOCKET
1
Ashtray location 2
Cigarette lighter
With the ignition on, push the cover 1 or
raise the armrest 3 to use the cigarette
lighter, depending on the vehicle. Pull
it. After use, replace it without pushing
it all the way in.
Accessories socket
You can use the cigarette lighter or one
of the sockets 4. They are provided for
connecting accessories approved by
our Technical Department.
Connect accessories with
a maximum power of
120 watts (12 V) only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.
4
2
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an authorised
dealer.
3
4

3.29
Centre seat headrest C
storage position
Press tab 2 and lower the headrest
completely.
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied.
REAR HEADRESTS
Position for use A
Raise the headrest as far as possible to
use it in the high position. Check that it
is correctly locked.
Storage position B
Press the button 1 and lower the head-
rest completely.
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied.
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition. The top of the head-
rest should be as close as possible
to the top of the head.
1
2
C
A
B

3.30
To manually fold down the
seatbacks
Ensure that the front seats are far
enough forward.
Raise the side headrests to the highest
position and lower the central headrest
fully.
Pull the control 1 and lower the seat-
back A.
REAR BENCH SEAT (1/2)
1
To raise the seatback
To replace the seatback, proceed in the
reverse order to removal.
Refit the seatback and click it back into
place.
A
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
The configuration of the
two-seat bench with the
small seatback A pulled
down, does not allow the
central seat to be used as it would
be impossible to buckle the seat belt
(belt buckles inaccessible).
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
Before folding down any side rear seat,
fasten the seat belt buckle from the seat
concerned into its corresponding catch.
This will prevent the seat belt becoming
trapped when the seat is returned to its
position for use.
In all cases, check that the seat belts
are operating correctly.

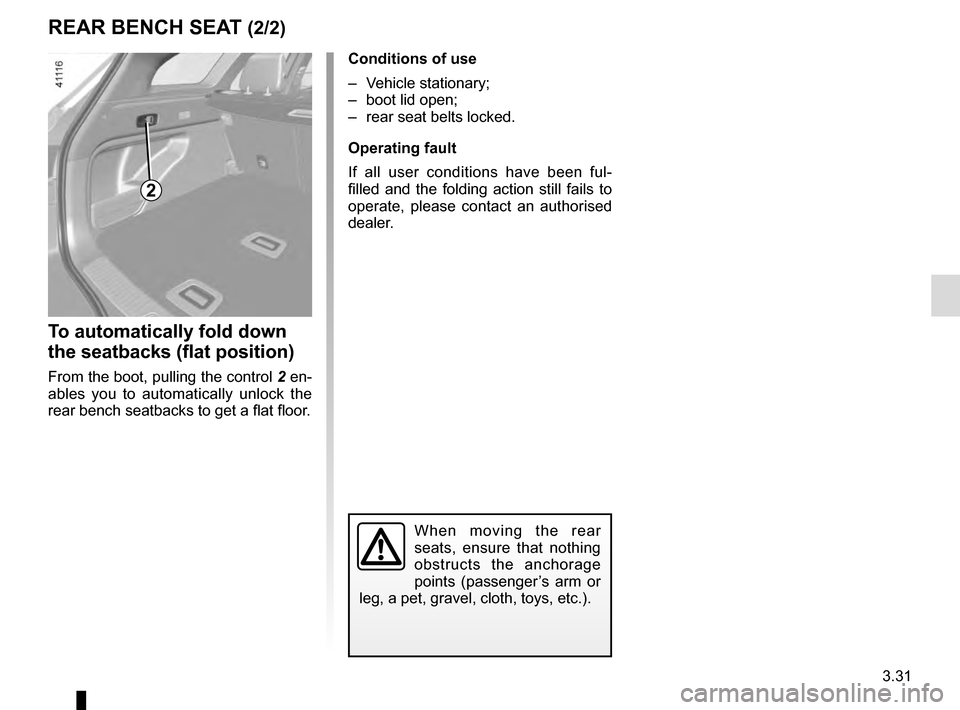

3.31
To automatically fold down
the seatbacks (flat position)
From the boot, pulling the control 2 en-
ables you to automatically unlock the
rear bench seatbacks to get a flat floor.
REAR BENCH SEAT (2/2)
2
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
Conditions of use
– Vehicle stationary;
– boot lid open;
– rear seat belts locked.
Operating fault
If all user conditions have been ful-
filled and the folding action still fails to
operate, please contact an authorised
dealer.

3.32
Depending on the vehicle, there are va-
rious ways to operate the boot lid:
– via the external boot lid control;
– using the hands-free function.
LUGGAGE COMPARTMENT: 4 door versions (1/3)
Ensure that nobody is close
to the moving parts when
opening/closing the boot lid.
Risk of injury.
When opening or closing the boot
lid, ensure that nothing interferes
with the manoeuvre.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
Risk of injury.
1
Via the external boot lid
control
To open
With the doors unlocked, press
button 1. The boot lid opens fully and
automatically.
Note: before opening the boot lid,
ensure that the surrounding space is
sufficient to permit operation of the boot
lid.
To close
Lower the boot lid using the handle
inside the boot to assist you.

3.33
LUGGAGE COMPARTMENT: 4 door versions (2/3)
Using the hands-free functionThe hands-free function grants access
to the boot or allows it to be closed
while you have your hands full.
With the RENAULT card on your
person and the ignition turned off, make
a movement with your foot forwards/
backwards within the range of the sen-
sors 2.
The sensor detects the approach and
then the removal of your foot and trig-
gers the opening of the boot lid.
Do not keep your foot in the air. Carry
out the movement without stopping.
2
Activation/deactivation of the
hands-free function
Using the multifunction screen, select
menu “vehicle”, “User settings” then
“Use handsfree card: open/close”.
Select «ON" or "OFF" to activate or
deactivate the function.
Usage features of the hands-free
function
– the hands-free function is no longer available after a few days of lack of
movement of the vehicle, or after
around 15 minutes if the vehicle is
unlocked. To reactivate it, use the
unlocking button on the RENAULT
card.
– The «Hands-free» function is only available if the vehicle is stationary
and the engine is switched off (and
not on standby with the Stop and
Start function).
– The hands-free feature may not work if the vehicle is equipped with
a towbar or is in an area with high
electromagnetic radiation. Precautions during use
Before opening the tailgate, ensure
that the surrounding space is suffi-
cient to permit operation of the tailgate.
Otherwise, stop the movement of the
boot lid before it makes contact.
Make sure that the sensors are not
obscured (by dirt, mud, snow, road salt
etc.).
Note
In very cold weather conditions, the au-
tomatic opening may not operate if the
trunk lid joints are frozen.
Disable the «hands-free»
function before washing the
vehicle manually or han-
dling the emergency spare
wheel or the towbar.
Risk of accidental opening or clo-
sing of the tailgate which may
cause injury.

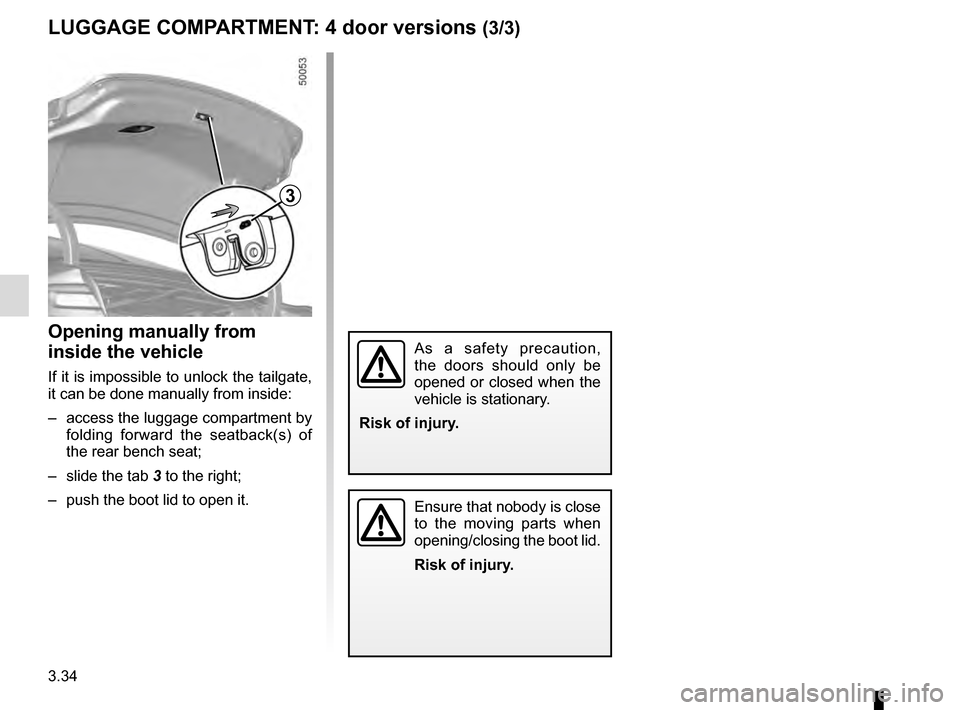

3.34
3
Opening manually from
inside the vehicle
If it is impossible to unlock the tailgate,
it can be done manually from inside:
– access the luggage compartment by folding forward the seatback(s) of
the rear bench seat;
– slide the tab 3 to the right;
– push the boot lid to open it.
LUGGAGE COMPARTMENT: 4 door versions (3/3)
Ensure that nobody is close
to the moving parts when
opening/closing the boot lid.
Risk of injury.
As a safety precaution,
the doors should only be
opened or closed when the
vehicle is stationary.
Risk of injury.
