5.13
TYRES (3/3)
For safety reasons, this
operation must be carried
out by a specialist.
Fitting different tyres may
change your vehicle as follows:
– it may mean that your vehicle no longer conforms to current regu-
lations;
– it may change the way it handles when cornering;
– it may cause the steering to be heavy;
– It may affect the use of snow chains.
Use in winter
Chains
For safety reasons, fitting snow
chains to the rear axle is strictly for-
bidden.
Chains cannot be fitted to tyres which
are larger than those originally fitted to
the vehicle.
Snow or Winter tyres
We would recommend that these be
fitted to all four wheels to ensure that
your vehicle retains maximum adhe-
sion.
Warning : These tyres sometimes have
a specific direction of rotation and a
maximum speed index which may be
lower than the maximum speed of your
vehicle.
Snow chains may only be
fitted to tyres of the same
size as those originally
fitted to your vehicle.
In all cases, we would recommend
that you contact an authorised
dealer who will be able to advise you
on the choice of equipment which is
most suitable for your vehicle.
Changing a wheel
As the tyre pressure moni-
tor may take several min-
utes to correctly determine
the positions of the wheels and the
pressure values after driving, check
the tyre pressures following any op-
eration.
Studded tyres
This type of equipment may only be
used for a limited period and as laid
down by local legislation. It is neces-
sary to observe the speed specified by
current legislation.
These tyres must, at a minimum, be
fitted to the two front wheels.
18” wheels and larger
cannot be fitted with
chains.
If you wish to use special
equipment, consult an approved
dealer.
Fitting new tyres

5.14
FRONT HEADLIGHTS: changing bulbs (1/2)
Main beam/Dipped beam
halogen headlights
Turn cover A or B a quarter turn, then
remove connector 1 or 4.
Remove clip 2, pressing down on it, or
turn bulb holder 3 then remove the bulb
holder.
Replace the bulb. Dipped beam 1 → H7
Main beam 3 → H9
It is essential to use anti-U.V. 55W
bulbs so as not to damage the plastic
on the headlights.
Do not touch the bulb glass. Hold it
by its base.
When the bulb has been changed,
make sure you refit the cover correctly.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.
BA1
2
4
3
Before performing any
action in the engine com-
partment, the ignition must
be switched off (please see
the information on “Starting, stop-
ping the engine” in Section 2).

5.15
LED daytime running lights
and side lights 1
Please consult an authorised dealer.
LED Main beam headlights 2
Please consult an authorised dealer.
LED dipped beam
headlights 3
Please consult an authorised dealer.
LED direction indicators 4
Please consult an authorised dealer.
Front fog lights 5
Please consult an authorised dealer.
FRONT HEADLIGHTS: changing bulbs (2/2)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
23
4
To comply with current legislation,
or as a precaution, you can obtain
an emergency kit from an approved
dealer containing a set of spare
bulbs and fuses.
15
Additional lights
If you wish to fit fog lights to your ve-
hicle, please see an authorised dealer.
Any operation on (or modi-
fication to) the electrical
system must be performed
by an approved dealer
since an incorrect connection might
damage the electrical equipment
(harness, components and in partic-
ular the alternator). In addition, your
Dealer has all the parts required for
fitting these units.

5.16
Reversing lights
Open the boot lid, unclip the cover on
the interior trim 1 of the boot lid using
the tool 2 (refer to the information on
“Tools” in Section 5). Replace the bulb
3.
Bulb type: W16W.
Refitting
To refit, proceed in the reverse order,
taking care not to damage the wiring.
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (1/5)
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
4-door version
LED side lights, brake lights, fog
lights and direction indicators
Consult an approved Dealer.
1
3
2

5.17
Refit the bulb holder and push the light
unit in as far as it will go.
Tighten screws 4.
Check that the light unit is properly
locked in position.
5 Direction indicator lights
Bulb type: PY21.
6 Side light and brake light
Bulb type: P21W.
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (2/5)
4-door version (cntd.)
Side lights/brake and direction
indicator lights
Open the tailgate and remove the
screws 4.
Pull on the outside A of the light and
remove the rear light unit.
Turn the bulb holder a quarter turn.
Remove the bulb. High level brake light
7
Consult an approved Dealer.
4
A65
7

5.18
Estate versions
Side lights/brake and direction
indicator lights
Open the boot lid and remove screws 8.
To release the light unit, start by moving
the outside edge (movement A) far
enough to release it then pull the light
unit backwards (movement B).
Turn the bulb holder a quarter turn.
Remove the bulb.
Refit the bulb holder and push the unit
in fully until it locks in place.
Tighten screws 1.
Check that the light is properly locked
in position.
9 Direction indicator lights
Bulb type: PY21.
10 Side light and brake light
Bulb type: P21W.
8
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (3/5)
910
AB
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.

5.19

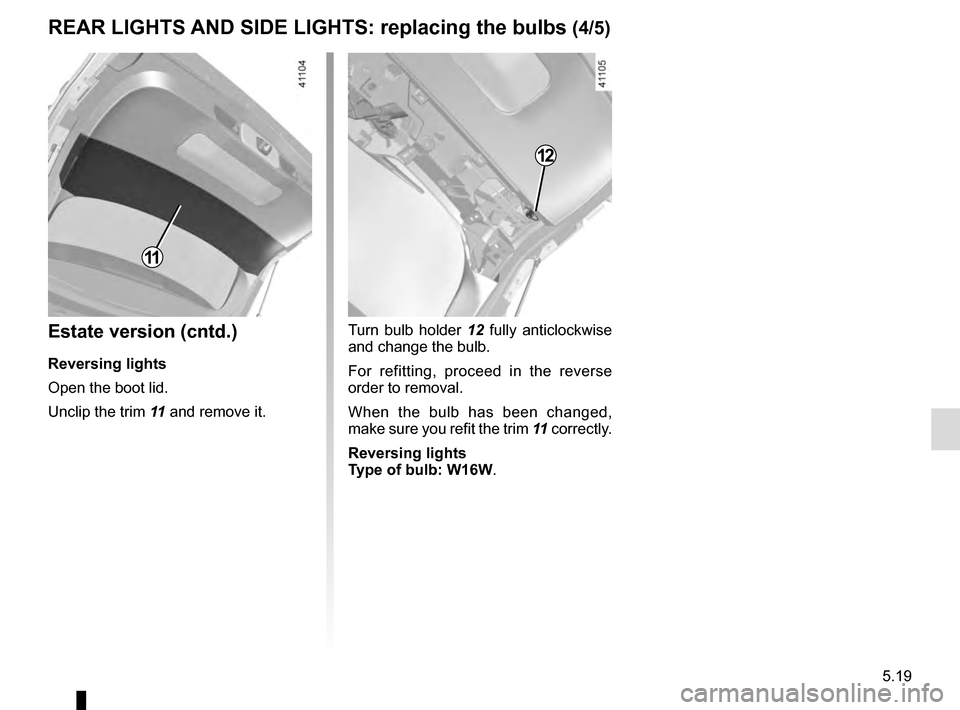

REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (4/5)
Estate version (cntd.)
Reversing lights
Open the boot lid.
Unclip the trim 11 and remove it.
Turn bulb holder 12 fully anticlockwise
and change the bulb.
For refitting, proceed in the reverse
order to removal.
When the bulb has been changed,
make sure you refit the trim 11 correctly.
Reversing lights
Type of bulb: W16W.
11
12

5.20
REAR LIGHTS AND SIDE LIGHTS: replacing the bulbs (5/5)Side repeaters 14 and
courtesy lighting 15
Consult an approved Dealer.
14
Number plate lights 13
Consult an approved Dealer.
13
15
13
