REAR LIGHTS: changing bulbs (1/2)
Rear lights
Depending on the vehicle, remove
the protective grilles. Unscrew the two
nuts 1 and pull rear light unit A.Unscrew the bolt
2 using a flat-blade
screwdriver or similar to remove the
bulb holder 3. 4 Side lights and brake lights
Pear-shaped, bayonet type P21/5W
bulb with two filaments.
5 Indicator Orange pear-shaped, bayonet type
PY21W bulb.
6 Reversing light
Pear-shaped, bayonet type bulb
P21W.
7 Fog light Pear-shaped, bayonet type bulb
P21W.
The bulbs are under pres-
sure and can break when
replaced.
Risk of injury.
1
1
A
2
3
4
5
6
7

5.26

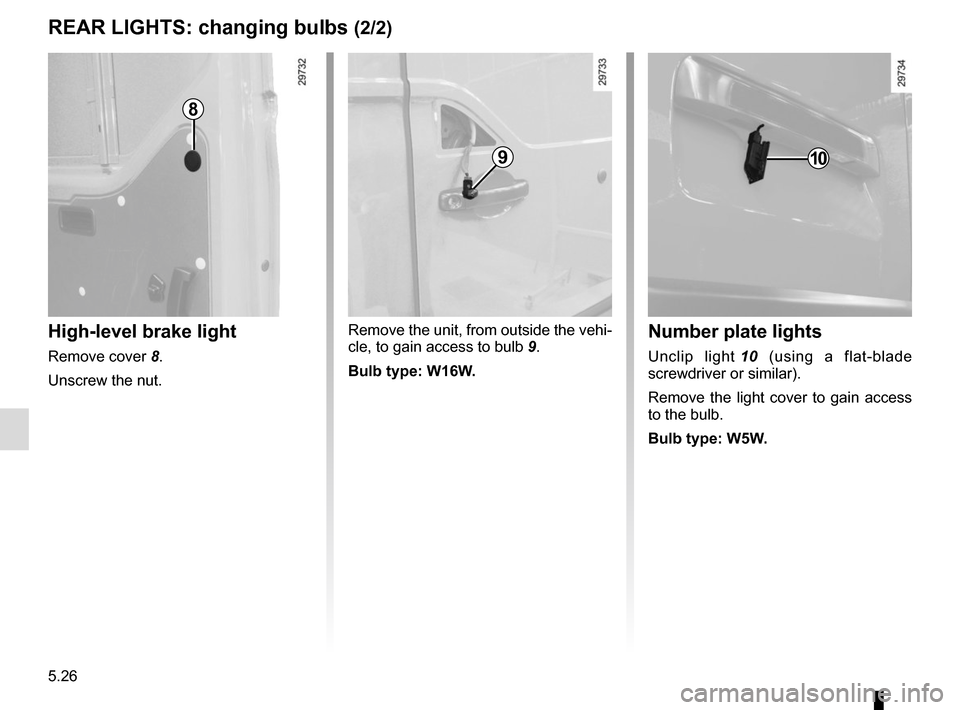

REAR LIGHTS: changing bulbs (2/2)
High-level brake light
Remove cover 8.
Unscrew the nut. Remove the unit, from outside the vehi-
cle, to gain access to bulb
9.
Bulb type: W16W.
Number plate lights
Unclip light 10 (using a flat-blade
screwdriver or similar).
Remove the light cover to gain access
to the bulb.
Bulb type: W5W.
8
910

5.27

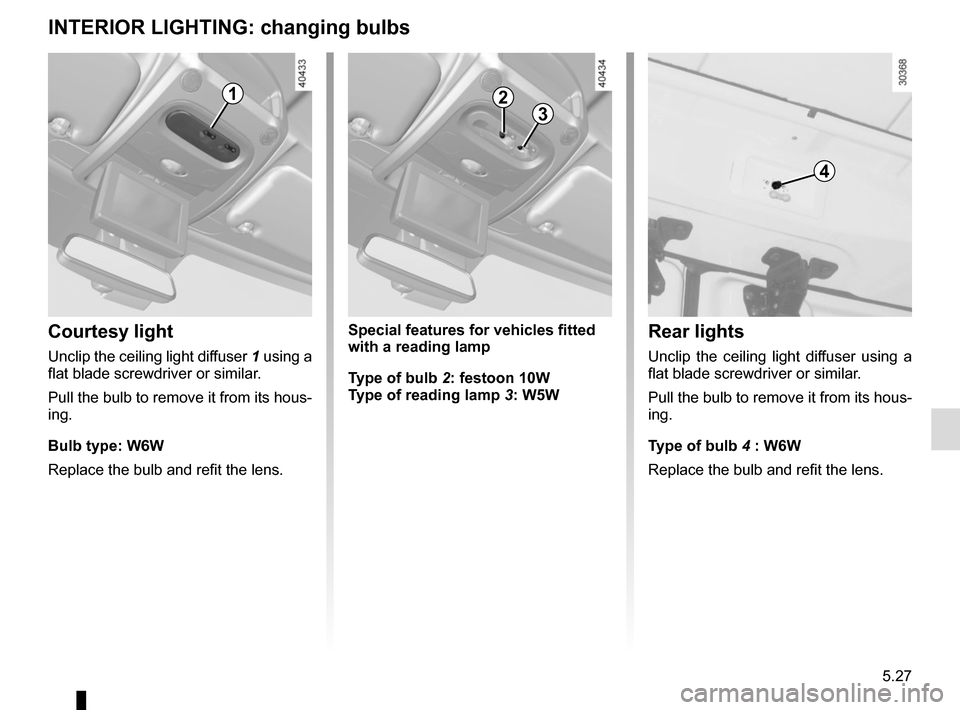

INTERIOR LIGHTING: changing bulbs
Courtesy light
Unclip the ceiling light diffuser 1 using a
flat blade screwdriver or similar.
Pull the bulb to remove it from its hous-
ing.
Bulb type: W6W
Replace the bulb and refit the lens.
Rear lights
Unclip the ceiling light diffuser using a
flat blade screwdriver or similar.
Pull the bulb to remove it from its hous-
ing.
Type of bulb 4 : W6W
Replace the bulb and refit the lens.
1
4
Special features for vehicles fitted
with a reading lamp
Type of bulb 2: festoon 10W
Type of reading lamp 3: W5W
23

5.28
FUSES (1/5)
1
If any electrical component does not
work, check the condition of the fuses.
Remove the fuse using tweezers 1, lo-
cated at the back of flap A.
To remove the fuse from the tweezers,
slide the fuse to the side.
It is not advisable to use the free fuse
locations.
To comply with legislation, or as a
precaution, you can obtain an emer-
gency kit containing a set of spare
bulbs and fuses from an approved
dealer.
Your vehicle is equipped with two fuse
boxes: in the passenger compartment
and in the engine compartment.
A
Fuses in the passenger
compartment
Unclip flap A using notch B to help you.
To identify the fuses, refer to the fuse
allocation label (see the next page for
details), located on the rear of flap A.
B
Check the fuse in question
and replace it, if neces-
sary, by a fuse of the same
rating.
If a fuse is fitted where the rating is
too high, it may cause the electrical
circuit to overheat (risk of fire) in the
event of an item of equipment using
an excessive amount of current.

5.29
FUSES (2/5)
Allocation of fuses (DEPENDING ON THE EQUIPMENT LEVEL)
Numbers AllocationNumbers Allocation Numbers Allocation
î
Radio, heated seats, multi-
function display, sockets for
audio and alarm connec-
tions.ZBrake lights, interior lighting.Cornering lights.
ÄPassenger compartment
ECU.Hands-free access.
ëAccessories sockets.ßBrake lights.£Tachograph.
ÆCigar lighter.‚
Electric windows, heating
and air conditioning system
and passenger compart-
ment ECU.
yHeating and air conditioning
system fan.
aInstrument panel.8Left-hand heated rear
screen.Additional adaptations.
NCentral door control.7Right-hand heated rear
screen.hElectric windows and pas-
senger compartment ECU.
D
Passenger compartment
ECU, direction indicator
lights and rear fog lights.lWindscreen washer.
0Engine immobiliser.
ÎDiagnostic socket.ñHeated seats.
nABS/ESP

5.30
Fuses in the engine
compartment
Removing fuse box C
Remove screw 2 and remove coolant
reservoir 3. Unscrew the four screws
4.Turn unit 5 over to access the fuses in
the engine compartment.
To identify the fuses, refer to the fuse
allocation label (see the next page for
details), located on unit 5.
FUSES (3/5)
2
3
C4
4
5
The engine may be hot
when carrying out opera-
tions in close proximity. In
addition, the engine cooling
fan can come on at any moment.
Risk of injury.No operations should be
carried out on the cooling
circuit when the engine is
hot.
Risk of burns.
Check that no water or dust enters
unit 5 when it is being removed/re-
fitted.
Deactivate the Stop and
Start function for any opera-
tion performed in the engine
compartment.

5.31
Position coolant reservoir 3, then screw
bolt 2.Refitting fuse box C
Clip the mountings 7, then clip mount-
ing 6. Screw the four screws 4 to ensure that
unit 5 is completely sealed.
2
3
C4
4
5
7
6
FUSES (4/5)
5
Check that no water or dust enters
unit 5 when it is being removed/re-
fitted.
C

5.32

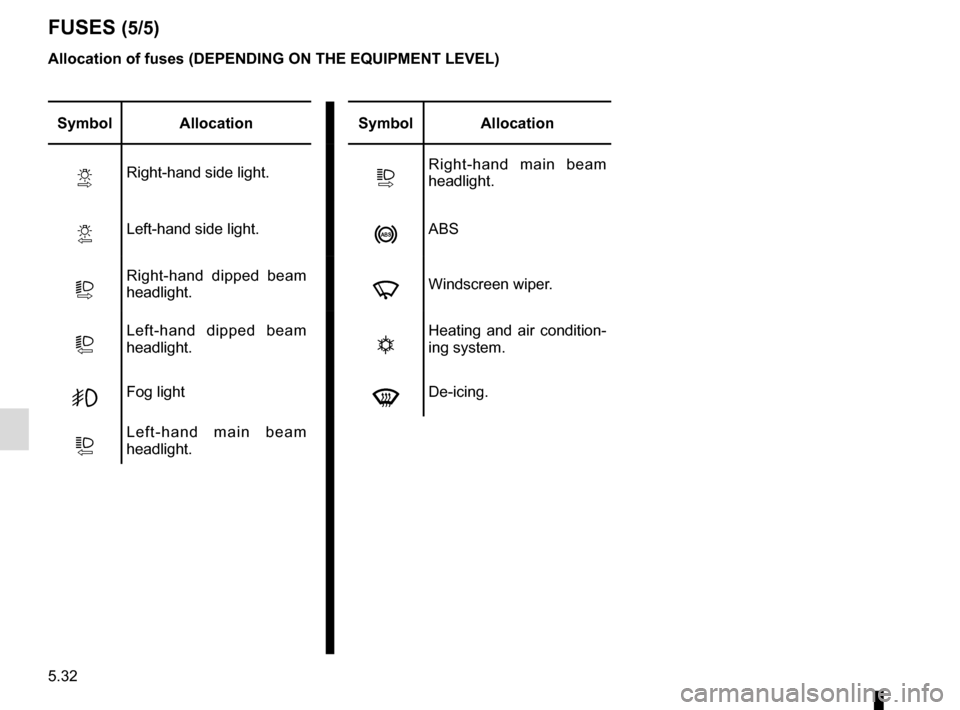

FUSES (5/5)
Symbol AllocationSymbol Allocation
VRight-hand side light.PRight-hand main beam
headlight.
YLeft-hand side light.nABS
TRight-hand dipped beam
headlight.fWindscreen wiper.
LLeft-hand dipped beam
headlight.tHeating and air condition-
ing system.
GFog lightdDe-icing.
QLeft-hand main beam
headlight.
Allocation of fuses (DEPENDING ON THE EQUIPMENT LEVEL)
