Grab handle 3
This offers support and can be held
when the vehicle is being driven.

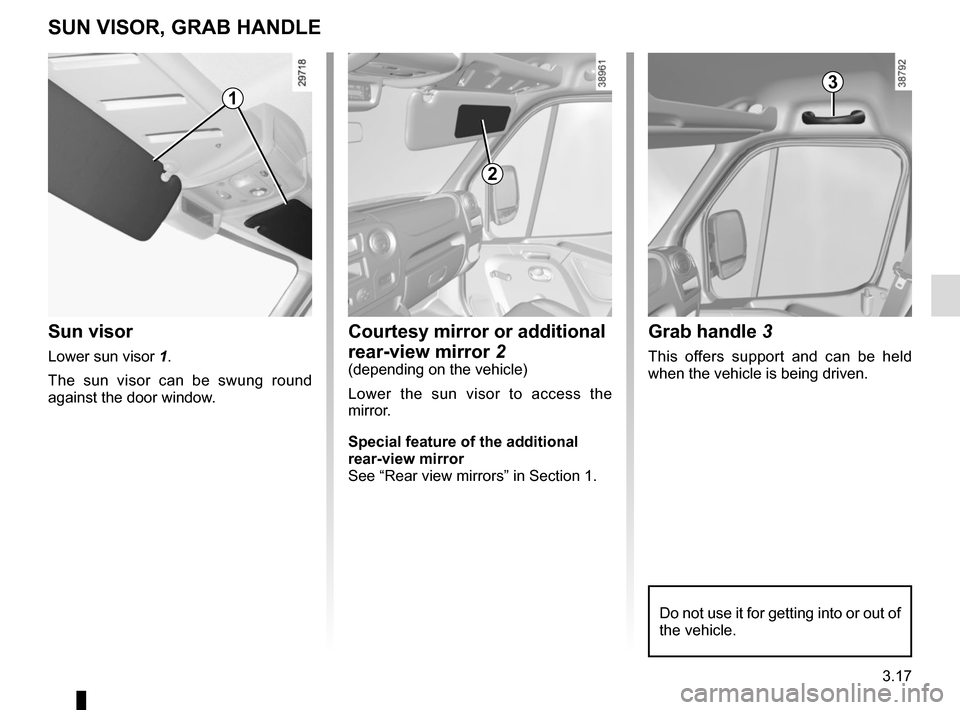

SUN VISOR, GRAB HANDLE
Sun visor
Lower sun visor 1.
The sun visor can be swung round
against the door window.
13
Do not use it for getting into or out of
the vehicle.
Courtesy mirror or additional
rear-view mirror 2
(depending on the vehicle)
Lower the sun visor to access the
mirror.
Special feature of the additional
rear-view mirror
See “Rear view mirrors” in Section 1.
2

3.18
Accessories socket 4 (in the
luggage compartment)

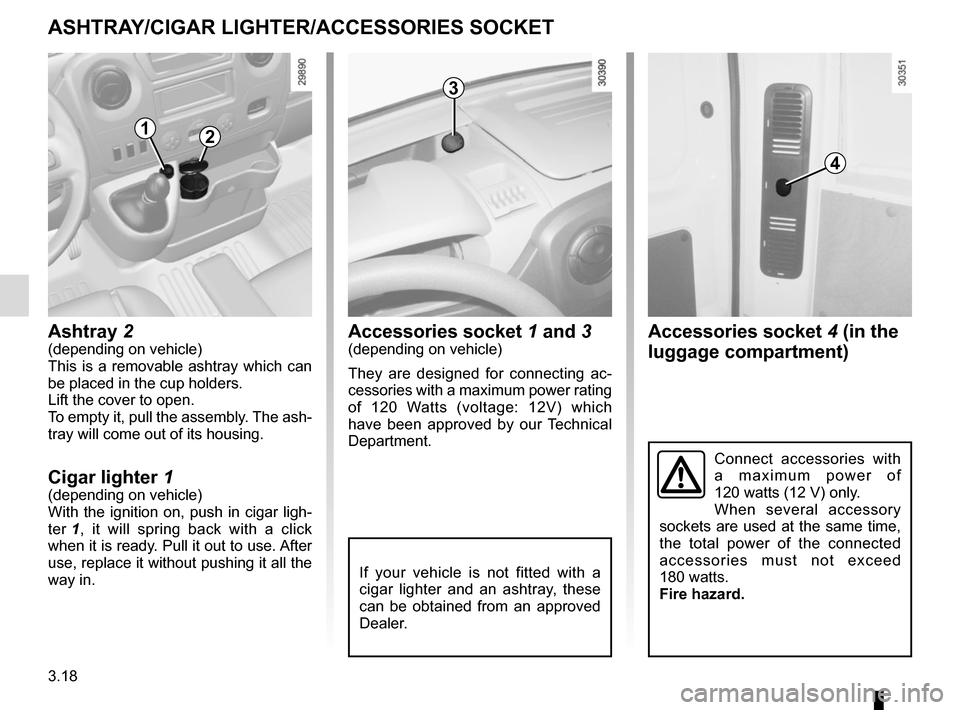

ASHTRAY/CIGAR LIGHTER/ACCESSORIES SOCKET
Accessories socket 1 and 3(depending on vehicle)
They are designed for connecting ac-
cessories with a maximum power rating
of 120 Watts (voltage: 12V) which
have been approved by our Technical
Department.Ashtray 2(depending on vehicle)
This is a removable ashtray which can
be placed in the cup holders.
Lift the cover to open.
To empty it, pull the assembly. The ash-
tray will come out of its housing.
Cigar lighter 1(depending on vehicle)
With the ignition on, push in cigar ligh-
ter 1, it will spring back with a click
when it is ready. Pull it out to use. After
use, replace it without pushing it all the
way in.
If your vehicle is not fitted with a
cigar lighter and an ashtray, these
can be obtained from an approved
Dealer.
Connect accessories with
a maximum power of
120 watts (12 V) only.
When several accessory
sockets are used at the same time,
the total power of the connected
accessories must not exceed
180 watts.
Fire hazard.
12
4
3

3.19

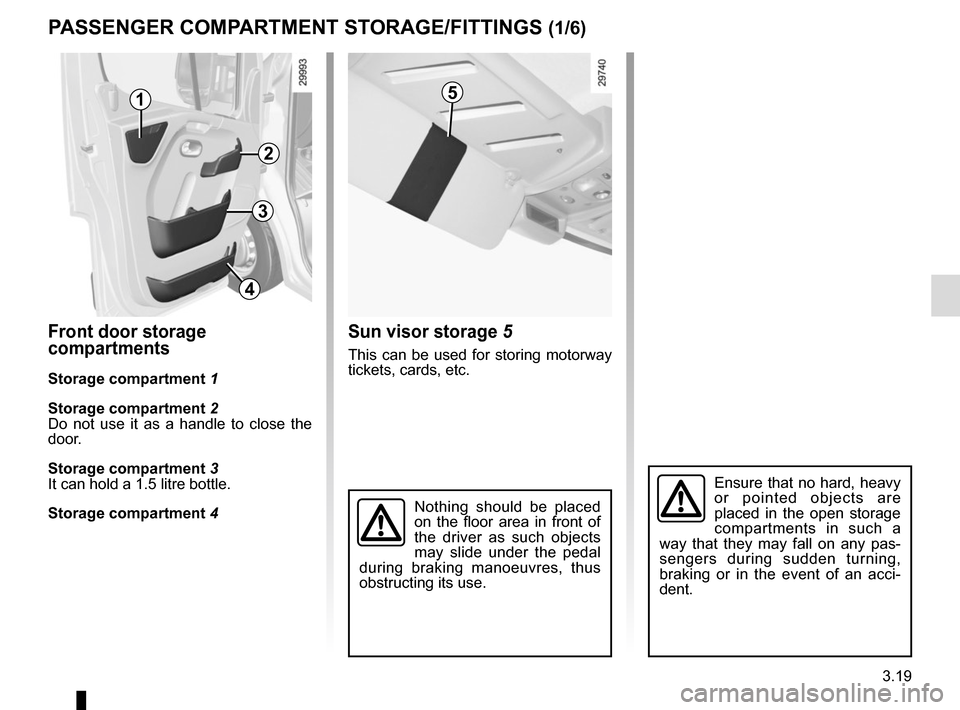

PASSENGER COMPARTMENT STORAGE/FITTINGS (1/6)
Front door storage
compartments
Storage compartment 1
Storage compartment 2
Do not use it as a handle to close the
door.
Storage compartment 3
It can hold a 1.5 litre bottle.
Storage compartment 4
Sun visor storage 5
This can be used for storing motorway
tickets, cards, etc.
5
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
1
2
3
4
Ensure that no hard, heavy
or pointed objects are
placed in the open storage
compartments in such a
way that they may fall on any pas-
sengers during sudden turning,
braking or in the event of an acci-
dent.

3.20
Dashboard storage
compartments 7, 8, 9, 11, 14, 16
and 18
Location for storage
compartment or radio 10

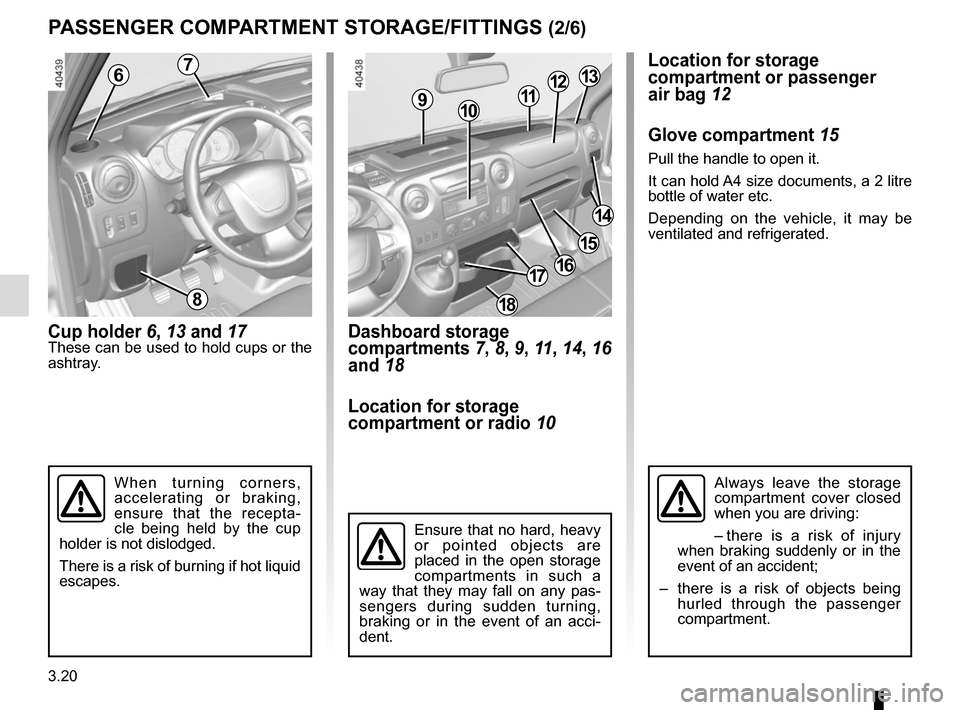

PASSENGER COMPARTMENT STORAGE/FITTINGS (2/6)
Cup holder 6, 13 and 17These can be used to hold cups or the
ashtray.
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
Location for storage
compartment or passenger
air bag 12
Glove compartment 15
Pull the handle to open it.
It can hold A4 size documents, a 2 litre
bottle of water etc.
Depending on the vehicle, it may be
ventilated and refrigerated.
Always leave the storage
compartment cover closed
when you are driving:
– there is a risk of injury
when braking suddenly or in the
event of an accident;
– there is a risk of objects being hurled through the passenger
compartment.
Ensure that no hard, heavy
or pointed objects are
placed in the open storage
compartments in such a
way that they may fall on any pas-
sengers during sudden turning,
braking or in the event of an acci-
dent.
6
8
7
91011
13
14
15
1617
18
12

3.21
Token holder and card
holder 19
Token holder A
Card holder B
This can be used for storing motorway
tickets, cards, etc.
Dashboard upper storage
compartment 23
To open it, lift the handle.
PASSENGER COMPARTMENT STORAGE/FITTINGS (3/6)
18
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
Location for storage
compartment or tray 20
Location for storage
compartment or sockets for
audio multiconnection unit 21
Location for storage
compartment or switches 22
A
B
1920
22
23
21

3.22
24
25

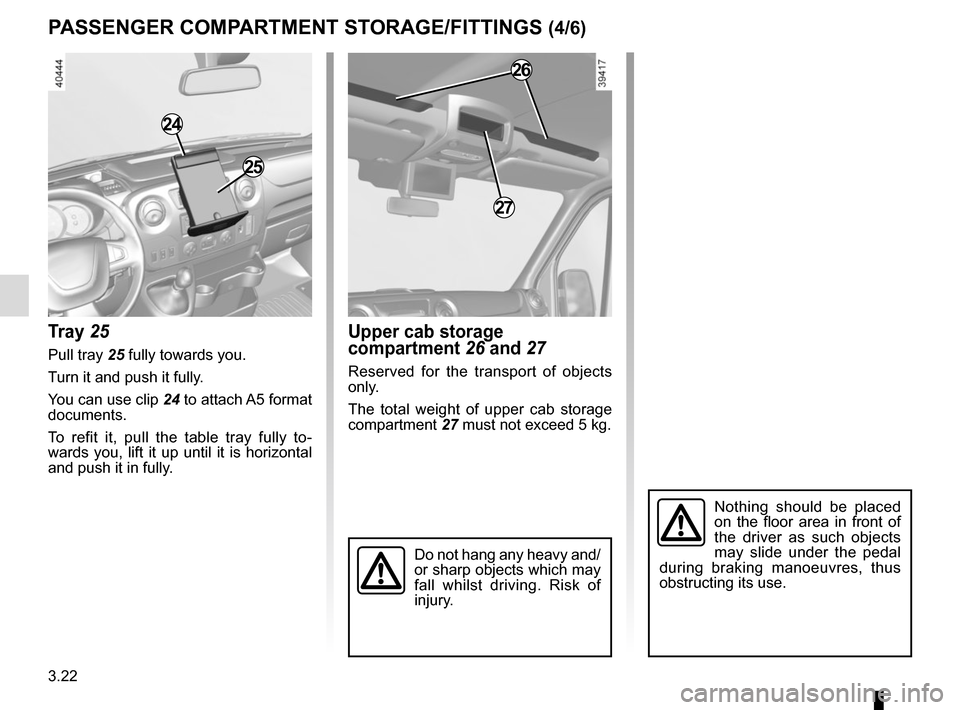

PASSENGER COMPARTMENT STORAGE/FITTINGS (4/6)
Tray 25
Pull tray 25 fully towards you.
Turn it and push it fully.
You can use clip 24 to attach A5 format
documents.
To refit it, pull the table tray fully to-
wards you, lift it up until it is horizontal
and push it in fully.
Upper cab storage
compartment 26 and 27
Reserved for the transport of objects
only.
The total weight of upper cab storage
compartment 27 must not exceed 5 kg.
Do not hang any heavy and/
or sharp objects which may
fall whilst driving. Risk of
injury.
Nothing should be placed
on the floor area in front of
the driver as such objects
may slide under the pedal
during braking manoeuvres, thus
obstructing its use.
26
27

3.23
Note: make sure the tray is put back in
place correctly before lifting the back of
the centre seat. Check that the back of
the centre seat is properly locked.

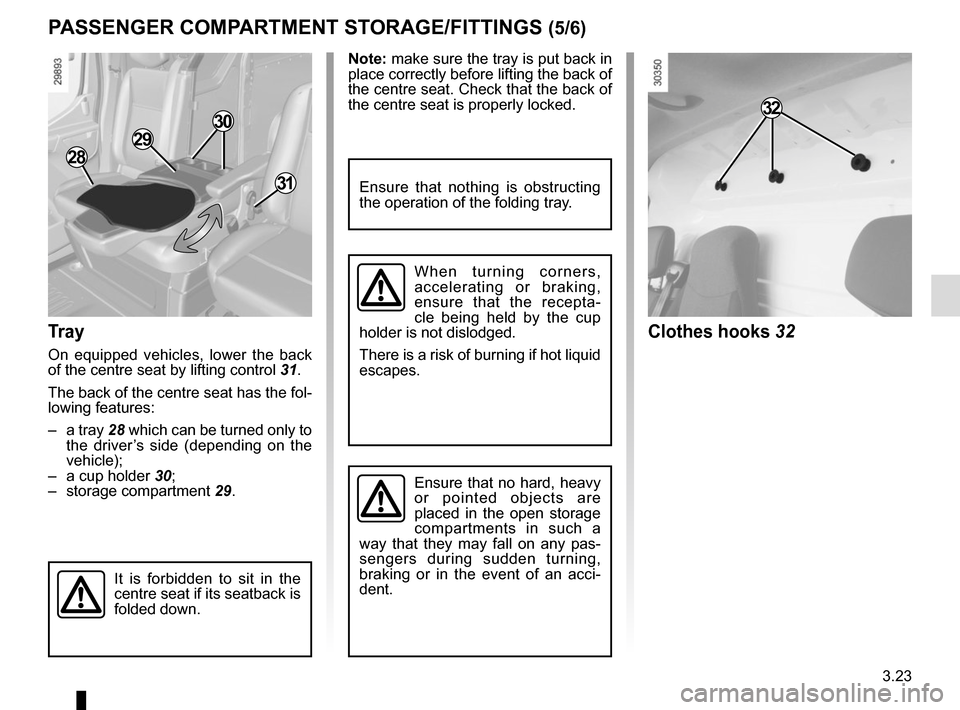

PASSENGER COMPARTMENT STORAGE/FITTINGS (5/6)
Tray
On equipped vehicles, lower the back
of the centre seat by lifting control 31.
The back of the centre seat has the fol-
lowing features:
– a tray 28 which can be turned only to
the driver’s side (depending on the
vehicle);
– a cup holder 30;
– storage compartment 29.
When turning corners,
accelerating or braking,
ensure that the recepta-
cle being held by the cup
holder is not dislodged.
There is a risk of burning if hot liquid
escapes.
It is forbidden to sit in the
centre seat if its seatback is
folded down.
Ensure that no hard, heavy
or pointed objects are
placed in the open storage
compartments in such a
way that they may fall on any pas-
sengers during sudden turning,
braking or in the event of an acci-
dent.
Ensure that nothing is obstructing
the operation of the folding tray.
28
29
30
31
Clothes hooks 32
32

3.24
Storage compartment 34
underneath front bench seat
To access, pull tabs 33.
Rear load area storage
compartment 36
Reserved for the transport of objects
only.
The total weight of rear load area upper
storage compartment must not exceed
35 kg.

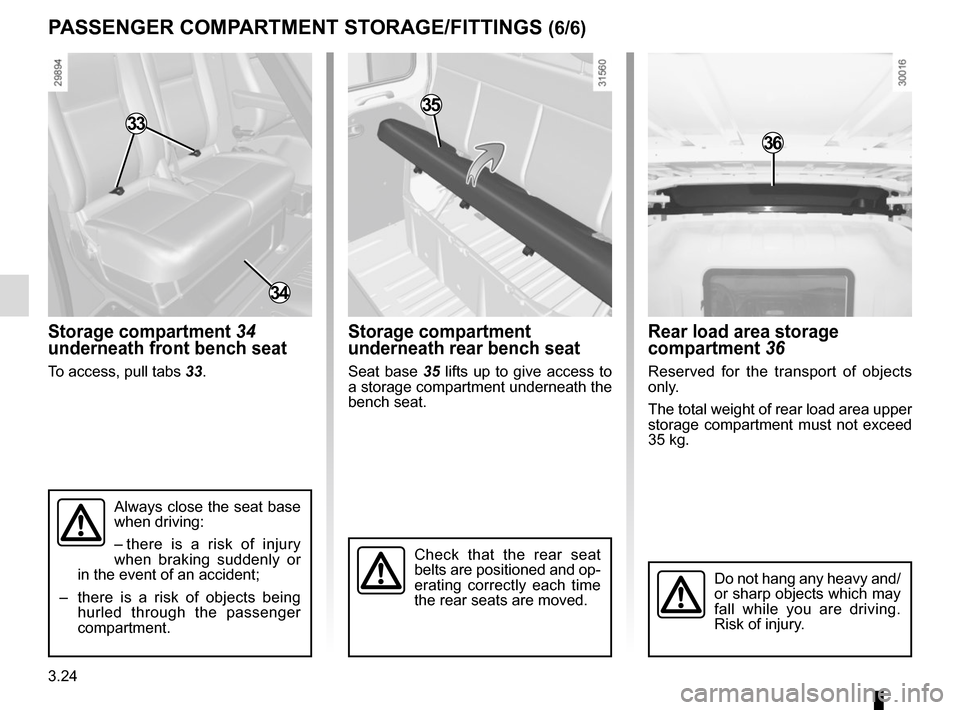

PASSENGER COMPARTMENT STORAGE/FITTINGS (6/6)
Do not hang any heavy and/
or sharp objects which may
fall while you are driving.
Risk of injury.
36
Storage compartment
underneath rear bench seat
Seat base 35 lifts up to give access to
a storage compartment underneath the
bench seat.
35
Check that the rear seat
belts are positioned and op-
erating correctly each time
the rear seats are moved.
Always close the seat base
when driving:
– there is a risk of injury
when braking suddenly or
in the event of an accident;
– there is a risk of objects being hurled through the passenger
compartment.
33
34
