2016 Ram 1500 Owner's Manual

Each cleat must be located and tightened down in one of
the detents, along either rail, in order to keep cargo
properly secure.
To move the cleat to any position on the rail, turn the nut
counterclockwise, approximately three turns. Then pullout on the cleat and slide it to the detent nearest the
desired location. Make sure the cleat is seated in the
detent and tighten the nut.

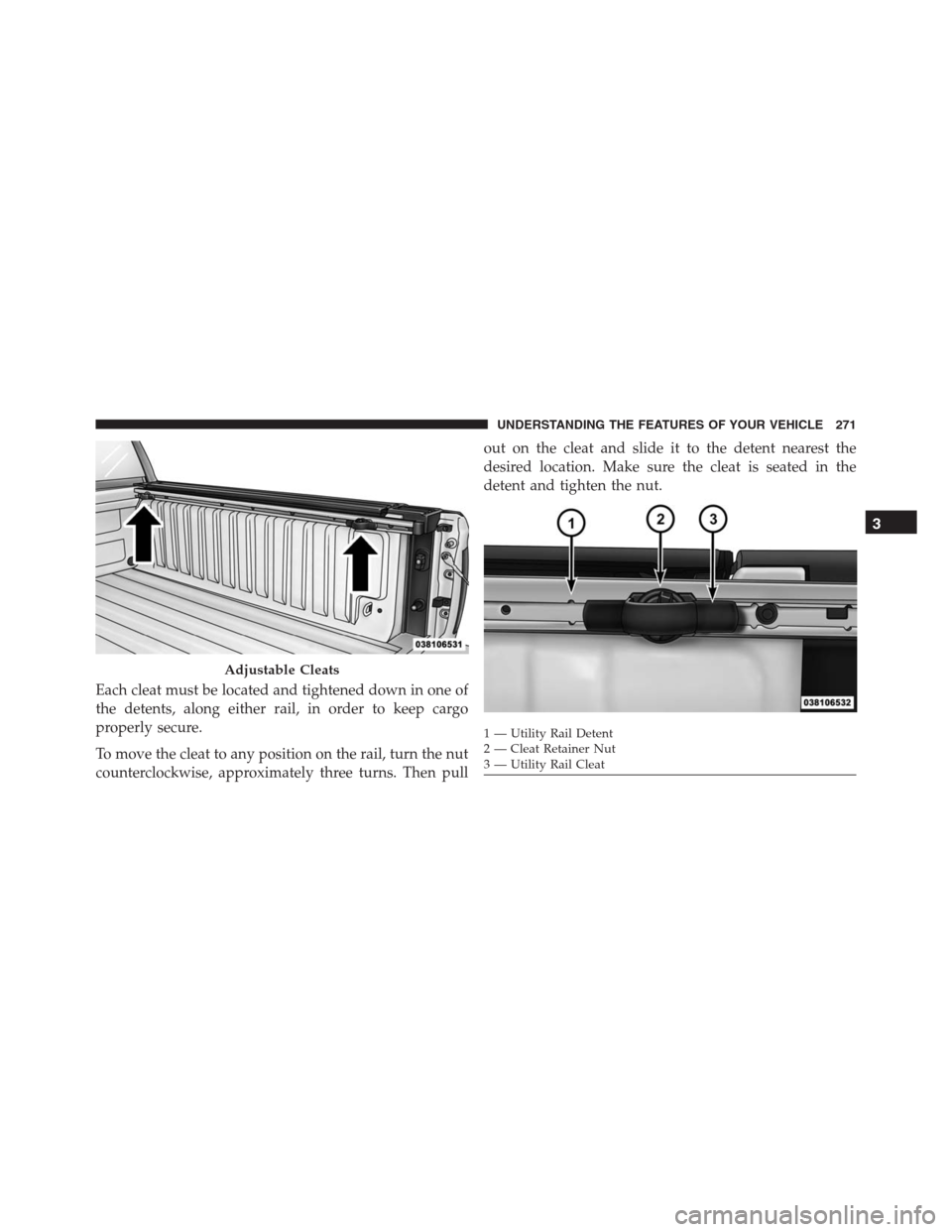

Adjustable Cleats
1 — Utility Rail Detent
2 — Cleat Retainer Nut
3 — Utility Rail Cleat
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 271

To remove the cleats from the utility rail, remove the end
cap screw located in the center of the end cap, using a
#T30 Torx head driver. Remove the end cap and slide the
cleat off the end of the rail.SLIDE-IN CAMPERS
Camper Applications
Certain truck models are not recommended for slide-in
campers. To determine if your vehicle is excluded, please
refer to the “Consumer Information Truck-Camper Load-
ing” document available from your authorized dealer.
For safety reasons, follow all instructions in this impor-
tant document.
NOTE:When a cap or pickup camper is installed on a
vehicle, an alternate Center High-Mounted Stop Light
(CHMSL) must be provided.
Utility Rail End Cap
272 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

EASY-OFF TAILGATE
To simplify mounting of a camper unit with an overhang,
the tailgate can be removed.
NOTE:If your vehicle is equipped with a rear camera or
RKE (Remote Keyless Entry) the electrical connector
must be disconnected prior to removing the tailgate.
Disconnecting The Rear Camera Or Remote
Keyless Entry — If Equipped
1. Open the tailgate to access the rear camera or RKE
(Remote Keyless Entry) connector bracket located on
the rear sill.
2. Remove the connector bracket from the sill by pushing
inward in the locking tab.
Connector Bracket
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 273

3. Disconnect the chassis wiring harness, ensuring the
connector bracket does not fall into the sill.
4. Connect the chassis plug and bracket (provided in the
glove box) to the chassis wiring harness and insert the
bracket back into the sill.5. Connect the tailgate plug (provided in the glove box)
to the tailgate wiring harness to ensure that the
terminals do not corrode.
6. Tape the tailgate harness and bracket against the
forward-facing surface of the tailgate. This will pre-
vent damaging the connector and bracket when stor-
ing or reinstalling the tailgate.
Removing The Tailgate
1. Disconnect the wiring harness for the rear camera and
or power locks (if equipped), refer to “Disconnecting
the Rear Camera — If Equipped” in this section.
2. Unlatch the tailgate and remove the support cables by
releasing the lock tang from the pivot.
NOTE:Make sure tailgate is supported when removing
support cables.
Locking Tab
274 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

3. Position the tailgate on a 45 degree angle.
4. Raise the right side of the tailgate until the right side
pivot clears the hanger bracket.
5. Slide the entire tailgate to the right to free the left side
pivot.6. Remove the tailgate from the vehicle.
NOTE:Do not carry the tailgate loose in the truck
pickup box.
WARNING!
To avoid inhaling carbon monoxide, which is deadly,
the exhaust system on vehicles equipped with “Cap
or Slide-In Campers” should extend beyond the
overhanging camper compartment and be free of
leaks.
Locking Tailgate
The lock is located next to the tailgate handle. The
tailgate can be locked using the vehicle key or by locking
the truck with the key-fob if equipped with remote
keyless entry.
Locking Tang
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 275

TRI-FOLD TONNEAU COVER — IF EQUIPPED
Your vehicle may be equipped with a Tri-Fold Tonneau
Cover which consists of different features:
•Easy Tri-Fold cover
•Tonneau fore aft locator
•Crosscar inside bed locator
•Front and rear clamps
•Stowage strap
•Locking Capability
NOTE:The Tonneau Cover can be folded up and secured
at the front of the box without removing completely.
Tri-Fold Tonneau Cover Removal
To remove the Tonneau Cover follow the following steps:
1. Lower the tailgate to gain access to the first set of two
tonneau cover clamps located on the driver and pas-
sengers under side of the tonneau cover.
Clamped Position
NOTE:If clamp wire is damaged replace immediately.
276 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Pull down on the first set of clamps on both driver and
passenger sides to the semi clamped position.3. Pull down on the clamp wire and push the clamp up
into the proper released position.
NOTE:Be sure the clamp and clamp wire is in the
proper released position.
Semi Clamped PositionProper Released Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 277

CAUTION!
Make sure the tonneau cover clamp and clamp wire
is in the proper released position. If the clamp and
clamp wire is not properly released, damage to the
tonneau cover material will result.
4. Pick up on the tonneau cover and fold it back onto the
second panel.
5. Pick up on the cover and fold it back onto the third
panel.
Improper Clamp Wire Released Position
