2016 Ram 1500 Owner's Manual

CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
6. Reverse the procedure to install the bulb and housing.
Center High-Mounted Stoplamp (CHMSL) With
Cargo Lamp
1. Remove the two screws holding the housing/lens to
the body as shown.
2. Separate the connector holding the housing and wir-
ing harness to the body.
CHMSL Mounting Screw Locations
7
MAINTAINING YOUR VEHICLE 855

3. Turn the desired bulb socket ¼ turn and remove the
socket and bulb from housing.4. Pull the desired bulb straight from the socket.
CHMSL Connector Location
CHMSL Bulb And Socket
856 MAINTAINING YOUR VEHICLE

CAUTION!
Do not contaminate the bulb glass by touching it
with your fingers or by allowing it to contact other
oily surfaces. Shortened bulb life will result.
•Outside Bulbs: Cargo Lamps
•Inside Bulb: Center High-Mounted Stop Lamp
5. Reverse the procedure for installation of bulbs and
housing.
Cab Top Clearance Lamps — If Equipped
1. Remove the two screws from the top of the lamp.
Removing Rear Screw From Clearance Lamp
7
MAINTAINING YOUR VEHICLE 857

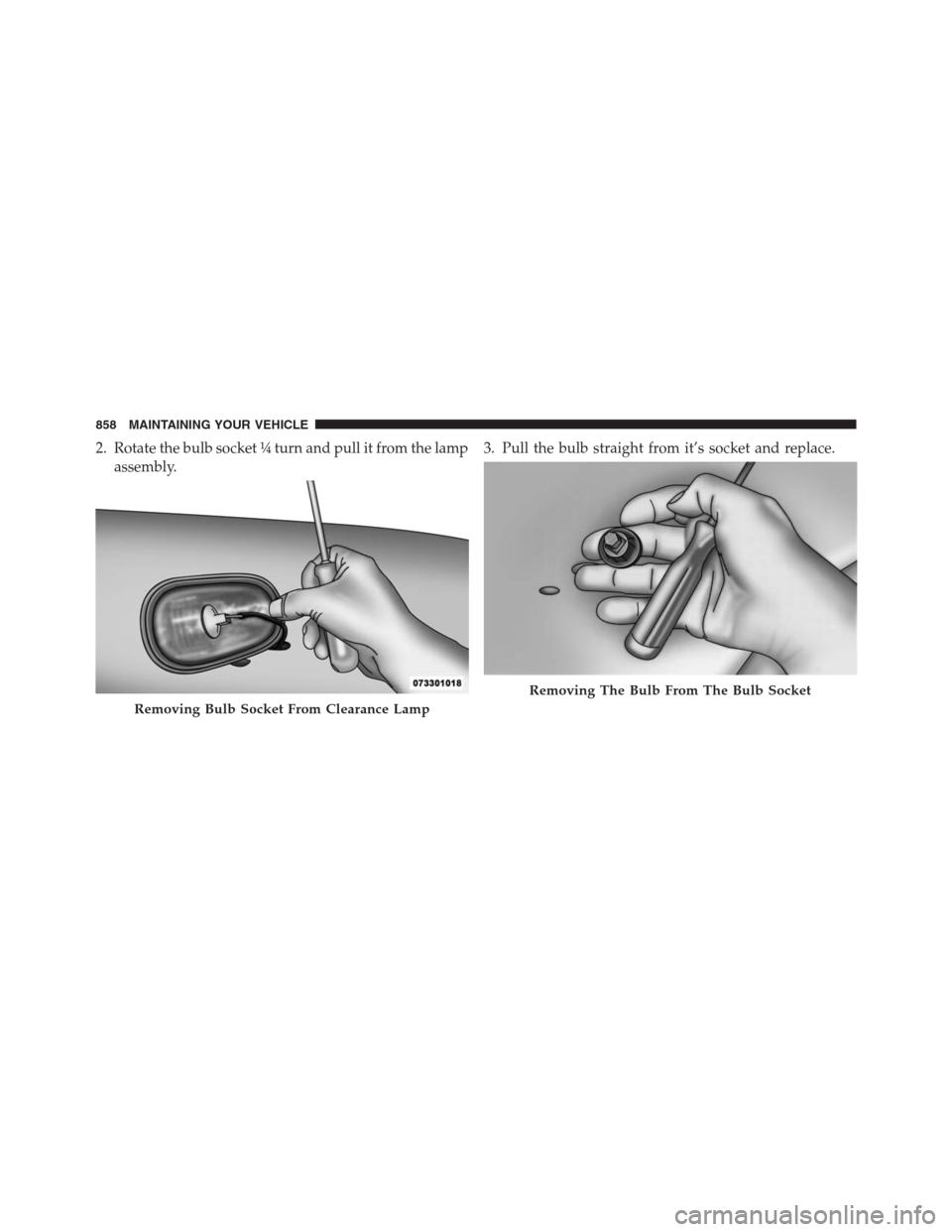

2. Rotate the bulb socket ¼ turn and pull it from the lamp
assembly.3. Pull the bulb straight from it’s socket and replace.
Removing Bulb Socket From Clearance Lamp
Removing The Bulb From The Bulb Socket
858 MAINTAINING YOUR VEHICLE

Rear Lamp Bar ID Marker (Dual Rear Wheels) — If
Equipped
1. Loosen the two screws and the housing to gain access
to the bulb sockets.2. Turn the socket ¼ turn counterclockwise to access the
bulb.
3. Pull the bulb straight out from the socket.
4. Reverse the procedure for installation of the bulbs and
housing.
Screw Locations
7
MAINTAINING YOUR VEHICLE 859

Side Marker Lamps (Dual Rear Wheels) — If
Equipped1. Push rearward on the side marker lamp assembly.
2. Pull the entire assembly from the fender.
3. Turn the socket ¼ turn counterclockwise and remove
from assembly to access the bulb.
4. Pull the bulb straight out from socket.
5. Reverse the procedure for installation of the bulbs and
housing.
Side Marker Lamp Locations
860 MAINTAINING YOUR VEHICLE

FLUID CAPACITIES
U.S. Metric
Fuel (Approximate)
1500 Regular Cab Shortbed/Crew Quad Cab Models 26 Gallons 98 Liters
1500 Regular Cab Longbed/Crew Quad Cab Models (Optional) 32 Gallons 121 Liters
2500/3500 Shortbed Models 31 Gallons 117 Liters
2500/3500 Longbed Models 32 Gallons 121 Liters
Engine Oil With Filter
3.6L Engine (We recommend you use SAE 5W-20, API Certified) 6 Quarts 5.6 Liters
5.7L Engines (We recommend you use SAE 5W-20, API Certified) 7 Quarts 6.6 Liters
5.7L Engine (We recommend you use SAE 5W-30, API Certified), for
2500/3500 trucks operating under a gross combined weight rating
greater than 14,000 lbs (6 350 kg).7 Quarts 6.6 Liters
6.4L Engines (We recommend you use SAE 0W-40 engine oil meeting
the requirements of FCA Material Standard MS-12633 for use in all op-
erating temperatures.)7 Quarts 6.6 Liters
7
MAINTAINING YOUR VEHICLE 861

U.S. Metric
Cooling System
3.6L Engine (We recommend you use MOPAR Antifreeze/Coolant 10
Year/150,000 Mile Formula that meets the requirements of FCA Mate-
rial Standard MS.90032.)13.7 Quarts 13 Liters
5.7L Engine – 1500 Models (We recommend you use MOPAR
Antifreeze/Coolant 10 Year/150,000 Mile Formula that meets the re-
quirements of FCA Material Standard MS.90032.)18.3 Quarts 17.3 Liters
5.7L Engine – 2500/3500 Models (We recommend you use MOPAR
Antifreeze/Coolant 10 Year/150,000 Mile Formula that meets the re-
quirements of FCA Material Standard MS.90032.)18.3 Quarts 17.3 Liters
6.4 Liter Engine – 2500/3500 Models (We recommend you use MOPAR
Antifreeze/Coolant 10 Year/150,000 Mile Formula that meets the re-
quirements of FCA Material Standard MS.90032.)16.6 Quarts 15.7 Liters
