2016 Peugeot Boxer Owner's Manual - RHD (UK, Australia)

87PErSonALISAtIon - conFIGurAtIon
using the ModE control panel
this control panel located alongside the
steering wheel provides access to menus for
the personalisation of some of the vehicle

systems.
the corresponding information appears in


the instrument panel screen.
eleven languages are of

fered: Brazilian,
Dutch,
english, French, german, Italian,


Polish, Portuguese, Russian, Spanish and
turkish. You have access to all the menus if your


vehicle is fitted with an audio system.
If your vehicle is fitted with a touch screen
audio system, certain menus are only
accessible using the audio system control
panel.
-
scroll down through a menu,
-
decrease a value.
this ModE button enables you to:
-
access the menus and sub-menus,
-
confirm your selections, within
a
menu,
-
exit from the menus.
A long press enables you to return to

the welcome screen.
this button enables you to:
this button enables you to:
-
scroll up through a menu,
-
increase a value.
As a safety precaution, some menus
can only be accessed when the ignition
is off.
4
teCHNOLOgY on BOARD
Vehicle configuration

88Menu...Press... Sub-menu… Press... Select…confirm
and exit Enables you to...
1 Speed beep ON
Increase
Activate/deactivate the audible
signal indicating exceeding of
the programmed speed and
select the speed.
Decrease
OFF
2
Headlamp


sensor Increase
Set the sensitivity of the
sunshine sensor (1 to 3).
Decrease
3
Activation


trip B Activate
Display a second distance
"trip B".
Deactivate
4
Setting the
time Hours/

Minutes Increase
Set the clock.
Decrease
time format 24
Select the clock display mode.
12
5
Setting the
date Y

ear/Month/
Day Activate
Set the date.
Deactivate
6 Autoclose While moving ON
Activate/Deactivate automatic
door locking above approx
12
mph (20 km/h).
OFF
Vehicle configuration

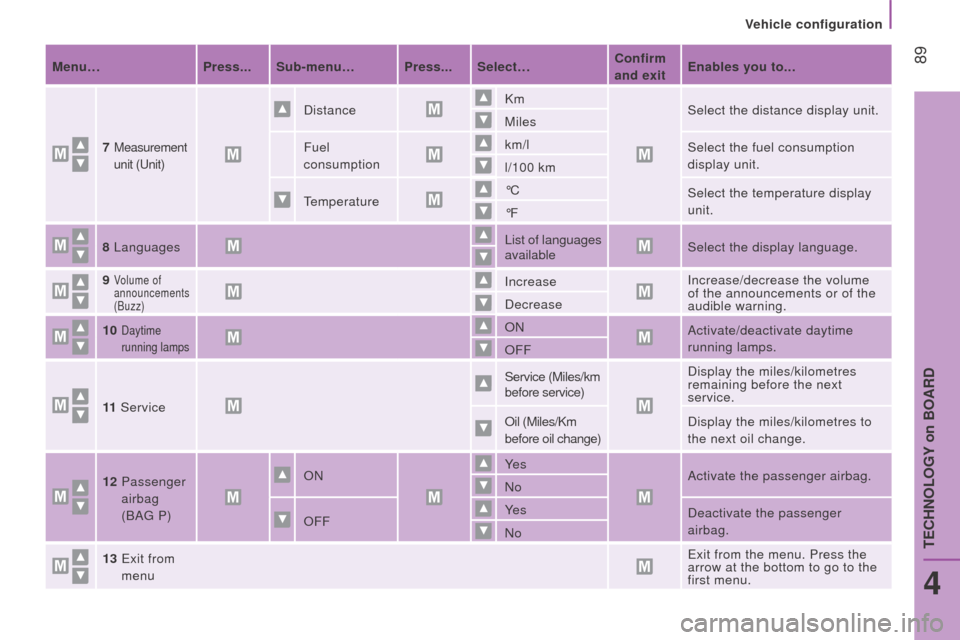

89Menu…Press... Sub-menu… Press... Select…confirm
and exit Enables you to...
7
Measurement
unit (
unit)
Distance Km
Select the distance display unit.
Miles
Fuel
consumption km/l
Select the fuel consumption
display unit.
l/100 km
temperature °C
Select the temperature display
unit.
°F
8 Languages List

of languages
available Select the display language.
9
Volume of
announcements
(Buzz)Increase Increase/decrease the volume
of the announcements or of the
audible warning.
Decrease
10
Daytime
running lampsON Activate/deactivate daytime
running lamps.
OFF
11 Service Service (Miles/km
before service)
Display the miles/kilometres
remaining before the next
service.
Oil (Miles/Km
before oil change) Display the miles/kilometres to
the next oil change.
12
Passenger


airbag
(BA
g P) ON
Ye

s Activate the passenger airbag.
No
OFF Ye s
Deactivate the passenger
airbag.
No
13


e
xit from


menu
exit from the menu. Press the


arrow at the bottom to go to the
first menu.
4
teCHNOLOgY on BOARD
Vehicle configuration

90
using the touch screen audio
system
this audio system control panel, located in
the middle of the dashboard, gives access to
personalisation menus for certain systems.
the corresponding information appears in


the touch screen.
Nine languages are offered: Dutch,
english,


French,
german, Italian, Polish, Portuguese,


Spanish and
turkish.
As a safety precaution, some menus
can only be accessed when the ignition


is off.
this control panel button gives

access to the "Settings" menu. "Settings" menu
1.
"Display".
2.
"Voice commands".
3.
"time and Date".
4.
"Safety / Help".
5.
"Lighting".
6.
"Doors & locking".
7.
"Audio".
8.
"telephone / Bluetooth".
9.
"Radio settings".
10.
"Restore Settings" to return to factory
settings.
11
.
"Del. pers. data" to delete all of your
personal data, related to the Bluetooth


equipment in the audio system.
this button in the screen allows

you to go up a level in a menu or
increase a value.
this button in the screen allows

you to go down a level in a menu
or decrease a value.
For more information on the audio
system, the telephone, the radio and the
navigation system, the sub-menus
2

, 7,
8, 9 and 11 are described in detail in the
"Audio equipment and telematics" section.
the settings for sub-menus 4 , 5 and
6 vary according to the equipment

installed on the vehicle.
Vehicle configuration

91From the "Safety / Help" sub menu, you can:
-
select "Parkview Camera", then
"Reversing camera" to activate or

deactivate its use (On, Off),
-
select "Parkview Camera", then
"Camera delay" to activate or deactivate


the maintaining of the display for
10 seconds or up to 11 mph (18 km/h)
(On, Off),
-
select "Passenger airbag" to activate or
deactivate its use (On, Of

f).
From the "Lighting" sub-menu, you can:
-
select "Day lamps" to activate or
deactivate their use (On, Of

f),
-
select "Headlamp sensor" to adjust its
sensitivity (1, 2, 3).
From the "Doors & locking", you can:
-
select "Autoclose" to activate or
deactivate its use (On, Of

f).
From the "Display" sub-menu, you can:
-
select "Languages" and choose one of
the languages listed above,
-
select "units of measurement" to choose


the units for fuel consumption
(l/100 km, mpg), distance (miles, km)
and temperature (°C, °F),
-
select "Display trip B" to switch trip B
On or Of

f in the trip computer.
From the "
time and Date" sub-menu, you
can:
-
select "Adjust time and format" to set the
hour

, minutes and seconds and choose
the format (24 h, 12 h with am or pm),
-
select "Adjust Date" to set the day,


month and year.
to set the time manually, "Synch time"
must be Of

f.
4
teCHNOLOgY on BOARD
Vehicle configuration

92
the trIP button, located at the end of the
wiper control stalk, gives access to the
following information:
-
range
this indicates the distance that can still


be travelled with the fuel remaining in
the tank on the basis of the average
consumption over the last few miles
(kilometres) travelled. - Average
speed A

this is the average speed calculated


since the last trip computer zero reset
(with the ignition on).
-
trip duration A
this indicates the total time since the


last trip recorder zero reset.
-
distance A
this indicates the distance travelled


since the last trip computer zero reset.
-
Average fuel consumption

A
this is the average quantity of fuel


consumed since the last trip computer
zero reset.
-
current fuel consumption

A
this is the average quantity of fuel


consumed during the last few seconds.
trIP coMPutEr
If tRIP B is activated in the ModE menu:
-
Distance B
-
Average fuel consumption B
-
Average speed B
-


t
rip duration B
Vehicle data

93

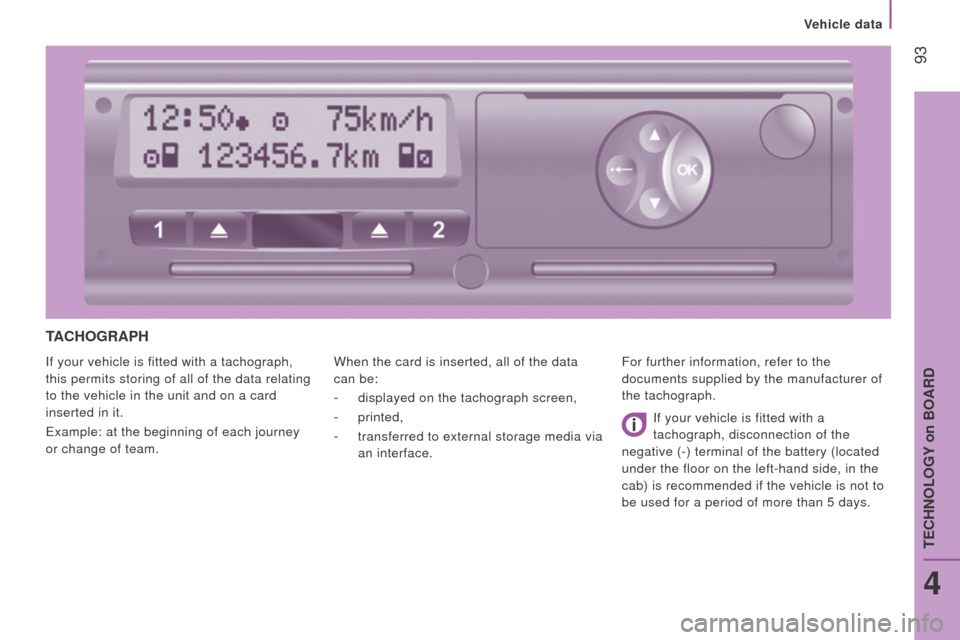

tAcHoGrAPH
If your vehicle is fitted with a tachograph,
this permits storing of all of the data relating
to the vehicle in the unit and on a card
inserted in it.
example: at the beginning of each journey

or change of team. When the card is inserted, all of the data
can be:
-
displayed on the tachograph screen,
-
printed,
-
transferred to external storage media via
an interface. For further information, refer to the


documents supplied by the manufacturer of
the tachograph.
If your vehicle is fitted with a
tachograph, disconnection of the
negative (-) terminal of the battery (located
under the floor on the left-hand side, in the
cab) is recommended if the vehicle is not to
be used for a period of more than 5 days.
4
teCHNOLOgY on BOARD
Vehicle data

94
AudIBLE rEAr PArKInG SEnSorS
If fitted on your vehicle, the system consists
of four proximity sensors, installed in the
rear bumper.
they detect any obstacle: person, vehicle,

tree, fence, behind the vehicle during the
manoeuvre.
However, objects the size or thickness of
which are detected at the beginning of the
manoeuvre will no longer be detected at the
end of the manoeuvre: blind spots between
and below the sensors.
examples: stake,


roadworks cone or pavement post.
the rear parking sensor system may be


coupled with a reversing camera.operation
engage reverse gear with the gear lever.
the proximity information is indicated by an


audible signal of increasing frequency as the
vehicle approaches the obstacle.
When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the audible
signal becomes continuous.
Switching off
Come our of reverse gear into neutral.
operating fault
If this warning lamp comes
on in the instrument panel
accompanied by a message in
the screen, contact a P
eugeOt
dealer or a qualified workshop.
Good practice
the system cannot, in any circumstances,
replace the need for vigilance on the part of
the driver
.
take even greater care if you reverse with a
rear door open.
In bad weather or in winter

, ensure that the
sensors are not covered with mud, ice or
snow.
Parking sensors
