Screendisplays indicates Solution - action
gear shift


indicator an up arrow. the possibility of changing up. "Ready to set off -
gearbox and steering wheel" section.
Speed limiter on with "OFF".
that the limiter selected is not


active. Manual selection.
"
ease of use and comfort - Steering mounted controls"


section.
on. that the limiter is on.
2
rEAdY to SEt oFF
Instruments and controls

32
FuEL GAuGE
the fuel level is tested every time the
ignition is turned on.
the gauge is positioned on:
-
F (Full): the fuel tank is full.
-
E (Empty): the reserve is now being


used, the low fuel warning lamp comes
on continuously.
the reserve when the warning first comes


on is approximately:
-
10 litres for 60 and 90 litre tanks,
-
12 litres for 120 litre tanks.
Fuel tanks of different capacities (60 and


120 litres) are available as an option.
cooLAnt tEMPErAturE
the needle is positioned between
c (cold) and H (Hot):
normal operation.
In arduous conditions of use or hot climatic
conditions, the needle may move close to
the red graduations. If the needle enters the red zone or if the
warning lamp comes on:
-
stop immediately, switch of

f the ignition.
the fan may continue to operate for


a certain time up to approximately
10
minutes.
-
wait for the engine to cool down in
order to check the level and top it up if

necessary. Follow this advice:
the cooling system is pressurised. In order
to avoid any risk of scalding, unscrew the
cap by two turns to allow the pressure to
drop.
When the pressure has dropped, check the
level and remove the cap to top-up.
If the needle remains in the red zone,
contact a PeugeOt dealer or a qualified
workshop.
Refer to the "Checks - Fuel" section. Refer to the "Checks - Levels and

checks" section.
Instruments and controls

33EMISSIonS controLS
eOBD (european On Board Diagnosis)
is a diagnostics system which complies
with, among others, the standards on the

authorised emissions of:
-
CO (carbon monoxide),
-
HC (unburnt hydrocarbons),
-
NOx (nitrous oxides) or particles,
detected by oxygen sensors placed


upstream and downstream of the
catalytic converters.
tYrE undEr-InFLAtIon dEtEctIon
System which automatically checks the
pressures of the tyres while driving.
the tyre under-inflation detection


system is an aid to driving which does
not replace the need for vigilance on
the part of the driver.
this system does not avoid the need

to check the tyre pressures regularly
(including the spare wheel) and before a
long journey.
Driving with under-inflated tyres increases
fuel consumption.
the system continuously monitors the


pressures of the four tyres, as soon as the
vehicle is moving.
A pressure sensor is located in the valve of
each tyre.
the system triggers an alert if a drop in


pressure is detected in one or more tyres.
the tyre pressures must be checked


when the tyres cold (vehicle stopped
for 1 hour or after driving for less then
6 miles (10 km) at moderate speed).
Otherwise, add 0.3 bar to the values
indicated on the label.
the tyre pressures for your vehicle can be


found on the tyre pressure label.the driver is warned of any

malfunction of this emission
control system by the illumination
of this specific warning lamp in
the instrument panel.
there is a risk of damage to the catalytic


converter. Have it checked by a P
eugeOt
dealer or a qualified workshop.
to locate it, refer to the "technical
data
- Identification markings" section.
Driving with under-inflated tyres


adversely affects road holding, extends
braking distances and causes premature
tyre wear, particularly under arduous
conditions (vehicle loaded, high speed, long
journey).
2
rEAdY to SEt oFF
Instruments and controls

34under-inflation alert
The alert is given by the fixed
illumination of this warning lamp,
accompanied by an audible signal,
and depending on equipment, the
display of a message.
In the event of a problem on one of the
tyres, the symbol or the message appears,
according to equipment, to identify it.
-
Reduce speed, avoid sudden steering
movements or harsh brake applications.
-
Stop as soon as it is safe to do so.
-
In the event of a puncture, use the
temporary puncture repair kit or the


spare wheel (according to equipment).
-
In the event of under-inflation:
●
if you have a compressor, the one


in the temporary puncture repair
kit for example, check the four tyre
pressures when cold,
or
●
if it is not possible to check the
tyre pressures at the time, drive


carefully at reduced speed and go to
the nearest P
eugeOt dealer or a
qualified workshop.
the loss of pressure detected does not
always lead to visible deformation of
the tyre.
Do not rely on just a visual check.
the alert is maintained until the tyre or


tyres concerned is reinflated, repaired
or replaced.
operating fault
the flashing and then fixed
illumination of this warning lamp
accompanied by the illumination

of the service warning lamp, and
depending on equipment, the display of a
message indicates a fault with the system.
In this case, monitoring of the tyre pressures
is not assured.
this alert is also displayed when one or


more wheels is not fitted with a sensor.
go to a PeugeOt dealer or a qualified
workshop
to have the system checked or

,
following the repair of a puncture, to have
the original wheel, equipped with a sensor,
refitted.
Instruments and controls

35SErVIcE IndIcAtor
For a few seconds after the ignition is
switched on, the spanner symbolising the
service indicator comes on: the screen
informs you when the next service is due,
in accordance with the servicing schedule
indicated in the warranty and maintenance
record.
this information is determined in

relation to the distance travelled since the
previous service.
After a few seconds, the display returns to
its usual functions. A long press returns you to the main menu.
Refer to the "
technology on board -
V

ehicle configuration" section.
deterioration of the engine oil
Refer to the list of checks in the
warranty and maintenance record
which was given to you on handover of
the vehicle.
reminder of servicing information
At any time, to access the service indicator,
press briefly on the M
odE
button.
use the up/down arrows to see the


scheduling and engine oil wear information.
Pressing the M
odE

button again allows you
to return to the various display menus.
Menu...
choose...Allows you to...
11
Service Service
(miles/
km before
service)
Display the
distance
remaining
before the
next service.
Oil (miles/
km before
oil change) Display
the miles/
kilometres to
the next oil
change.
resetting to zero
the continuous flashing of the indicator is
stopped by a qualified workshop using a
diagnostic tool.
this 2nd warning lamp, coupled
with the 1st, comes on in the
instrument panel when the oil
has not been changed and the
deterioration of the oil has reached another
threshold.
to avoid the risk of damage, have
the oil changed without waiting for this level.
the warning lamp flashing and,

if your vehicle has the function,
a message displayed at every
engine start: the system has
detected deterioration of the engine oil.
Have the oil changed as soon as possible.
For 3.0 litre HDi engines, the engine speed
is restricted to 3 000 rpm, then 1 500 rpm
until the oil change is done. Have the engine
oil changed to avoid any risk of damage.
2
rEAdY to SEt oFF
Instruments and controls

36
to change gear easily, always depress the
clutch pedal fully.
to prevent the mat from becoming caught
under the pedal:
-
ensure that the mat is positioned
correctly

,
-
never fit one mat on top of another.
A

void leaving your hand on the gear knob as
the force exerted, even if slight, may wear
the internal components of the gearbox over
time.
MAnuAL GEArBox
reverse gear
Raise the collar under the gear knob to
engage reverse gear. Never engage reverse gear before the
vehicle is completely stationary.
the lever should be moved slowly to reduce


the noise on engaging reverse gear.
If your vehicle is fitted with parking
sensors, the system comes into
operation when reverse gear is engaged; an
audible signal is heard.
Refer to the "technology on board -
Parking sensors" section.
GEAr SHIFt IndIcAtor
Depending on the engine or version, this
system allows fuel consumption to be
reduced by suggesting when to change up.
the gear engagement recommendations


should not be considered to be compulsory.
this because the configuration of the


road, the traffic density and safety remain
determining factors when choosing the
best gear.
therefore, the driver remains


responsible for deciding whether or not to
follow the advice given by the system.
the system never recommends engaging


first gear or reverse, or changing down.
Gearbox and steering wheel

37

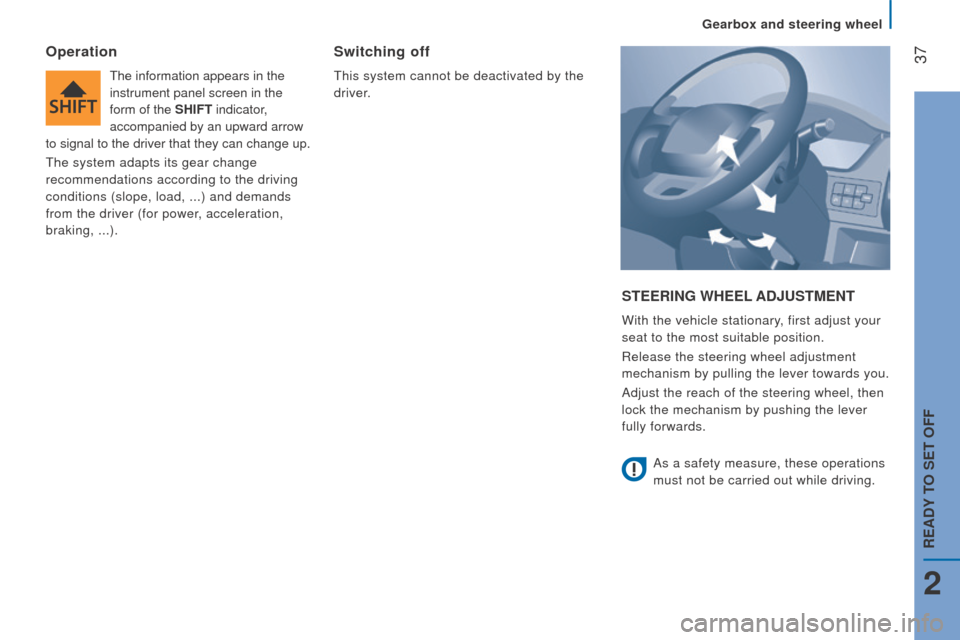

StEErInG WHEEL AdjuStMEnt
With the vehicle stationary, first adjust your
seat to the most suitable position.
Release the steering wheel adjustment
mechanism by pulling the lever towards you.
Adjust the reach of the steering wheel, then
lock the mechanism by pushing the lever
fully forwards.
operation
the information appears in the
instrument panel screen in the
form of the SHIF
t indicator

,
accompanied by an upward arrow
to signal to the driver that they can change up.
the system adapts its gear change


recommendations according to the driving
conditions (slope, load,
...) and demands


from the driver (for power, acceleration,
braking,
...).
Switching off
this system cannot be deactivated by the
driver.
As a safety measure, these operations

must not be carried out while driving.
2
rEAdY to SEt oFF
Gearbox and steering wheel

38
IGnItIon SWItcH
StoP position: steering lock.
the ignition is of
f.
MA
r position: ignition on.
Certain accessories can be used.
AV

V position: starter.
the starter is operated.
Starting the engine
Engine immobiliser warning lamp
If this warning lamp comes
on, use another key and have


the faulty key checked by a
P
eugeOt dealer.
diesel pre-heating warning lamp
With the parking brake applied


and the gearbox in neutral, turn
the key to the MA
r position.
W

ait for this warning lamp to go off then
operate the starter (AV V position) until the
engine starts.
the period of illumination of the warning


lamp depends on the climatic conditions.
door or bonnet open warning lamp
If this warning lamp comes on,
check that the doors and bonnet
are closed correctly.
Switching off the engine
Stop the vehicle and apply the parking
brake, then, with the engine at idle, return
the key to the S
t

o
P
position.
In low temperatures
In mountainous and/or cold areas, it is
advisable to use a "winter" type fuel suited
to low or minus temperatures.
Avoid attaching heavy objects to the
key or the remote control, which would
weigh down on its blade in the ignition
switch and could cause a malfunction.
It could adversely affect the deployment of
the front airbag. With the engine hot, the warning lamp comes
on for a few moments, you can start the engine
without waiting.
As soon as the engine is running, release the key.
Starting and switching off
