Wheel with wheel trim
When refitting the wheel, refit the trim
starting by placing its notch facing the
valve and press around its edge with
the palm of your hand.
th
e spare wheel is located in the boot under
t h e f l o o r.
Depending on the country of sale, the spare
wheel may be steel, alloy or of the "space-
saver" type.
Access to the spare wheel
Taking out the wheel
Depending on your vehicle's equipment, the
spare wheel is restrained either by a strap or
a securing nut A and bolt B . For the nut, the
procedure is given below. F
u
n
screw the (coloured) central nut.
F
R
aise the spare wheel towards you from
the rear.
F t
a
ke the wheel out of the boot.
In the event of a breakdown

237
508_en_Chap08_en-cas-de-pannes_ed01-2016
Putting the wheel back in place
F Put the box back in place in the centre of the wheel and clip it.
F

P
ut the polystyrene storage box back in
place.
F
P
ut the wheel back in its housing.
F
un
screw the (coloured) central nut by a few
turns then put it in place in the centre of the
wheel.
F
t
i

ghten fully until the central bolt clicks to
retain the wheel correctly.Tyre under-inflation detection
the space-saver type or steel spare
wheel does not have a sensor.
th

e punctured wheel must be repaired
by a P
e

uge
Ot
dealer or a qualified
workshop.
8
In the event of a breakdown

245
508_en_Chap08_en-cas-de-pannes_ed01-2016
1. Brake lamps
( light emitting diodes - LEDs).
2.
Si

delamps


(
light emitting diodes - LEDs).
3.
D

irection indicators


(
PY21W amber).
4.
Fo

glamps


(
light-emitting diodes) /
R

eversing lamps (W16W).
Rear lamps (Saloon)
Direction indicators and reversing lamp
Direction indicators Reversing lamp
Light emitting diodes-LEDs
For replacement, contact a PeugeOt
dealer or qualified workshop. F

O
pen the boot, then the plastic cover.
F
R
emove the two lamp unit fixing nuts.
F e
x
tract the lamp unit carefully from the
outside.
F
D
isconnect the electrical connector.
F
S
pread the tabs and remove the bulb
h o l d e r.
F t
u
rn the bulb a quarter of a turn and pull it
out.
For reassembly, carry out these operations in
reverse order. -

R
emove the direction indicator bulb holder,
as described above.
- t
u
rn the bulb a quarter of a turn and
change it.to r eassemble, carry out these operations in
reverse order.
8
In the event of a breakdown

248
508_en_Chap08_en-cas-de-pannes_ed01-2016

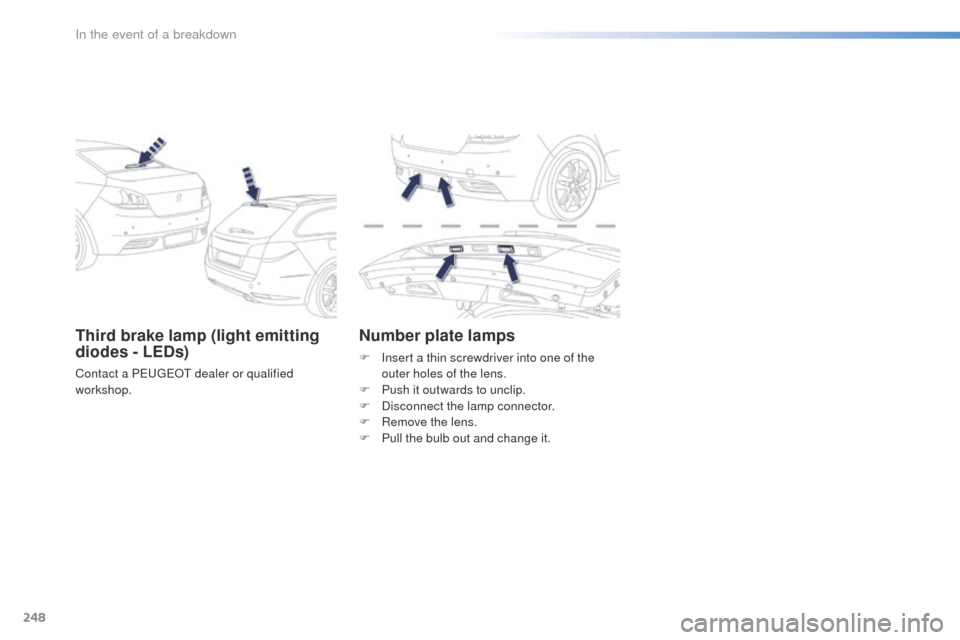

Third brake lamp (light emitting
diodes - LEDs)
Contact a PeugeOt dealer or qualified
workshop.
Number plate lamps
F Insert a thin screwdriver into one of the outer holes of the lens.
F

P
ush it outwards to unclip.
F

D
isconnect the lamp connector.
F

R
emove the lens.
F

P
ull the bulb out and change it.
In the event of a breakdown

252
508_en_Chap08_en-cas-de-pannes_ed01-2016
Engine compartment fuses
Access to the fuses
F unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox. Fuse
N° Rating
(A) Functions
F20 15Front / rear screenwash pump.
F21 20Headlamp wash pump.
F22 15Horn.
F23 13Right-hand main beam headlamp.
F24 15Left-hand main beam headlamp.
th
e fusebox is placed in the engine
compartment near the battery.
In the event of a breakdown

259
508_en_Chap08_en-cas-de-pannes_ed01-2016

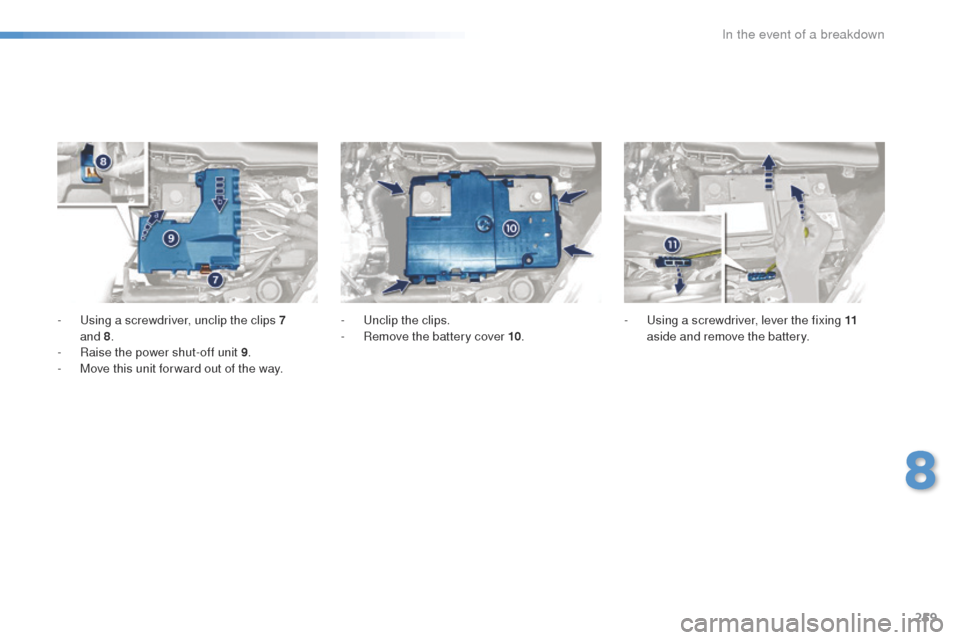

- using a screwdriver, unclip the clips 7 and 8.
-

R
aise the power shut-off unit 9 .
-

M
ove this unit for ward out of the way. -
un clip the clips.
- R emove the battery cover 10.-
us ing a screwdriver, lever the fixing 11

aside and remove the battery.
8
In the event of a breakdown

261
508_en_Chap08_en-cas-de-pannes_ed01-2016
System which manages the duration of use of certain functions to conserve a sufficient level of
charge in the battery.
After the engine has stopped, you can still use functions such as the audio and telematics
system, windscreen wipers, dipped beam headlamps, courtesy lamps, etc. for a maximum
combined duration of about forty minutes.
energy economy mode
Switching to economy
mode
A message then appears in the instrument
panel screen indicating that the vehicle has
switched to economy mode and the active
functions are put on standby.
If a telephone call is being made at this time, it
will be maintained for around 10 minutes with
the Bluetooth hands-free system of your audio
system.
Exiting economy mode
these functions are reactivated automatically
next time the vehicle is driven.
In order to restore the use of these functions
immediately, start the engine and let it run:
-

f
or less than ten minutes, to use the
equipment for approximately five minutes,
-

f
or more than ten minutes, to use the
equipment for up to approximately
thirty


minutes.
Let the engine run for the duration specified to
ensure that the battery charge is sufficient.
Do not repeatedly and continuously restart the
engine in order to charge the battery.
A flat battery prevents the engine from starting.
For more information on the battery, refer to the
corresponding section.
Load reduction mode
System which manages the use of certain
functions according to the level of charge
remaining in the battery.
When the vehicle is being driven, the load
reduction function temporarily deactivates
certain functions, such as the air conditioning,
the heated rear screen...
th

e deactivated functions are reactivated
automatically as soon as conditions permit.
8
In the event of a breakdown

273
508_en_Chap09_caracteristiques-techniques_ed01-2016
Identification markingsVarious visible markings for the identification of your vehicle.
A.
V
ehicle Identification Number (VIN)
under the bonnet.


t
h
is number is engraved on the bodywork
near the damper mounting.
th

e tyre pressures must be checked
when the tyres are cold, at least once
a month.
Low tyre pressures increase fuel
consumption.
B.
V

ehicle identification Number (VIN) on
the windscreen lower crossmember.


t
h
is number is given on a self-adhesive
label which is visible through the
windscreen. C.
M

anufacturer's label.


t
h
e VIN is marked on a self-destroying
label affixed to the door aperture, on the
driver's side.
D.
T

yre/paint label.


t
h
is label is fitted to the middle pillar, on
the driver's side. It bears the following information:
-

t
he tyre inflation pressures with and without
load,
-

t
he tyre sizes,
-

t
he inflation pressure of the spare wheel,
-

t
he paint colour code.
9
technical data
