2016 Peugeot 508 battery

59
508_en_Chap02_ouvertures_ed01-2016
If one of the doors or the boot is still
open or if the key for Keyless en try and
Starting system has been left inside
the vehicle or if the ignition is on, the
central locking does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will lock itself
again automatically after about thirty
seconds unless a door is opened.
If the alarm was previously activated,
it will not be reactivated automatically.
th

e folding and unfolding of the door
mirrors by the remote control can be
deactivated by a P
e

uge
Ot
dealer or a
qualified workshop. As a safety measure (children on
board), never leave the vehicle without
taking the key for the Keyless
e
n
try and
Starting system, even for a short period.
gu

ard against theft when the key for the
Keyless
e
n
try and Starting system is
in the recognition zone with the vehicle
unlocked.
In order to preserve the charge of the
cell battery in the remote control, the
"hands-free" functions go into extended
stand-by after 21 days of non-use.
t
o
r

estore these functions, press one of
the remote control buttons or start the
engine with the electronic key in the
reader.
2
Access

62
508_en_Chap02_ouvertures_ed01-2016

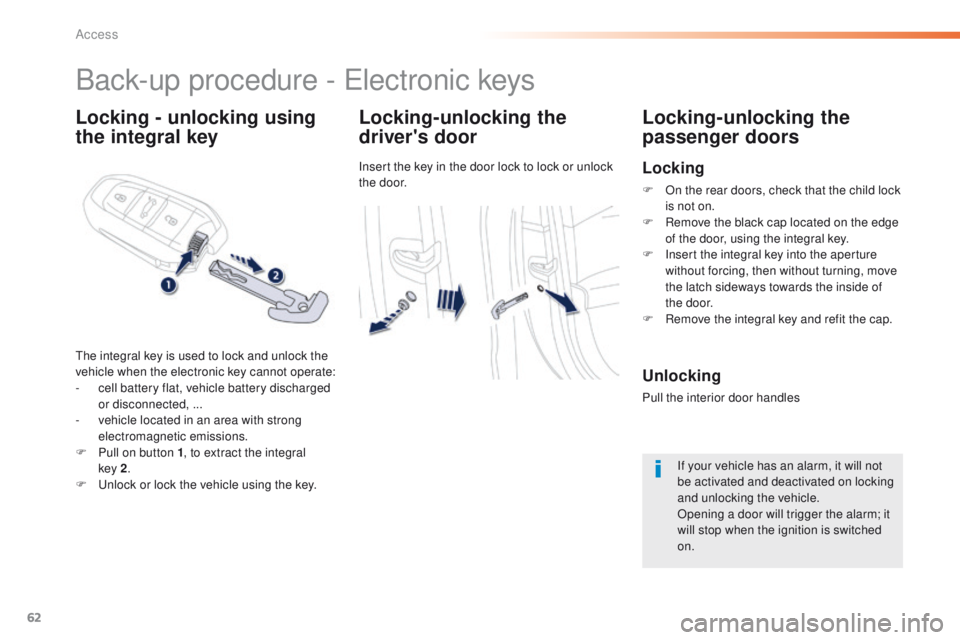

Locking - unlocking using
the integral keyLocking-unlocking the
driver's door
Insert the key in the door lock to lock or unlock
the door.
Locking-unlocking the
passenger doors
Back-up procedure - ele
ctronic keys
the integral key is used to lock and unlock the
vehicle when the electronic key cannot operate:
-

c
ell battery flat, vehicle battery discharged
or disconnected, ...
-

v
ehicle located in an area with strong
electromagnetic emissions.
F

P
ull on button 1 , to extract the integral
key


2.
F
u
n
lock or lock the vehicle using the key.
Locking
F On the rear doors, check that the child lock is not on.
F

R
emove the black cap located on the edge
of the door, using the integral key.
F

I
nsert the integral key into the aperture
without forcing, then without turning, move
the latch sideways towards the inside of
the


door.
F

R
emove the integral key and refit the cap.
Unlocking
Pull the interior door handles If your vehicle has an alarm, it will not
be activated and deactivated on locking
and unlocking the vehicle.
Opening a door will trigger the alarm; it
will stop when the ignition is switched
on.
Access

63
508_en_Chap02_ouvertures_ed01-2016
Do not throw the remote control
batteries away, they contain metals
which are harmful to the environment.
ta
ke them to an approved collection
point.
Changing the battery of the
electronic key
Battery ref.: CR2032 / 3 volts.th is replacement battery is available from a
P
e

uge
Ot
dealer or a qualified workshop.
A message is displayed in the instrument panel
screen when replacement of the battery is
needed.
F
u
n
clip the cover using a pointed object at
the key ring.
F

S
lide the flat battery out of its location.
F

S
lide the new battery into its location
observing the original direction of fitment.
F

C
lip the cover in place starting at the front.
F

R
einitialise the electronic key.
Electronic key fault
Following disconnection of the vehicle battery,
replacement of the remote control battery or
in the event of a fault with the remote control,
you can no longer unlock, lock or locate your
vehicle.
F
F
irst of all, use the key in the door lock to
unlock or lock your vehicle.
F
t
hen
, reinitialise the remote control.
If the problem persists, contact a P
e

uge
Ot

dealer or a qualified workshop as soon as
possible.
Reinitialisation
F Switch the ignition off.
F I mmediately press one of the remote
control buttons for a few seconds.
F

S
witch the ignition on.
th

e electronic key is fully operational again.
2
Access

68
508_en_Chap02_ouvertures_ed01-2016
Back-up release (Saloon,
SW and non-hybrid RHX)
System for mechanically unlocking the boot in
the event of a battery or central locking fault.
Unlocking
F Fold the rear seats to gain access to the lock from inside the boot.
F

I
nsert a small screwdriver into hole A of
the lock, then move the lever to the left to
unlock the boot."Boot open" warning
With the engine running or when the vehicle is moving,
if the tailgate is not properly closed, a message
accompanied by an audible signal (from 6 mph
(10
km/h)) is displayed in the instrument panel screen.
Locking again after closing
Once closed again, the boot will remain locked
if the problem persists.
Adjusting the opening
height
the maximum opening height of the tailgate
can be set and memorised (restricted overhead
clearance, ...).
th
is memorisation is done in two steps, by
successive presses on button C :
-

d
uring opening, a first press stops the
tailgate at the desired height,
-

a s
econd maintained press memorises the
position of the tailgate; an audible signal
confirms the memorisation.


t
o d
elete this memorisation, make a new
maintained press until the audible signal is
heard.
th

e tailgate is not designed to support
a bicycle carrier.
If fitting a bicycle carrier to a towbar,
the automatic operation must be
deactivated. Precautions in use
If snow has accumulated on the
tailgate, remove the snow before any
automatic operation of the tailgate.
Ice can prevent opening of the tailgate:
wait until the ice has melted following
heating of the passenger compartment.
When washing the vehicle in an
automatic car wash, don't forget to
lock your vehicle to prevent any risk of
unwanted opening.
Repeated opening and closing of the
tailgate can overheat the electric motor;
neither closing nor opening is then
possible.
Allow the motor to cool down for
ten
minutes before operating the
tailgate again.
Access

70
508_en_Chap02_ouvertures_ed01-2016
System which protects and provides a deterrent
against theft and break-ins. It provides the
following types of monitoring:
Alarm
- Exterior perimeter
the system checks for opening of the vehicle.the alarm is triggered if anyone tries to open a
door, the boot or the bonnet...
- Interior volumetric
the system checks for any variation in the
volume in the passenger compartment.
th

e alarm is triggered if anyone breaks a
window, enters the passenger compartment or
moves inside the vehicle.
- Tilt
the system checks for any change in the
attitude of the vehicle.
th

e alarm is triggered if the vehicle is lifted,
moved or knocked.
Self-protection function
the system checks for the putting out of
service of its components.
th

e alarm is triggered if the battery, the
central control unit or the siren wiring is
put out of service or damaged.
For all work on the alarm system,
contact a P
e

uge
Ot
dealer or a
qualified workshop.
Locking the vehicle with full
alarm system
Activation
F Switch off the ignition and get out of the vehicle.
F Press the locking button on the remote control or lock the vehicle
using the Keyless
e
n
try and
Starting system.
th

e monitoring system is active: the indicator
lamp on the button flashes once per second.
After the locking button on the remote control
is pressed or the vehicle locked using the
Keyless
e
n
try and Starting system, the exterior
perimeter monitoring is activated after a delay
of 5 seconds, the interior volumetric monitoring
after 45 seconds and anti-tilt monitoring after
90 seconds.
If an opening (door, boot...) is not closed
fully, the vehicle is not locked but the exterior
perimeter monitoring will be activated after a
delay of 45 seconds.
Access

74
508_en_Chap02_ouvertures_ed01-2016

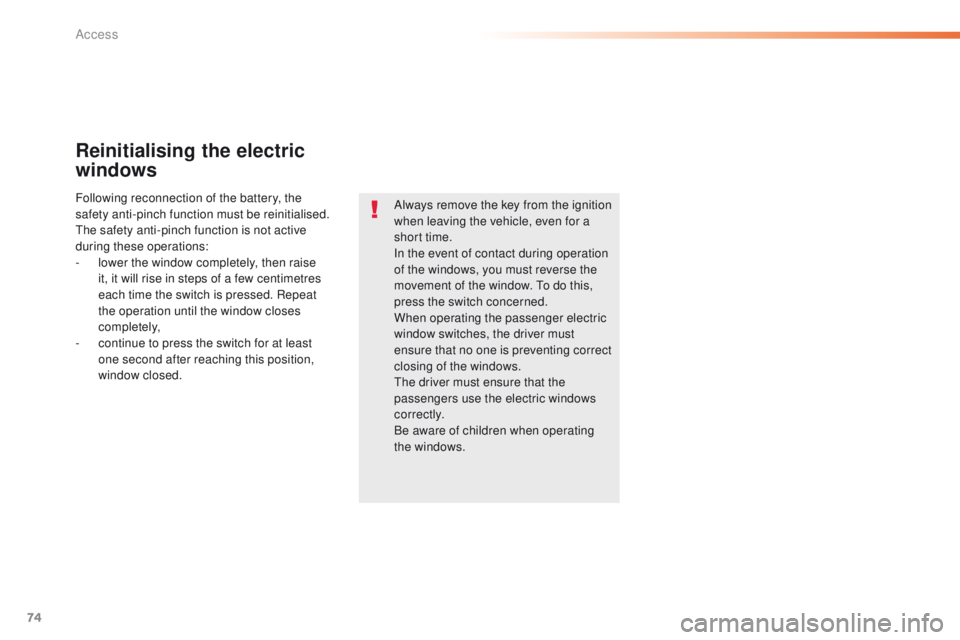

Reinitialising the electric
windows
Always remove the key from the ignition
when leaving the vehicle, even for a
short time.
In the event of contact during operation
of the windows, you must reverse the
movement of the window. t
o d
o this,
press the switch concerned.
When operating the passenger electric
window switches, the driver must
ensure that no one is preventing correct
closing of the windows.
th

e driver must ensure that the
passengers use the electric windows
c o r r e c t l y.
Be aware of children when operating
the windows.
Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
th

e safety anti-pinch function is not active
during these operations:
-
l

ower the window completely, then raise
it, it will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
-

c

ontinue to press the switch for at least
one

second after reaching this position,
window closed.
Access

98
508_en_Chap03_ergonomie-et-confort_ed01-2016
Always switch off the programmable
heating while refuelling to avoid any risk
of fire or explosion.
to a
void the risk of intoxication and
asphyxiation, the programmable
heating must not be used, even for
short periods, in an enclosed area such
as a garage or workshop not equipped
with exhaust gas extraction.
Do not park the vehicle on an
inflammable sur face (dry grass, dead
leaves, paper…), there is a risk of fire.
Only one programmed or immediate
preheating/preventilation can be
activated between two starts of
the


vehicle.the
heating and the ventilation in
immediate or programmable mode is
not activated when:
-

t

he fuel level is too low,
-

t

he battery is not sufficiently
charged.
to p

rogramme the heating and the
ventilation, it is necessary to first
deactivate the alarm volumetric and tilt
monitoring.
For more information on the alarm, refer
to the corresponding section.
ease of use and comfort

105
508_en_Chap03_ergonomie-et-confort_ed01-2016

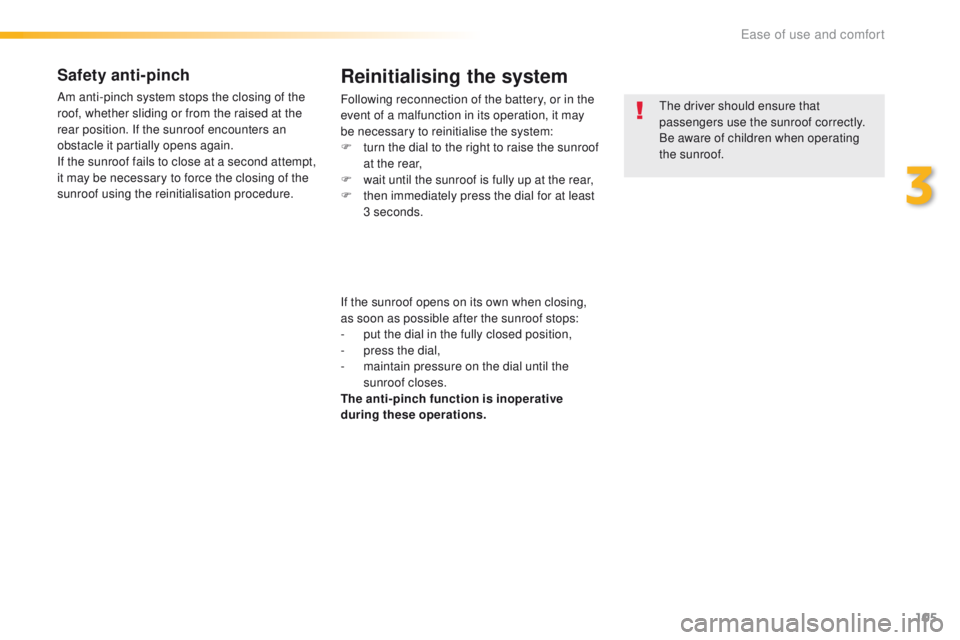

Safety anti-pinch
Am anti-pinch system stops the closing of the
roof, whether sliding or from the raised at the
rear position. If the sunroof encounters an
obstacle it partially opens again.
If the sunroof fails to close at a second attempt,
it may be necessary to force the closing of the
sunroof using the reinitialisation procedure.
Reinitialising the system
Following reconnection of the battery, or in the
event of a malfunction in its operation, it may
be necessary to reinitialise the system:
F
t
urn the dial to the right to raise the sunroof
at the rear,
F

w
ait until the sunroof is fully up at the rear,
F

t
hen immediately press the dial for at least
3 seconds.
If the sunroof opens on its own when closing,
as soon as possible after the sunroof stops:
-

p
ut the dial in the fully closed position,
-

p
ress the dial,
-

m
aintain pressure on the dial until the
sunroof closes.
The anti-pinch function is inoperative
during these operations.th e driver should ensure that
passengers use the sunroof correctly.
Be aware of children when operating
the sunroof.
3
ease of use and comfort
