2016 PEUGEOT 5008 Owners Manual

87
5008_en_Chap04_visibilite_ed01-2015
Automatic illumination of headlamps
F Turn the ring to the "AUTO" position. The
activation of the function is accompanied
by the display of a message in the screen.
Deactivation
F Turn the ring to another position. Deactivation of the function is accompanied
by the display of a message in the screen.
Operating fault
In the event of a malfunction of the sunshine
sensor, the lighting comes on, this warning
lamp is displayed in the instrument panel
and/or a message appears in the screen,
accompanied by an audible signal.
Contact a PEUGEOT dealer or a qualified
workshop.
Automatic guide-me-home
lighting
When the automatic illumination of headlamps
function is activated (lighting control stalk in the
"AUTO " position), under low ambient light the
dipped beam headlamps remain on when the
ignition is switched off.
In fog or snow, the sunshine sensor
may detect sufficient light. In this
case, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind the rear view mirror; the
associated functions would no longer
be controlled.
When a low level of ambient light is detected
by a sunshine sensor, the number plate
lamps,
s

idelamps and dipped beam headlamps
are switched on automatically, without any
action on the part of the driver. They can also
come on if rain is detected, at the same time as
automatic operation of the windscreen wipers.
As soon as the ambient light returns to a
sufficient level or after the windscreen wipers
are switched off, the lamps are switched off
automatically.
ActivationProgramming
Activation or deactivation,
as well as the duration of the
guide-me-home lighting, is set
in the vehicle configuration
menu.
4
Visibility

88
5008_en_Chap04_visibilite_ed01-2015
Exterior welcome lighting
The remote switching on of the lighting makes your approach to the vehicle easier in poor light. It is
activated according to the level of light detected by the sunshine sensor.
Switching on
The duration of the welcome lighting is
identical to that of the automatic guide-
me-home lighting.
F

P

ress the open padlock on the
remote control.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.
Switching off
The exterior welcome lighting switches off
automatically when the ignition is switched on
or on locking the vehicle again.
Visibility

89
5008_en_Chap04_visibilite_ed01-2015
Manual beam
adjustment of
halogen headlamps
To avoid causing a nuisance to other road
users, the beam height of the halogen
headlamps should be adjusted according to the
load in the vehicle.
0.
1 o
r 2 people in the front seats.
-.
3

people.
1.
5

people.
-.
I

ntermediate setting.
2.
5 p

eople + maximum authorised load.
-.
I

ntermediate setting.
3.
D

river + maximum authorised load.
Automatic beam
adjustment with
xenon headlamps
In order to avoid causing a nuisance to other
road users, this system corrects the height of the
xenon headlamps beam automatically and when
stationary, according to the load in the vehicle. If a fault occurs, this warning lamp is
displayed on the instrument panel,
accompanied by an audible signal
and a message in the multifunction screen.
The system then places your headlamps in the
lowest position.
If a fault occurs, do not touch the xenon
bulbs. Contact a PEUGEOT dealer or a
qualified workshop.
The initial setting is position "0"
.
4
Visibility

90
5008_en_Chap04_visibilite_ed01-2015
Directional lighting
With directional lighting
Without directional lighting
Programming
Operating fault
The system is activated or
deactivated via the vehicle
configuration menu.
If a fault occurs, this warning lamp
flashes in the instrument panel,
accompanied by a message in the
screen.
Contact a PEUGEOT dealer or a qualified
workshop.
This system is linked to the presence of xenon headlamps.
When the main or dipped beam headlamps are on, this system illuminates the inside of bends
(from

12 mph - 20 km/h).
The state of the system remains in memory
when the ignition is switched off.
Visibility

91
5008_en_Chap04_visibilite_ed01-2015
Wiper controls
Model with intermittent
wiping
Model with AUTO wipingProgramming
You can modify the settings for the following
functions:
-
a
utomatic rain sensitive windscreen wipers,
-
r

ear wiping on engaging reverse gear.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the weather
conditions.
Manual controls
Windscreen wipers
A.
Wiping speed selection stalk.
Fast (heavy rain).
Normal (moderate rain).
Intermittent (proportional to the
speed of the vehicle).
Automatic, then single wipe.
Refer to the corresponding
section.
Of f.
Single wipe (press down and
release).
or
4
Visibility

92
5008_en_Chap04_visibilite_ed01-2015

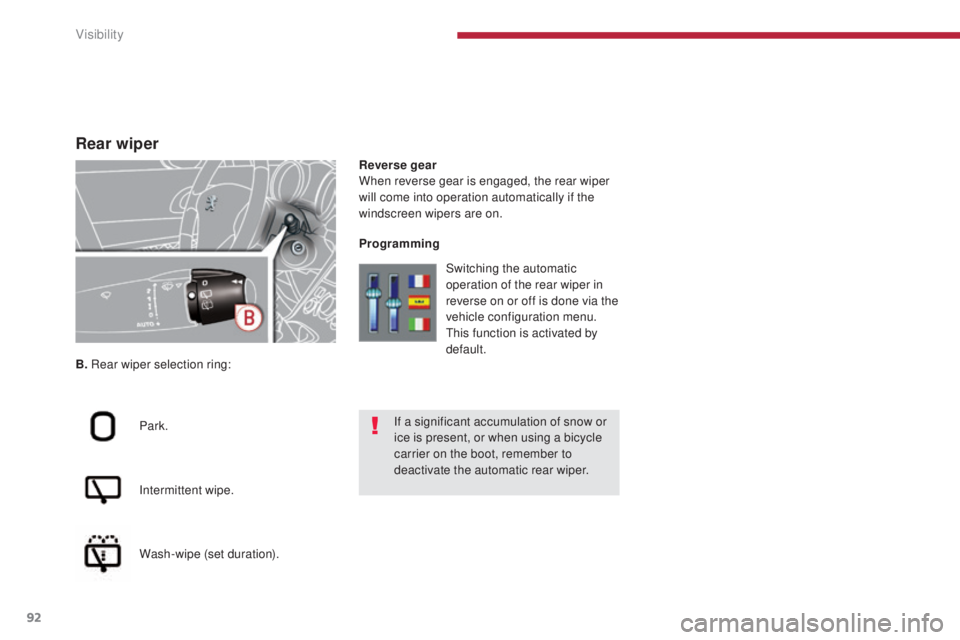

Rear wiper
B. Rear wiper selection ring:
Park.
Intermittent wipe.
Wash-wipe (set duration). Reverse gear
When reverse gear is engaged, the rear wiper
will come into operation automatically if the
windscreen wipers are on.
Programming
Switching the automatic
operation of the rear wiper in
reverse on or off is done via the
vehicle configuration menu.
This function is activated by
default.
If a significant accumulation of snow or
ice is present, or when using a bicycle
carrier on the boot, remember to
deactivate the automatic rear wiper.
Visibility

93
5008_en_Chap04_visibilite_ed01-2015
Windscreen wash
Pull the wiper stalk towards you.
The windscreen wash then the wipers operate
for a set time.
The headlamp wash is also activated if the
dipped beam headlamps are on .
Screenwash/headlamp wash low
level
In the case of vehicles fitted with
headlamp washers, when the
minimum level of the reservoir
is reached, this warning lamp is
displayed in the instrument panel, accompanied
by an audible signal and a message.
The warning lamp is displayed when the
ignition is switched on, or every time the stalk is
operated, until the reservoir is refilled.
Next time you stop, refill the screenwash /
headlamp wash reservoir.
Headlamp wash
Press the end of the lighting stalk to activate
the headlamp wash, when the dipped beam
headlamps are on.
4
Visibility

94
5008_en_Chap04_visibilite_ed01-2015
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically,
without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror), adapting their speed to the intensity of
the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"

position.
It is accompanied by a message in the screen.
Switching off
This is controlled manually by the driver by
moving the stalk upwards then returning it to
position "0" .
It is accompanied by a message in the screen.
Operating fault
If an automatic wiping malfunction occurs, the
wipers will operate in intermittent mode.
Have it checked by a PEUGEOT dealer or a
qualified workshop.
Do not cover the rain sensor, linked with
the sunshine sensor and located in the
centre of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensitive
wipers when using an automatic car wash.
In winter, to avoid damaging the wiper
blades, it is advisable to wait until the
windscreen is completely clear of ice
before activating the automatic rain
sensitive wipers.
The automatic rain sensitive wipers
must be reactivated if the ignition has
been off for more than one minute, by
pushing the stalk downwards.
Visibility
