Storage compartments
under the rear footwells
Depending on the configuration, the vehicle
has storage compartments under the footwells,
located for ward of the outer rear seats. Access
is via clipped flaps with a handle A.
"Aircraft" type
tables
Installed on the back of each front seat, these
allow you to set down objects.
F

T
o use the table, lower it fully until it locks
in the low position.
F

T
o store the table, raise it, passing the
point of resistance, to the high position.
On the passenger side, do not forget
to fold the "aircraft" type table before
placing the seat in the table position.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
emergency braking or impact.
Storage drawer
Opening
F Raise the front of the drawer and pull it.
Do not place heavy objects in the drawers. It is located under the driver's seat (manual
adjustment).
5
Fittings

104
5008_en_Chap05_amenagements_ed01-2015
Rear multimedia
This multimedia system allows rear passengers
to connect one or two external portable
systems (audio or video player, games
consoles, DVD player...). The sound is played
through two Bluetooth
® wireless headphone
sets, while the video content is displayed in two
7-inch screens built into the backs of the front
seat head restraints.
Description
This system operates only with the
engine running. The pack includes:
-

t
he connection and control panel fitted on
the rear face of the centre console,
-
t
wo 7-inch screens built into the front head
restraints (with protective covers),
-
t
wo wireless Bluetooth technology
headphone sets with rechargeable
batteries,
-
a 1
2 V charger with two outlets allowing the
simultaneous charging of two headphones. 1.
P
ower switch
2.
A
V1 video input (yellow RCA socket)
3.
S
tereo audio input A (red and white
RC A

s o c ket s)
4.
A
V2 video input (yellow RCA socket)
5.
S
tereo audio input B (red and white
RC A

s o c ket s)
6.
S
election of display in the left hand screen
(AV1 o r AV2)
7.
S
election of display in the right hand
screen (AV1 or AV2)
8. C onnection indicator lamps for the
Bluetooth audio headphones (blue)
Fittings

105
5008_en_Chap05_amenagements_ed01-2015
1. Screen power switch
2. Display adjustment buttons
Each headphone set has a switch,
a connection indicator lamp (blue)
and a channel selector (A or B).
Operation
F With the engine running, connect your portable system to the RCA connectors
(e.g. with AV1 on the left).
F

P
ress the switch on the control panel,
the indicator lamp comes on and the AV1
indicator lamps come on.
F

M
ake a long press on the switch, its
indicator lamp flashes in blue.
F

M
ake a long press on the control panel
switch, the pairing with the headphone set
is complete when the blue indicator lamps
on the headphones and on the system are
on continuously.
F

R
epeat the operation for the other
headphone set.
F

P
ress the screen switch if you have a video
source.
F

S
tart playing your portable system. F

I
t is possible at any time to modify the
source for the video display (using
button 6 or 7 on the control panel: the
indicator lamp for the source selected
comes on) as well as the audio channel
(using the selector on the headphones).
The Multimedia system allows the
connection of a third Bluetooth
headphone set, not supplied.
If your seat is in the table position,
position a cover to avoid damaging the
screen.
These covers also conceal each
screen.
5
Fittings

106
5008_en_Chap05_amenagements_ed01-2015
Panoramic sunroof
Motorised blind
It has a blind that can be used to improve temperature and noise related comfort in the passenger
compartment.With button B:
-

p
ress at the top to open the blind,
-

p
ress at the bottom to close the blind.
With button A
:
-

p
ull the control to open the blind,
-

p
ush the control to close the blind.
Depending on version, the blind is opened and closed using:
-
button A on the centre console,
-

o
r button B on the dashboard.
Manual mode
Maintaining pressure on the control opens or
closes the blind: movement stops if you release
the control. Pressure on the control in the
opposite direction reverses the movement.
The control is operational with the
ignition on and for 45 seconds after
switching off the ignition.
Fittings

107
5008_en_Chap05_amenagements_ed01-2015
Automatic mode
Pressing and releasing the control opens or
closes the blind completely. Pressing again
stops the movement.
Safety anti-pinch
In automatic mode and at the end of its travel,
if the blind meets an obstacle while closing it
stops and moves back slightly.
Reinitialisation: after reconnecting the battery
or in the event of a fault while the blind is
moving, it may be necessary to reinitialise the
system:
F

O
perate the control until the blind is fully
closed or open.
F

C
ontinue to press for at least 3 seconds.
A slight movement of the blind will then be
noticeable, confirming the reinitialisation. If the blind opens on its own while
closing, and immediately after it stops.
F

O
perate the control until the blind is
fully open.
F
O
perate the control until the blind is
fully closed.
The safety anti-pinch function is not
operational during these operations.
If the blind meets an obstacle during
operation, you must reverse the
movement of the blind.
When the driver operates the blind
control, they must ensure that nothing
and no one is preventing the correct
closing of the blind.
The driver must ensure that passengers
use the blind correctly.
Be aware of children when operating
the blind.
5
Fittings

108
5008_en_Chap05_amenagements_ed01-2015

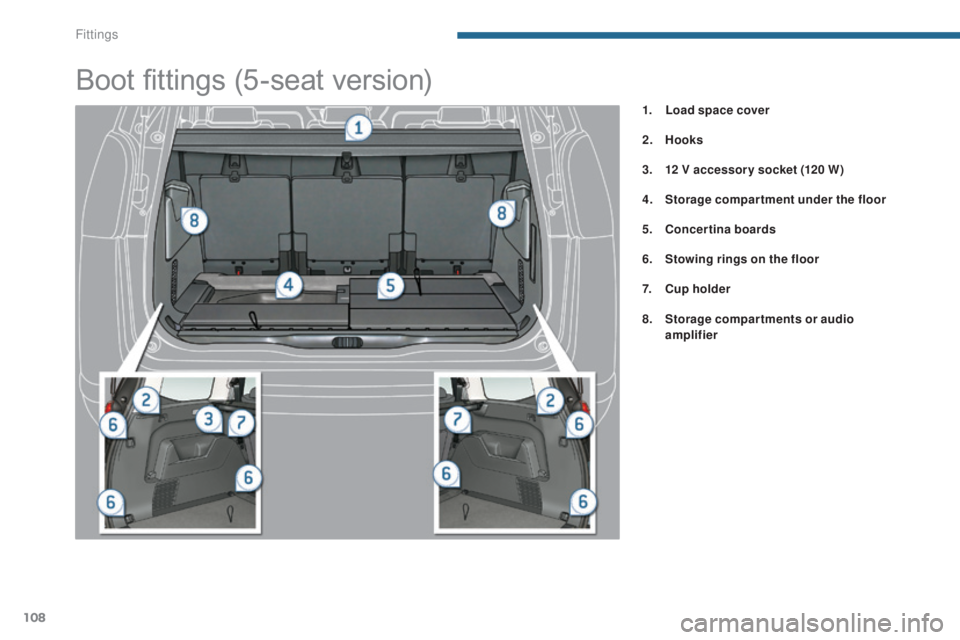

Boot fittings (5-seat version)
1. Load space cover
2.
Hoo
ks
3.
1

2 V accessor y socket (120 W)
4.
S

torage compartment under the floor
5.
C

oncertina boards
6.
S

towing rings on the floor
7.
C

up holder
8.
S

torage compartments or audio
amplifier
Fittings

109
5008_en_Chap05_amenagements_ed01-2015
1. Load space cover
2.
Hoo
ks
3.
1

2 V accessor y socket (120 W)
4.
B

uckles for the 3
rd row seat belts
5.
C

oncertina boards
6.
S

towing rings on the floor
7.
C

up holder
8.
A

rmrests
9.
S

torage compartments or audio
amplifier

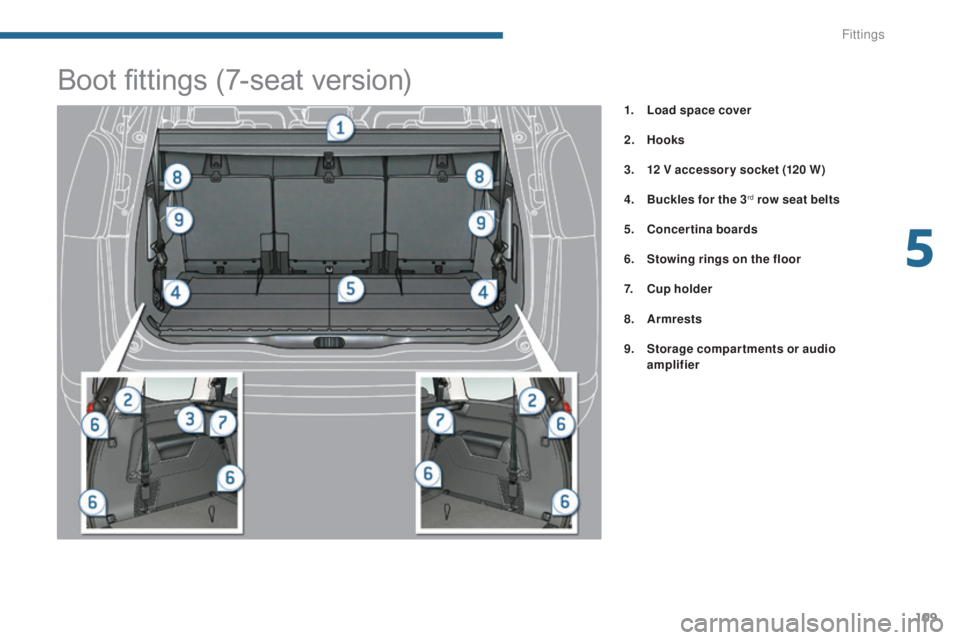

Boot fittings (7-seat version)
5
Fittings

110
5008_en_Chap05_amenagements_ed01-2015
Roller load space cover
To install the load space cover:
F p osition one of the ends of the roller in its
support,
F

i
nsert the second end in its support,
F

p
ivot the ends of the roller downwards to
secure it,
F

r
eel out the load space cover to the boot
pillars,
F

i
nsert the load space screen guides in the
rails on the boot pillars.
To remove the load space cover:
F

r

emove the load space cover guides from
the rails on the boot pillars,
F

r

eel in the load space cover in its roller, To store the load space cover, roller uppermost
and flap facing towards the inside of the
vehicle:
F

p

lace the right-hand end in its housing,
F

s

lide the left-hand end into the guide then
into its housing,
F

p

ivot the ends of the roller upwards to
release it,
F

r

emove the roller from its support. F

se

cure the assembly by pivoting the ends
downwards. The roller has two rings for fixing the
luggage retaining net depending on its
location. If you use the 3
rd row seats (7 seat
version), it is essential to store the roller
in its housing.
