2016 Peugeot 308 light

257
308_en_Chap08_en-cas-de-panne_ed02-2015
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.the h
eadlamps are fitted with
polycarbonate glass with a protective
coating:
F
do n

ot clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
us

e a sponge and soapy water or a
pH neutral product,
F
wh

en using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
Do n

ot touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (
uV) t

ype bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Daytime running lamps / sidelamps
For the replacement of this type of LeD la mp
and lighting guides, contact a Peu geOt d ealer
or a qualified workshop.
A replacement kit for the L
eDs i

s available from
P
eu

ge
Ot dea
lers.
8
In the event of a breakdown

260
308_en_Chap08_en-cas-de-panne_ed02-2015
Integrated direction indicator
side repeaters
You should contact a Peu geOt d ealer or a
qualified workshop for the replacement of these
bulbs. You should contact a P
eu
ge
Ot d
ealer or a
qualified workshop for the replacement of the
light emitting diode - L
eD.
Front foglamps
F unclip the finisher by pulling at the top
( cut-out).
F
Re

move the two screws to remove the unit
from its housing. F Di
sconnect the connector.
F uns crew the bulb holder (1/4 turn).
F
Re

move the bulb holder.
F
Ch

ange the failed bulb.
For reassembly, carry out these operations in
reverse order, pressing on the finisher to refit it.
Door mirror spotlamps
In the event of a breakdown

261
308_en_Chap08_en-cas-de-panne_ed02-2015
1. Sidelamps (light emitting diodes - LeDs ).
2. Re versing lamps (W16W).
3.
Di

rection indicators (PY21W amber).
4.
Br

ake lamps (light emitting diodes - L
eDs
).
5.
Fo

glamps (P21W).
Rear lamps
(hatchback)
Light emitting
diodes-LEDs
For replacement, contact a Peu geOt
d ealer or qualified workshop.
Reversing lamps, direction
indicators (on the wings)
F Disconnect the lamp connector.
F Re move the lamp fixing nut.
F
Ca

refully remove the lamp unit from
outside.
F


u
ns
crew the bulb holder (a quarter of a
turn) and change the bulb.
For reassembly, carry out these operations in
reverse order.
F Op
en the tailgate then remove the access
c ove r.
8
In the event of a breakdown

263
308_en_Chap08_en-cas-de-panne_ed02-2015
Rear lamps
(SW)
Light emitting
diodes-LEDs
For replacement, contact a Peu geOt
d ealer or qualified workshop.
Direction indicators
(on the wings)
F Open the tailgate then remove the access
c ove r.
F
Re

move the two lamp fixing nut (pipe
spanner or socket recommended).
F
Disenga

ge the retaining clip, carefully
removing the lamp unit from outside. F
Di

sconnect the lamp connector.
F
Rem
ove the sealing foam.
F

u
nc
lip the bulb holder by pressing on the
two tongues.
F
Re
place the bulb.
For reassembly, carry out these operations in
reverse order.
1.
Si

delamps (light emitting diodes - L
eDs

).
2.
Di

rection indicators (PY21W amber).
3.
Br

ake lamps (light emitting diodes - L
eDs

).
4.
Re

versing lamps (W16W).
5.
Fo

glamps (P21W).
8
In the event of a breakdown

265
308_en_Chap08_en-cas-de-panne_ed02-2015
For the replacement of this type of lamp,
contact a Peu
geOt d ealer or a qualified
workshop.

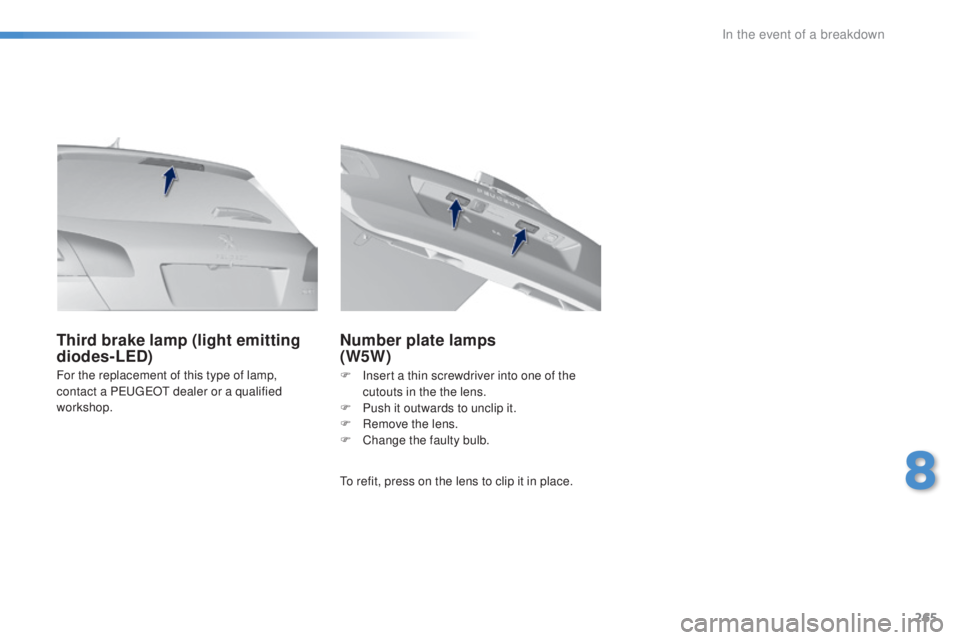

Third brake lamp (light emitting
diodes-LED) Number plate lamps
(W5W)
to refit, press on the lens to clip it in place.
F
In
sert a thin screwdriver into one of the
cutouts in the the lens.
F
Push
it outwards to unclip it.
F
Re
move the lens.
F
Ch
ange the faulty bulb.
8
In the event of a breakdown

269
308_en_Chap08_en-cas-de-panne_ed02-2015
Version 2 (Eco)
Fuse
N° Rating
(A) Functions
F9 5
eme

rgency and assistance calls.
F13 5Reversing camera and parking sensors
F15 1512 V accessory socket.
F16 15Cigarette lighter.
F17 15Audio system.
F18 20
tou

ch screen, CD player, audio and navigation system.
F19 5Rain, sunshine sensor.
F20 5Airbags.
F21 5Instrument panel.
F22/F24 30Interior, exterior, front and rear locks.
F23 5
glov

e box lamp, vanity mirror, front and rear courtesy lamps.
F25/F27 15Front/rear screenwash pump.
F26 15Horn.
F30 15Rear wiper.
8
In the event of a breakdown

376
308_en_Chap10d_RD45_ed02-2015
Screen menu map(s)
Radio- CD
REG mode
CD repeat
Shuffle play
Vehicle config*
R wiper in rev
Options
Diagnostic
RDS options
View
Abandon
1
2
3
3
1
2
2
2
2
1
2
Screen A
* the settings vary according to the trim level of
t he vehicle.
Guide lighting
2
Units
Temperature: °Celsius / °Fahrenheit
Fuel consumption: KM/L - L/100 - MPG
1
2
2
Display adjust
Month
Day
Hour
Minutes Ye a r
12 H/24 H mode
Language
Italiano
Nederlands
Portuguès
Português do Brasil Français
Deutsch
Čeština English
Hr vatski Español
Magyar
1
2
2
2
2
2
2
2
1
2
2
2
2
2
2
2
2
2
2
Audio and telematics
