2016 NISSAN NV200 Owners Manual

●High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● Use the same number and wattage as
shown in the chart.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, it is recommended that you visit a
NISSAN dealer for this service.
Aiming the headlights
The headlights on your vehicle are properly aimed
at the assembly plant. If your vehicle has been in
a collision, the alignment of your headlights
should be checked by a NISSAN dealer. Vertical aim adjustment
NOTE:
Due to a maximum load condition of the
vehicle, headlight aiming adjustment may
be necessary. Please perform the following
procedure:
1. Park the vehicle directly in front of a wall or screen on a level surface, approximately
25 feet (7.6 meters) away.
●
18 feet (2.4 meters)
●
2Center height of headlight to ground
●
325 feet (7.6 meters) ●
4Horizontal reference line
2. Measure the height from the center of the headlight to the ground and mark an 8 foot
(2.4 meter) horizontal reference line on the
vertical wall or screen at this height (a piece
of masking tape works well) .
3. Turn on the low beam headlights to illumi- nate the wall or screen and open the hood.
LDI2252
8-26Maintenance and do-it-yourself

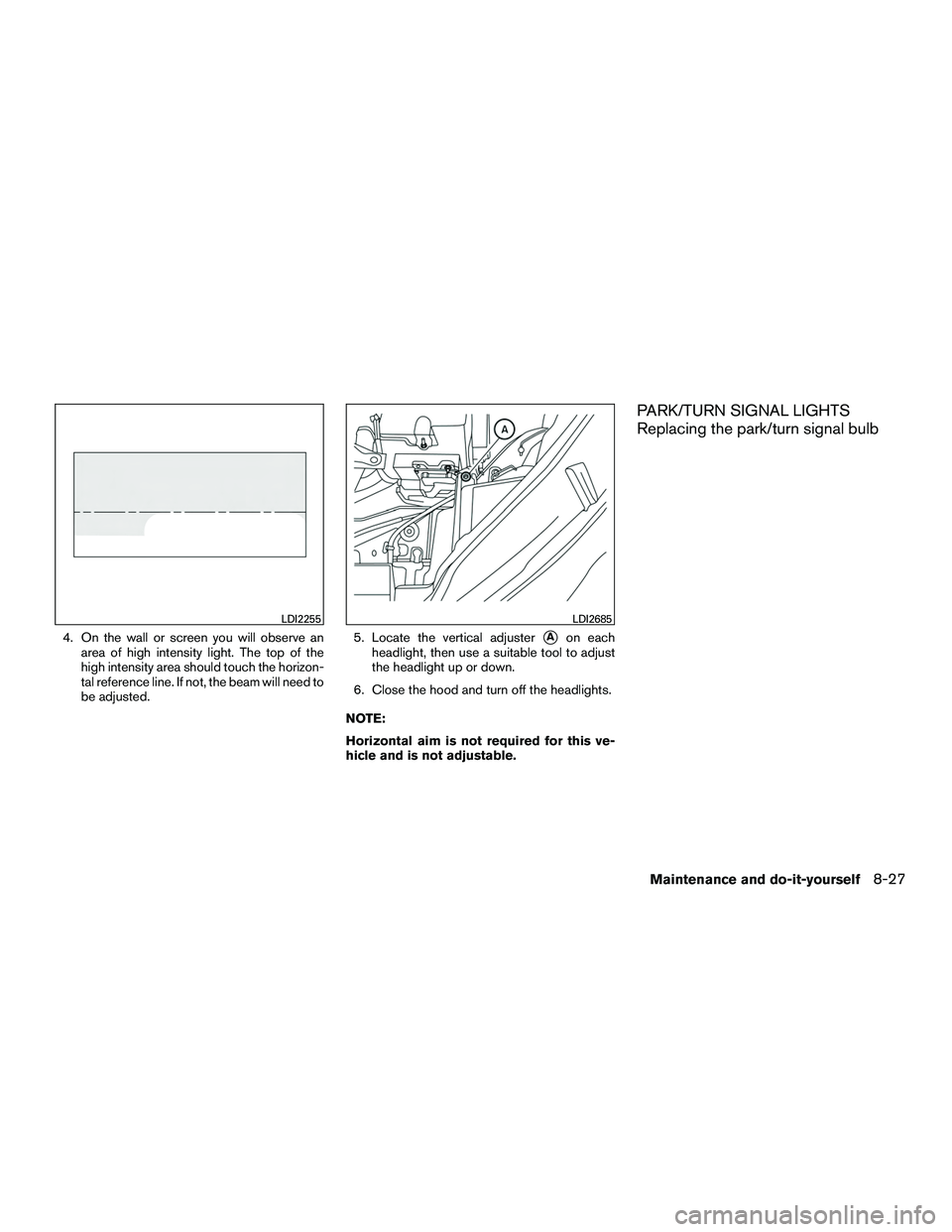

4. On the wall or screen you will observe anarea of high intensity light. The top of the
high intensity area should touch the horizon-
tal reference line. If not, the beam will need to
be adjusted. 5. Locate the vertical adjusterAon each
headlight, then use a suitable tool to adjust
the headlight up or down.
6. Close the hood and turn off the headlights.
NOTE:
Horizontal aim is not required for this ve-
hicle and is not adjustable.
PARK/TURN SIGNAL LIGHTS
Replacing the park/turn signal bulb
LDI2255LDI2685
Maintenance and do-it-yourself8-27

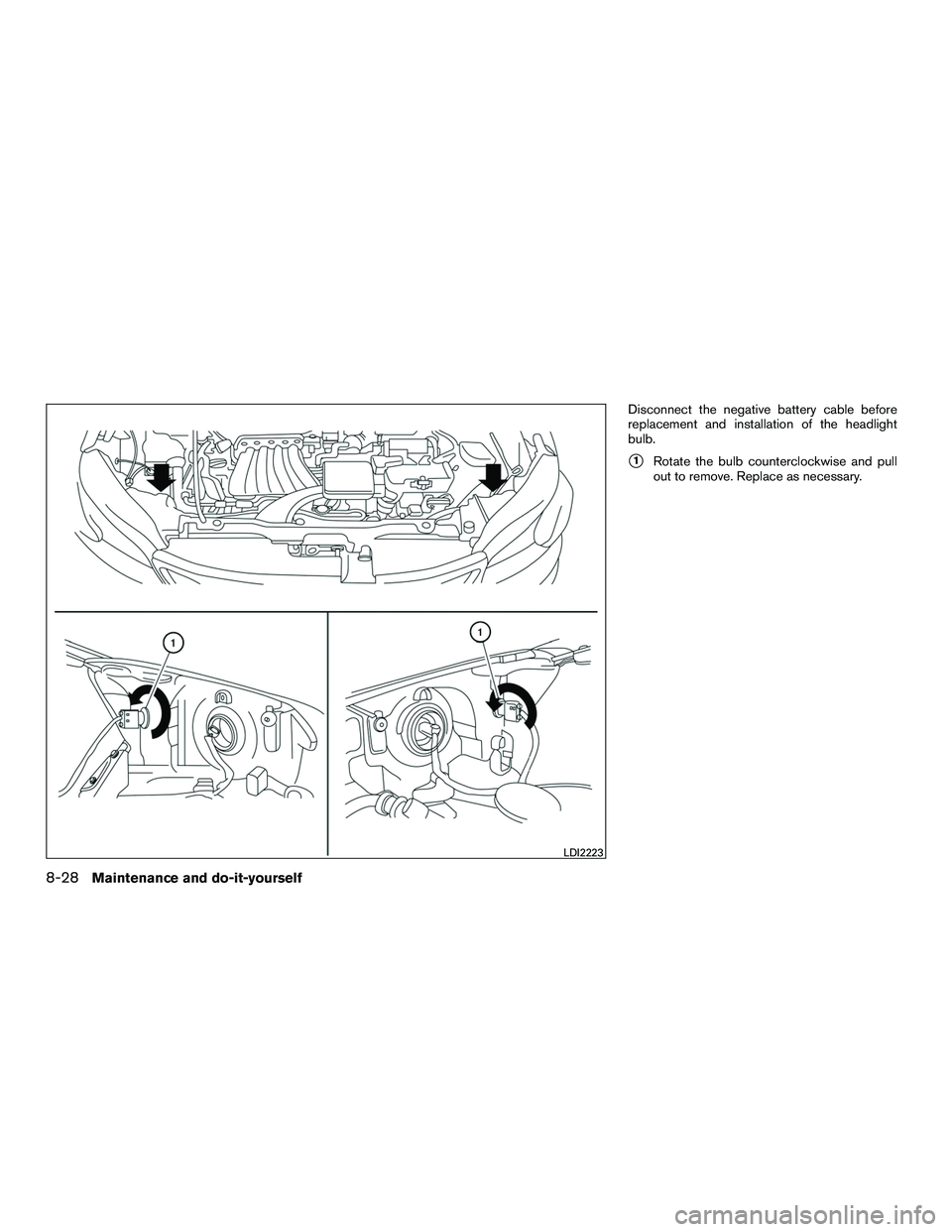

Disconnect the negative battery cable before
replacement and installation of the headlight
bulb.
1Rotate the bulb counterclockwise and pull
out to remove. Replace as necessary.
LDI2223
8-28Maintenance and do-it-yourself

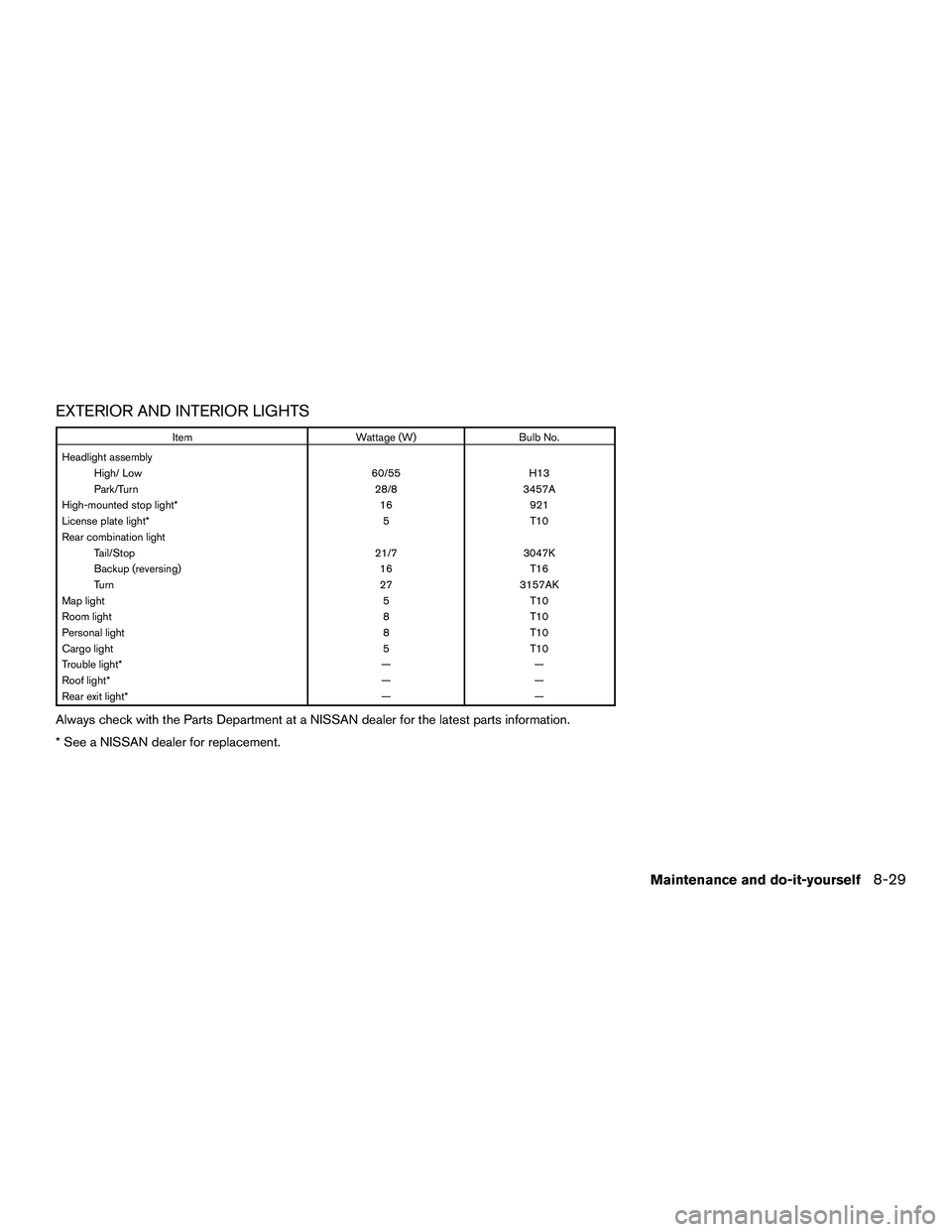

EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly High/ Low 60/55H13
Park/Turn 28/83457A
High-mounted stop light* 16921
License plate light* 5T10
Rear combination light Tail/Stop 21/73047K
Backup (reversing) 16T16
Turn 273157AK
Map light 5T10
Room light 8T10
Personal light 8T10
Cargo light 5T10
Trouble light* ——
Roof light* ——
Rear exit light* ——
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
* See a NISSAN dealer for replacement.
Maintenance and do-it-yourself8-29

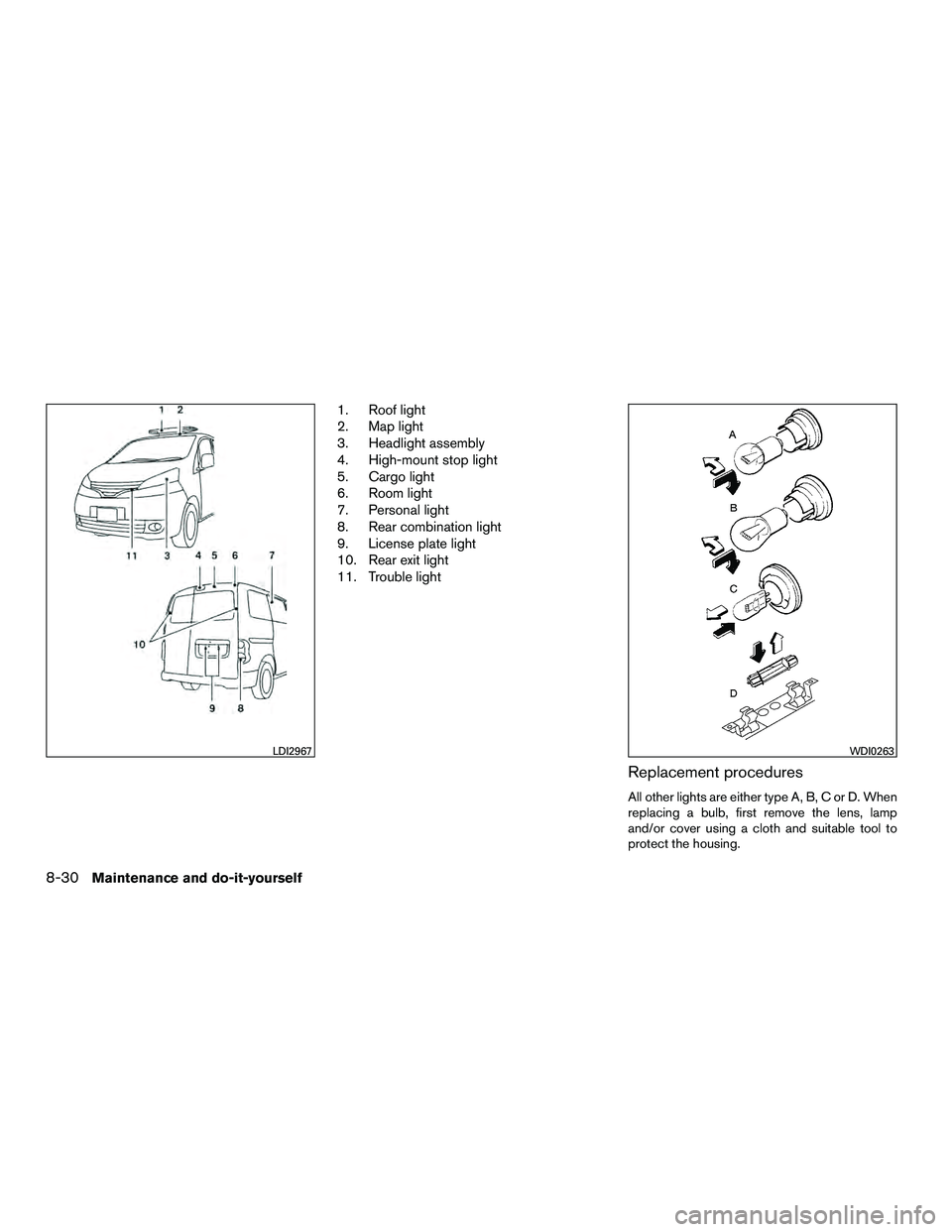

1. Roof light
2. Map light
3. Headlight assembly
4. High-mount stop light
5. Cargo light
6. Room light
7. Personal light
8. Rear combination light
9. License plate light
10. Rear exit light
11. Trouble light
Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens, lamp
and/or cover using a cloth and suitable tool to
protect the housing.
LDI2967WDI0263
8-30Maintenance and do-it-yourself

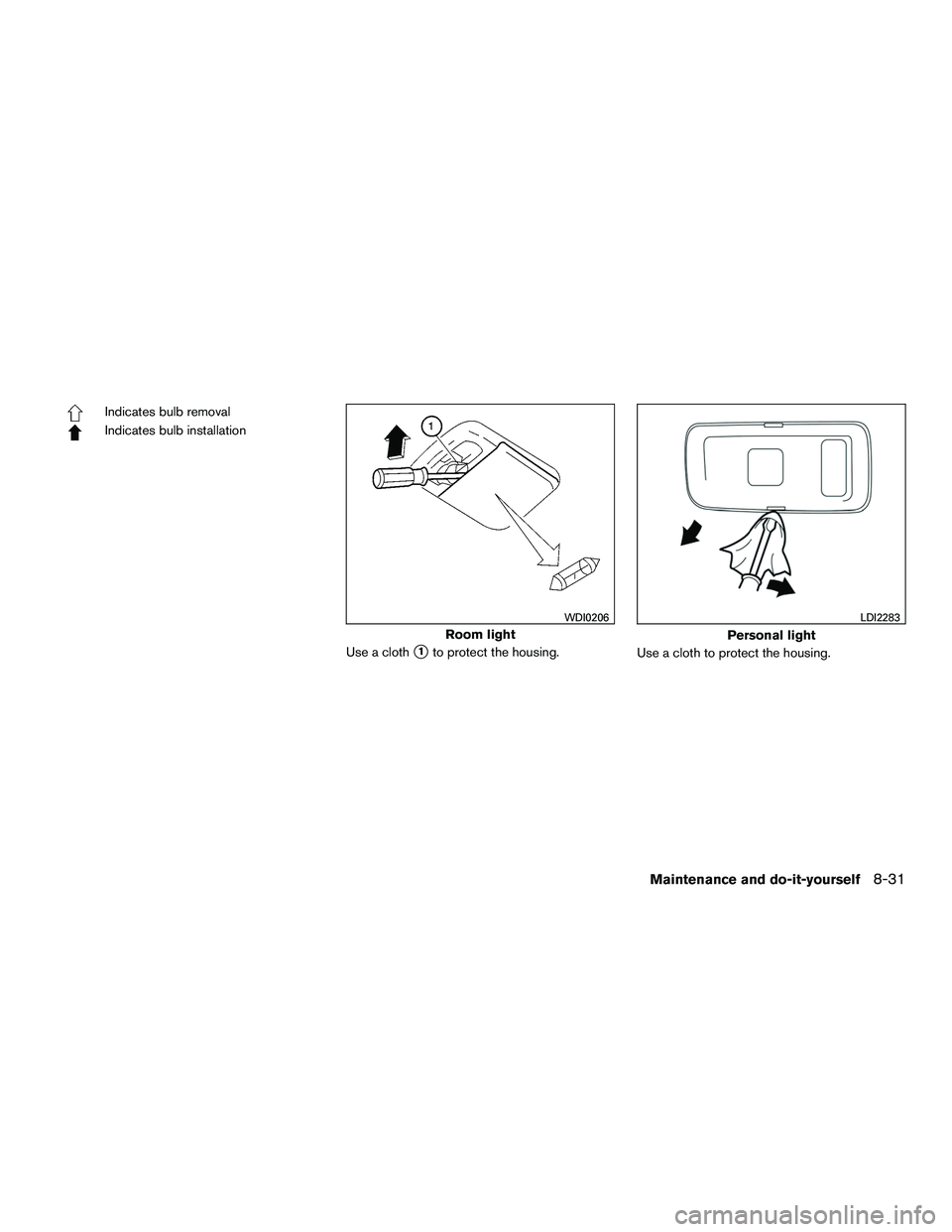

Indicates bulb removal
Indicates bulb installationUse a cloth
1to protect the housing.Use a cloth to protect the housing.
Room light
WDI0206
Personal light
LDI2283
Maintenance and do-it-yourself8-31

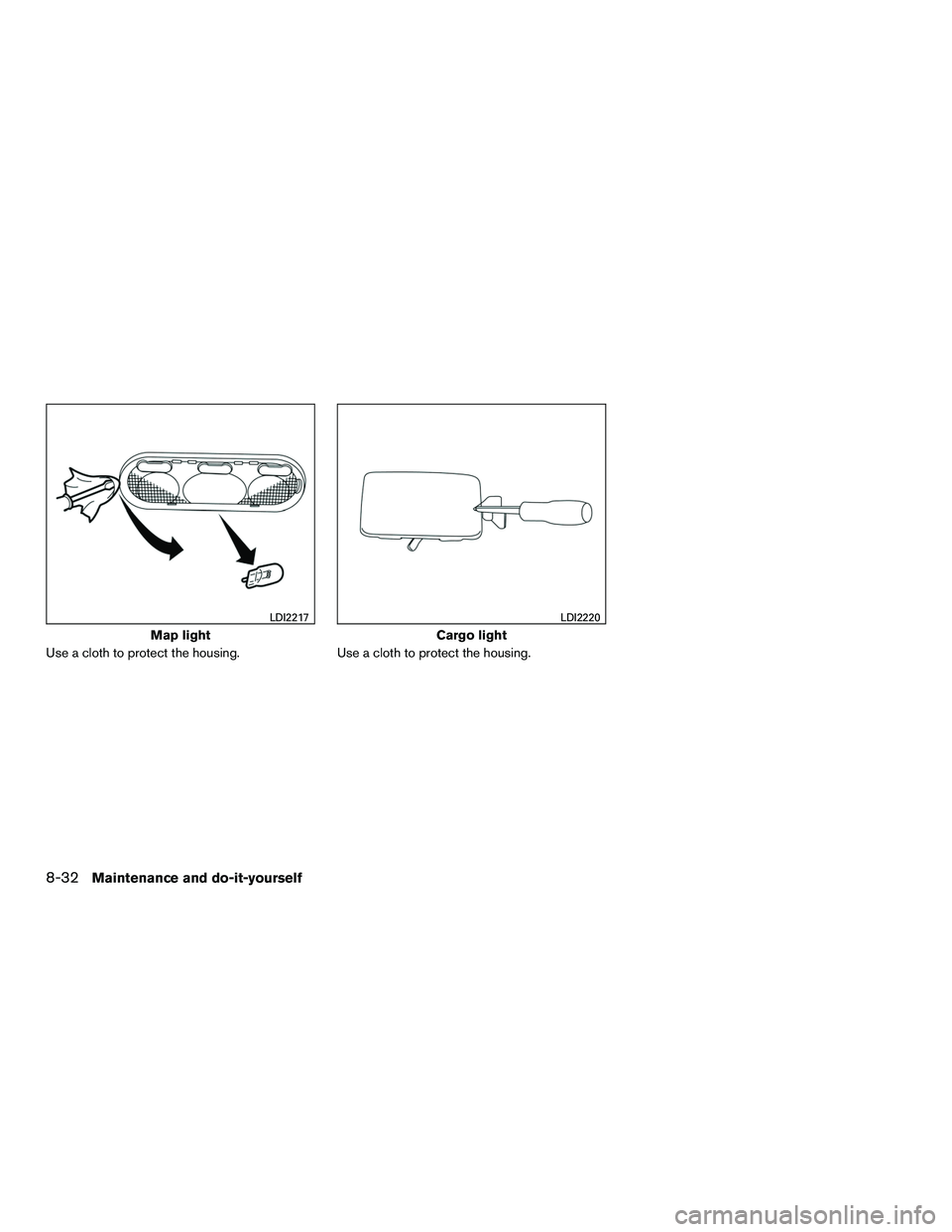

Use a cloth to protect the housing.Use a cloth to protect the housing.
Map light
LDI2217
Cargo light
LDI2220
8-32Maintenance and do-it-yourself

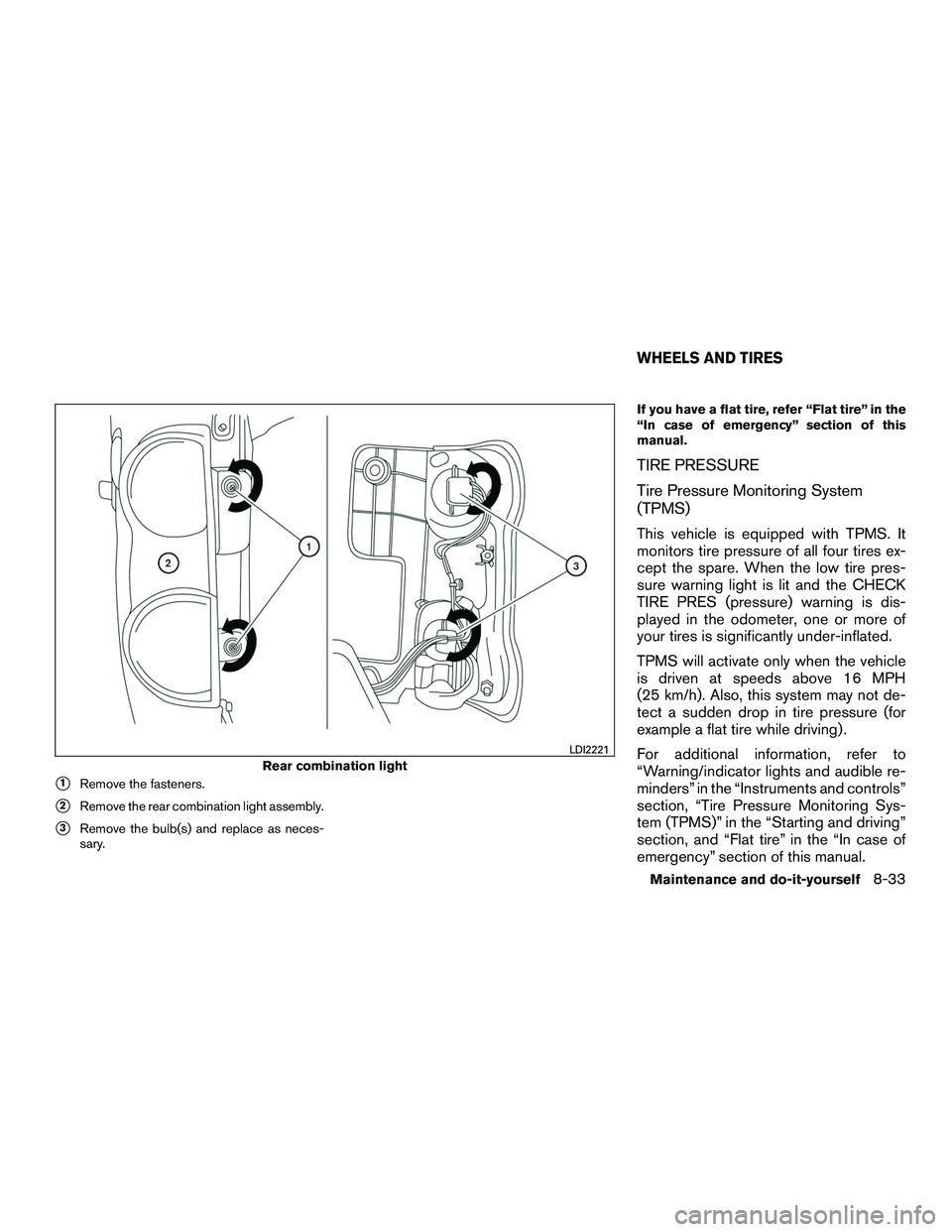

1Remove the fasteners.
2Remove the rear combination light assembly.
3Remove the bulb(s) and replace as neces-
sary. If you have a flat tire, refer “Flat tire” in the
“In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with TPMS. It
monitors tire pressure of all four tires ex-
cept the spare. When the low tire pres-
sure warning light is lit and the CHECK
TIRE PRES (pressure) warning is dis-
played in the odometer, one or more of
your tires is significantly under-inflated.
TPMS will activate only when the vehicle
is driven at speeds above 16 MPH
(25 km/h). Also, this system may not de-
tect a sudden drop in tire pressure (for
example a flat tire while driving) .
For additional information, refer to
“Warning/indicator lights and audible re-
minders” in the “Instruments and controls”
section, “Tire Pressure Monitoring Sys-
tem (TPMS)” in the “Starting and driving”
section, and “Flat tire” in the “In case of
emergency” section of this manual.
Rear combination light
LDI2221
WHEELS AND TIRES
Maintenance and do-it-yourself8-33
