2016 NISSAN NV200 Owners Manual

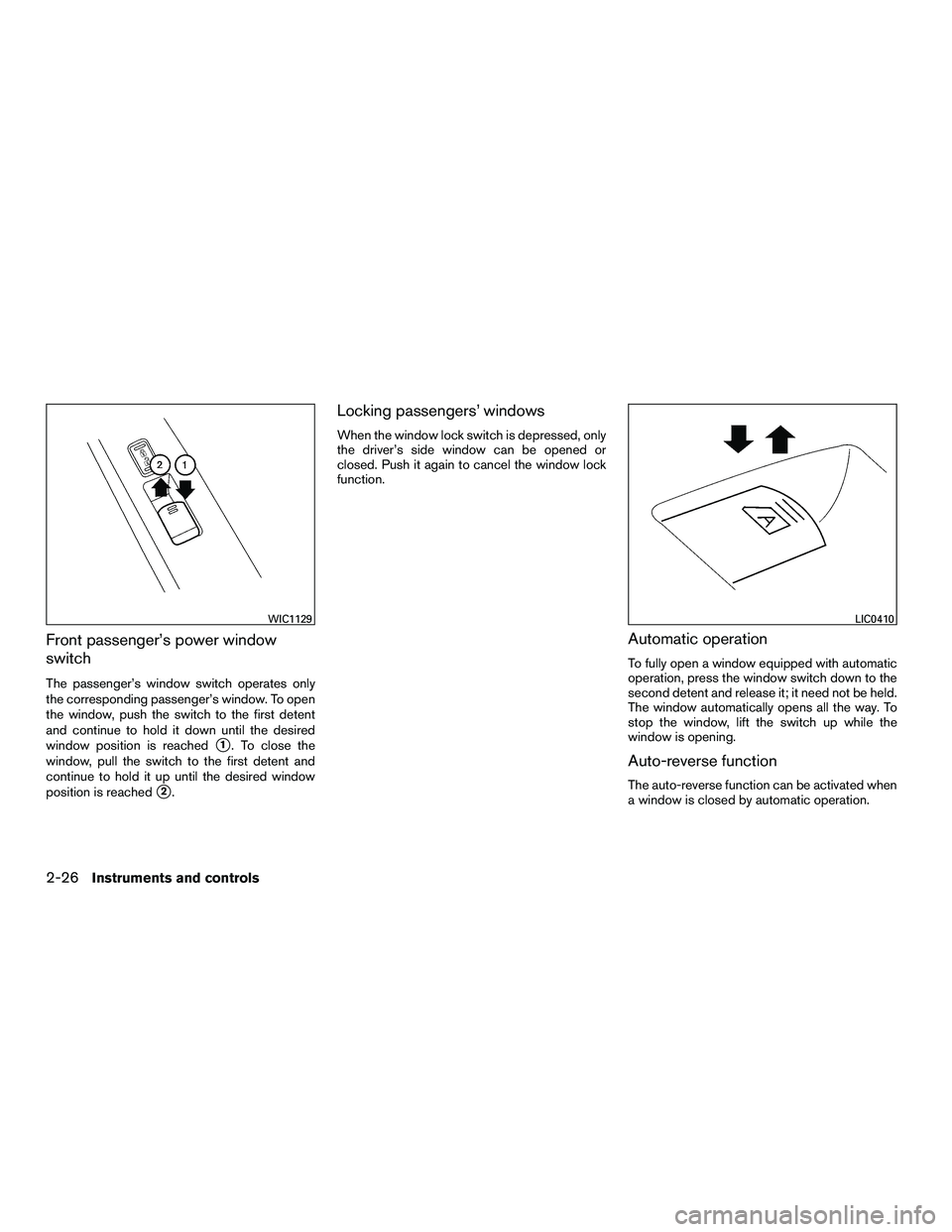

Front passenger’s power window
switch
The passenger’s window switch operates only
the corresponding passenger’s window. To open
the window, push the switch to the first detent
and continue to hold it down until the desired
window position is reached
1. To close the
window, pull the switch to the first detent and
continue to hold it up until the desired window
position is reached
2.
Locking passengers’ windows
When the window lock switch is depressed, only
the driver’s side window can be opened or
closed. Push it again to cancel the window lock
function.
Automatic operation
To fully open a window equipped with automatic
operation, press the window switch down to the
second detent and release it; it need not be held.
The window automatically opens all the way. To
stop the window, lift the switch up while the
window is opening.
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
WIC1129LIC0410
2-26Instruments and controls

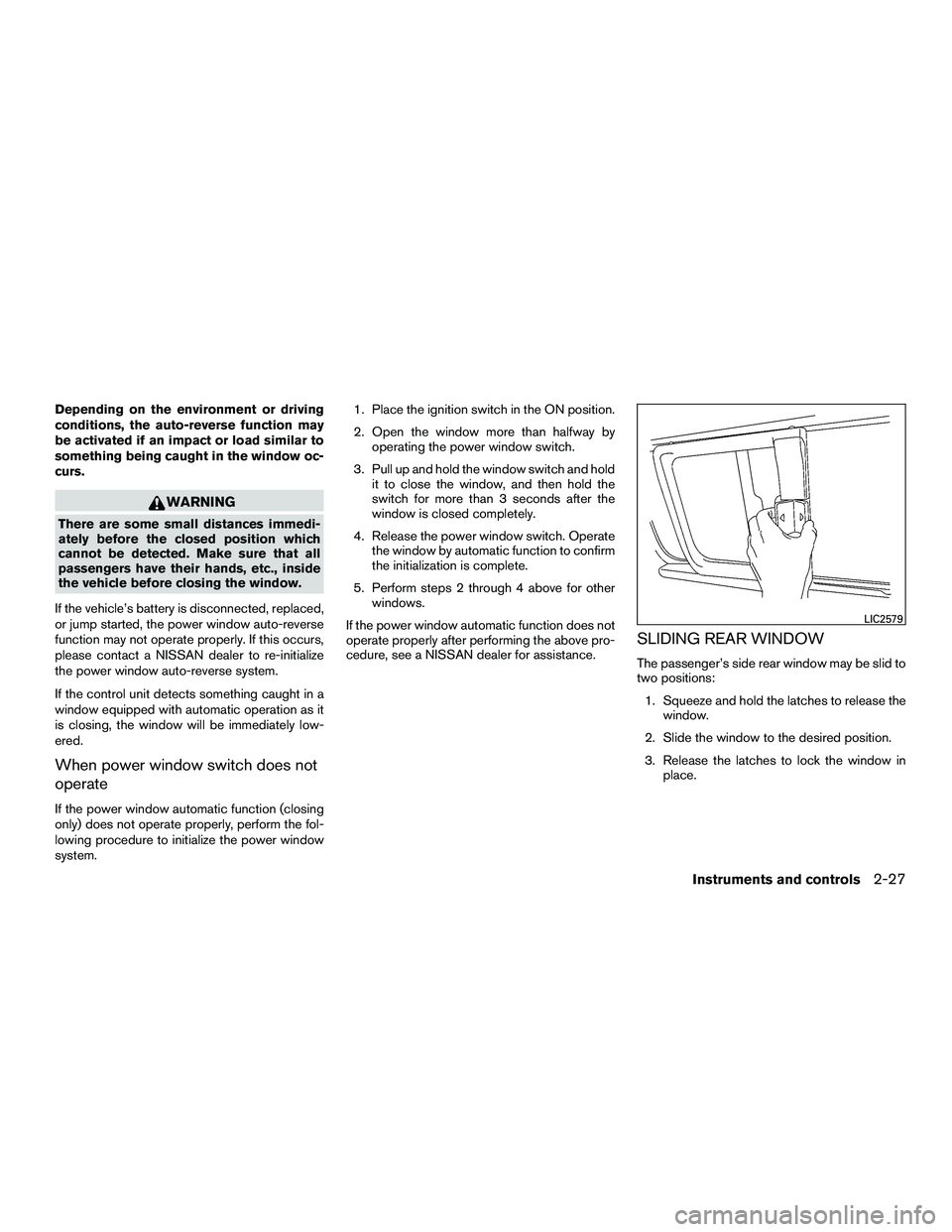

Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
please contact a NISSAN dealer to re-initialize
the power window auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation as it
is closing, the window will be immediately low-
ered.
When power window switch does not
operate
If the power window automatic function (closing
only) does not operate properly, perform the fol-
lowing procedure to initialize the power window
system. 1. Place the ignition switch in the ON position.
2. Open the window more than halfway by
operating the power window switch.
3. Pull up and hold the window switch and hold it to close the window, and then hold the
switch for more than 3 seconds after the
window is closed completely.
4. Release the power window switch. Operate the window by automatic function to confirm
the initialization is complete.
5. Perform steps 2 through 4 above for other windows.
If the power window automatic function does not
operate properly after performing the above pro-
cedure, see a NISSAN dealer for assistance.
SLIDING REAR WINDOW
The passenger’s side rear window may be slid to
two positions: 1. Squeeze and hold the latches to release the window.
2. Slide the window to the desired position.
3. Release the latches to lock the window in place.
LIC2579
Instruments and controls2-27

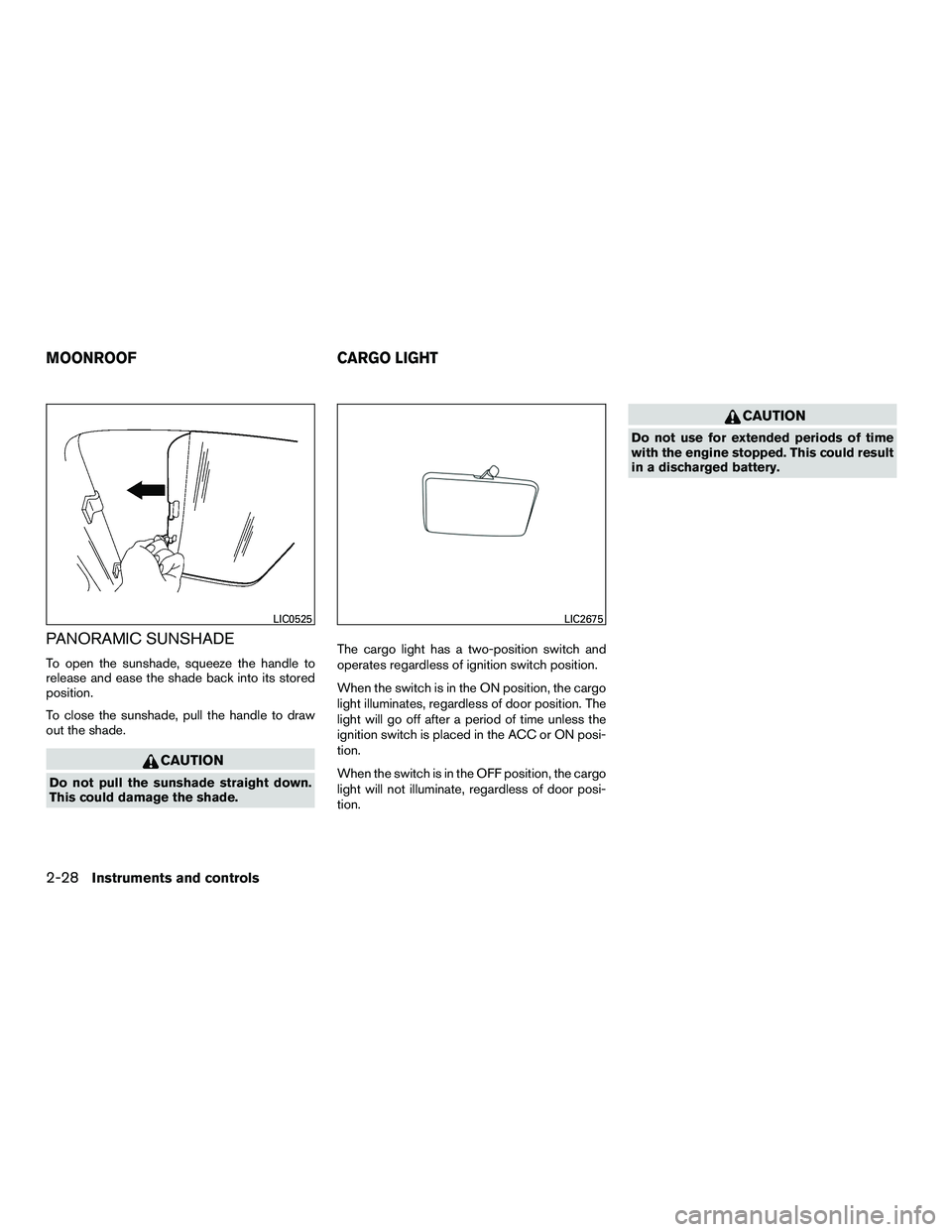

PANORAMIC SUNSHADE
To open the sunshade, squeeze the handle to
release and ease the shade back into its stored
position.
To close the sunshade, pull the handle to draw
out the shade.
CAUTION
Do not pull the sunshade straight down.
This could damage the shade.The cargo light has a two-position switch and
operates regardless of ignition switch position.
When the switch is in the ON position, the cargo
light illuminates, regardless of door position. The
light will go off after a period of time unless the
ignition switch is placed in the ACC or ON posi-
tion.
When the switch is in the OFF position, the cargo
light will not illuminate, regardless of door posi-
tion.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
LIC0525LIC2675
MOONROOF
CARGO LIGHT
2-28Instruments and controls

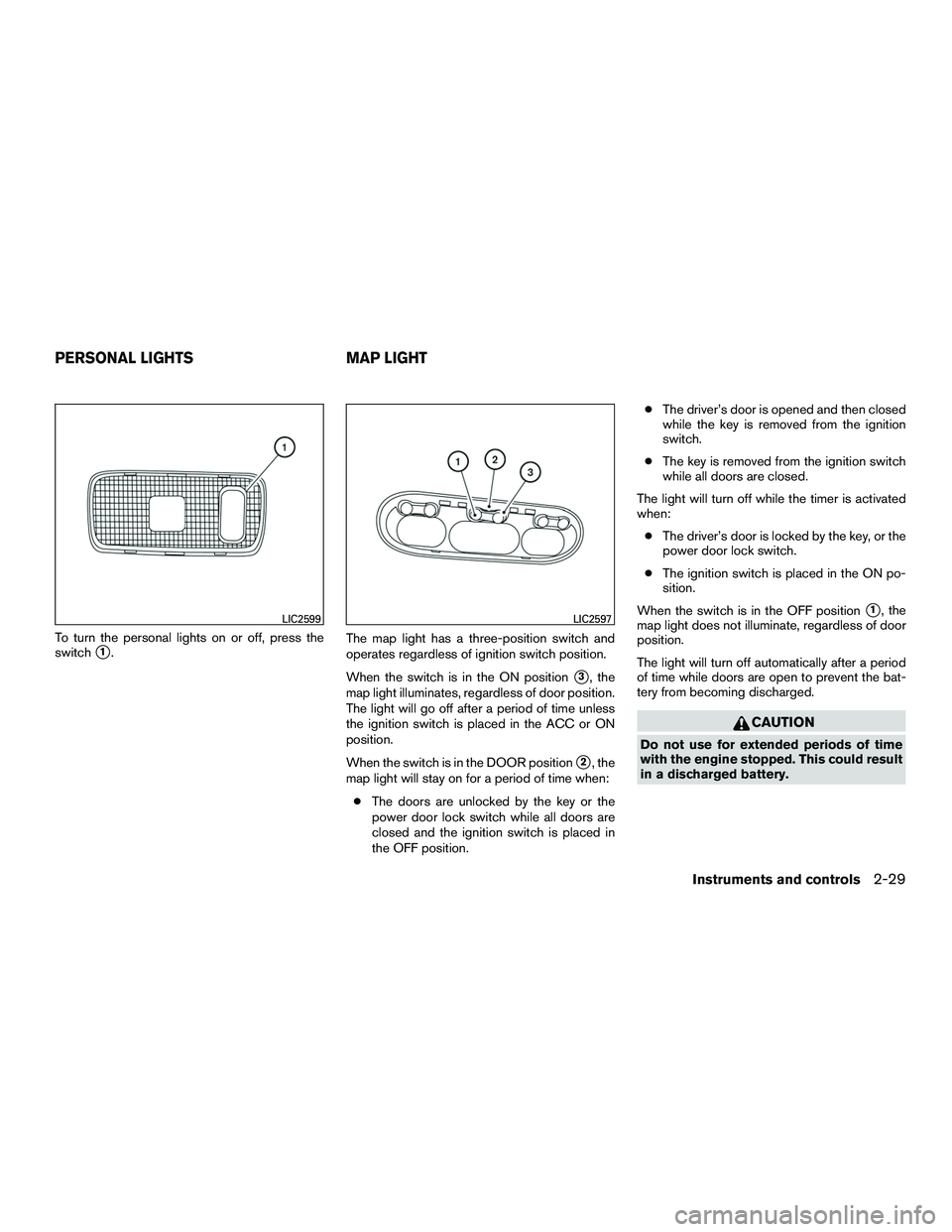

To turn the personal lights on or off, press the
switch
1.The map light has a three-position switch and
operates regardless of ignition switch position.
When the switch is in the ON position
3, the
map light illuminates, regardless of door position.
The light will go off after a period of time unless
the ignition switch is placed in the ACC or ON
position.
When the switch is in the DOOR position
2, the
map light will stay on for a period of time when:
● The doors are unlocked by the key or the
power door lock switch while all doors are
closed and the ignition switch is placed in
the OFF position. ●
The driver’s door is opened and then closed
while the key is removed from the ignition
switch.
● The key is removed from the ignition switch
while all doors are closed.
The light will turn off while the timer is activated
when: ● The driver’s door is locked by the key, or the
power door lock switch.
● The ignition switch is placed in the ON po-
sition.
When the switch is in the OFF position
1, the
map light does not illuminate, regardless of door
position.
The light will turn off automatically after a period
of time while doors are open to prevent the bat-
tery from becoming discharged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
LIC2599LIC2597
PERSONAL LIGHTS MAP LIGHT
Instruments and controls2-29

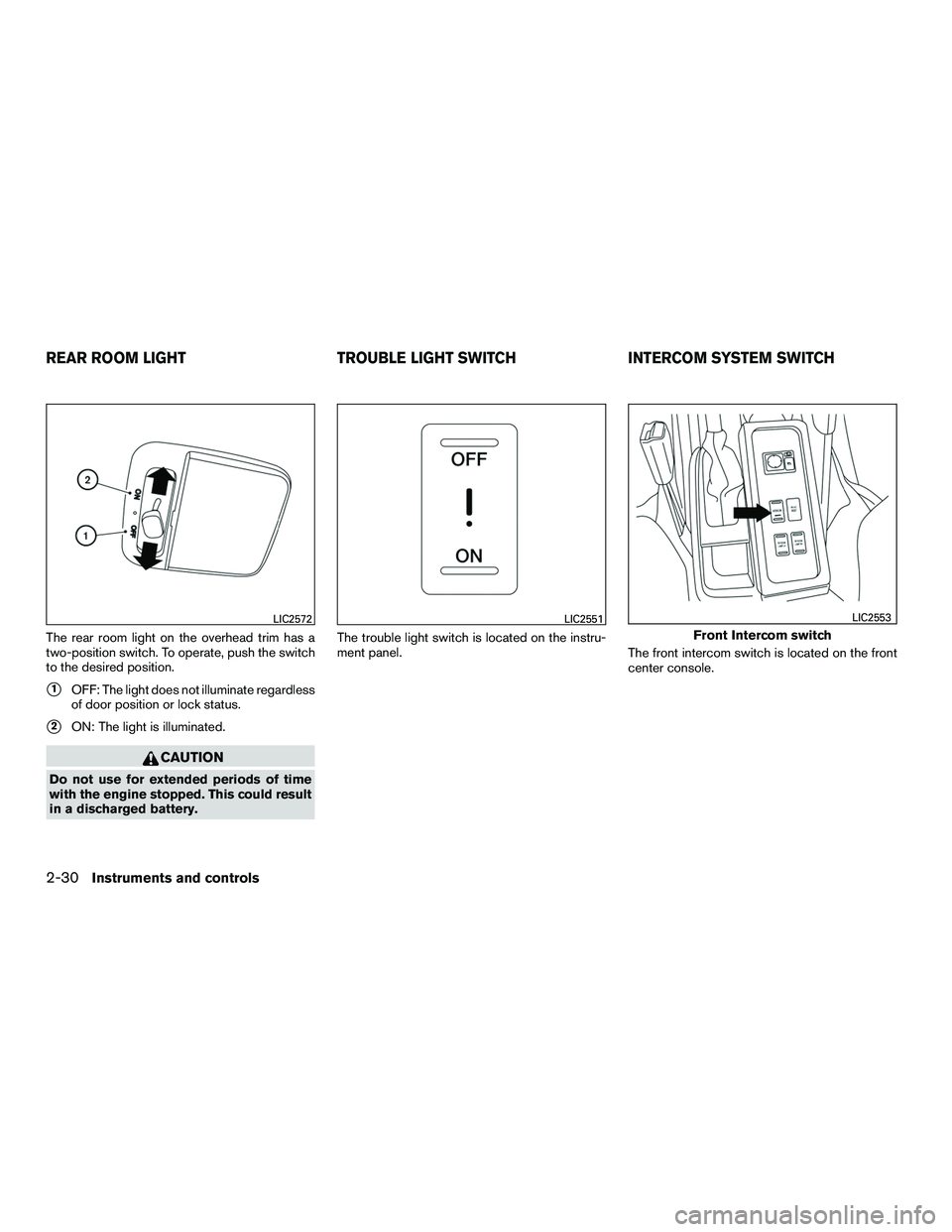

The rear room light on the overhead trim has a
two-position switch. To operate, push the switch
to the desired position.
1OFF: The light does not illuminate regardless
of door position or lock status.
2ON: The light is illuminated.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery. The trouble light switch is located on the instru-
ment panel.
The front intercom switch is located on the front
center console.
LIC2572LIC2551
Front Intercom switch
LIC2553
REAR ROOM LIGHTTROUBLE LIGHT SWITCHINTERCOM SYSTEM SWITCH
2-30Instruments and controls

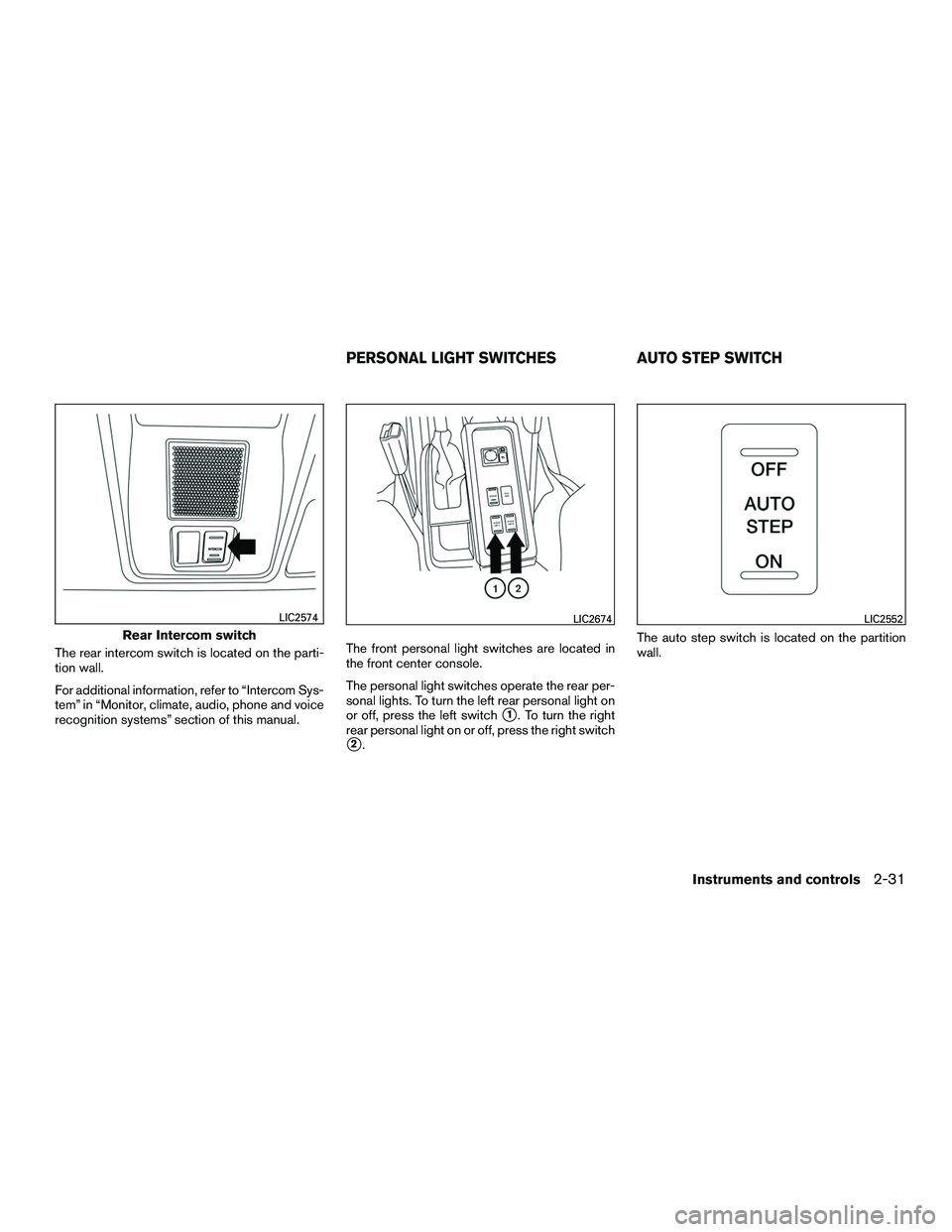

The rear intercom switch is located on the parti-
tion wall.
For additional information, refer to “Intercom Sys-
tem” in “Monitor, climate, audio, phone and voice
recognition systems” section of this manual.The front personal light switches are located in
the front center console.
The personal light switches operate the rear per-
sonal lights. To turn the left rear personal light on
or off, press the left switch
1. To turn the right
rear personal light on or off, press the right switch
2. The auto step switch is located on the partition
wall.
Rear Intercom switch
LIC2574LIC2674LIC2552
PERSONAL LIGHT SWITCHES
AUTO STEP SWITCH
Instruments and controls2-31

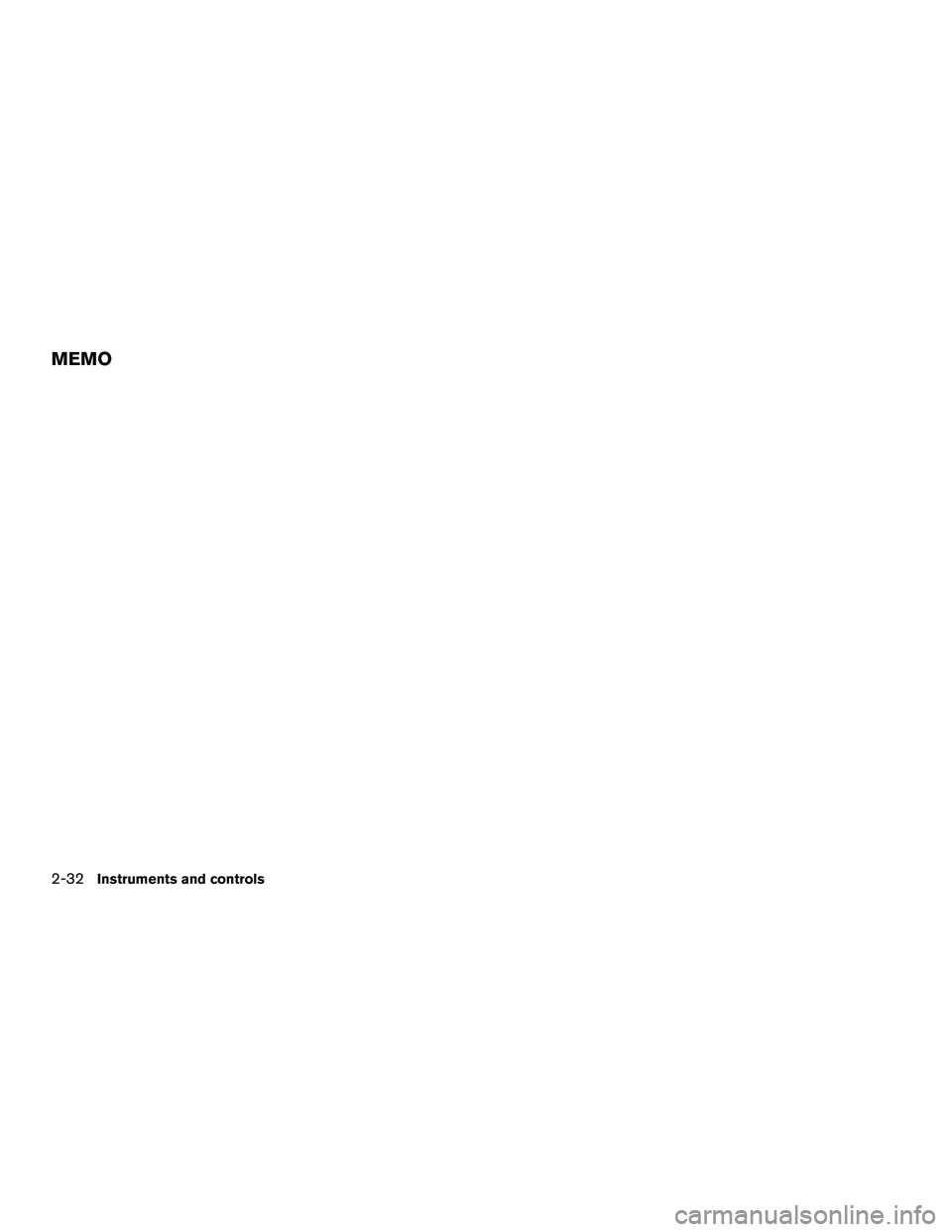

MEMO
2-32Instruments and controls

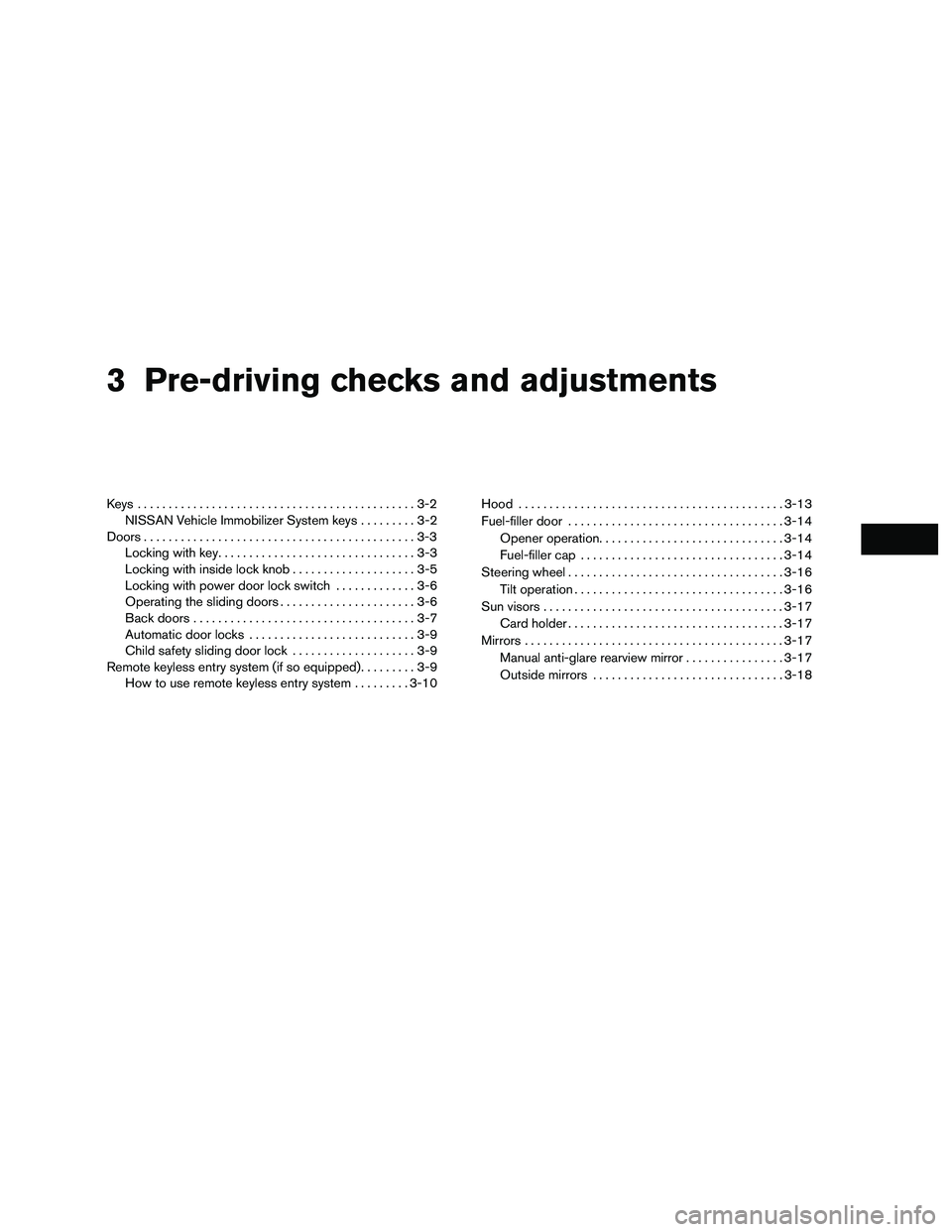

3 Pre-driving checks and adjustments
Keys .............................................3-2NISSAN Vehicle Immobilizer System keys .........3-2
Doors ............................................3-3
Locking with key ................................3-3
Locking with inside lock knob ....................3-5
Locking with power door lock switch . . . ..........3-6
Operating the sliding doors ......................3-6
Back doors ....................................3-7
Automatic door locks ...........................3-9
Child safety sliding door lock ....................3-9
Remote keyless entry system (if so equipped) .........3-9
How to use remote keyless entry system .........3-10 Hood
........................................... 3-13
Fuel-filler door ................................... 3-14
Opener operation .............................. 3-14
Fuel-filler cap ................................. 3-14
Steering wheel ................................... 3-16
Tilt operation .................................. 3-16
Sun visors ....................................... 3-17
Card holder ................................... 3-17
Mirrors .......................................... 3-17
Manual anti-glare rearview mirror ................3-17
Outside mirrors ............................... 3-18
