2016 NISSAN NV PASSENGER VAN center console

The power outlet inside the console (if so
equipped) is powered directly by the vehicle’s
battery.
CAUTION
●The outlet and plug may be hot during
or immediately after use.
● Only certain power outlets are designed
for use with a cigarette lighter unit. Do
not use any other power outlet for an
accessory lighter. See a NISSAN dealer
for additional information.
● Do not use with accessories that exceed
a 12 volt, 120W (10A) power draw. Do
not use double adapters or more than
one electrical accessory.
● Use power outlets with the engine run-
ning to avoid discharging the vehicle
battery.
● Avoid using power outlets when the air
conditioner, headlights or rear window
defroster is on. ●
Before inserting or disconnecting a
plug, be sure the electrical accessory
being used is turned OFF.
● Push the plug in as far as it will go. If
good contact is not made, the plug may
overheat or the internal temperature
fuse may open.
● When not in use, be sure to close the
cap. Do not allow water or any other
liquid to contact the outlet.
12v Center console (if so equipped)
LIC2077
Instruments and controls2-35

120v Center console (if so equipped)
LIC2078
120v Rear luggage area (if so equipped)
LIC2203
2-36Instruments and controls

MAP POCKETSINSTRUMENT PANEL STORAGE
TRAYSThe long storage tray can be used to store busi-
ness cards.
WARNING
Do not place sharp objects in the trays to
help prevent injury in an accident or sud-
den stop.
LIC2082
Instrument panel
LIC2069
Lower center console
LIC2070
STORAGE
2-38Instruments and controls

CUP HOLDERSCAUTION
●Avoid abrupt starting and braking when
the cup holder is being used to prevent
spilling the drink. If the liquid is hot, it
can scald you or your passenger. Each row is equipped with 2 moveable under
seat mounted cup holders. To use, pull out from
below the seat.
CAUTION
●
Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
Instrument panel
LIC2071
Center console (if so equipped)
LIC2072
Under seat cup holders
LIC2229
2-40Instruments and controls

The tray located in the front of the console box is
for storing binders.Removable center console
To remove the center console:1. Stop the vehicle and place the ignition switch in the OFF position.
2. Lift out tray.
3. Unplug all accessories from the outlets. 4. Remove four bolts located inside the con-
sole and two in the front storage tray.
Binder storage tray
LIC2115
Lower half
LIC2087LIC2100
Instruments and controls2-43

5. Disconnect the power supply. The connec-tor may need to be accessed from the driv-
er’s door side of the seat by reaching under-
neath the seat. 6. The harness cap (if so equipped) is taped to
the harness underneath the inside of the
center console. Remove the tape to remove
the cap. For customers without 120V proceed to step 8.
7. Install the cap to the harness connector lo- cated at the bottom corner of the driver’s
seat.
8. Securely tighten the bolts to the vehicle after the console is removed.
WARNING
Reinstall bolts in the floor mounting holes
to prevent water intrusion and reduce the
chance for carbon monoxide to get into
the occupant compartment.
LIC2102LIC2101LIC2103
2-44Instruments and controls

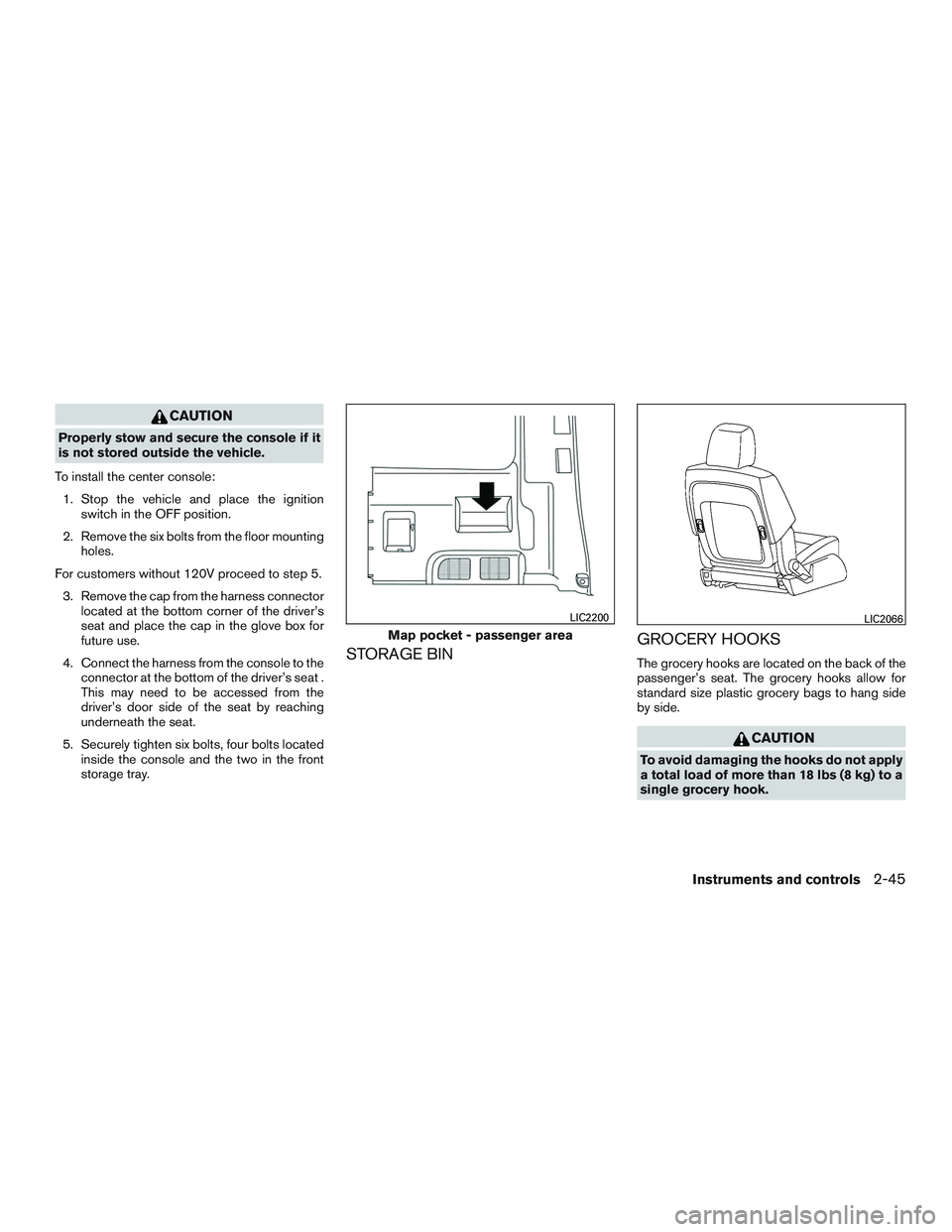

CAUTION
Properly stow and secure the console if it
is not stored outside the vehicle.
To install the center console: 1. Stop the vehicle and place the ignition switch in the OFF position.
2. Remove the six bolts from the floor mounting holes.
For customers without 120V proceed to step 5. 3. Remove the cap from the harness connector located at the bottom corner of the driver’s
seat and place the cap in the glove box for
future use.
4. Connect the harness from the console to the connector at the bottom of the driver’s seat .
This may need to be accessed from the
driver’s door side of the seat by reaching
underneath the seat.
5. Securely tighten six bolts, four bolts located inside the console and the two in the front
storage tray.
STORAGE BIN GROCERY HOOKSThe grocery hooks are located on the back of the
passenger’s seat. The grocery hooks allow for
standard size plastic grocery bags to hang side
by side.
CAUTION
To avoid damaging the hooks do not apply
a total load of more than 18 lbs (8 kg) to a
single grocery hook.
Map pocket - passenger area
LIC2200LIC2066
Instruments and controls2-45

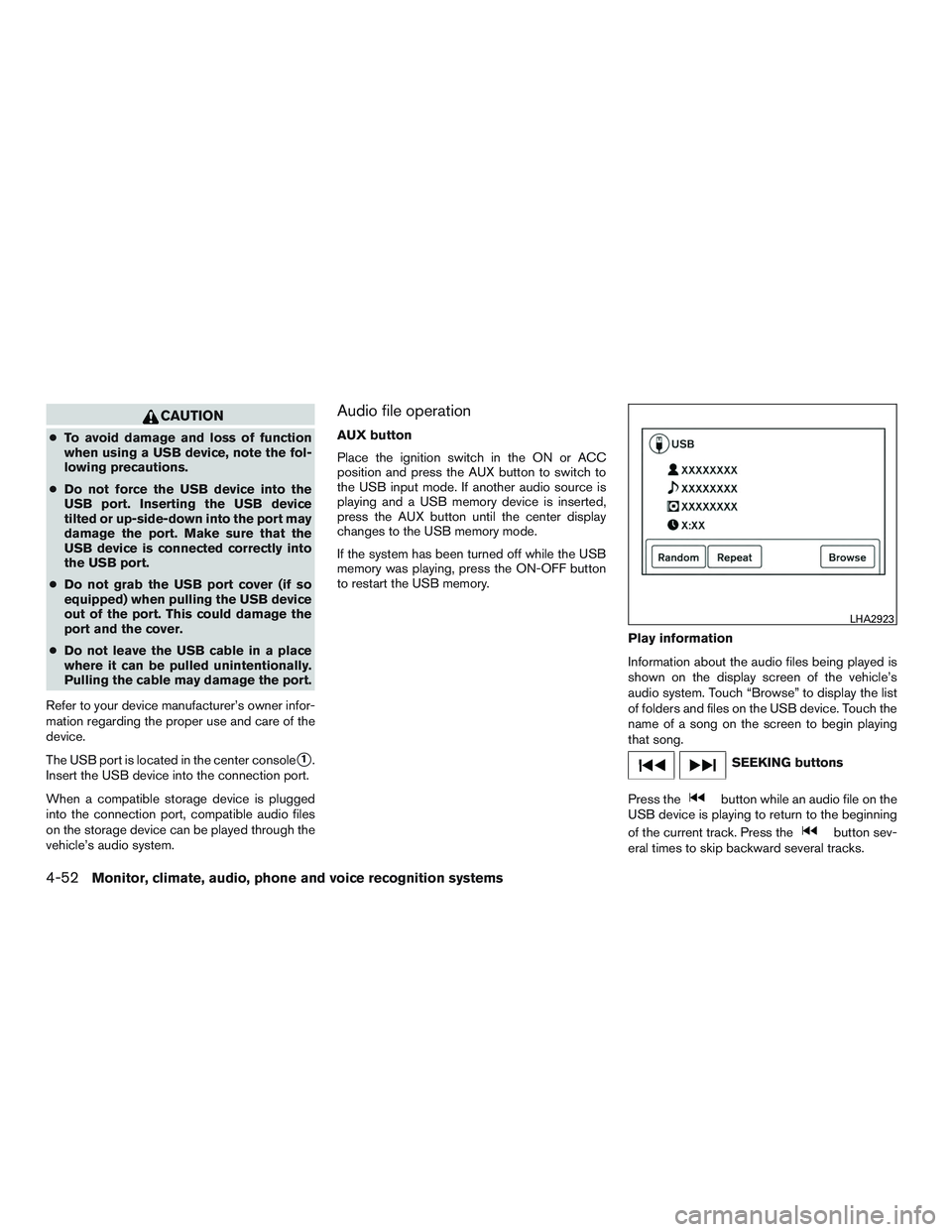

CAUTION
●To avoid damage and loss of function
when using a USB device, note the fol-
lowing precautions.
● Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port may
damage the port. Make sure that the
USB device is connected correctly into
the USB port.
● Do not grab the USB port cover (if so
equipped) when pulling the USB device
out of the port. This could damage the
port and the cover.
● Do not leave the USB cable in a place
where it can be pulled unintentionally.
Pulling the cable may damage the port.
Refer to your device manufacturer’s owner infor-
mation regarding the proper use and care of the
device.
The USB port is located in the center console
1.
Insert the USB device into the connection port.
When a compatible storage device is plugged
into the connection port, compatible audio files
on the storage device can be played through the
vehicle’s audio system.
Audio file operation
AUX button
Place the ignition switch in the ON or ACC
position and press the AUX button to switch to
the USB input mode. If another audio source is
playing and a USB memory device is inserted,
press the AUX button until the center display
changes to the USB memory mode.
If the system has been turned off while the USB
memory was playing, press the ON-OFF button
to restart the USB memory.
Play information
Information about the audio files being played is
shown on the display screen of the vehicle’s
audio system. Touch “Browse” to display the list
of folders and files on the USB device. Touch the
name of a song on the screen to begin playing
that song.
SEEKING buttons
Press the
button while an audio file on the
USB device is playing to return to the beginning
of the current track. Press the
button sev-
eral times to skip backward several tracks.
LHA2923
4-52Monitor, climate, audio, phone and voice recognition systems
