2016 NISSAN NV PASSENGER VAN clock setting

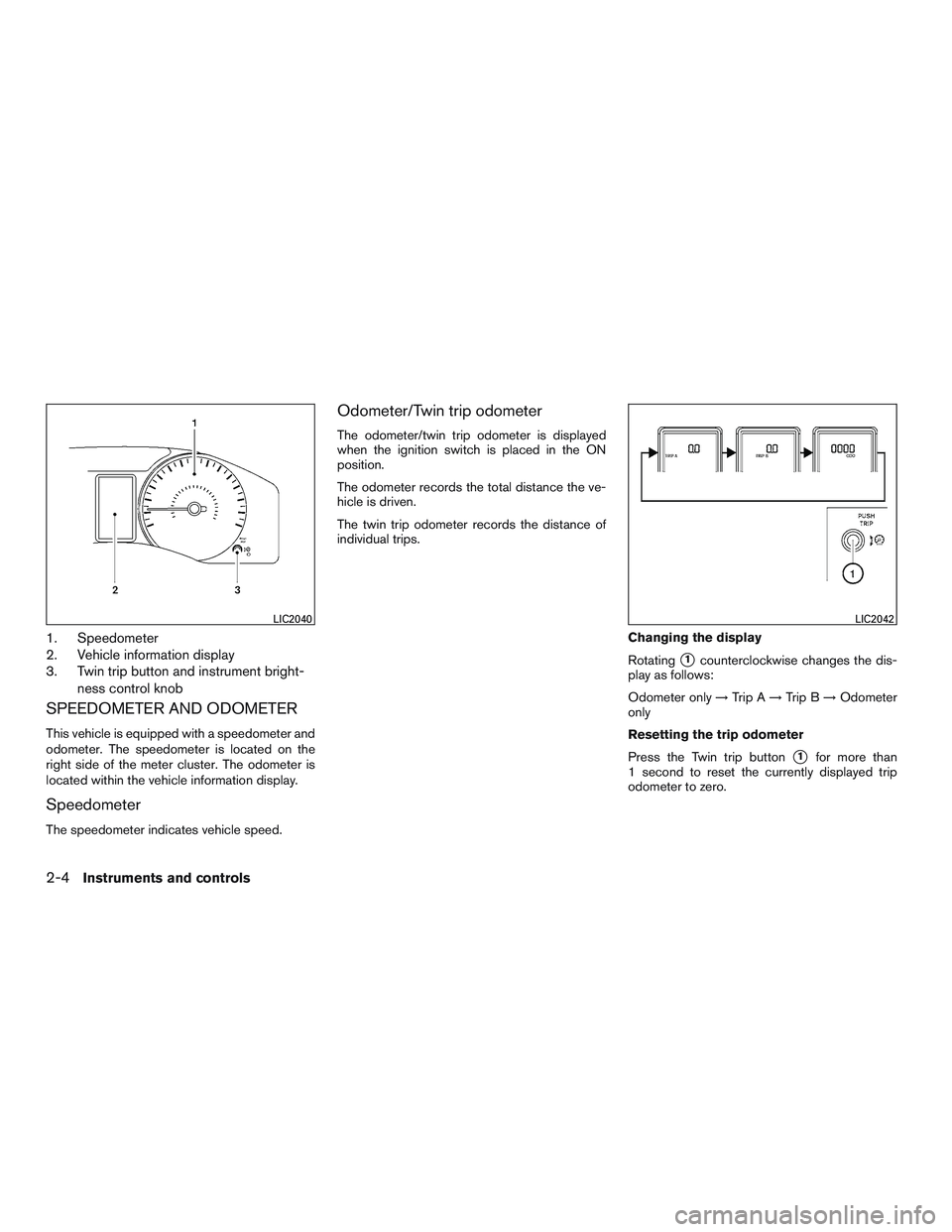

1. Speedometer
2. Vehicle information display
3. Twin trip button and instrument bright-ness control knob
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the vehicle information display.
Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer/twin trip odometer is displayed
when the ignition switch is placed in the ON
position.
The odometer records the total distance the ve-
hicle is driven.
The twin trip odometer records the distance of
individual trips.
Changing the display
Rotating
1counterclockwise changes the dis-
play as follows:
Odometer only →Trip A →Trip B →Odometer
only
Resetting the trip odometer
Press the Twin trip button
1for more than
1 second to reset the currently displayed trip
odometer to zero.
LIC2040LIC2042
2-4Instruments and controls

Menu itemResult
Audio For additional information, refer to “Audio system” in this section.
Navigation For additional information, refer to the separate Navigation System Owner’s Manual.
Phone & Bluetooth For additional information, refer to “Bluetooth® Hands-Free Phone System with Navigation System” in this section.
System Touch this key to select and/or adjust various functions of this system. A screen with additional options will appear.
Display Touch this key to adjust the appearance of the display.
Brightness Adjusts the brightness of the display.
Display Mode Adjusts to fit the level of lighting in the vehicle. Touch key to cycle through options. “Day” and “Night” modes are suited for the
respective times of day while “Auto” controls the display automatically.
Scroll Direction Adjusts the direction of the menu scroll. Choose to either move up or down.
Clock Touch this key to adjust the time.
Time Format The clock can be set to 12 hours or 24 hours.
Date Format Select from five possible formats for displaying the day, month, and year.
Clock Mode Adjust the mode for the clock. “Auto” uses the system’s GPS to automatically maintain the time. “Manual” allows you to set the
clock using the “Set Clock Manually” key.
Set Clock Manually Adjust the clock manually, Touch the “+” or “-” keys to adjust the hours, minutes, day, month and year up or down. “Clock Mode” must be set to manual for this option to be available.
Daylight Savings Time Adjusts the daylight savings time on or off.
Time Zone Choose the applicable time zone from the list.
Language Touch this key to change the language on the display.
Camera Touch this key to change the camera settings.
Display Mode Touch this key to select the touch-screen display mode (day, night, or automatic) .
Brightness Adjust touch-screen brightness.
Contrast Adjust touch-screen contrast.
Color Adjust touch-screen color.
4-8Monitor, climate, audio, phone and voice recognition systems

When no CD is loaded, the radio comes on.
Pressing the PWR button again turns the system
off.
Turn the VOL control knob to the right to increase
volume or to the left to decrease volume.
MENU button (BASS, TREBLE, FADE,
BALANCE and CLOCK)
Press the MENU button to change the mode as
follows:
BAS→TRE →FAD →BAL →CLOCK →BAS
To adjust Bass, Treble, Fade and Balance, press
the MENU button until the desired mode appears
in the display. Press the SEEK button to adjust
Bass and Treble to the desired level. You can also
use the SEEK button to adjust Fade and Balance
modes. Balance adjusts the sound between the
right and left speakers. Since this vehicle is not
equipped with rear speakers, adjusting the fade
to the rear of the vehicle will reduce the volume
until no sound is played.
Once you have adjusted the sound quality to the
desired level, press the MENU button repeatedly
until the radio or CD display reappears. Other-
wise, the radio or CD display will automatically
reappear after about 10 seconds. NOTE:
If the clock is enabled, pressing the MENU
button will change the mode as follows:
BAS
→TRE →FAD →BAL →CLOCK →
Hour adjustment →Minute adjustment →
BAS
For additional information on setting the clock,
refer to “Clock set” in this section.
Clock operation
Press the MENU button until CLOCK is dis-
played; use the SEEK button to turn the clock
display on (CLK ON) or off (CLK OFF) .
Clock set
If the clock is not displayed with the ignition
switch in the ACC or ON position, you need to
select the CLK ON mode. Press the MENU but-
ton repeatedly until CLOCK is displayed. Use the
SEEK button to enable CLK ON mode.
1. Press the MENU button repeatedly until CLOCK mode appears; press the SEEK
button until CLK ON appears.
2. Press the MENU button again; the hours will start flashing.
3. Press the SEEK button
orto
adjust the hour. 4. Press the MENU button again; the display
will switch to the minute adjustment mode.
5. The minutes will start flashing. Press SEEK button
orto adjust the minutes.
6. Press the MENU button again to exit the clock set mode.
The display will return to the regular clock display
after 10 seconds, or press the MENU button
again to return to the regular clock display.
Resetting the time
Hold the MENU button down and then press the
TUNE or SEEK button; the time will reset as
follows:
● If the displayed minutes before the reset are
in the range of :00 - :29, the hour displayed
before the reset will stay the same and the
minutes will be reset to :00.
● If the displayed minutes before the reset are
in the range of :30 - :59, the hour displayed
before the reset will advance by one hour
and the minutes will be reset to :00.
For example, if the MENU button and the TUNE or
SEEK button are pressed while the time dis-
played is between 8:00 and 8:29, the display will
be reset to 8:00. If the buttons were pressed
while the time was between 8:30 and 8:59, the
4-38Monitor, climate, audio, phone and voice recognition systems

AUX) that was playing immediately before the
system was turned off. While the system is on,
pressing the PWR button turns the system off.
Turn the VOL (volume) control knob to adjust the
volume.
MUTE button
Press the
button to mute the audio sound.
Press the
button again to resume playing
the audio at its previous volume.
AUDIO button (Bass, Treble, Fade, Bal-
ance, SSV, Beep)
Press the AUDIO button to change the mode as
follows:
Bass →Treble →Fade →Balance →Beep
ON/OFF →BAS
To adjust Bass, Treble, Fade and Balance, press
the AUDIO button until the desired mode ap-
pears in the display. Press the TUNE
oror SEEKorbutton to ad-
just the selected mode to the desired level. Bal-
ance adjusts the sound between the right and left
speakers. Since this vehicle is not equipped with
rear speakers, adjusting the fade to the rear of the
vehicle will reduce the volume until no sound is
played. To change the Beep to ON or OFF, press the
TUNE button up or down until the desired mode
is displayed. This will enable or disable the beep
sound heard during menu selection.
SPEED VOL button
To change the Speed Sensitive Volume (SSV)
mode to Off, Low, Mid or High, press the SPEED
VOL button until the desired setting is displayed.
Once you have adjusted the sound quality to the
desired level, press the AUDIO button repeatedly
until the radio or CD display reappears. If no
action is taken, the radio or CD display will auto-
matically reappear after approximately 5 sec-
onds.
Clock set
If the clock is not displayed with the ignition
switch in the ACC or ON position, press the
CLOCK button to resume the display. Pressing
the CLOCK button toggles the clock display on
and off.
1. Press and hold the CLOCK button until the clock display starts to flash.
2. Press the SEEK/TRACK button
orto adjust the hours. 3. Press the TUNE/FF-REW/FOLDER
button
orto adjust the minutes.
4. Press the CLOCK button again to exit the clock set mode.
If no action is taken, the display will return to the
regular clock display after 10 seconds.
DISP (display) button
This button works during FM and CD operation.
FM/AM radio operation
AM button
Press the AM button to change the band to AM.
If another audio source is playing when the AM
button is pressed, the audio source playing will
automatically be turned off and the last radio
station played will begin playing.
FM button
Press the FM button to change the band as
follows:
FM1 →FM2 →FM1
If another audio source is playing when the FM
button is pressed, the audio source playing will
automatically be turned off and the last radio
station played will begin playing.
4-42Monitor, climate, audio, phone and voice recognition systems
