2016 NISSAN NOTE RE0F11A

FAX-20
< REMOVAL AND INSTALLATION >
FRONT DRIVE SHAFT
11. Insert the Tool (A) between the drive shaft and the transaxle.
Insert the suitable tool (B) to the Tool (A). Remove the drive
shaft from the transaxle.
CAUTION:
• Do not place drive shaft joint at an extreme angle when removing drive shaft. Also be careful not to overextend
slide joint.
• Confirm that the circular clip is attached to the drive shaft.
12. Remove the differential side oil seal. Refer to TM-18, "
Removal
and Installation" (5MT:RS5F91R), or TM-249, "Removal and Installation" (CVT:RE0F11A).
INSTALLATION
Installation is in the reverse order of removal.
Transaxle Side
• Install a new differential side oil seal. Refer to TM-18, "Removal and Installation" (5MT:RS5F91R), or TM-
249, "Removal and Installation" (CVT:RE0F11A).
CAUTION:
Do not reuse the differential side oil seal.
• Place the Tool (A) onto transaxle to prevent damage to the oil seal while inserting drive shaft. Slide drive shaft sliding joint and tap
with a hammer to install securely.
CAUTION:
• Check that circular clip is completely engaged.
• Check the transaxle fluid level. Refer to TM-17, "
Inspection"
(5MT), or TM-228, "Inspection" (CVT).
Wheel Hub Side
CAUTION:
• Do not damage the wheel bearing seal. If damage has occurred, replace wheel bearing with a new
one.
• Do not allow paint to adhere to the wheel bearing seal.
• Check each mating surface for water and foreign matter. If there is any water or foreign matter, clean
the mating surface.
• Clean the mating surfaces of wheel hub lock nut and wheel hub.
CAUTION:
Do not apply lubricatin g oil to the mating surface of the wh eel hub lock nut and the wheel hub.
• Clean the mating surfaces of drive shaft, wheel hub, and wheel
bearing. Apply Molykote M77 to surface (A) of joint sub-assembly.
CAUTION:
Apply Molykote M77 to cover entire flat surface of joint sub-
assembly.
NOTE:
Always check with the Parts Department for the latest parts infor-
mation.
When installing a cotter pin, securely bend the cotter pin to prevent
rattles.
CAUTION:
Do not reuse cotter pin. Tool number (A) : KV40107500 ( — )
JPDIF0004ZZ
Tool number (A) : KV38107900 ( — )
JPDIF0023ZZ
Molykote M77 quantity : Refer to
FAX-27, "Drive
Shaft".JSDIA2844ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

IP-18
< REMOVAL AND INSTALLATION >
CENTER CONSOLE ASSEMBLY
CENTER CONSOLE ASSEMBLY
Exploded ViewINFOID:0000000012430780
TYPE 1
TYPE 2
Removal and InstallationINFOID:0000000012430781
REMOVAL
1. Move shift selector to “N” position (CVT: RE0F11A).
2. Remove shift selector handle (5MT: RS5F91R). Refer to TM-20, "
Exploded View".
3. Raise parking brake lever.
AWJIA1134ZZ
1. Shift selector boot (5MT: RS5F91R) 2. Center console assembly 3. USB connector (if equipped)
4. Power socket A. Clip B. Screw
AWJIA1135ZZ
1. Shift selector boot (5MT: RS5F91R) 2. Center console assembly 3. Power socket
4. USB connector (if equipped) 5. Heated seat switch (RH) (if equipped) 6. Heated seat switch (LH) (if equipped)
A. Clip B. Screw
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-2
INPUT SHAFT AND GEAR ...............................45
Exploded View ..................................................... ...45
Disassembly ...........................................................45
Assembly ................................................................45
Inspection ...............................................................45
MAINSHAFT AND GEAR ..................................47
Exploded View ..................................................... ...47
Disassembly ...........................................................47
Assembly ................................................................49
Inspection ...............................................................50
FINAL DRIVE .....................................................52
Exploded View ..................................................... ...52
Disassembly ...........................................................52
Assembly ................................................................52
Inspection ...............................................................52
SERVICE DATA AND SPECIFICATIONS
(SDS) ........................................................ ...
54
SERVICE DATA AND SPECIFICATIONS
(SDS) ............................................................... ...
54
General Specifications ......................................... ...54
CVT: RE0F11A
PRECAUTION .............. ...............................
55
PRECAUTIONS .............................................. ...55
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .............................................................. ...
55
Precaution for Procedure without Cowl Top Cover ...55
Precaution for TCM, Transaxle Assembly or Con-
trol Valve Replacement ..........................................
55
Precaution for G Sensor Removal/Installation or
Replacement ..........................................................
55
General Precautions ...............................................56
On Board Diagnosis (OBD) System of CVT and
Engine ....................................................................
57
Removal and Installation Procedure for CVT Unit
Connector ...............................................................
57
PREPARATION ...........................................59
PREPARATION .............................................. ...59
Special Service Tools .......................................... ...59
Commercial Service Tools ......................................59
SYSTEM DESCRIPTION ............................61
COMPONENT PARTS .................................... ...61
CVT CONTROL SYSTEM ...................................... ...61
CVT CONTROL SYSTEM : Component Parts Lo-
cation ......................................................................
61
CVT CONTROL SYSTEM : TCM ...........................63
CVT CONTROL SYSTEM : ROM Assembly ....... ...63
CVT CONTROL SYSTEM : Transmission Range
Switch .................................................................. ...
63
CVT CONTROL SYSTEM : Primary Speed Sen-
sor ........................................................................ ...
63
CVT CONTROL SYSTEM : Secondary Speed
Sensor .....................................................................
63
CVT CONTROL SYSTEM : Output Speed Sensor ...64
CVT CONTROL SYSTEM : CVT Fluid Tempera-
ture Sensor .......................................................... ...
64
CVT CONTROL SYSTEM : Secondary Pressure
Sensor .................................................................. ...
65
CVT CONTROL SYSTEM : Primary Pressure So-
lenoid Valve ......................................................... ...
65
CVT CONTROL SYSTEM : Low Brake Solenoid
Valve .......................................................................
65
CVT CONTROL SYSTEM : High Clutch & Re-
verse Brake Solenoid Valve ....................................
66
CVT CONTROL SYSTEM : Torque Converter
Clutch Solenoid Valve .............................................
66
CVT CONTROL SYSTEM : Line Pressure Sole-
noid Valve ............................................................ ...
66
CVT CONTROL SYSTEM : G Sensor ....................66
CVT CONTROL SYSTEM : Overdrive Control
Switch .....................................................................
66
CVT CONTROL SYSTEM : O/D OFF Indicator
Lamp .......................................................................
66
CVT CONTROL SYSTEM : Shift Position Indica-
tor ............................................................................
68
CVT CONTROL SYSTEM : Malfunction Indicator
Lamp (MIL) ..............................................................
68
SHIFT LOCK SYSTEM ..............................................68
SHIFT LOCK SYSTEM : Co mponent Parts Loca-
tion ....................................................................... ...
68
STRUCTURE AND OPERATION ......................70
TRANSAXLE .......................................................... ...70
TRANSAXLE : Cross-Sectional View .....................70
TRANSAXLE : Transaxle Mechanism ... .................70
TRANSAXLE : Operation Stat us .............................72
TRANSAXLE : Oil Pressure System .......................73
TRANSAXLE : Component De scription ..................73
FLUID COOLER & FLUID WARMER SYSTEM ..... ...74
FLUID COOLER & FLUID WARMER SYSTEM :
System Description .................................................
74
SHIFT LOCK SYSTEM ..............................................74
SHIFT LOCK SYSTEM : Syst em Description .........75
KEY LOCK SYSTEM .............................................. ...75
KEY LOCK SYSTEM : System Description ............75
SYSTEM ......................................................... ...76
CVT CONTROL SYSTEM .........................................76
CVT CONTROL SYSTEM : System Description . ...76
CVT CONTROL SYSTEM : Fail-safe ......................78
CVT CONTROL SYSTEM : Protection Control .......80
LINE PRESSURE CONTROL ................................ ...81
LINE PRESSURE CONTROL : System Descrip-
tion ....................................................................... ...
82
Revision: August 2015 2016 Versa Note

cardiagn.com

PRECAUTIONSTM-55
< PRECAUTION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P

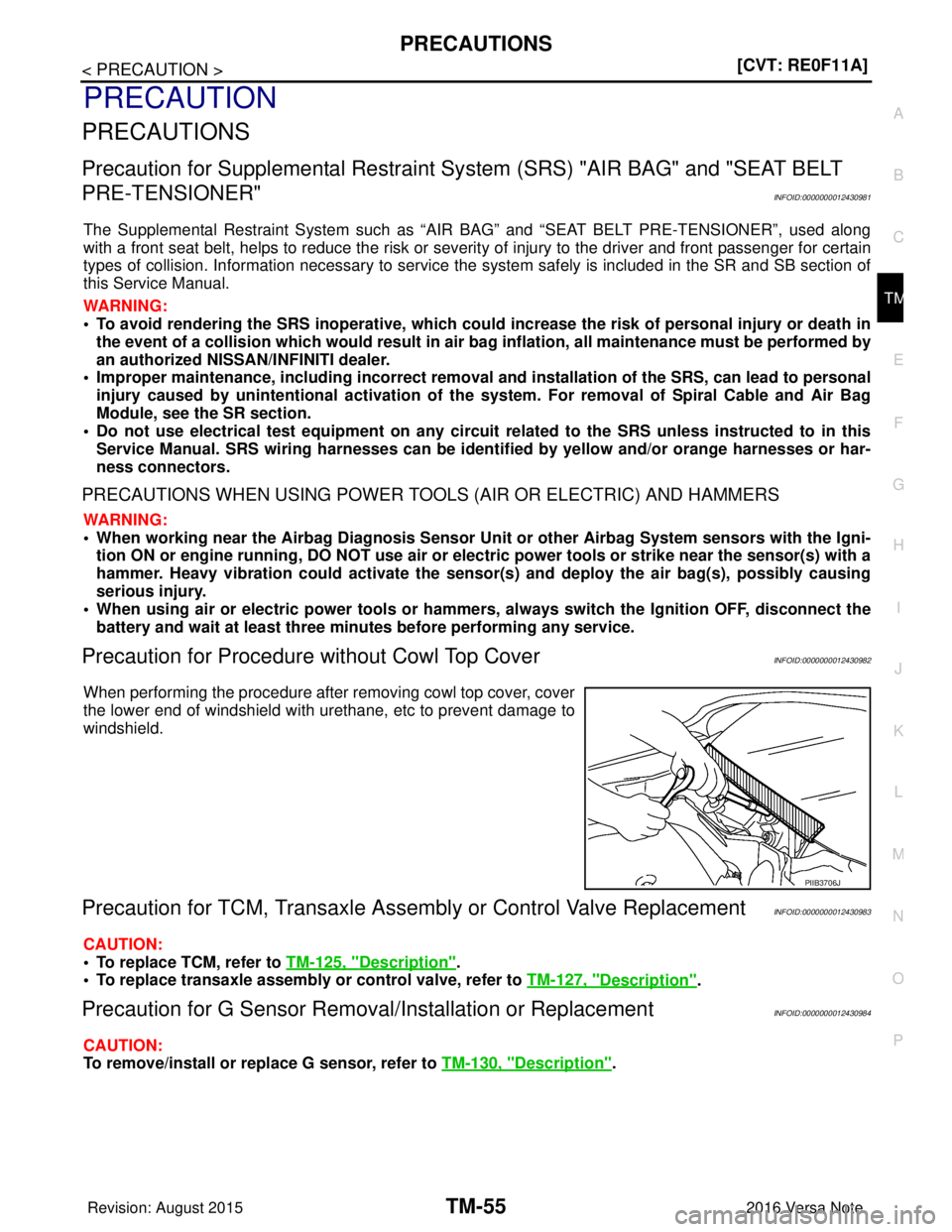

PRECAUTION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000012430981
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the SR and SB section of
this Service Manual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SR section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the
battery and wait at least three mi nutes before performing any service.
Precaution for Procedure without Cowl Top CoverINFOID:0000000012430982
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.
Precaution for TCM, Transaxle Asse mbly or Control Valve ReplacementINFOID:0000000012430983
CAUTION:
• To replace TCM, refer to TM-125, "
Description".
• To replace transaxle assembly or control valve, refer to TM-127, "
Description".
Precaution for G Sensor Removal/Installation or ReplacementINFOID:0000000012430984
CAUTION:
To remove/install or replace G sensor, refer to TM-130, "
Description".
PIIB3706J
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-56
< PRECAUTION >[CVT: RE0F11A]
PRECAUTIONS
General Precautions
INFOID:0000000012430985
• Turn ignition switch OFF an d disconnect the battery cable
from the negative terminal before connecting or disconnect-
ing the CVT assembly harness connector. Because battery
voltage is applied to TCM even if ignition switch is turned
OFF.
• When connecting or disconnect ing pin connectors into or
from TCM, do not damage pin terminals (bend or break).
Check that there are not any bends or breaks on TCM pin ter-
minal, when connect ing pin connectors.
• Perform TCM input/output si gnal inspection and check
whether TCM functions normally or not before replacing TCM.
Refer to TM-99, "
Reference Value".
• Perform “DTC (Diagnostic Trouble Code) CONFIRMATION
PROCEDURE”.
If the repair is completed DTC should not be displayed in the
“DTC CONFIRMATION PROCEDURE”.
• Always use the specified brand of CVT fluid. Refer to MA-11, "
Fluids and Lubricants".
• Use lint-free paper not cloth rags during work.
• Dispose of the waste oil using the methods prescribed by law, ordinance, etc. after replacing the CVT fluid.
• Before proceeding with disassembly, thoroughly clean the outside of the transaxle. It is important to prevent the internal parts from becoming contami nated by dirt or other foreign matter.
• Disassembly should be done in a clean work area.
SEF289H
AAT470A
MEF040DA
JSBIA1315ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

PRECAUTIONSTM-57
< PRECAUTION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
On Board Diagnosis (OBD) System of CVT and EngineINFOID:0000000012430986
The ECM has an on board diagnostic system . It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:
• Be sure to turn the ignition switch OFF and di sconnect the battery cable from the negative terminal
before any repair or inspection work. The open/s hort circuit of related switches, sensors, solenoid
valves, etc. will cause the MIL to light up.
• Be sure to connect and lock the connectors secure ly after work. A loose (unlocked) connector will
cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
• Be sure to route and secure the harnesses properly after work. Interference of the harness with a
bracket, etc. may cause the MIL to light up due to a short circuit.
• Be sure to connect rubber tubes properly afte r work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system, etc.
• Be sure to erase the unnecessary malfunction informa tion (repairs completed) from the TCM and
ECM before returning the vehicle to the customer.
Removal and Installation Proc edure for CVT Unit ConnectorINFOID:0000000012430987
REMOVAL

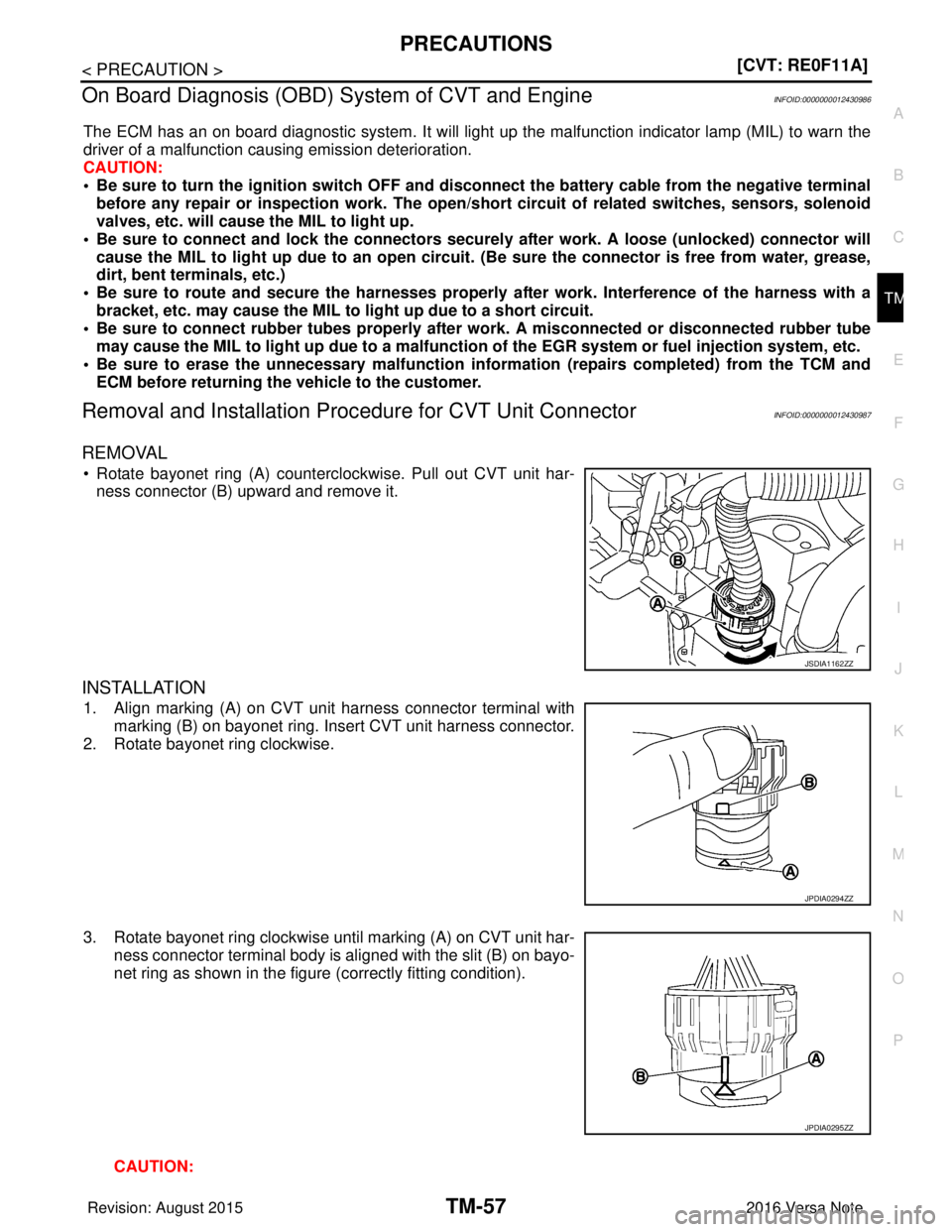

• Rotate bayonet ring (A) counterclockwise. Pull out CVT unit har-
ness connector (B) upward and remove it.
INSTALLATION
1. Align marking (A) on CVT unit harness connector terminal with
marking (B) on bayonet ring. Insert CVT unit harness connector.
2. Rotate bayonet ring clockwise.
3. Rotate bayonet ring clockwise until marking (A) on CVT unit har- ness connector terminal body is aligned with the slit (B) on bayo-
net ring as shown in the figure (correctly fitting condition).
CAUTION:
JSDIA1162ZZ
JPDIA0294ZZ
JPDIA0295ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

TM-58
< PRECAUTION >[CVT: RE0F11A]
PRECAUTIONS
• Securely align marking (A) on CVT unit harness connec-
tor terminal body with bayonet ri ng slit (B). Then, be care-
ful not to make a half fit condition as shown in the figure.
• Do not mistake the slit of bayonet ring for other dent por- tion.
JPDIA0296ZZ
Revision: August 2015 2016 Versa Note

cardiagn.com

PREPARATIONTM-59
< PREPARATION > [CVT: RE0F11A]
C
EF
G H
I
J
K L
M A
B
TM
N
O P
PREPARATION
PREPARATION

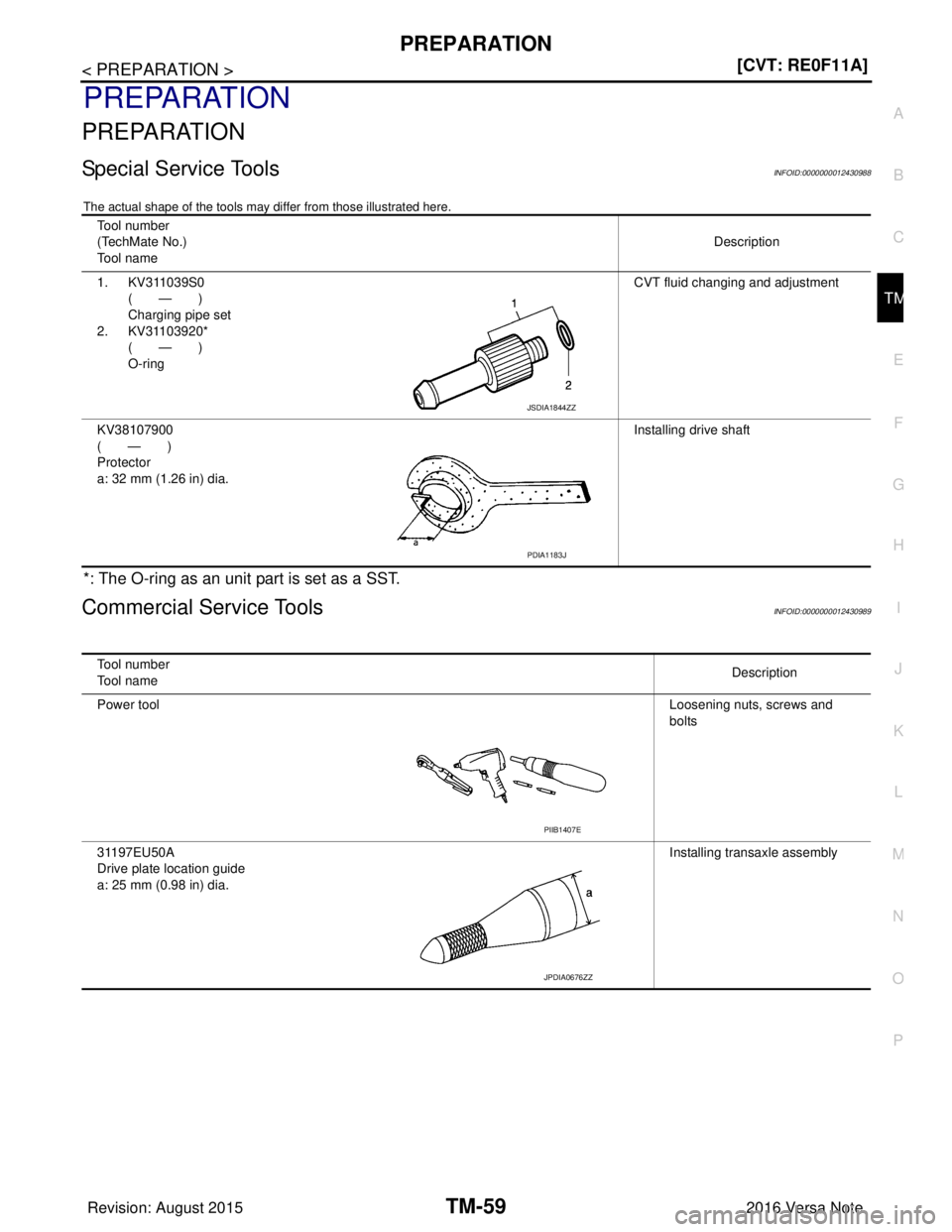

Special Service ToolsINFOID:0000000012430988
The actual shape of the tools may differ from those illustrated here.
*: The O-ring as an unit part is set as a SST.
Commercial Service ToolsINFOID:0000000012430989
Tool number
(TechMate No.)
Tool name Description
1. KV311039S0 (—)
Charging pipe set
2. KV31103920* (—)
O-ring CVT fluid changing and adjustment
KV38107900
(—)
Protector
a: 32 mm (1.26 in) dia. Installing drive shaft
JSDIA1844ZZ
PDIA1183J
Tool number
Tool name
Description
Power tool Loosening nuts, screws and
bolts
31197EU50A
Drive plate location guide
a: 25 mm (0.98 in) dia. Installing transaxle assembly
PIIB1407E
JPDIA0676ZZ
Revision: August 2015
2016 Versa Note

cardiagn.com
