2016 NISSAN NOTE headlamp

HEADLAMPEXL-33
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

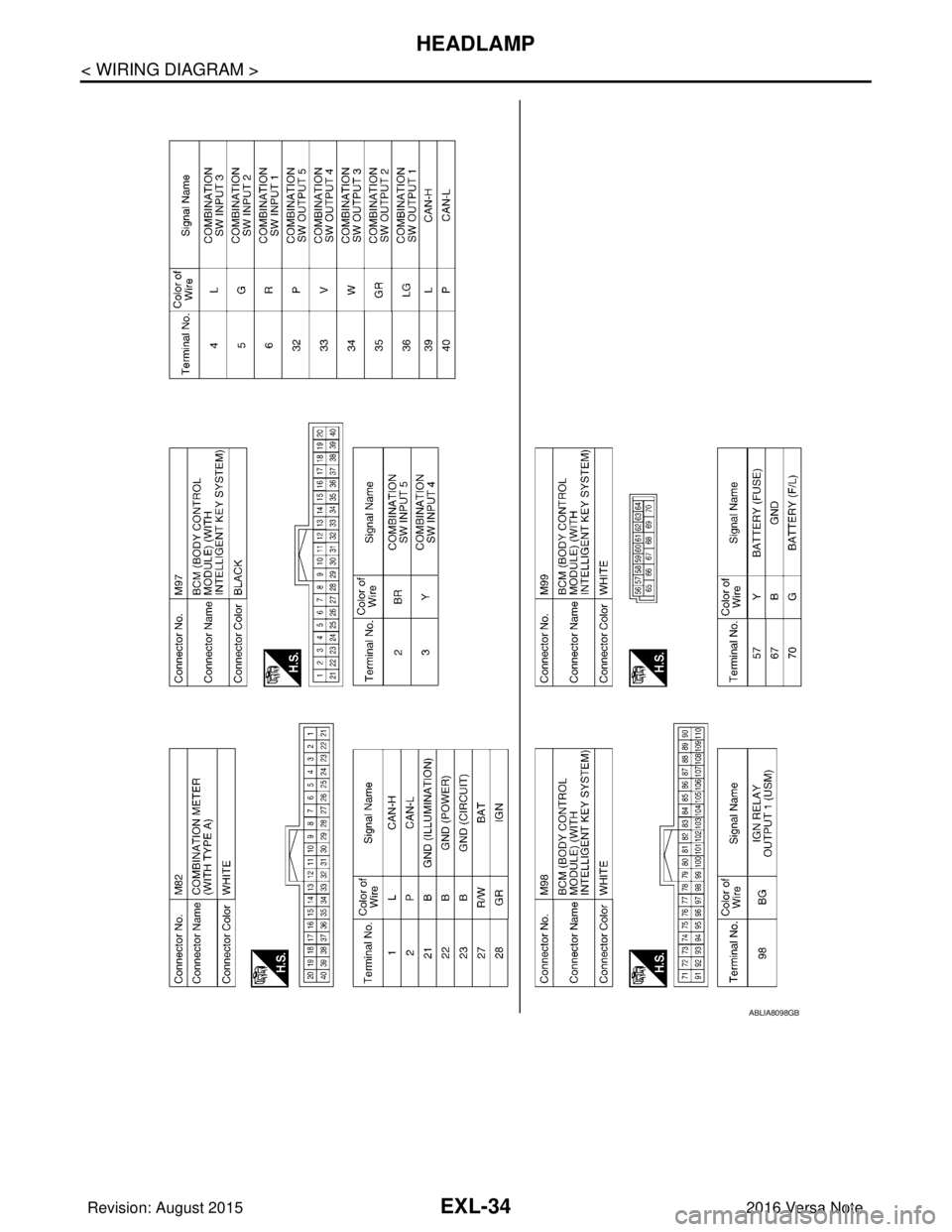

ABLIA8097GB
Revision: August 2015 2016 Versa Note

cardiagn.com

EXL-34
< WIRING DIAGRAM >
HEADLAMP
ABLIA8098GB
Revision: August 20152016 Versa Note

cardiagn.com

HEADLAMPEXL-35
< WIRING DIAGRAM >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P

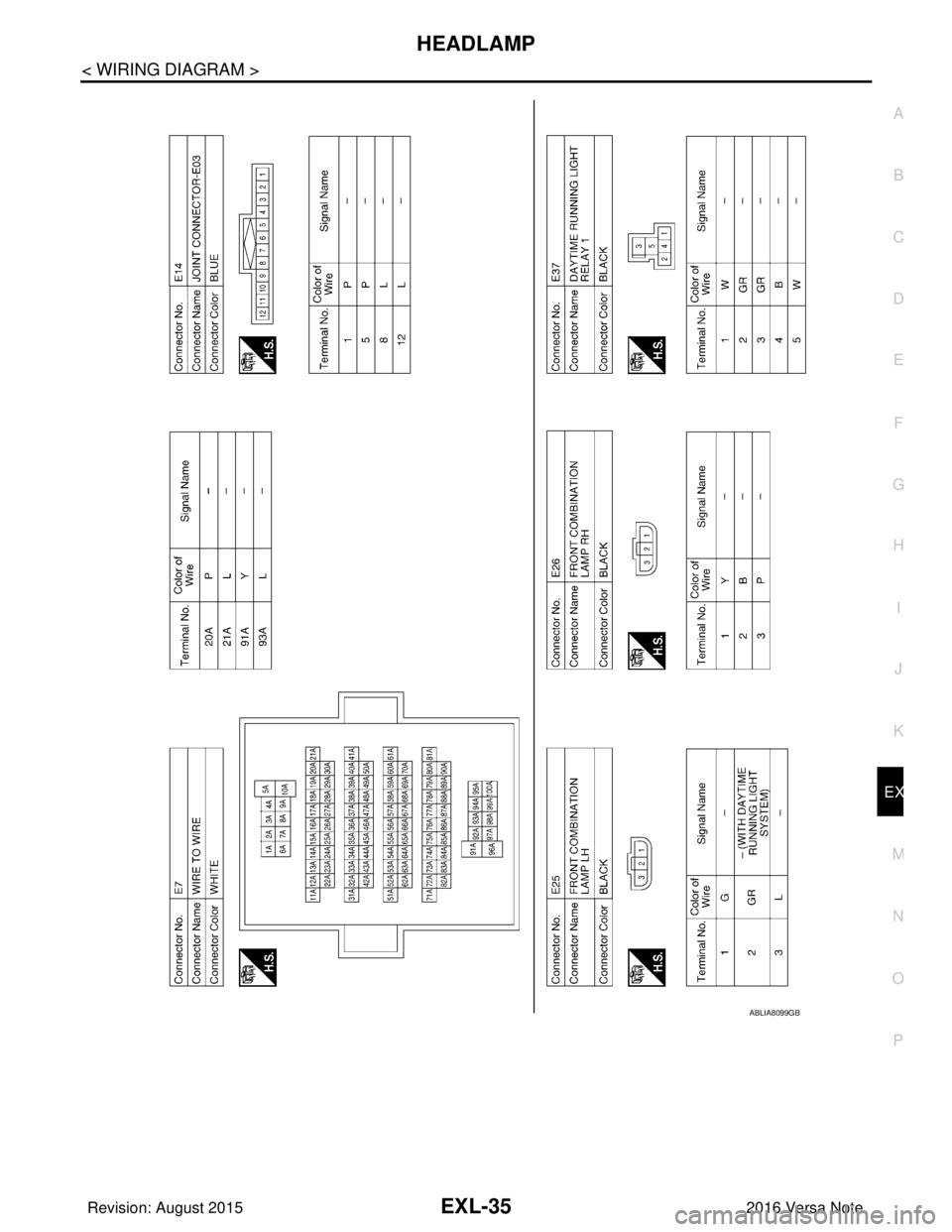

ABLIA8099GB
Revision: August 2015 2016 Versa Note

cardiagn.com

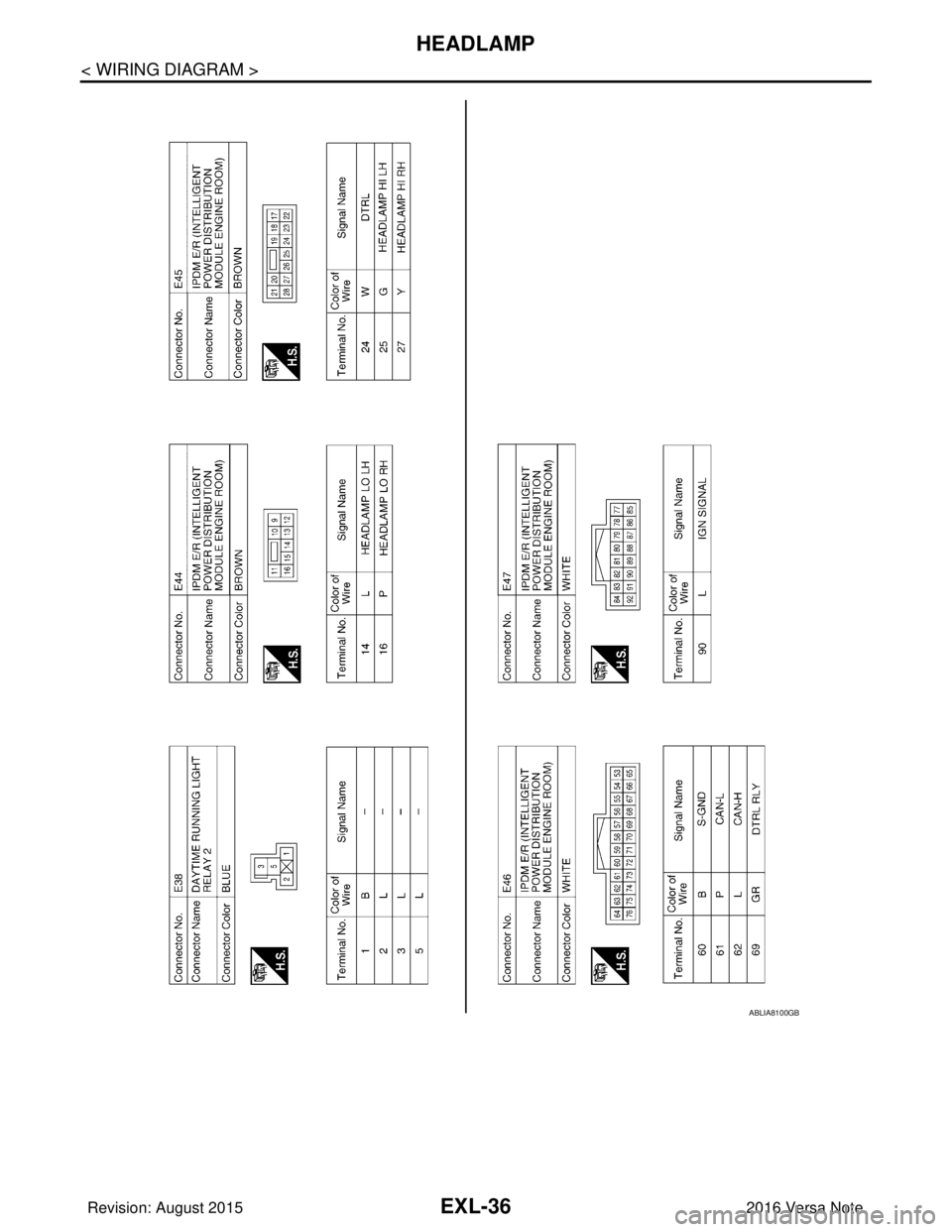

EXL-36
< WIRING DIAGRAM >
HEADLAMP
ABLIA8100GB
Revision: August 20152016 Versa Note

cardiagn.com

HEADLAMP (HI) CIRCUITEXL-77
< DTC/CIRCUIT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
HEADLAMP (HI) CIRCUIT
DescriptionINFOID:0000000012432804
The IPDM E/R (intelligent power distribution modul e engine room) controls the headlamp high relay based on
inputs from the BCM via the CAN communication lines. When the headlamp high relay is energized, power
flows through fuses 34 and 35, located in the IPDM E/R. Power then flows to the front combination lamp LH
and RH high beams.
Component Function CheckINFOID:0000000012432805
1.CHECK HEADLAMP (HI) OPERATION
WITHOUT CONSULT
1. Start IPDM E/R auto active test. Refer to PCS-9, "
Diagnosis Description".
2. Check that the headlamp switches to the high beam.
CONSULT
1. Select EXTERNAL LAMPS of IP DM E/R active test item.
2. While operating the test items, check that the headlamp switches to the high beam.
Does the headlamp switch to high beam?
YES >> Headlamp (HI) circuit is normal.
NO >> Refer to EXL-77, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012432806
Regarding Wiring Diagram information, refer to EXL-25, "Wiring Diagram - For USA" or EXL-31, "Wiring Dia-
gram - For Canada".
1.CHECK HEADLAMP (HI) FUSES
1. Turn the ignition switch OFF.
2. Check that the following fuses are not blown:
Is the fuse blown?
YES >> Replace the blown fuse after repairing the affected circuit.
NO >> GO TO 2.
2.CHECK HIGH BEAM BULB
Check the applicable high beam bulb to be sure the proper bulb standard is in use and the bulb is not open.
Is the bulb OK?
YES >> GO TO 3.
NO >> Replace the bulb.
3.CHECK HEADLAMP (HI) OUTPUT VOLTAGE
1. Turn the ignition switch OFF.
2. Disconnect the front combination lamp connector E25 or E26.
3. Turn the ignition switch ON.
4. Turn the high beam headlamps ON.
5. With the high beam headlamps ON, check the vo ltage between the combination lamp connector and
ground. HI : Headlamp switches to the high beam.
OFF : Headlamp OFF
Unit
LocationFuse No.Capacity
Headlamp HI (LH) IPDM E/R3510A
Headlamp HI (RH) IPDM E/R3410A
Revision: August 2015 2016 Versa Note

cardiagn.com

EXL-78
< DTC/CIRCUIT DIAGNOSIS >
HEADLAMP (HI) CIRCUIT
Is the inspection result normal?
YES >> GO TO 5.
NO >> GO TO 4.
4.CHECK HEADLAMP (HI) CIRCUIT FOR OPEN
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R connector E45.
3. Check continuity between the IPDM E/R harness connector E45 and the front combination lamp harness connector E25 or E26.
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to PCS-30, "Removal and Installation".
NO >> Repair or replace the harness or connector.
5.CHECK FRONT COMBINATION LAMP (HI) GROUND CIRCUIT
Check continuity between the front combination lamp harness connector and ground.
Is the inspection result normal?
YES >> Replace malfunctioning lamp.
NO >> Repair or replace the harness or c onnector (without daytime running light system).
>> GO TO 6 (with daytime running light system).
6.CHECK FRONT COMBINATION LAMP LH TO DA YTIME RUNNING LIGHT RELAY 1 GROUND CIRCUIT
1. Disconnect daytime running light relay 1 connector E37.
2. Check continuity between the daytime running light relay 1 harness connector E37 and the front combina- tion lamp LH harness connector E25.
Is the inspection result normal?
YES >> GO TO 7.
NO >> Repair or replace the harness or connector.
7.CHECK DAYTIME RUNNING LIGHT RELAY 1 GROUND CIRCUIT
Check continuity between the daytime running light relay 1 harness connector E37 and ground.
Is the inspection result normal?
YES >> Replace daytime running light relay 1.
NO >> Repair or replace the harness or connector.
(+) (−)Voltage
Connector Terminal
LH E25
1 Ground Battery voltage
RH E26
Connector TerminalConnector Terminal Continuity
LH E45 25
E25
1Y es
RH 27E26
Connector Terminal —Continuity
LH E25
2G ro un dY es
RH E26
Connector TerminalConnector Terminal Continuity
E37 3E25 2Yes
Connector Terminal —Continuity
E37 4Ground Yes
Revision: August 2015 2016 Versa Note

cardiagn.com

HEADLAMP (LO) CIRCUITEXL-79
< DTC/CIRCUIT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
EXL
N
O P
HEADLAMP (LO) CIRCUIT
DescriptionINFOID:0000000012432807
The IPDM E/R (intelligent power distribution modul e engine room) controls the headlamp low relay based on
inputs from the BCM via the CAN communication li nes. When the headlamp low relay is energized, power
flows through fuses 40 and 41, located in the IPDM E/R.
(Without daytime running light system) power then flow s to the front combination lamp LH and RH low beams.
(With daytime running light system) power then flows to the front combination lamp LH low beam and the day-
time running light relay 2 which becomes energized and t hen power is sent to the front combination lamp RH
low beam.
Component Function CheckINFOID:0000000012432808
1.CHECK HEADLAMP (LO) OPERATION
WITHOUT CONSULT
1. Start IPDM E/R auto active test. Refer to PCS-9, "
Diagnosis Description".
2. Check that the headlamp is turned ON.
CONSULT
1. Select EXTERNAL LAMPS of IP DM E/R active test item.
2. While operating the test items, check that the headlamp is turned ON.
Is the headlamp turned ON?
YES >> Headlamp (LO) is normal.
NO >> Refer to EXL-79, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000012432809
Regarding Wiring Diagram information, refer to EXL-25, "Wiring Diagram - For USA" or EXL-31, "Wiring Dia-
gram - For Canada".
1.CHECK HEADLAMP (LO) FUSES
1. Turn the ignition switch OFF.
2. Check that the following fuses are not blown:
Is the fuse blown?
YES >> Replace the blown fuse after repairing the affected circuit.
NO >> GO TO 2.
2.CHECK LOW BEAM BULB
Check the applicable low beam bulb to be sure the proper bulb standard is in use and the bulb is not open.
Is the bulb OK?
YES >> GO TO 3.
NO >> Replace the bulb.
3.CHECK HEADLAMP (LO) OUTPUT VOLTAGE
1. Turn the ignition switch OFF.
2. Disconnect the front combination lamp connector E25 or E26.
3. Turn the ignition switch ON. LO : Headlamp ON
OFF : Headlamp OFF
Unit
LocationFuse No.Capacity
Headlamp LO (L H) IPDM E/R 4115A
Headlamp LO (RH) IPDM E/R4015A
Revision: August 2015 2016 Versa Note

cardiagn.com

EXL-80
< DTC/CIRCUIT DIAGNOSIS >
HEADLAMP (LO) CIRCUIT
4. Turn the low beam headlamps ON.
5. With the low beam headlamps ON, check the voltage between the combination lamp connector andground.
Is the inspection result normal?
YES >> GO TO 9.
NO >> GO TO 4 (without daytime running light system). >> GO TO 5 (with daytime running light system).
4.CHECK HEADLAMP (LO) CIRCUIT FOR OPEN
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R connector E44.
3. Check continuity between the IPDM E/R harness connector E44 and the front combination lamp harness connectors E25 and E26.
Is the inspection result normal?
YES >> Replace IPDM E/R. Refer to PCS-30, "Removal and Installation".
NO >> Repair or replace the harness or connector.
5.CHECK DAYTIME RUNNING LIGHT RELAY 2 TO FR ONT COMBINATION LAMP LH CIRCUIT FOR OPEN
1. Disconnect daytime running light relay 2 connector E38.
2. Check continuity between the daytime running light relay 2 harness connector E38 and the front combina- tion lamp LH harness connector E25.
Is the inspection result normal?
YES >> GO TO 6.
NO >> Repair or replace the harness or connector.
6.CHECK DAYTIME RUNNING LIGHT RELAY 2 VOLTAGE CIRCUIT
With the low beam headlamps ON, check the voltage bet ween the daytime running light relay 2 connector E38
and ground.
Is the inspection result normal?
YES >> GO TO 7.
NO >> GO TO 8.
7.CHECK DAYTIME RUNNING LIGHT RELAY 2 GROUND CIRCUIT
Check continuity between the daytime running light relay 2 harness connector E38 and ground.
(+) (−)Voltage
Connector Terminal
LH E25 3 Ground Battery voltage
RH E26
Connector TerminalConnector Terminal Continuity
LH E44 14
E25
3Y es
RH 16E26
Connector TerminalConnector Terminal Continuity
E38 3E25 3Yes
(+)
(−)Voltage
Connector Terminal
E38 2
Ground Battery voltage
5
Revision: August 2015 2016 Versa Note
