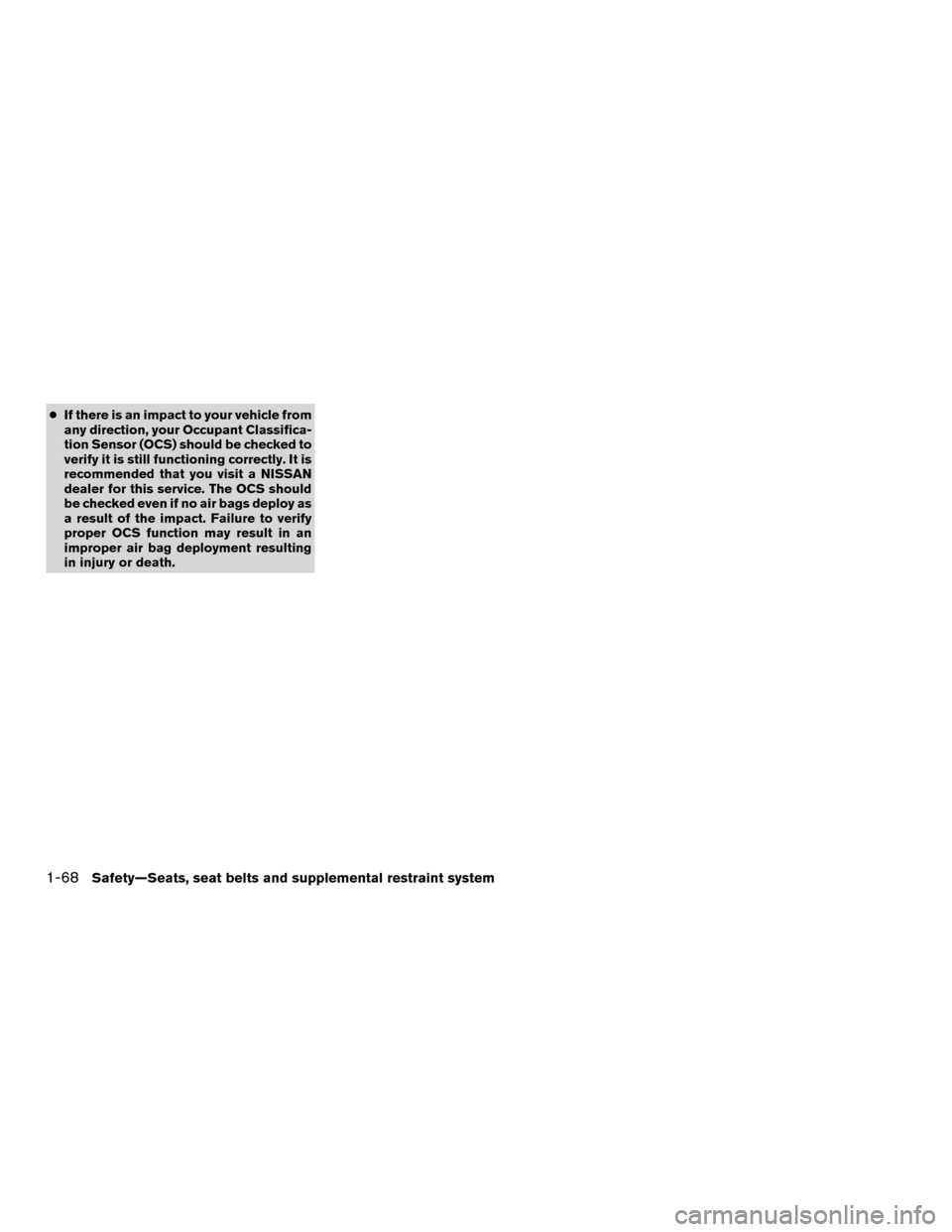

●If there is an impact to your vehicle from
any direction, your Occupant Classifica-
tion Sensor (OCS) should be checked to
verify it is still functioning correctly. It is
recommended that you visit a NISSAN
dealer for this service. The OCS should
be checked even if no air bags deploy as
a result of the impact. Failure to verify
proper OCS function may result in an
improper air bag deployment resulting
in injury or death.
1-68Safety—Seats, seat belts and supplemental restraint system

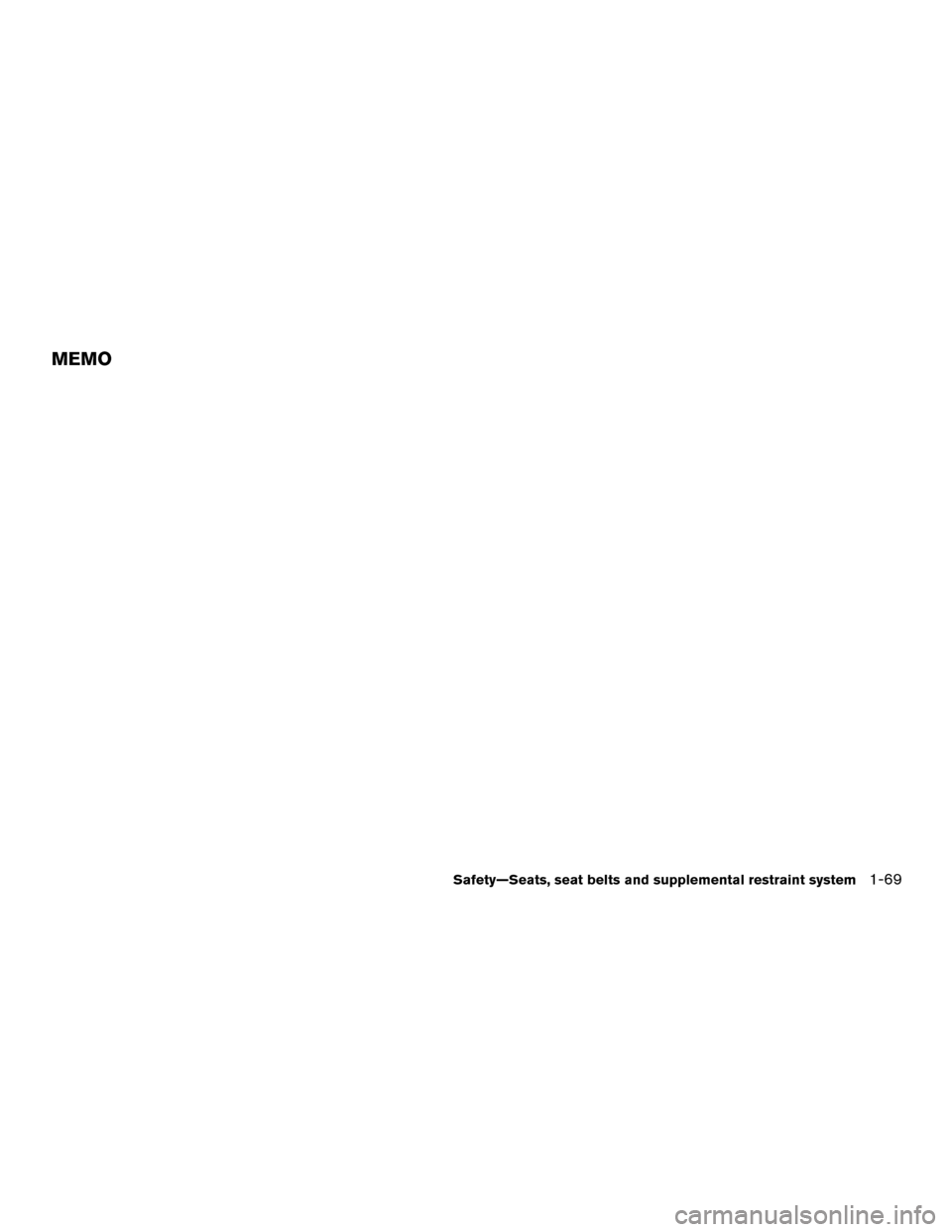

MEMO
Safety—Seats, seat belts and supplemental restraint system1-69

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-4
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Assist charge gauge ............................2-6
Fuel gauge ....................................2-6
Warning lights, indicator lights and audible
reminders .........................................2-7
Checking lights ................................2-7
Warning lights .................................2-8
Indicator lights ................................ 2-11
Audible reminders ............................. 2-13
Vehicle Information Display ........................2-14
How to use the vehicle information display .......2-14
Startup display ................................ 2-15
Settings ...................................... 2-15
Vehicle information display warnings and
indicators ..................................... 2-22
Control Panel and vehicle information display
Interaction ....................................... 2-27
Audio ........................................ 2-27
Receiving a call ............................... 2-28
Text Messaging ............................... 2-29
Navigation System ............................. 2-31Security systems
................................. 2-33
Vehicle security system ......................... 2-33
NISSAN vehicle immobilizer system .............2-34
Wiper and washer switch ......................... 2-35
Switch operation .............................. 2-35
Rear switch operation .......................... 2-36
Rear window and outside mirror defroster switch .....2-37
Headlight and turn signal switch ....................2-37
Headlight control switch ........................ 2-37
Daytime running light system ....................2-39
Instrument brightness control ...................2-40
Turn signal switch ............................. 2-40
Fog light switch ............................... 2-41
Horn ............................................ 2-41
Heated seat switches (if so equipped) ..............2-42
Heated rearseat

switches (if so equipped) ..........2-43
Climate controlled seat switches (if so equipped) ....2-44
Heated steering wheel switch (if so equipped) .......2-45
Vehicle Dynamic Control (VDC) off switch ...........2-46
Power outlets .................................... 2-46
12v outlets ................................... 2-46
Extended storage switch .......................... 2-48
Storage ......................................... 2-49

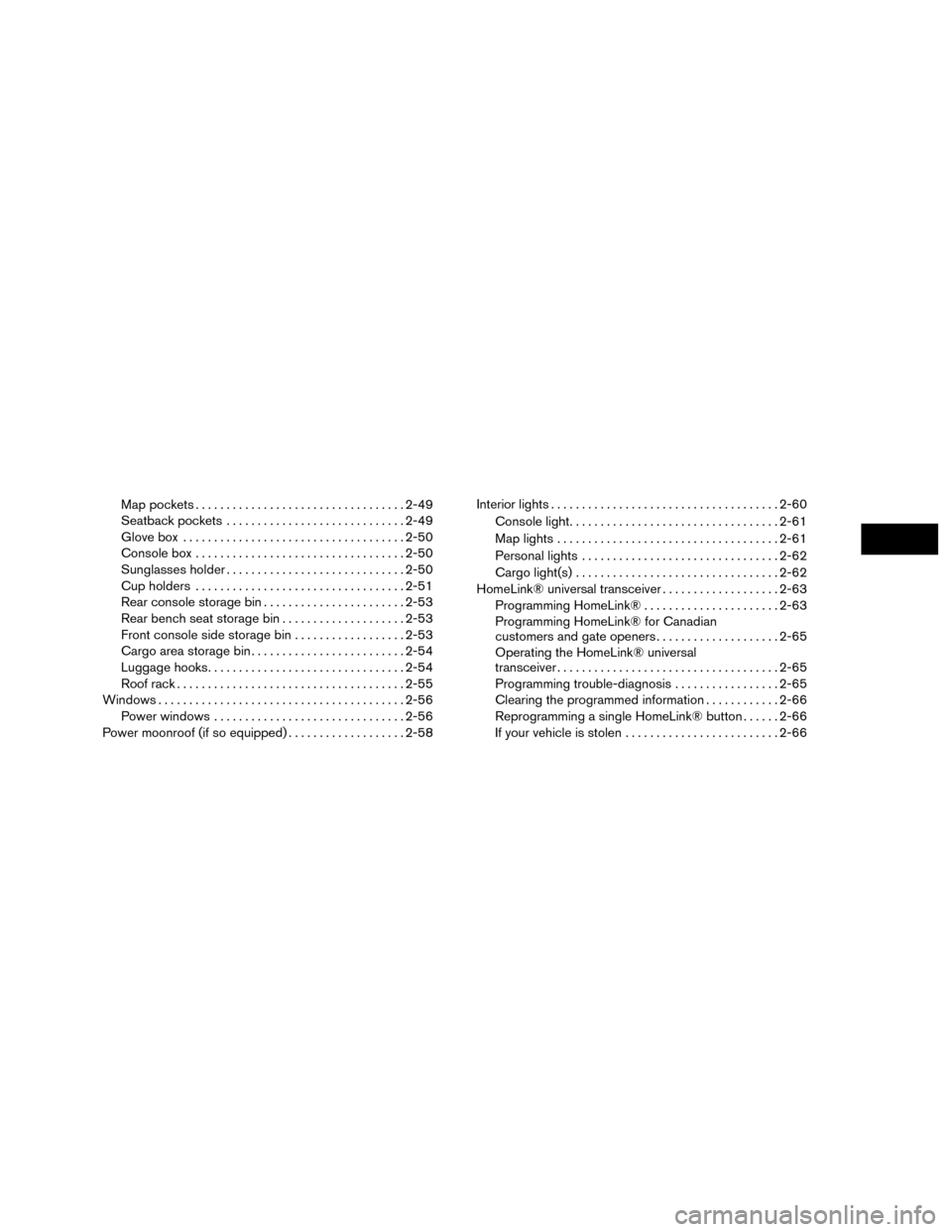

Map pockets.................................. 2-49
Seatback pockets ............................. 2-49
Glove box .................................... 2-50
Console box .................................. 2-50
Sunglasses holder ............................. 2-50
Cup holders .................................. 2-51
Rear console storage bin .......................2-53
Rear bench seat storage bin ....................2-53
Front console side storage bin . . ................2-53
Cargo area storage bin ......................... 2-54
Luggage hooks ................................ 2-54
Roof rack ..................................... 2-55
Windows ........................................ 2-56
Power windows ............................... 2-56
Power moonroof (if so equipped) ...................2-58Interior lights
..................................... 2-60
Console light .................................. 2-61
Map lights .................................... 2-61
Personal lights ................................ 2-62
Cargo light(s) ................................. 2-62
HomeLink® universal transceiver ...................2-63
Programming HomeLink® ......................2-63
Programming HomeLink® for Canadian
customers and gate openers ....................2-65
Operating the HomeLink® universal
transceiver .................................... 2-65
Programming trouble-diagnosis .................2-65
Clearing the programmed information ............2-66
Reprogramming a single HomeLink® button ......2-66
If your vehicle is stolen ......................... 2-66

1. Vent (P. 4-18)
2. Headlight/fog light/turn signal switch(P. 2-37)
3. Supplemental front-impact air bag
(P. 1-46)
Horn (P. 2-41)
4. Meters and gauges (P. 2-4) Warning and indicator lights (P. 2-7)
Vehicle information display (P. 2-14)
5. Wiper and washer switch (P. 2-35) Rear wiper and washer switch
(P. 2-35)
6. Audio controls*
7. Hazard warning flasher switch (P. 6-2)
8. Center display* Navigation display*
9. Front passenger supplemental air bag
(P. 2-33)
10. Glove box (P. 2-49)
11. Front passenger air bag status light
(P. 1-46)
12. Power outlet (P. 2-46)
13. Heated seat switches (if so equipped)
(P. 2-42)
Climate controlled seat switches
(if so equipped) (P. 2-44)
LII2435
INSTRUMENT PANEL
2-2Instruments and controls

14. Heater and air conditioning controls(P. 4-19)
15. Shift lever (P. 5-16)
16. Push-button ignition switch (P. 5-11)
17. Cruise control main switches
(if so equipped) (P. 5-40)
Intelligent Cruise Control (ICC)
switches (if so equipped) (P. 5-42
18. Driver supplemental knee air bag
(P. 1-46)
19. Bluetooth® Hands-Free Phone System
(P. 4-24)
Audio control switches*
20. Hood release (P. 3-20) Fuel door release (P. 3-26)
Power rear flip-up seats switch
(if so equipped) (P. 1-2)
21. Fuse box (P. 8-23)
22. Liftgate opener switch (if so equipped)
(P. 3-21)
Heated steering wheel switch
(if so equipped) (P. 2-45)
Vehicle Dynamic Control (VDC) OFF
switch (P. 2-46)
ECO mode switch (P. 5-16) 23. Instrument brightness control (P. 2-37)
Twin trip odometer reset switch
(P. 3-29)
*: Refer to the separate Navigation System Own-
er’s Manual.
Refer to the page number indicated in pa-
rentheses for operating details.
Instruments and controls2-3

1. Tachometer
2. Warning lights and indicator lights
3. Vehicle information display/Odometer/Twin trip odometer
4. Speedometer
5. Fuel gauge 6. Assist charge gauge
SPEEDOMETER AND ODOMETER
This vehicle is equipped with a speedometer and
odometer. The speedometer is located on the
right side of the meter cluster. The odometer is
located within the vehicle information display.
LIC3140
METERS AND GAUGES
2-4Instruments and controls

Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer and the twin trip odometer1are
displayed below the vehicle information display
when the ignition switch is placed in the ON
position.
The odometer records the total distance the ve-
hicle has been driven.
The twin trip odometer records the distance of
individual trips. Changing the display
Push the TRIP RESET
2switch on the instru-
ment panel to change the display as follows:
Trip
→ Trip→Trip
Resetting the trip odometer
Pushing the TRIP RESET switch
2for more
than 1 second resets the currently displayed trip
odometer to zero.
TACHOMETER
The tachometer indicates engine speed in revo-
lutions per minute (rpm) . Do not rev engine into
the red zone
1.
CAUTION
When engine speed approaches the red
zone, reduce engine speed. Operating the
engine in the red zone may cause serious
engine damage.
LIC3116LIC2921LIC3114
Instruments and controls2-5
