6. Navigation
The following settings are available.
Menu itemAction
[Change View] [2D Map] Display 2D map.
[Split: 2D Map] Display 2D map on both left and right side of the split screen.
[Birdview (3D)] Display 3D map.
[Split: Birdview Map] Display 2D map on the left side and 3D map on the right side of the screen.
[View Settings] [Intersection] Display the enlarged view of intersection on the left side of the screen during
route guidance.
ªRoute guidance screensº (page 6-31)
[Turn List] Display the turn list on the left screen when a route is set.
ªRoute guidance screensº (page 6-31)
[Drive Report] (if so equipped) Display your ECO driving performance score on the left side of the screen.
Touch [Log] to view the Drive Report history. Touch [Reset] to clear the past
records.
Push


> (GLW    0RGHO 1&*1-1 @
Menu itemAction
[Medium]
[Small]
[Birdview Angle] Adjusts the Birdview
TMangle using the adjust bar displayed on the left side of
the screen. [Birdview Angle] is available only when 3D map is displayed.
[North Up when Zoomed Out] When this setting is ON, the orientation of the map is automatically changed
to North Up when the widest map scale is selected.
[Select Text to Display on
Map] [Place Names]
Allows place names to be displayed on the map screen.
[Facility Names] Allows facilities names to be displayed on the map screen.
[Road Names] Allows road names to be displayed on the map screen.
[Left Split Map Settings] [Map Orientation] The map orientation for the left side of split screen can be selected from
North Up or Heading Up.
[Long Range] Long Range Map View is available only when the left side of split screen is in
Heading Up mode.
With this item turned on, the vehicle position icon on the left screen will be
located slightly lower than the center of the screen so that a wider area in the
traveling direction can be viewed.
[Map Scale] Allows to change the scale of the map displayed on the left side of the split
screen.
[Show all Freeway Exits on Route] (for U.S. and Canada) Turns on/off the freeway exit information display.
[Auto. Show Turn List on Freeway] The turn list can be set to on or off to be displayed automatically while driving
on a freeway.
[Back to Map] Back to the current location map.
6. Navigation
&RQGLWLRQ
6-11


> (GLW    0RGHO 1&*1-1 @
6. Navigation
SETTING INFORMATION ON MAPNCGNJN1402-120906-571EE76C-6CCB-4E21-8682-A57D3A386B15Some information on the map can be displayed
or hidden.
Displaying map iconsNCGNJN1402-120906-AA72987D-2743-4761-9338-7DED04C38996Displays map icons of certain points of interest
(such as restaurants and gas stations, etc.) on
the map around the current vehicle location.
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation].
3. Touch [Map Icons].
4. Touch the preferred icon. The indicator of theselected icon illuminates.
Available setting icons . Restaurant:
.Gas Station:
.Hotel:
.ATM:
.Rest Area:
INFO:
. [Map Icons] can also be accessed from
[
] on the Map screen.
. The map icons are not displayed on the map
screen when the map scale is set to 1/4 mile
(500 m) or wider in the 2D and Birdview
TM
map.
. If brand icons are registered in the map data,
the brand will be displayed on the map
instead of the general map icons listed.
Displaying map scrolling informationNCGNJN1402-120906-7E953B13-E5EF-41C1-88FC-C5E9ABF8FE53
5GB0416X
Information about the location, on which the
center of the cross pointer is placed by scrolling
on the map, can be set to be displayed.
1. Touch [Settings] on the Launch Bar.
2. Touch [Navigation] and touch [Others]. 3. Touch [Map Scrolling Information].
4. Touch the preferred information item.
The following information items are available.
.[Address Book Icons]
.[Destination/Waypoint Icons]
.[Show pop-up for POIs]
.[Latitude/Longitude Info]
INFO:
. When the settings are turned on, placing the
cross pointer on the stored location icons,
Destination/Waypoint icons or map icons
will display the information in a pop-up
window. The latitude/longitude of any point
on the map where the cross pointer is
located will be displayed on the bottom left
corner of the map screen.
. When the [Go Here] is displayed on the pop-
up window, destination can be set by
touching it. Touch [Place Info] to display the
place information screen.
On the place information screen, touch
[Show Map] to display the map around the
location and touch [Call] to call the selected
place if the key is available. When available,
touch [Details] to show detail information of
&RQGLWLRQ
6-12


> (GLW    0RGHO 1&*1-1 @
the place.
TRAFFIC INFORMATION ON MAP (for
U.S. and Canada)
NCGNJN1402-120906-76DF2039-9D48-4277-86E8-FF7C624B9B6DWith a subscription to SiriusXM Traffic, traffic
information is displayed.
ªTraffic information on mapº (page 6-47)
Free Flow: Green arrow
Moderate traffic: Yellow arrow
Heavy traffic: Red
Section affected by serious traffic event: Purple
The following traffic information icons may be
displayed.
: Accident
: Closed road
: Information
: Road work
: Slippery road
: Weather
: Incident
INFO:
Traffic icons are displayed in the scale level of
1/64 miles (25 m) - 5 miles (10 km) range. Some
traffic icons are displayed only on the map at
higher detail levels.
MAP MENU SCREENGUID-0929BEAC-F11F-4396-A760-B4D3410181E5Touch [] while the current location map
screen or a scrolled map screen is displayed to
display the menu corresponding to that screen.
This menu can be used to quickly access helpful
functions, such as setting a destination and
searching for points of interest nearby.
Current location map screenGUID-EA83CF78-70AB-4C26-AB1F-C95D1370CA59
5GB0481X
If [] is touched while the current location map
screen is displayed, the following options are
available.
. [Save Location]:
Stores the current vehicle location in the
Address Book.
ªStoring location by moving mapº
(page 6-50)
. [Nearby POIs]:
Searches for points of interest near the
current vehicle location.
ªFinding nearby placeº (page 6-18)
. [Map View]:
Map view settings can be changed.
ªMap view settingsº (page 6-9)
. [Map Icons]:
The map icons can be displayed or hidden by
6. Navigation
&RQGLWLRQ
6-13


> (GLW    0RGHO 1&*1-1 @
6. Navigation
type.
ªDisplaying map iconsº (page 6-12)
. [Traffic Info Setting] (for U.S.and Canada):
Set the various functions of the SiriusXM
Traffic information system.
ªTraffic information on mapº
(page 6-47)
. [Cancel Route]:
Delete destination and waypoints.
ªCanceling Routeº (page 6-36)
Scrolled location map screenGUID-A63AF447-9FDA-4980-AA8F-A277E7E58E1F
5GB0482X
If [] is touched while a scrolled map screen is
displayed, the following options are available.
. [New Destination]:
Sets the map location pointed at by the cross
pointer as a new destination.
ªSetting point on mapº (page 6-24) .
[Add to Route]:
Adds the map location pointed at by the
cross pointer as a destination or a waypoint
to the route already set.
ªSetting destination or waypointº
(page 6-37)
. [Nearby POIs]:
Searches for points of interest near the map
location.
ªFinding nearby placeº (page 6-18)
. [Save Location]:
Stores the map location pointed at by the
cross pointer in the Address Book.
ªStoring location by moving mapº
(page 6-50)
. [Delete]:
Deletes a stored location or destination
(waypoint) which the cross pointer is placed
over an icon.
ªDeleting individual item on mapº
(page 6-55)
SETTING DESTINATIONNCGNJN1402-120906-501A39C4-2FAD-451F-B110-26D6B2F785A4The destination you wish to drive to can be set
for route guidance.
BASIC OPERATIONSGUID-F50ACAED-A068-494D-AA64-CD603677AFC9
Displaying destination setting menuNCGNJN1402-120906-B2EBC8BC-3B61-48B8-A7CB-A84B9994A079There are several methods that can be used to
set a destination. Select a preferred method for
finding and setting a destination.
5GB0419X
Touch [Navi] on the Launch Bar.
The destination screen will be displayed when a
route is not set.
&RQGLWLRQ
6-14


> (GLW    0RGHO 1&*1-1 @
INFO:
If a route is set, the route menu screen will be
displayed when [Navi] on the Launch Bar is
touched. Touch [New Destination] to set a
destination.
ªRoute menuº (page 6-33)
Available destination setting methods:
Setting item Action
[Street Address] Searches for a destination by address.
ªFinding addressº (page 6-17)
[Nearby Points of Interest] Searches for points of interest near the current vehicle location, such as restaurants and gas stations,
etc.
ªFinding nearby placeº (page 6-18)
[Points of Interest] Searches for a destination from various categories of businesses or locations.
ªFinding points of interestº (page 6-19)
[Home] Searches for a route from the current location to the previously stored home location.
ªSetting home as destinationº (page 6-20)
[Address Book] Searches for a destination from Address Book.
ªSearching from address bookº (page 6-21)
[Previous Destinations] Searches for the destination from the previous destinations and a previous start point.
ªSearching from previous destinationsº (page 6-21)
[Connected Search] (if so equipped) Input a keyword of a point of interest and connect and search the NissanConnectedSMServices Data
Center.
ªSearching by connecting to the internetº (page 6-22)
[Intersection] Sets an intersection as a destination.
ªSetting intersectionº (page 6-22)
6. Navigation
&RQGLWLRQ
6-15


> (GLW    0RGHO 1&*1-1 @

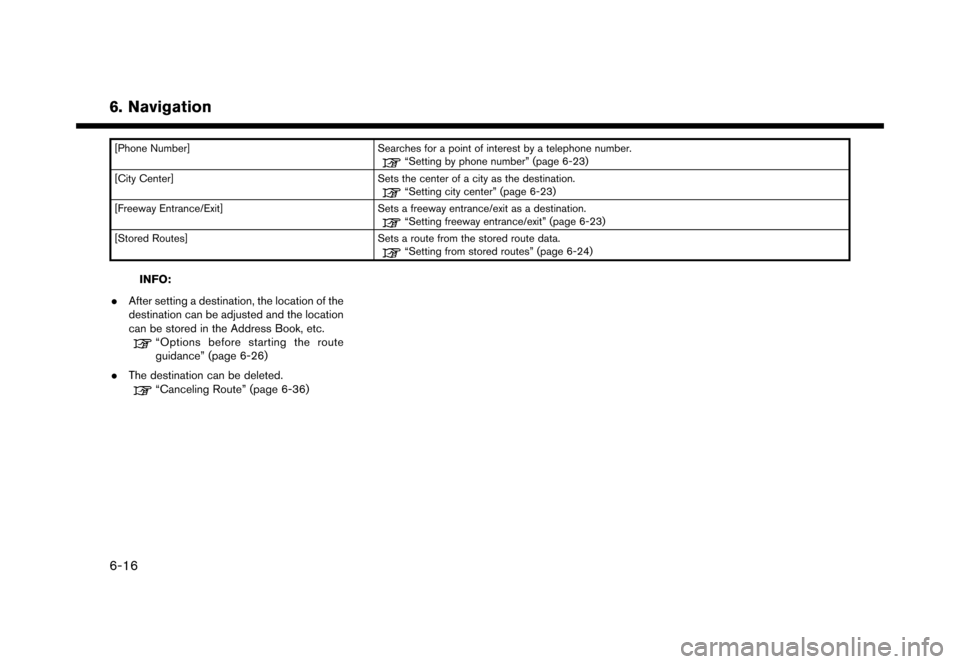

6. Navigation
[Phone Number]Searches for a point of interest by a telephone number.ªSetting by phone numberº (page 6-23)
[City Center] Sets the center of a city as the destination.
ªSetting city centerº (page 6-23)
[Freeway Entrance/Exit] Sets a freeway entrance/exit as a destination.
ªSetting freeway entrance/exitº (page 6-23)
[Stored Routes] Sets a route from the stored route data.
ªSetting from stored routesº (page 6-24)
INFO:
. After setting a destination, the location of the
destination can be adjusted and the location
can be stored in the Address Book, etc.
ªOptions before starting the route
guidanceº (page 6-26)
. The destination can be deleted.
ªCanceling Routeº (page 6-36)
&RQGLWLRQ
6-16


> (GLW    0RGHO 1&*1-1 @
Specifying regionNCGNJN1402-120906-3E25FCC3-C8B2-44CB-BCC5-732F43DB2522With some destination setting methods, state/
province and city can be specified prior to
searching for destination locations.
5GB0417X
1. Touch [Navi] on the Launch Bar.
2. Touch the desired search method.
3. Touch [State/Province] or [City] if displayed.
4. Enter the name of the state, province or cityand then touch [List]. A list screen is
displayed.
5. Touch the preferred state, province or city from the list.
INFO:
. When the system is restarted, the state and
province in which the vehicle is recognized
by the GPS to be located will be set
automatically as a state and province for
location search.
. Touch [Change Area] to change the area for
conducting the location search (for U.S. and
Canada) .
. Touch [Current State] to search for the
destination within the state or province
where the vehicle is currently located.
. Touch [Space] to enter a space between
letters.
. After touching [City], touch [Last 5 Cities] to
display the last 5 cities set as destinations.
. In some cases, when a city name has been
entered, the number of matching destina-
tions in the ªMatchesº column may be
different from the number displayed on the
list screen. If this occurs, enter more
characters to further reduce the number of
matches.
. It is not possible to search for a route from
the continental United States, Canada or
Mexico to Hawaii, Virgin Islands, Puerto Rico, etc.
FINDING ADDRESSNCGNJN1402-120906-E974693C-B055-4844-9B8F-849E0623EC34Searches for a destination by address.
1. Touch [Navi] on the Launch Bar.
2. Touch [Street Address]. The street address
input screen is displayed.
5GB0420X
3. Input the street address.
.Touch [State/Province] to enter the stateor province name.
.Touch [House #] to enter the house
number. If the house number is not
available, touch [No House #].
.Touch [Street] to enter the street name. After finishing the entry, touch [List]. A list
of streets is displayed.
.Touch [City] to enter the city name. If thecity name is not available, touch [All
Cities].
6. Navigation
&RQGLWLRQ
6-17
