2016 NISSAN MAXIMA navigation


> (GLW    0RGHO 1&*1-1 @
5. Information
INFORMATION MENUNCGNJN1402-120906-5E9B2C85-D229-414A-96FE-2A3389057A2BThe information screen sets or displays various information that is helpful for using the vehicle. Available items include the SiriusXM Travel Link information
(for U.S. and Canada) , traffic information (for U.S. and Canada) , vehicle information, current location information, and navigation software version.
5GH0285X
Touch [Info] on the Launch Bar on the screen to display the Information menu.
For U.S. and Canada
Menu itemResult
[NissanConnect Apps] A list of NissanConnectSMMobile Apps is displayed.ªNissanConnectSMMobile Appsº (page 5-6)
[NissanConnect Services] (if so equipped) Display the NissanConnectSMService menu screen.ªNissanConnectSMServicesº (page 5-7)
[SXM Weather] [Current Conditions]Display current weather condition information. Touch [Favorite City] to see conditions
for a favorite location. To change the favorite location, touch [Change City].
[5-Day Forecast] Touch [Favorite City] to see the 5-day weather forecast for a selected location. To
change the selected location, touch [Change City].
&RQGLWLRQ
5-2


> (GLW    0RGHO 1&*1-1 @
Menu itemResult
[Where am I?] The name and distance of the next/previous street, and other information that
indicates the current vehicle location are displayed. GPS coordinates and altitude are
shown on the bottom right.
[SXM Weather Alerts] Display the list of weather alerts.
Touch [Nearby Current] to display nearby current alerts, touch [Nearby Destination] to
display nearby destination alerts.
[Navigation Version] Displays the information of the current map version, program version, unit code, etc.
[GPS Position] Displays GPS information, such as number of satellites, latitude/longitude, and
approximate altitude.
INFO:
A SiriusXM Travel Link or SiriusXM Traffic subscription is necessary to receive SiriusXM information services.
For Mexico
Menu item Result
[NissanConnect Apps] A list of NissanConnectSMMobile Apps is displayed.ªNissanConnectSMMobile Appsº (page 5-6)
[Where am I?] The name and distance of the next/previous street, and other information that
indicates the current vehicle location are displayed. GPS coordinates and altitude are
shown on the bottom right.
[Navigation Version] Displays the information of the current map version, program version, unit code, etc.
[GPS Position] Displays GPS information, such as number of satellites, latitude/longitude, and
approximate altitude.
5. Information
&RQGLWLRQ
5-5


> (GLW    0RGHO 1&*1-1 @

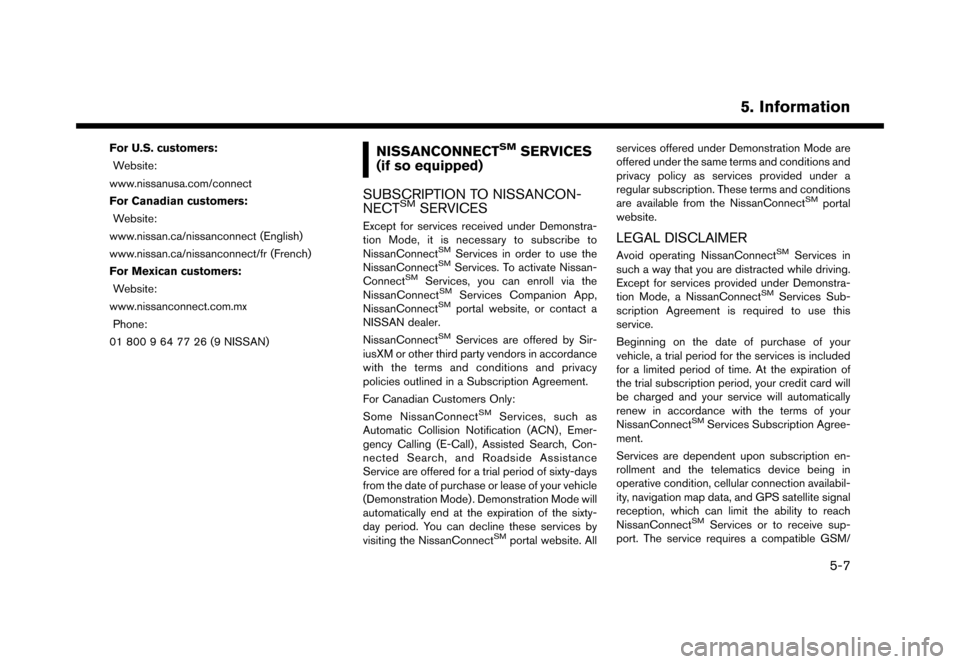

For U.S. customers:Website:
www.nissanusa.com/connect
For Canadian customers: Website:
www.nissan.ca/nissanconnect (English)
www.nissan.ca/nissanconnect/fr (French)
For Mexican customers: Website:
www.nissanconnect.com.mx
Phone:
01 800 9 64 77 26 (9 NISSAN)NISSANCONNECTSMSERVICES
(if so equipped)
NCGNJN1402-17324563-EABE-48D2-BF54-CA6C6411D90B
SUBSCRIPTION TO NISSANCON-
NECTSMSERVICESNCGNJN1402-120906-79859816-B70D-4DAD-AB81-2CEDA8C9C449Except for services received under Demonstra-
tion Mode, it is necessary to subscribe to
NissanConnect
SMServices in order to use the
NissanConnectSMServices. To activate Nissan-
ConnectSMServices, you can enroll via the
NissanConnectSMServices Companion App,
NissanConnectSMportal website, or contact a
NISSAN dealer.
NissanConnect
SMServices are offered by Sir-
iusXM or other third party vendors in accordance
with the terms and conditions and privacy
policies outlined in a Subscription Agreement.
For Canadian Customers Only:
Some NissanConnect
SMServices, such as
Automatic Collision Notification (ACN) , Emer-
gency Calling (E-Call) , Assisted Search, Con-
nected Search, and Roadside Assistance
Service are offered for a trial period of sixty-days
from the date of purchase or lease of your vehicle
(Demonstration Mode) . Demonstration Mode will
automatically end at the expiration of the sixty-
day period. You can decline these services by
visiting the NissanConnect
SMportal website. All services offered under Demonstration Mode are
offered under the same terms and conditions and
privacy policy as services provided under a
regular subscription. These terms and conditions
are available from the NissanConnect
SMportal
website.
LEGAL DISCLAIMERNCGNJN1402-738A7C04-99EB-48FC-9CCD-BDCCDF536ECBAvoid operating NissanConnectSMServices in
such a way that you are distracted while driving.
Except for services provided under Demonstra-
tion Mode, a NissanConnect
SMServices Sub-
scription Agreement is required to use this
service.
Beginning on the date of purchase of your
vehicle, a trial period for the services is included
for a limited period of time. At the expiration of
the trial subscription period, your credit card will
be charged and your service will automatically
renew in accordance with the terms of your
NissanConnect
SMServices Subscription Agree-
ment.
Services are dependent upon subscription en-
rollment and the telematics device being in
operative condition, cellular connection availabil-
ity, navigation map data, and GPS satellite signal
reception, which can limit the ability to reach
NissanConnect
SMServices or to receive sup-
port. The service requires a compatible GSM/
5. Information
&RQGLWLRQ
5-7


> (GLW    0RGHO 1&*1-1 @
5. Information
GPRS cellular network. Should the cellular
provider terminate or restrict network service,
services will not be available. Under this circum-
stance, your service may be suspended or
terminated without notice and without liability to
NISSAN, NISSAN's third party service providers,
the underlying wireless carrier or any third party
beneficiary. In the event that a change of
telecommunications systems or services be-
comes necessary, you are solely responsible for
replacing, as well as the cost of replacing, any
equipment in the vehicle that is necessitated.
Terms and conditions of NissanConnect
SM
Services Subscription Agreement apply.
NISSANCONNECTSMSERVICES
FEATURES
NCGNJN1402-6C449EE6-7E5C-4FD6-9F16-E808A8403302NissanConnectSMServices provides various
types of information and services by connecting
your vehicle to the NissanConnect
SMServices
Data Center and NissanConnectSMServices
Response Center using the TCU (Telematics
Control Unit) installed in your vehicle.
WARNING1&*1-1)$'&%'()(%. Radio waves could adversely affect
electric medical equipment. indivi-
duals who use a pacemaker should
contact the device manufacturer re-
garding any possible effects before
using the system.
. The TCU antenna is installed inside
the upper central part of the instru-
ment panel. An occupant should not
get any closer to the antenna than
specified by the pacemaker manu-
facturer. The radio waves from the
TCU antenna may adversely affect the
operation of the pacemaker while
using the NissanConnect
SMServices.
. Please note that the Automatic Colli-
sion Notification (ACN) service and
Emergency Calling (E-Call) function
cannot be used in the following
conditions:
Ð The vehicle moves outside the NissanConnect
SMServices area
and connection with the TCU (Tele-
matics Control Unit) is affected.
Ð The vehicle is in a location with poor signal reception such as a tunnel, underground parking, be-
hind a building or in a mountai-
nous area.
. It may not be possible to make an
emergency call depending on the
severity of a collision and/or emer-
gency.
. Emergency functions and services
will not be available without a paid
subscription to NissanConnect
SM
Services.
. The Automatic Collision Notification
(ACN) service may not function prop-
erly depending on the severity of a
collision and/or emergency.
INFO:
. NissanConnect
SMServices features are
dependent upon subscription enrollment
and the telematics device being in operative
condition, cellular connectivity, navigation
map data and GPS satellite signal reception.
Terms and conditions of the NissanCon-
nect
SMServices Subscription Agreement
apply.
&RQGLWLRQ
5-8


> (GLW    0RGHO 1&*1-1 @
.Enrollment is required in order to receive
NissanConnectSMServices. The services
that can be received vary depending on the
plan in which you are enrolled.
. A six-month trial is included beginning on the
date of purchase, however you must still be
enrolled and activated to use services.
. After the trial period, you must enroll in a paid
subscription for NissanConnect
SMServices
to continue using the features. The services
that can be received vary depending on the
plan to which you subscribe.
. Laws in some jurisdictions may restrict the
use of ªText-to-Speech.º Check local reg-
ulations before using this feature.
NissanConnect
SMServices may be updated.
The latest detailed information is available on
the following websites or from the support line.
NissanConnect
SMServices website:
For U.S.
www.nissanusa.com/connect
For Canada
www.nissan.ca/nissanconnect (English)
www.nissan.ca/nissanconnect/fr (French)
NissanConnect
SMServices support
line: 1-855-426-6628
. Roadside Assistance Service:
Enhanced Roadside Assistance allows you
to receive assistance from the Roadside
Response Specialist for a non-emergency
incident that requires a towing or third-party
response service. The service is accessed by
touching the Voice Menu button on the
navigation screen. Roadside Assistance
may also be used in conjunction with the
Emergency Assistance service, if warranted.
ªEmergency supportº (page 5-15)
. Emergency Calling (E-Call):
The Emergency Calling (E-Call) feature
provides emergency assistance by connect-
ing to a Response Specialist. In the event of
an emergency, by push the in-vehicle
button to use this feature. The
Response Specialist provides various assis-
tance depending on the situation.
ªEmergency supportº (page 5-15)
. Automatic Collision Notification (ACN):
The TCU (Telematics Control Unit) gener-
ates a signal automatically to the Nissan-
Connect
SMServices Response Center in the
case of an accident severe enough to trigger
one of the vehicle's air bags. Upon the signal,
a Response Specialist receives the vehicle location and customer information and no-
tifies the proper authorities in accordance
with established policies and procedures.
. Curfew Alert:
Customers can set time interval for accep-
table and unacceptable operation of the
vehicle via NissanConnect
SMPortal Website
and NissanConnectSMServices Companion
App. If the time restrictions are violated, the
customer will be automatically notified (e-
mail, text message, or phone call) .
. Remote Door Lock/Unlock:
The Remote Door Lock/Unlock feature
allows the customer to access the vehicle
remotely from the NissanConnect
SMSer-
vices website or Companion App to send
lock or unlock commands to the vehicle.
ªConnecting to Interactive Voice
Menuº (page 5-13)
. Remote Sound Horn and Flash Lights:
Customers can activate the vehicle's head-
lights and horn via the NissanConnect
SM
Services website or Companion App.
. Remote Engine Start:
If the vehicle is equipped with both TCU
(Telematics Control Unit) and Remote Start,
customers can remotely start the vehicle via
5. Information
&RQGLWLRQ
5-9


> (GLW    0RGHO 1&*1-1 @
5. Information
Setting route to a searched destinationGUID-E5370E14-A583-429D-9D21-7959CCF8C310Use Connected Search to find destinations via
the internet and set a route to them directly from
your navigation system.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [Connected Search]. A keyboard isdisplayed.
4. Enter the keyword and touch [Search]. The system will connect to the Internet and the
search results will be displayed.
5. Touch a preferred destination from the list and touch [Start] to start the route guidance.
INFO:
The Connected Search can also be set by
touching [Navi] on the Launch Bar and then
touching [Connected Search].
Message BoxGUID-D3B19AAA-3DC2-4413-A9B6-ABCF17B88AC1The text messages from the NissanConnectSM
Data Center that were previously received to are
displayed.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services]. 3. Touch [Message Box].
4.
A history list is displayed. Highlight the
information.
Viewing information feedsNCGNJN1402-DD03B117-2CA4-4366-9B71-1D96791C490CContents of the various NissanConnectSMSer-
vices information can be downloaded.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [All Information Feeds]. A list screen is displayed.
4. Touch a preferred folder. A list of information feeds is displayed. The content is announced
by the system (Text-to-Speech) while the
vehicle is being driven, or if parked, you can
read the content on the display.
INFO:
. Touch [Stop] during communication with the
NissanConnect
SMServices Data Center to
cancel the connection.
. A message is displayed when the commu-
nication is disconnected while downloading
information due to a poor communication
status. Select [Yes] to restart the download. .
Laws in some jurisdictions may restrict the
use of ªText-to-Speech.º Check local reg-
ulations before using this feature.
. Some terminology such as personal names,
place names, special terms, symbols, etc.
may not be announced correctly. This is not a
malfunction.
. The system will pause announcements when
interrupted by the voice guidance given by
the navigation system. When the voice
guidance finishes, the system will restart
the announcement.
. The volume can be adjusted when the
system announces the information.
ªVolume and Beeps settingsº
(page 2-19)
. The selected content is read out while the
vehicle is being driven, or if parked, you can
read the content on the display.
. Content settings can be made using the
NissanConnect
SMServices website. For
more details, refer to the NissanConnectSM
Services website or contact the NissanCon-
nectSMServices support line.
NissanConnectSMServices website:
For U.S.
www.nissanusa.com/connect
&RQGLWLRQ
5-14


> (GLW    0RGHO 1&*1-1 @

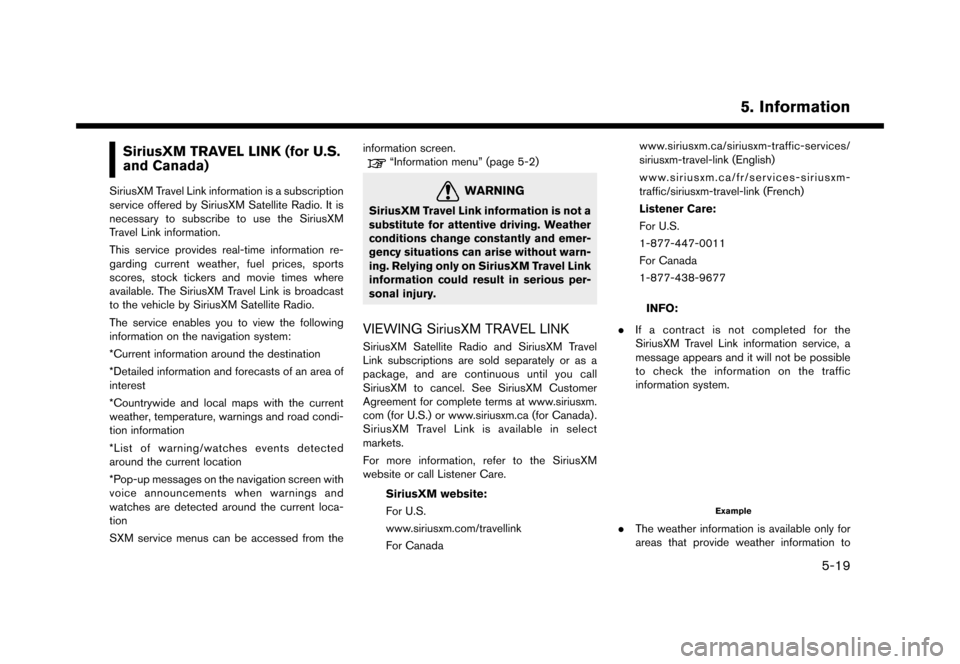

SiriusXM TRAVEL LINK (for U.S.
and Canada)
NCGNJN1402-20002703-B1B8-4022-8CC0-3025C4D3EEF9SiriusXM Travel Link information is a subscription
service offered by SiriusXM Satellite Radio. It is
necessary to subscribe to use the SiriusXM
Travel Link information.
This service provides real-time information re-
garding current weather, fuel prices, sports
scores, stock tickers and movie times where
available. The SiriusXM Travel Link is broadcast
to the vehicle by SiriusXM Satellite Radio.
The service enables you to view the following
information on the navigation system:
*Current information around the destination
*Detailed information and forecasts of an area of
interest
*Countrywide and local maps with the current
weather, temperature, warnings and road condi-
tion information
*List of warning/watches events detected
around the current location
*Pop-up messages on the navigation screen with
voice announcements when warnings and
watches are detected around the current loca-
tion
SXM service menus can be accessed from theinformation screen.
ªInformation menuº (page 5-2)
WARNING1&*1-1%'(%(&'%)SiriusXM Travel Link information is not a
substitute for attentive driving. Weather
conditions change constantly and emer-
gency situations can arise without warn-
ing. Relying only on SiriusXM Travel Link
information could result in serious per-
sonal injury.
VIEWING SiriusXM TRAVEL LINKNCGNJN1402-507BB217-A929-4212-B9B5-004348ACB884SiriusXM Satellite Radio and SiriusXM Travel
Link subscriptions are sold separately or as a
package, and are continuous until you call
SiriusXM to cancel. See SiriusXM Customer
Agreement for complete terms at www.siriusxm.
com (for U.S.) or www.siriusxm.ca (for Canada) .
SiriusXM Travel Link is available in select
markets.
For more information, refer to the SiriusXM
website or call Listener Care.
SiriusXM website:
For U.S.
www.siriusxm.com/travellink
For Canada www.siriusxm.ca/siriusxm-traffic-services/
siriusxm-travel-link (English)
www.siriusxm.ca/fr/services-siriusxm-
traffic/siriusxm-travel-link (French)
Listener Care:
For U.S.
1-877-447-0011
For Canada
1-877-438-9677
INFO:
. If a contract is not completed for the
SiriusXM Travel Link information service, a
message appears and it will not be possible
to check the information on the traffic
information system.
5GH0262X
Example
.The weather information is available only for
areas that provide weather information to
5. Information
&RQGLWLRQ
5-19


> (GLW    0RGHO 1&*1-1 @
6 Navigation
Safety information...
..................................................................... 6-3
Map operation ...
........................................................................\
.... 6-3
Displaying current vehicle location ...
................................. 6-3
Map types ...
........................................................................\
...... 6-3
Road color ...
........................................................................\
..... 6-6
Moving map ...
........................................................................\
.. 6-6
Changing scale of map ...
...................................................... 6-7
Changing map ...
...................................................................... 6-8
Map view settings ...
............................................................... 6-9
Setting information on map ...
............................................ 6-12
Traffic information on map (for U.S. and Canada) ...
..... 6-13
Map Menu screen ...
............................................................ 6-13
Setting destination ...
................................................................. 6-14
Basic operations ...
............................................................... 6-14
Finding address ...
................................................................ 6-17
Finding nearby place ...
....................................................... 6-18
Finding points of interest ...
................................................ 6-19
Setting home as destination ...
.......................................... 6-20
Searching from address book ...
....................................... 6-21
Searching from previous destinations ...
......................... 6-21
Searching by connecting to the internet (if
so equipped) ...
..................................................................... 6-22
Setting intersection ...
.......................................................... 6-22
Setting by phone number ...
............................................... 6-23
Setting city center ...
............................................................ 6-23 Setting freeway entrance/exit
...
...................................... 6-23
Setting from stored routes ...
........................................... 6-24
Setting point on map ...
..................................................... 6-24
Setting with NissanConnect
SMServices (if
so equipped) ...
................................................................... 6-25
Options before starting the route guidance ...
............ 6-26
Route guidance ...
...................................................................... 6-27
About route guidance ...
................................................... 6-27
Route menu ...
..................................................................... 6-33
Setting new destination ...
................................................ 6-36
Canceling Route ...
............................................................. 6-36
Confirming route ...
............................................................. 6-36
Editing route ...
.................................................................... 6-36
Recalculating route ...
........................................................ 6-39
Searching for detour route using traffic information
(for U.S. and Canada) ...
................................................... 6-39
Setting detour route ...
...................................................... 6-40
Route guidance settings ...
.............................................. 6-40
Viewing traffic information (for U.S. and Canada) ...
......... 6-46
Viewing available traffic information ...
........................... 6-46
Traffic information setting ...
............................................. 6-48
Storing a location/route ...
....................................................... 6-49
Storing location ...
.............................................................. 6-49
Storing route ...
................................................................... 6-50
Storing avoid area ...
.......................................................... 6-50
&RQGLWLRQ
