2016 NISSAN GT-R technical specifications


> (GLW    0RGHO 5' @

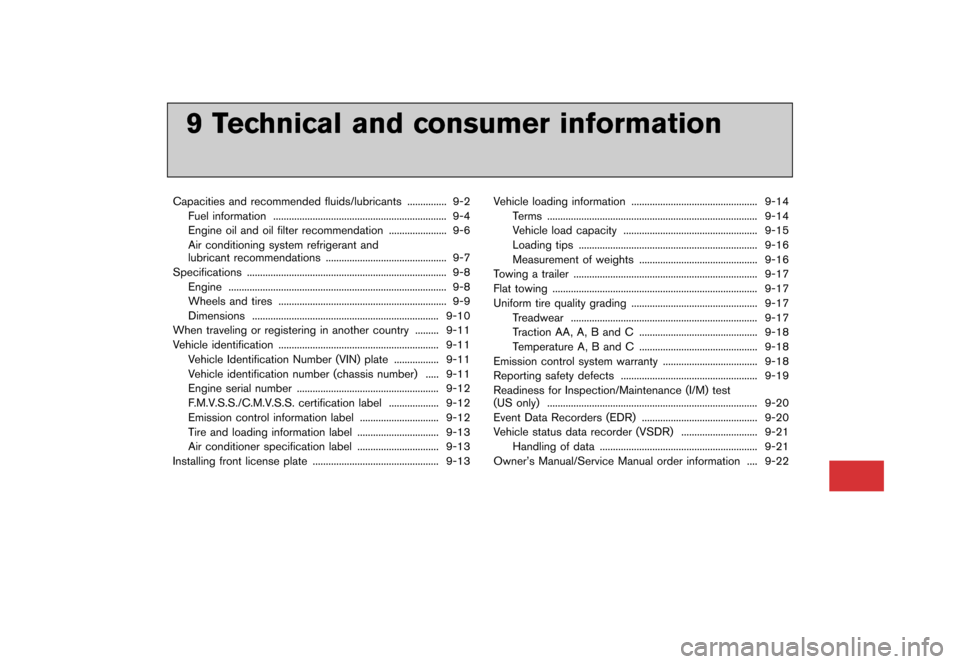

9 Technical and consumer information
Capacities and recommended fluids/lubricants............... 9-2
Fuel information .................................................................. 9-4
Engine oil and oil filter recommendation ...................... 9-6
Air conditioning system refrigerant and
lubricant recommendations .............................................. 9-7
Specifications ........................................................................\
.... 9-8
Engine ........................................................................\
........... 9-8
Wheels and tires ................................................................ 9-9
Dimensions ....................................................................... 9-10
When traveling or registering in another country ......... 9-11
Vehicle identification ............................................................. 9-11 Vehicle Identification Number (VIN) plate ................. 9-11
Vehicle identification number (chassis number) ..... 9-11
Engine serial number ...................................................... 9-12
F.M.V.S.S./C.M.V.S.S. certification label ................... 9-12
Emission control information label .............................. 9-12
Tire and loading information label ............................... 9-13
Air conditioner specification label ............................... 9-13
Installing front license plate ................................................ 9-13 Vehicle loading information ................................................ 9-14
Terms ........................................................................\
........ 9-14
Vehicle load capacity ................................................... 9-15
Loading tips .................................................................... 9-16
Measurement of weights ............................................. 9-16
Towing a trailer ...................................................................... 9-17
Flat towing ........................................................................\
...... 9-17
Uniform tire quality grading ................................................ 9-17 Treadwear ....................................................................... 9-17
Traction AA, A, B and C ............................................. 9-18
Temperature A, B and C ............................................. 9-18
Emission control system warranty .................................... 9-18
Reporting safety defects .................................................... 9-19
Readiness for Inspection/Maintenance (I/M) test
(US only) ........................................................................\
........ 9-20
Event Data Recorders (EDR) ............................................ 9-20
Vehicle status data recorder (VSDR) ............................. 9-21 Handling of data ............................................................ 9-21
Owner's Manual/Service Manual order information .... 9-22


> (GLW    0RGHO 5' @

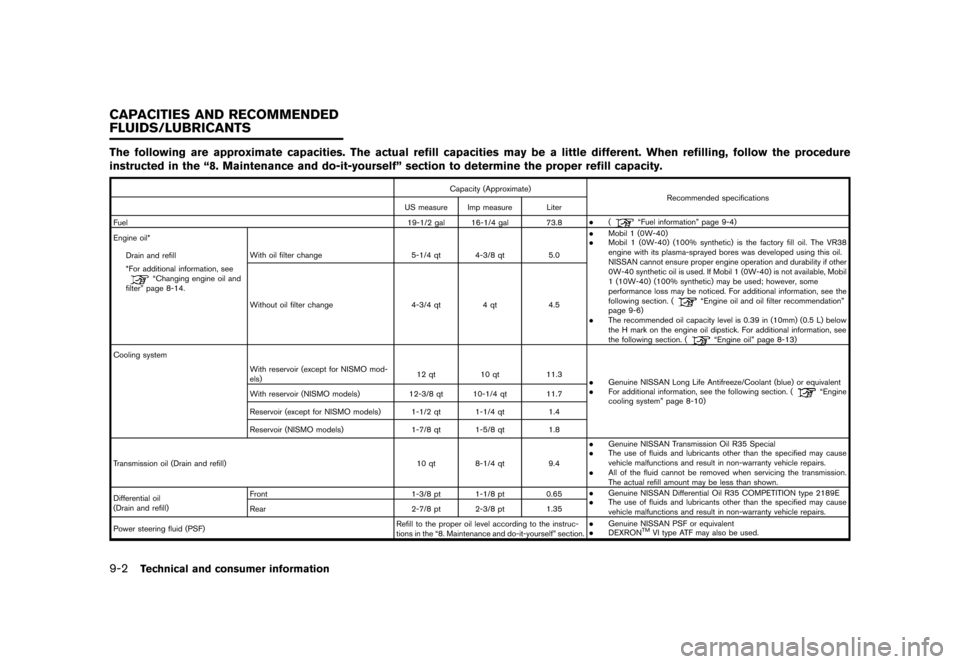

9-2Technical and consumer information
The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the ª8. Maintenance and do-it-yourselfº section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 19-1/2 gal 16-1/4 gal 73.8.
(
ªFuel informationº page 9-4)
Engine oil* .
Mobil 1 (0W-40)
. Mobil 1 (0W-40) (100% synthetic) is the factory fill oil. The VR38
engine with its plasma-sprayed bores was developed using this oil.
NISSAN cannot ensure proper engine operation and durability if other
0W-40 synthetic oil is used. If Mobil 1 (0W-40) is not available, Mobil
1 (10W-40) (100% synthetic) may be used; however, some
performance loss may be noticed. For additional information, see the
following section. (
ªEngine oil and oil filter recommendationº
page 9-6)
. The recommended oil capacity level is 0.39 in (10mm) (0.5 L) below
the H mark on the engine oil dipstick. For additional information, see
the following section. (
ªEngine oilº page 8-13)
Drain and refill
With oil filter change
5-1/4 qt 4-3/8 qt5.0
*For additional information, see
ªChanging engine oil and
filterº page 8-14.
Without oil filter change 4-3/4 qt4 qt4.5
Cooling system .Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
. For additional information, see the following section. (
ªEngine
cooling systemº page 8-10)
With reservoir (except for NISMO mod-
els)
12 qt
10 qt 11.3
With reservoir (NISMO models) 12-3/8 qt 10-1/4 qt 11.7
Reservoir (except for NISMO models) 1-1/2 qt 1-1/4 qt 1.4
Reservoir (NISMO models) 1-7/8 qt 1-5/8 qt1.8
Transmission oil (Drain and refill) 10 qt 8-1/4 qt9.4.
Genuine NISSAN Transmission Oil R35 Special
. The use of fluids and lubricants other than the specified may cause
vehicle malfunctions and result in non-warranty vehicle repairs.
. All of the fluid cannot be removed when servicing the transmission.
The actual refill amount may be less than shown.
Differential oil
(Drain and refill) Front
1-3/8 pt 1-1/8 pt0.65.
Genuine NISSAN Differential Oil R35 COMPETITION type 2189E
. The use of fluids and lubricants other than the specified may cause
vehicle malfunctions and result in non-warranty vehicle repairs.
Rear
2-7/8 pt 2-3/8 pt1.35
Power steering fluid (PSF) Refill to the proper oil level according to the instruc-
tions in the ª8. Maintenance and do-it-yourselfº section..
Genuine NISSAN PSF or equivalent
. DEXRON
TMVI type ATF may also be used.
CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS


> (GLW    0RGHO 5' @

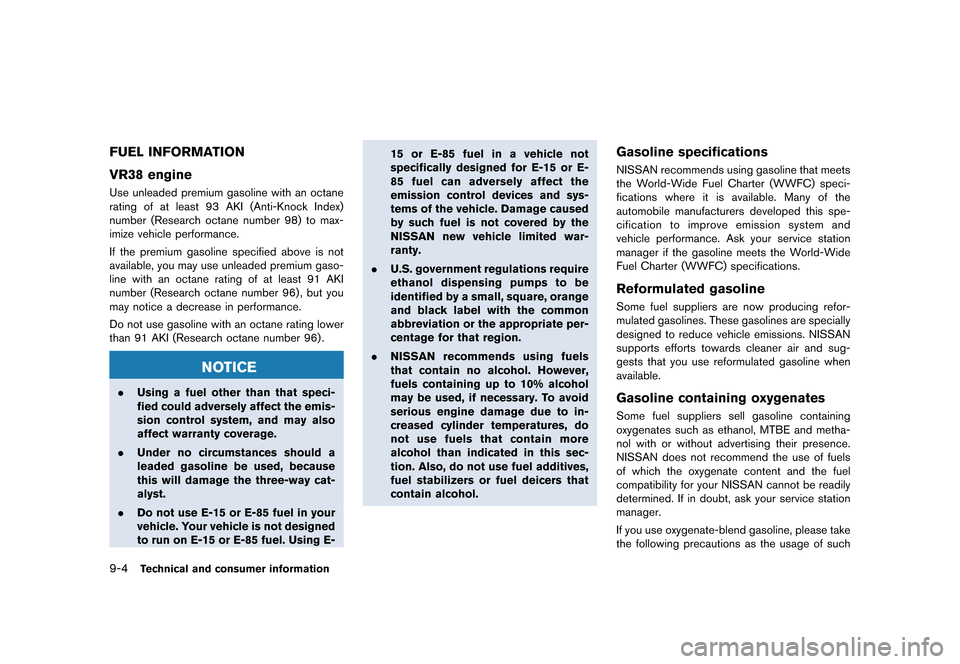

9-4Technical and consumer information
FUEL INFORMATION
VR38 engine
Use unleaded premium gasoline with an octane
rating of at least 93 AKI (Anti-Knock Index)
number (Research octane number 98) to max-
imize vehicle performance.
If the premium gasoline specified above is not
available, you may use unleaded premium gaso-
line with an octane rating of at least 91 AKI
number (Research octane number 96) , but you
may notice a decrease in performance.
Do not use gasoline with an octane rating lower
than 91 AKI (Research octane number 96) .
NOTICE
.Using a fuel other than that speci-
fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.
. Under no circumstances should a
leaded gasoline be used, because
this will damage the three-way cat-
alyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E- 15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.
. U.S. government regulations require
ethanol dispensing pumps to be
identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.
. NISSAN recommends using fuels
that contain no alcohol. However,
fuels containing up to 10% alcohol
may be used, if necessary. To avoid
serious engine damage due to in-
creased cylinder temperatures, do
not use fuels that contain more
alcohol than indicated in this sec-
tion. Also, do not use fuel additives,
fuel stabilizers or fuel deicers that
contain alcohol.
Gasoline specifications
NISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) speci-
fications where it is available. Many of the
automobile manufacturers developed this spe-
cification to improve emission system and
vehicle performance. Ask your service station
manager if the gasoline meets the World-Wide
Fuel Charter (WWFC) specifications.
Reformulated gasoline
Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.
Gasoline containing oxygenates
Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels
of which the oxygenate content and the fuel
compatibility for your NISSAN cannot be readily
determined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such


> (GLW    0RGHO 5' @

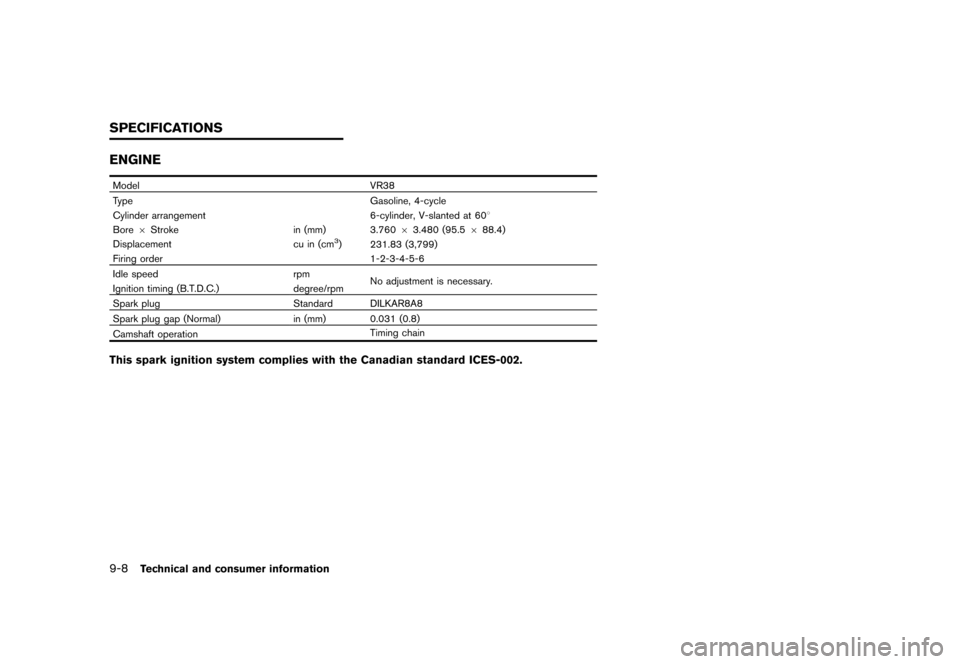

9-8Technical and consumer information
ENGINE
ModelVR38
Type Gasoline, 4-cycle
Cylinder arrangement 6-cylinder, V-slanted at 608
Bore 6Stroke in (mm) 3.76063.480 (95.5 688.4)
Displacement cu in (cm
3) 231.83 (3,799)
Firing order 1-2-3-4-5-6
Idle speed rpm
No adjustment is necessary.
Ignition timing (B.T.D.C.) degree/rpm
Spark plug Standard DILKAR8A8
Spark plug gap (Normal) in (mm) 0.031 (0.8)
Camshaft operation Timing chain
This spark ignition system complies with the Canadian standard ICES-002.
SPECIFICATIONS


> (GLW    0RGHO 5' @

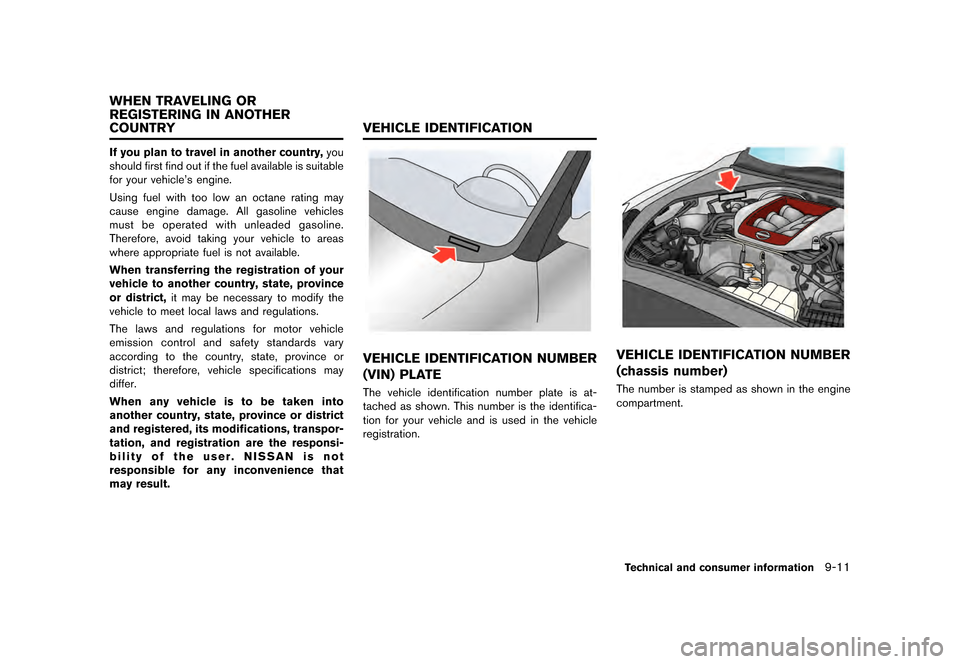

If you plan to travel in another country,you
should first find out if the fuel available is suitable
for your vehicle's engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(chassis number)
The number is stamped as shown in the engine
compartment.
Technical and consumer information9-11
WHEN TRAVELING OR
REGISTERING IN ANOTHER
COUNTRY VEHICLE IDENTIFICATION
