2016 MITSUBISHI OUTLANDER III Owners Manual

Storage spaces
Features and controls 5-229
5
N00551501298
To open, pull the lever (A).
There is a card holder on the inside of the glove compartment.
N00551601244
To open the console box,
lift the release lever
(A) and raise the lid. The floor console box can also be used as anarm rest.
Glove compartment
WA R N I N G An open glove compartment door can cause a serious injury or death to the frontpassenger in an accident, even if the pas- senger is wearing his/her seat belt. Always keep the glove comp
artment door closed
when driving.NOTE
 When the lights are illuminated with the light switch in the “ ”, “ ”or “AUTO” position (vehicles with
automatic light con-
trol), the glove compartment light illumi- nates.
Card holder
Floor console box B- Tissue holder C- Pen holderD- Tray
BK0223400US.book 229 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Storage spaces 5-230 Features and controls
5
N00552301046
There is a luggage floor box under the lug- gage floor board. To use the box, raise the luggage floor board.
The luggage floor board can be folded at the indicated positions (A). 1. Fold the second seatback forward. Refer to “Folding the second row seats” on page 4-13. 2. Insert your hand in the gap (B) and foldthe board as illustrated.
3. To access the center of the luggage floor box (front), insert your hand in the gap (C) and raise the board as illustrated.
NOTE
 The USB input terminal is located in the floor console box (if
so equipped). For
details, refer to “USB input terminal” onpage 5-215.
Luggage floor box 5 persons 1- Luggage floor box (front) 2- Luggage floor box (center) 3- Luggage floor box (rear)
4- Luggage floor board (front)5- Luggage floor board (rear)
To access the lu
ggage floor box
(front)
*: Front of the vehicle
BK0223400US.book 230 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Storage spaces
Features and controls 5-231
5
1. Raise the luggage floor board (rear) by pulling up on the strap (D). 2. Insert your hand in the gap (E) and raise the board as illustrated.
N00502601073
To open, push the lid.

To access the lu
ggage floor box
(center)
7 persons Sunglasses holder
(if so equipped)
CAUTION Do not use for storing objects heavier than typical sunglasses.There is risk that the holder lid will openaccidentally, resulting in an injury due to falling objects.NOTE
 Some types of sungla
sses cannot fit snugly in
the holder.Before storing, check
the shape to make sure
they fit.
BK0223400US.book 231 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Cup holders 5-232 Features and controls
5
N00527301417
The cup holder is de
signed for holding cups
or drink-cans secu
rely in its holes.
The cup holder is located in front of the floor console.
N00537001185
This cup holder is located in the second rowseat arm rest. Pull the arm rest down to use the cup holder.
N00532401038
The cup holder is located at the right side of the third row seat.
Cup holders For the front seat
For the second row seat For the third row seat
BK0223400US.book 232 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Bottle holders
Features and controls 5-233
5
N00527301420
There are bottle holders located on both sides of front and rear doors.
N00528301153
1. Pull out the spring-loaded cover and insertit in the mounting grooves (A) on both sides.
2. Remove the cover from the mounting grooves, and the cover
will be rolled back
into the retracted position.
Bottle holders
CAUTION Drink beverages while
driving your vehicle
is distracting and ca
n cause an accident.
Vibration and shaking while driving may cause beverages to spill.
Be very careful, as
spilling hot beverage
s could cause burns.
NOTE
Do not store cup or drink can in the bottle holder.  Make sure all lids are tightly closed when storing beverages that
are in plastic bottles,
etc.
 Some beverages may not
be stored, depend-
ing on the size and shape of the plastic bot-tles, etc.
Cargo area cover (if so equipped)
WA R N I N G For vehicles equipped with third row seat, when the third row seat
is in use, always
remove the cargo area cover to avoid seri-ous injury or deat
h at an accident.
To u s e
NOTE
NOTE
Do not place anything on the cargo area cover.
BK0223400US.book 233 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Cargo area cover (if so equipped) 5-234 Features and controls
5
There are 2 installation holes (B) for the cargo area cover. 1. Move one of the sliders (C) toward the inside of the vehicle, and fit the protrud- ing portion (D) into the installation hole that is to be used. Move the oppositeslider in the same fashion.
2. After changing the pos
ition, gently shake
the entire cargo area cover to make sure itis securely retained.
1. Roll back the cargo area cover. 2. Move one of the sliders (C) toward the inside of the vehicle
and lift it to remove
the cargo area cover.
To refit the cargo area cover, follow the removal steps in reverse. Gently shake theentire cargo area cover after fitting it to make sure it is securely retained.
To change position
NOTE
 If the second row seat touches the cargo area cover, move the cargo area cover rearward.The cargo area cover c
ould be damaged if it
supports the seatback of the second row seats.
To remove To r e f i t
BK0223400US.book 234 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

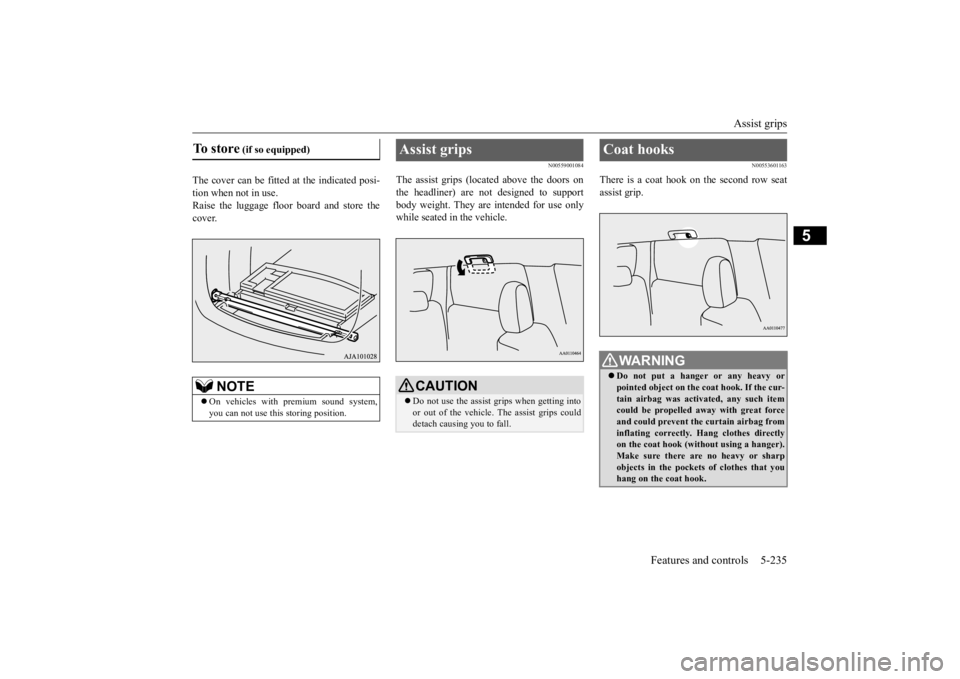

Assist grips
Features and controls 5-235
5
The cover can be fitted at the indicated posi- tion when not in use.Raise the luggage floor
board and store the
cover.
N00559001084
The assist grips (located above the doors onthe headliner) are not designed to support body weight. They are intended for use onlywhile seated in the vehicle.
N00553601163
There is a coat hook on the second row seat assist grip.
To store
(if so equipped)
NOTE
 On vehicles with premium sound system, you can not use this storing position.
Assist grips
CAUTION Do not use the assist grips when getting into or out of the vehicle. The assist grips could detach causing you to fall.
Coat hooks
WA R N I N G Do not put a hanger or any heavy or pointed object on the
coat hook. If the cur-
tain airbag was activated, any such item could be propelled away with great force and could prevent the curtain airbag frominflating correctly. Hang clothes directly on the coat hook (without using a hanger). Make sure there ar
e no heavy or sharp
objects in the pocket
s of clothes that you
hang on the coat hook.
BK0223400US.book 235 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

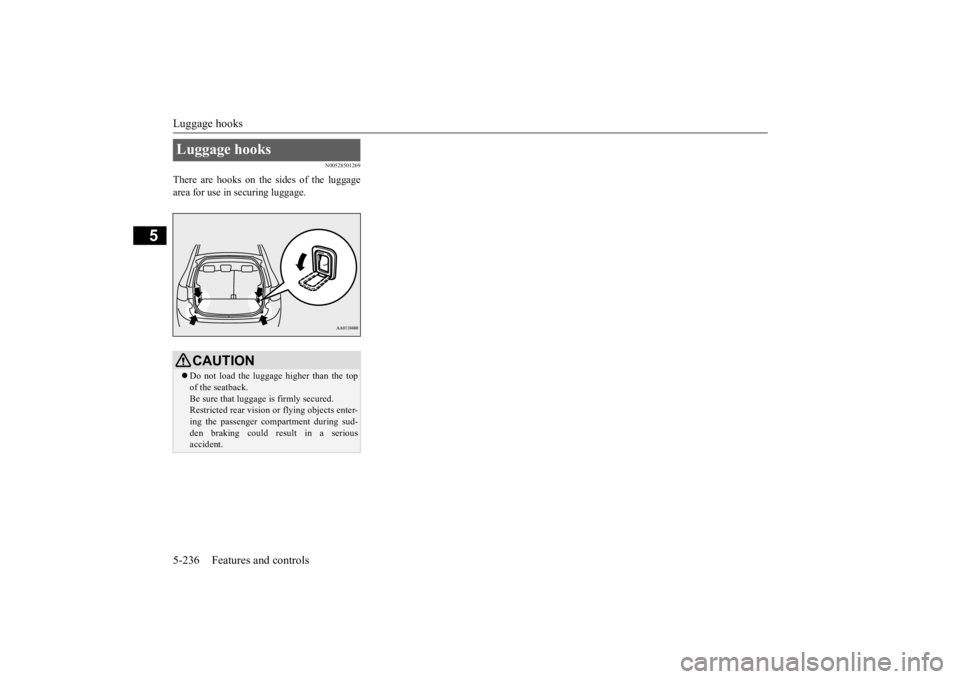

Luggage hooks 5-236 Features and controls
5
N00528501269
There are hooks on the sides of the luggage area for use in securing luggage.Luggage hooks
CAUTION Do not load the luggage higher than the top of the seatback.Be sure that luggage
is firmly secured.
Restricted rear vision or
flying objects enter-
ing the passenger compartment during sud-den braking could result in a serious accident.
