Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-165
5

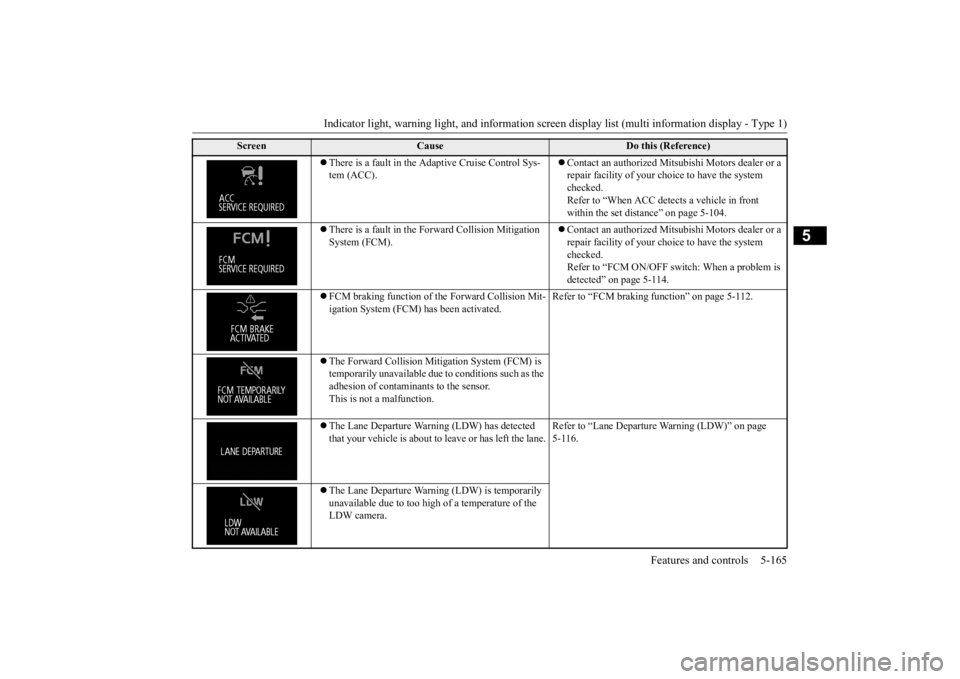

 There is a fault in the Adaptive Cruise Control Sys- tem (ACC).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choi
ce to have the system
checked. Refer to “When ACC dete
cts a vehicle in front
within the set dist
ance” on page 5-104.
 There is a fault in the Forward Collision Mitigation System (FCM).
 Contact an authorized Mitsubishi Motors dealer or a repair facility of your choi
ce to have the system
checked.Refer to “FCM ON/OFF switch: When a problem is detected” on page 5-114.
 FCM braking function of the Forward Collision Mit- igation System (FCM) has been activated.
Refer to “FCM braking
function” on page 5-112.
 The Forward Collision Mitig
ation System (FCM) is
temporarily unavailable due
to conditions such as the
adhesion of contaminants to the sensor. This is not a malfunction.  The Lane Departure Warn
ing (LDW) has detected
that your vehicle is about to
leave or has left the lane.
Refer to “Lane Departure
Warning (LDW)” on page
5-116.
 The Lane Departure Warni
ng (LDW) is temporarily
unavailable due to too high of a temperature of the LDW camera.
Screen
Cause
Do this (Reference)
BK0223400US.book 165 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Indicator light, warning light, and information screen display list (multi information display - Type 1) 5-166 Features and controls
5
N00579100026
On vehicles equipped
with Mitsubishi Multi-
Communication System, the following infor- mation on navigation will
be displayed when
guidance location such as junction and desti- nation is approached af
ter you set the destina-
tion and started the route guidance.
 There is a fault in the
Lane Departure Warning
(LDW).
 Contact an authorized Mits
ubishi Motors dealer or a
repair facility of your c
hoice to have the system
checked. Refer to “Lane Departure
Warning (LDW)” on page
5-116.
Screen
Cause
Do this (Reference)
Navigation information display
(if
so equipped)1- Guidance display
Shows the direction of vehicle travel and the guidance location.
2- Remaining distance display
Shows the distance to the location where the guidance is displayed.
Direction of vehicle travel (Example) Destination Ferry terminal Tollbooth Intermediate destination (Example)
NOTE
 Please read this section and also the separate owner’s manual for Mi
tsubishi Multi-Com-
munication System.
BK0223400US.book 166 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-167
5
N00558201308
The operation status of each syst
em is displayed on the informat
ion screen. For furthe
r details, refer to
the appropriate page
for each system.
Other interrupt displays
Screen
System operation status
Reference
 When starting the engine, the selector lever is in a positi
on other than the “P”
(PARK) or the “N” (NEUTRAL) posi-tion, or you pressed the engine switch without depressing the brake pedal.
 Place the selector lever in the “P” (PARK) position, depress and hold the brake pedal with the right foot, and then press the engine switch to start the engine. Refer to “Starting and stopping the engine” on page 5-24.
Screen
System operation status
Reference
 When “4WD ECO” drive mode is selected with the drive mode selector.
Refer to “Electronica
lly controlled 4WD
system” on page 5-79.
 When “4WD AUTO” mode is selected with the drive mode selector.  When “4WD LOCK” mode is selected with the drive mode selector.
BK0223400US.book 167 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Indicator light, warning light, and information screen display list (multi information display - Type 1) 5-168 Features and controls
5

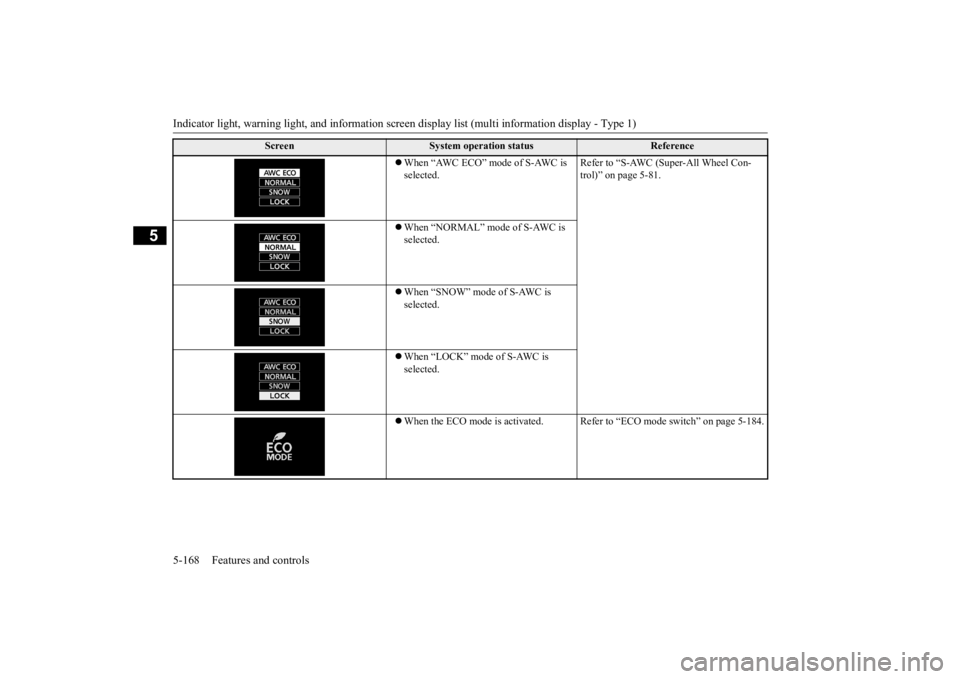

 When “AWC ECO” mode of S-AWC is selected.
Refer to “S-AWC (Super-All Wheel Con- trol)” on page 5-81.
 When “NORMAL” mode of S-AWC is selected.  When “SNOW” mode of S-AWC is selected.  When “LOCK” mode of S-AWC is selected.  When the ECO mode is ac
tivated. Refer to “ECO m
ode switch” on page 5-184.
Screen
System operation status
Reference
BK0223400US.book 168 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Indicator light, warning light, and information screen display list (multi information display - Type 1)
Features and controls 5-169
5
This informs you that a periodic inspection is due.

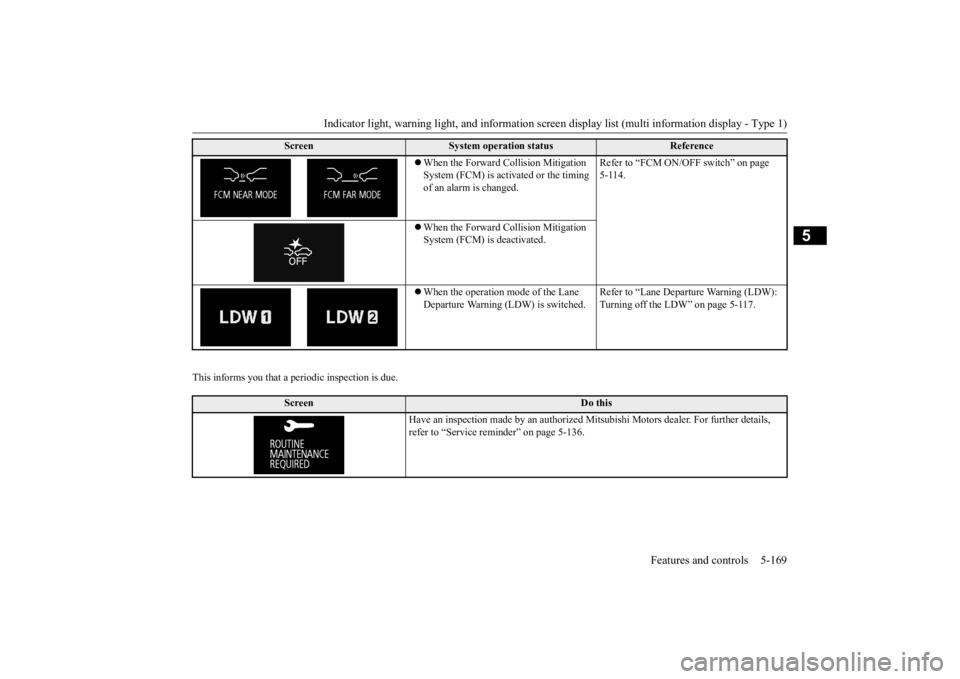

 When the Forward Collision Mitigation System (FCM) is acti
vated or the timing
of an alarm is changed.
Refer to “FCM ON/OFF switch” on page 5-114.
 When the Forward Collision Mitigation System (FCM) is deactivated.  When the operation mode of the Lane Departure Warning (LDW) is switched.
Refer to “Lane Departure Warning (LDW): Turning off the LDW” on page 5-117.
Screen
Do this
Have an inspection made by an authorized Mi
tsubishi Motors dealer
. For further details,
refer to “Service remin
der” on page 5-136.
Screen
System operation status
Reference
BK0223400US.book 169 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Indicator light, warning light, and information screen display list (multi information display - Type 1) 5-170 Features and controls
5

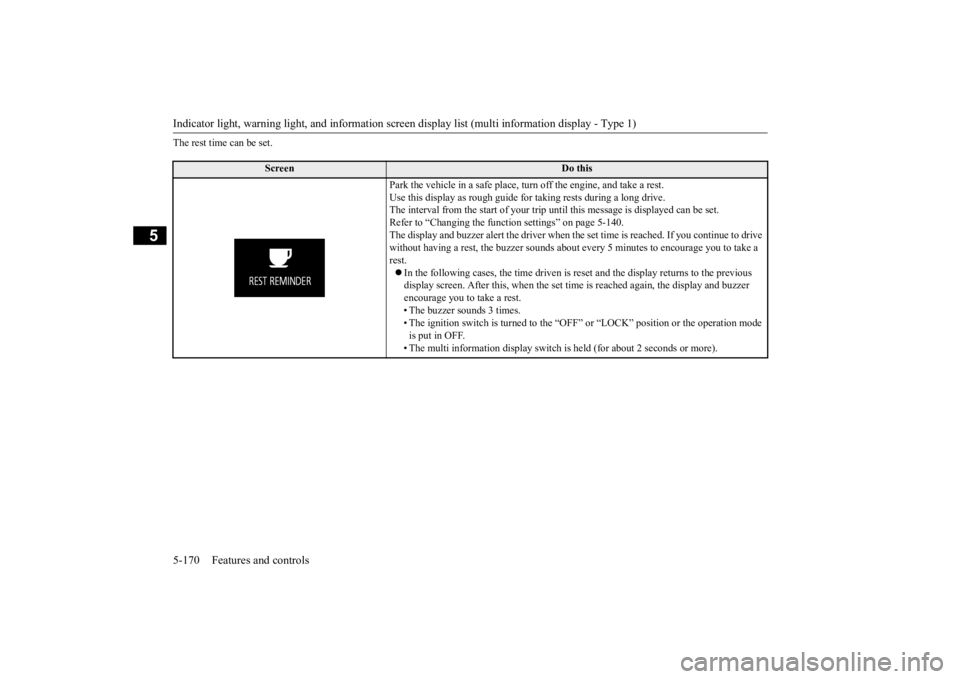

The rest time can be set.
Screen
Do this
Park the vehicle in a safe place, tu
rn off the engine,
and take a rest.
Use this display as rough guide
for taking rests during a long drive.
The interval from the start of your trip
until this message is
displayed can be set.
Refer to “Changing the function settings” on page 5-140. The display and buzzer alert the driver when th
e set time is reached.
If you continue to drive
without having a rest, the buzzer sounds about
every 5 minutes to encourage you to take a
rest.  In the following cases, the time driven is reset and the display returns to the previous display screen. After this, when the set time
is reached again,
the display and buzzer
encourage you to take a rest. • The buzzer sounds 3 times.• The ignition switch is turned to the “OFF”
or “LOCK” position or the operation mode
is put in OFF. • The multi information display switch is
held (for about 2 seconds or more).
BK0223400US.book 170 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Indicator and warning light package (multi information display - Type 2)
Features and controls 5-171
5
N00519801891
Indicator and warning light package (mu
lti information display - Type 2)
1- Position indicator
 P. 5-172
2- Front fog light indicator (if so
equipped)
 P. 5-172
3- Turn signal indicators/hazard warning
lights
 P. 5-172
4- Cruise control indicator
 P. 5-96
5- Door-ajar warning light
 P. 5-175
6- For details, refer to “Steering wheel
lock” on page 5-23. (if so equipped)
7- For details, refer to “Warning activa-
tion” on page 5-20. (if so equipped)
8- Electric power stee
ring system warning
light
 P. 5 - 9 3
9- 4WD ECO mode indicator (if so
equipped)
 P.5-79
10- 4WD LOCK mode indicator (if so
equipped)
 P.5-79
11- LED headlight warning light (if so
equipped)
 P.5-180
12- High beam indicator
 P. 5-172
13- ECO mode indicator
 P.5-184
14- ECO Drive Assist
 P. 5-172
15- Oil pressure warning light
 P. 5-174
16- Charging system warning light
 P. 5-174
17- High coolant temperature warning light
(red)
 P. 5-175
18- Low coolant temp
erature indicator
(blue)
 P. 5-172
19- Active stability control (ASC) indicator
 P. 5-95
20- Active stability control (ASC) OFF
indicator
 P. 5-95
21- Anti-lock braking system warning light
 P. 5-92
22- Supplemental Restra
int System (SRS)
warning light
 P. 4 - 3 9
23- Engine malfuncti
on indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
 P. 5-173
BK0223400US.book 171 ページ ２０１５年２月１３日　金曜日　午後１２時１５分

Indicators 5-172 Features and controls
5
N00519900127 N00520000216
The arrows will flash in time with the corre- sponding exterior turn signals when the turnsignal lever is used. Both arrows will flash
when the hazard warn-
ing flasher swit
ch is pressed.
N00520100086
A blue light comes on when the headlights are on high beam.
N00520200175
This indicator comes on while the front foglights are on.
N00551300026
This indicator light illuminates while the position lights are on.
N00575601020
This indicator comes on in blue while thecoolant temperature is low.
N00579200030
This function displays
how fuel-efficiently
you are driving under different driving condi- tions. The ECO drive assist di
splay will change as
follows if you do fuel-efficient driving using the accelerator in a way well matched with the vehicle speed.
24- Seat belt remi
nder/warning light
 P. 4-22
25- Tire pressure moni
toring system warn-
ing light
 P. 5-120
26- Brake warning light
 P. 5-173
27- Multi information display
 P. 5-146
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on wi
thout flashing, check
for a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator
Front fog light indicator
(if so
equipped)Position indicator Low coolant temperature indi- cator - blue (Vehicle equipped with the multi information dis- play - Type 2)
NOTE
 When the indicator goes out, this should be used as a rough indication of when the heat-ing starts working.
ECO Drive Assist (Vehicle equipped with the multi infor-mation display - Type 2)
NOTE
 The ECO drive assist is displayed only when vehicle is driven with
the selector lever in
the “D” (DRIVE) positi
on or when vehicle is
driven in the sport mode (for vehicles equipped with sportroni
c steering wheel pad-
dle shifter).
ECO drive level Low High
BK0223400US.book 172 ページ ２０１５年２月１３日　金曜日　午後１２時１５分
